2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S

Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S
Click image for full size
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 02
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 03
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 04
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 05
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 06
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 07
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 08
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 09
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 10
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 11
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 12
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 13
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 14
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 15
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 16
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 17
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 18
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 19
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 20
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 21
Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 22 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 23 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 24 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 25 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 26 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 27 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 28 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 29 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 30 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 31 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 32 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 33 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 34 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 35 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 36 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 37 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 38 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 39 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 40 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 41 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 42 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 43 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 44 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 45 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 46 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 47 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 48 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 49 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 50 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 51 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 52 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 53 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 54 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 55 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 56 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 57 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 58 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 59 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 60 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 61 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 62 Image of 2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S 63
Get This Item
This item is out of stock Request Similar Item
SKU
225-2
Item Name
2 Sq Ft Artisan Rototherm Thin Film Evaporator, 316L S/S
Category
Evaporators
Manufacturer
Artisan
Condition
Unused
Location
Cleveland, OH

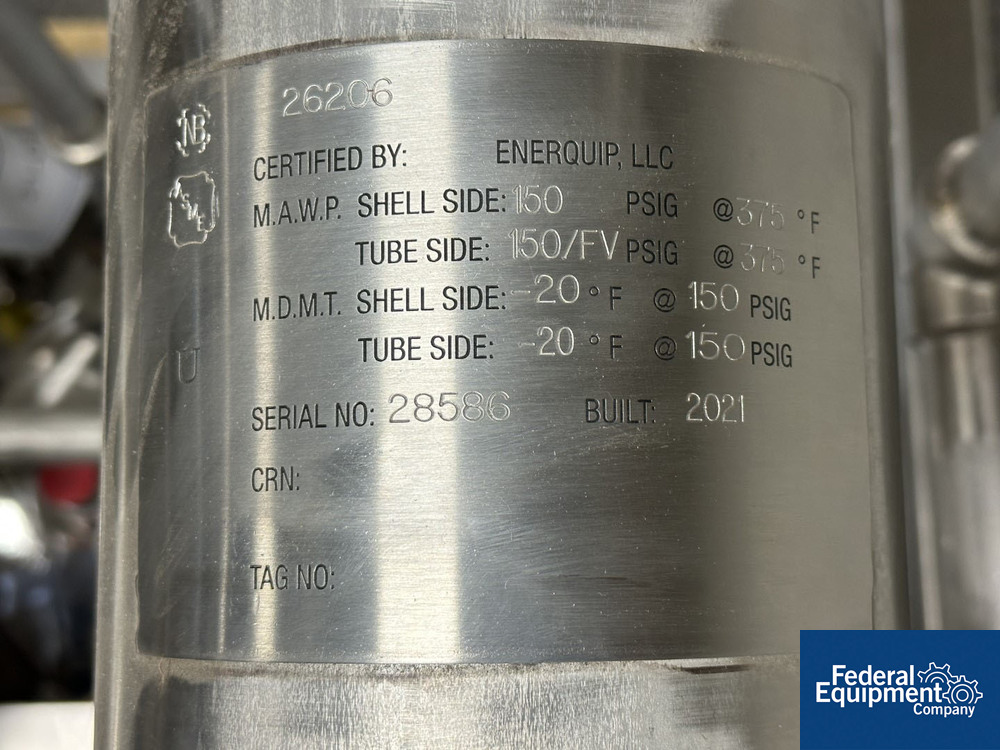

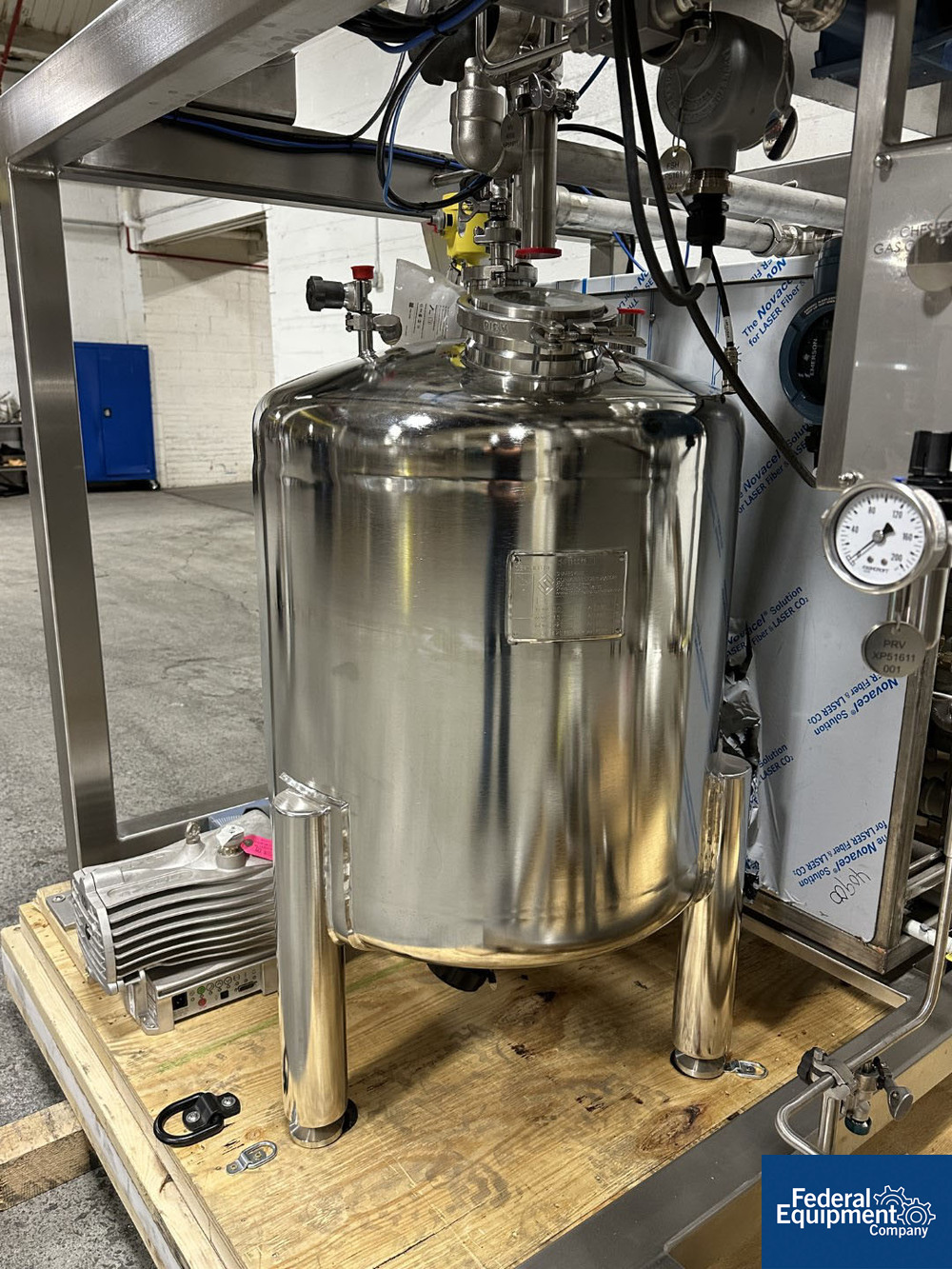

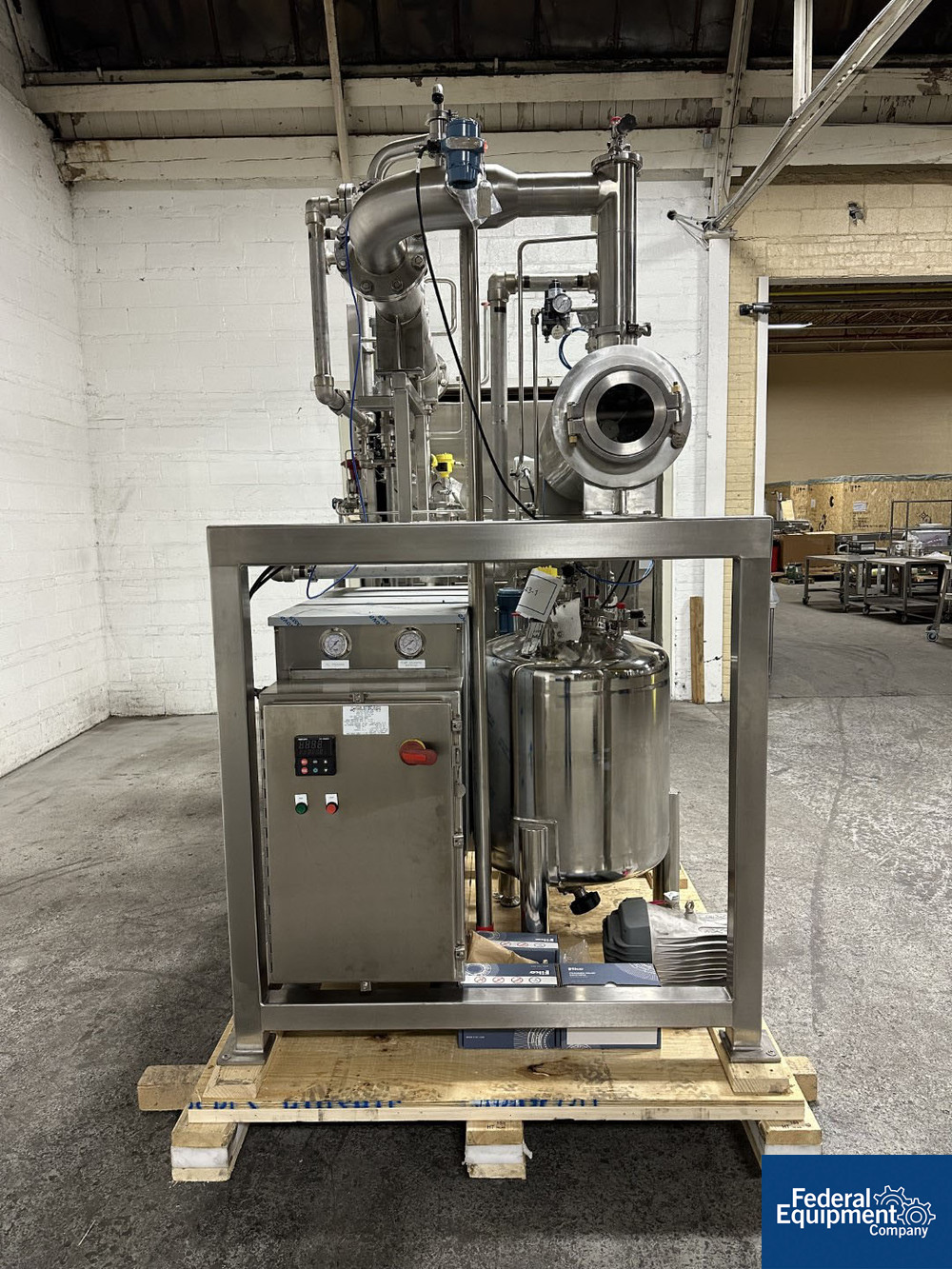

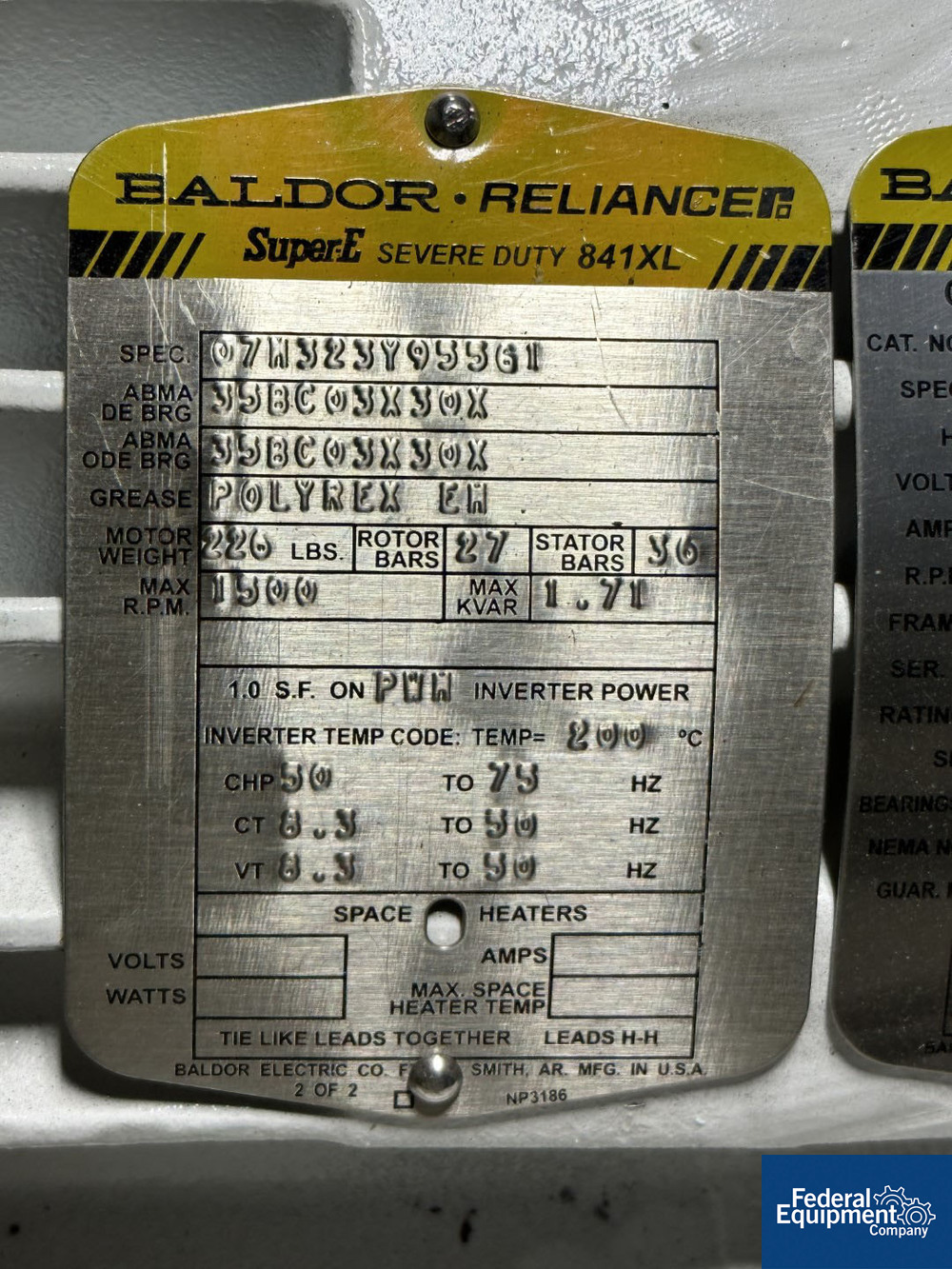

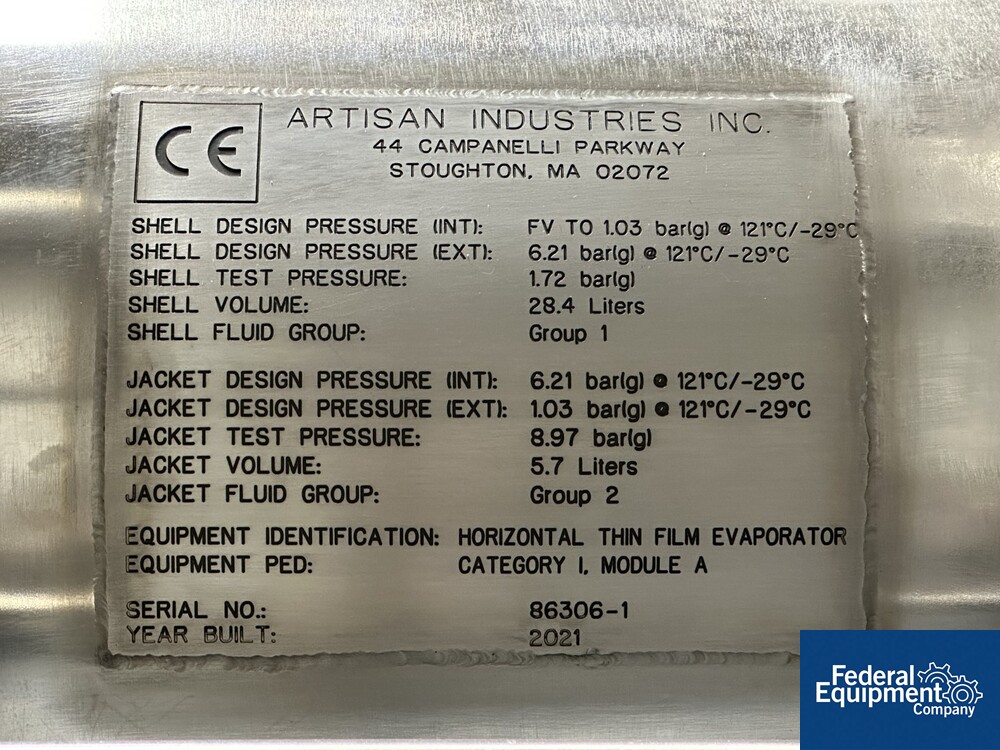

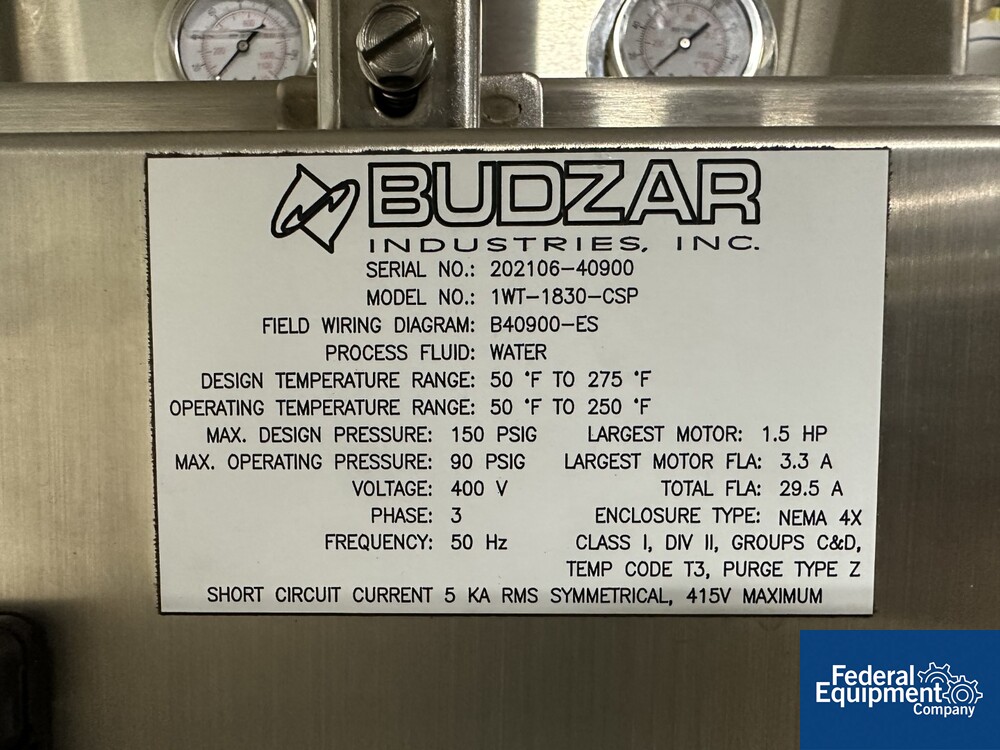

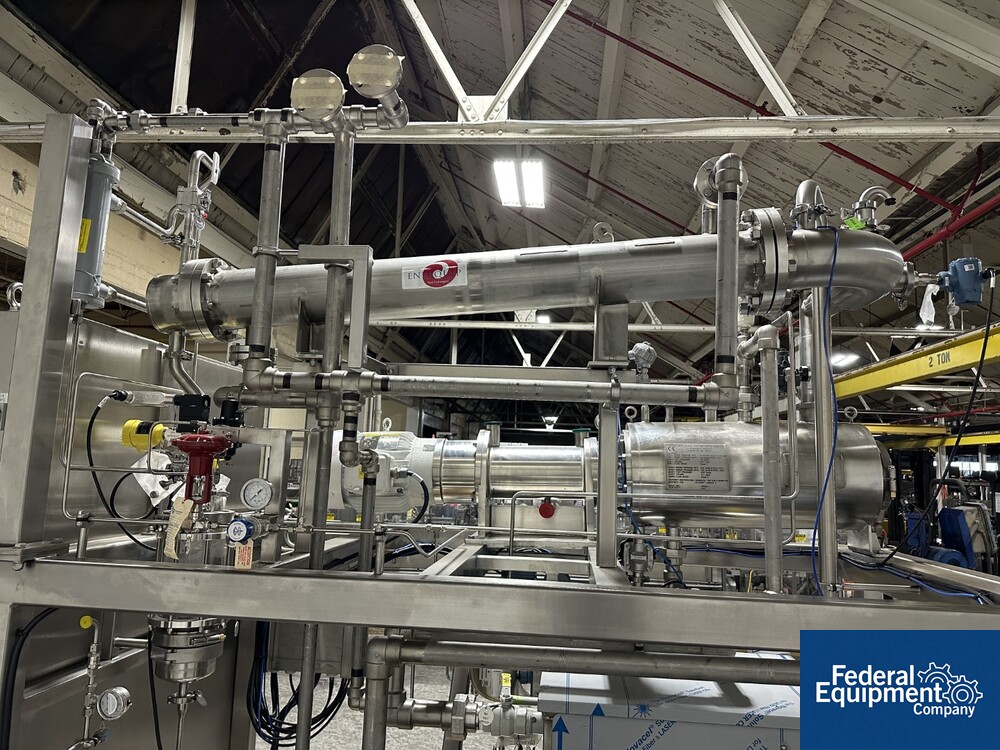

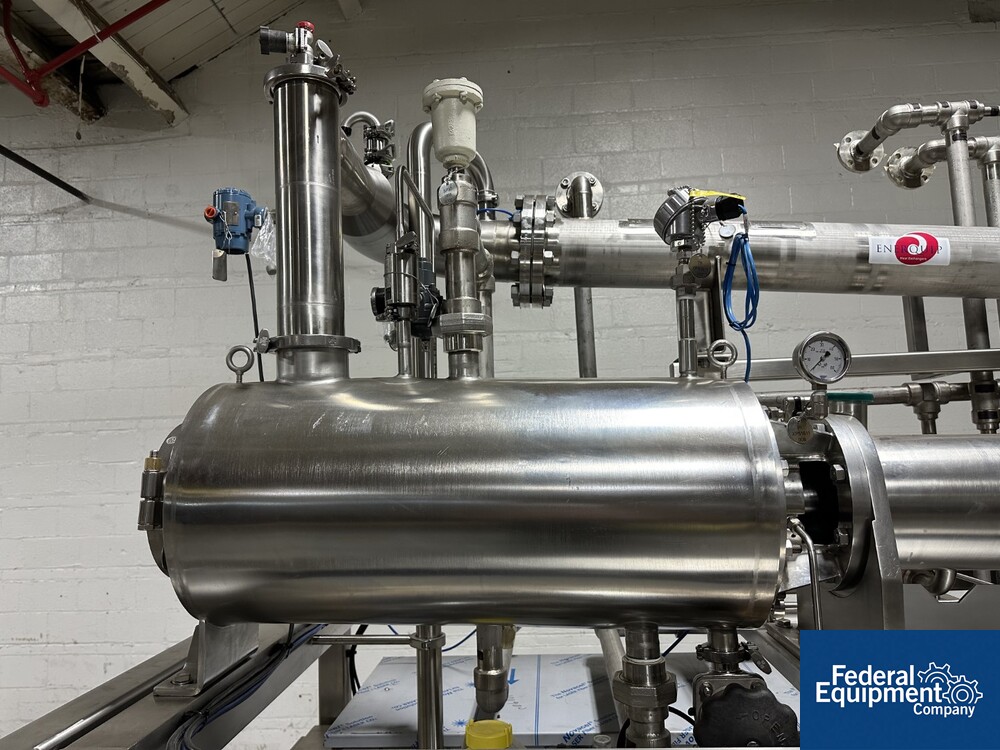

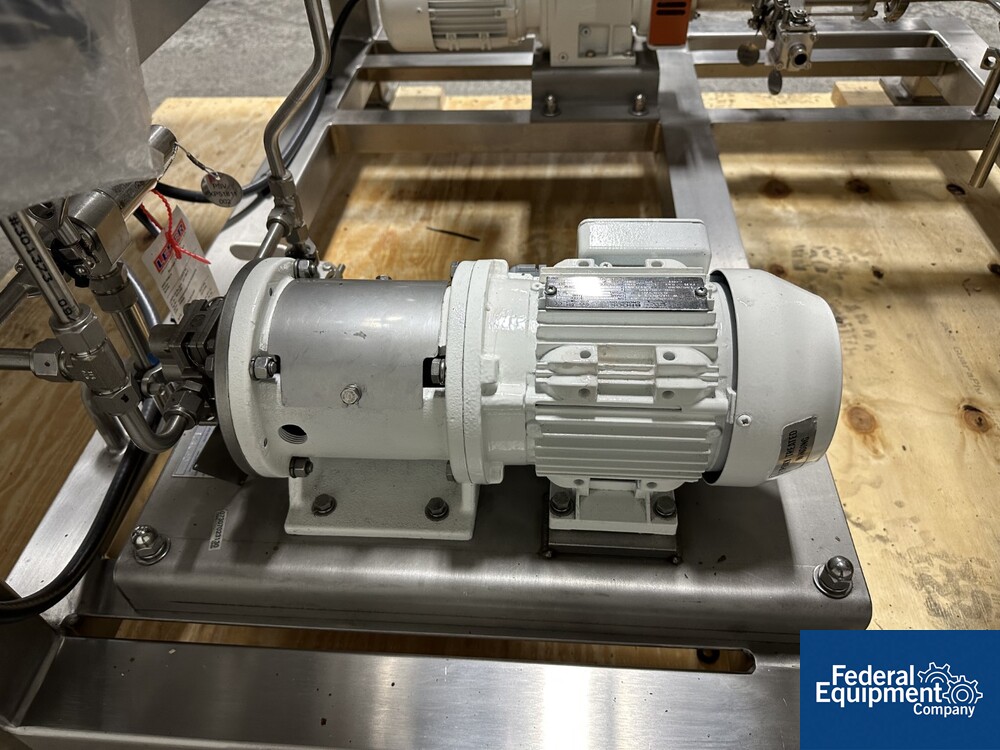

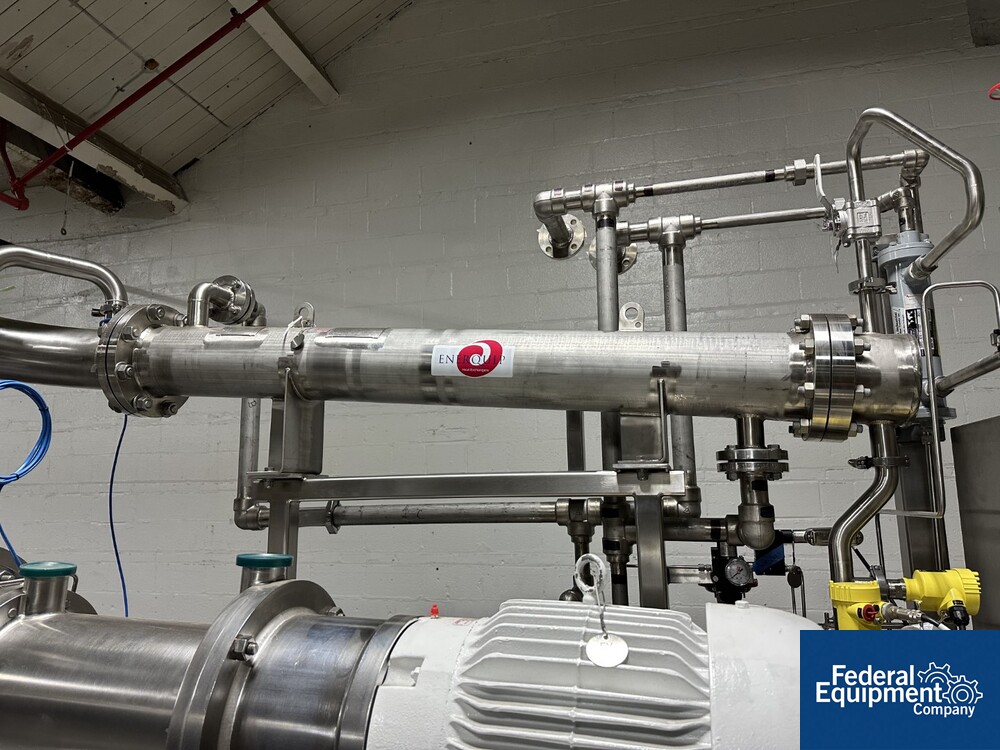

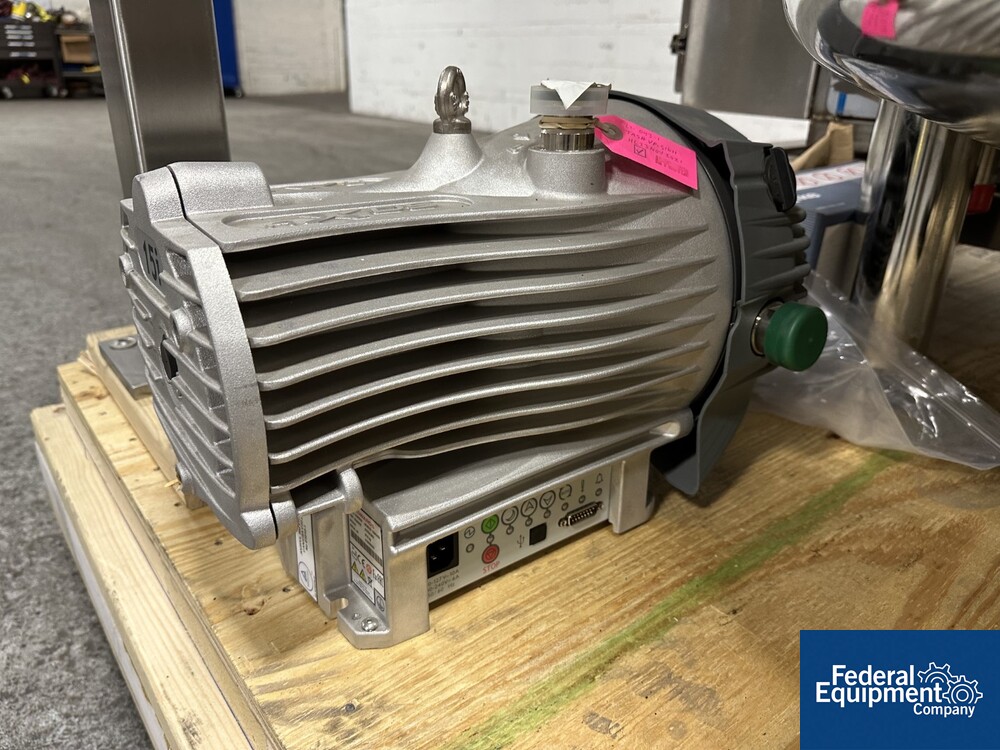

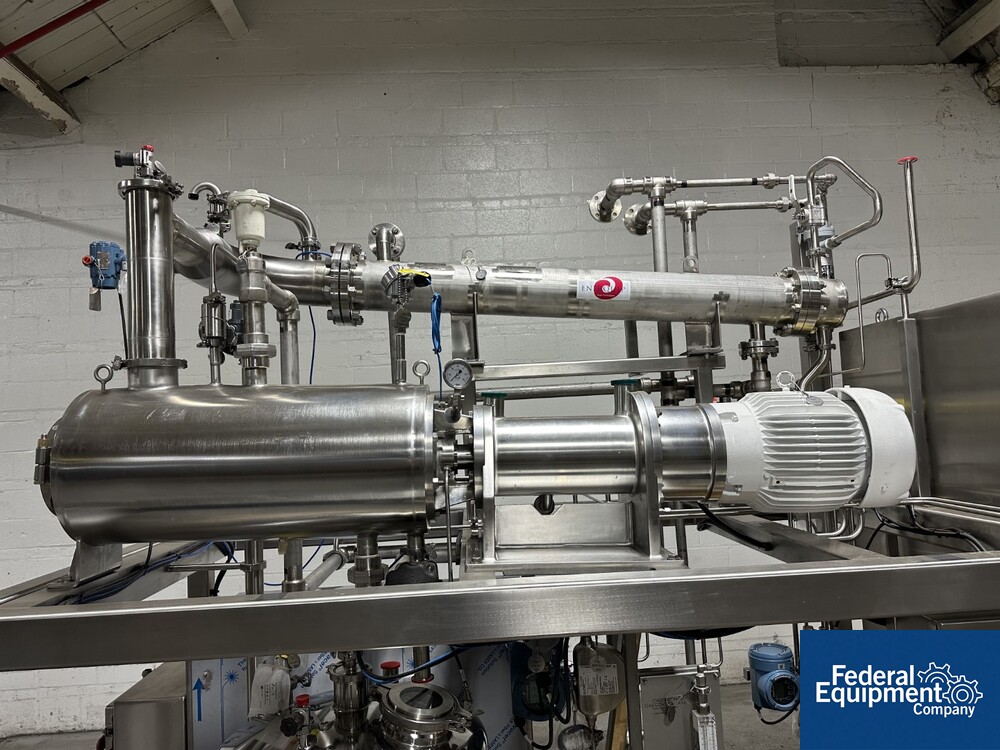

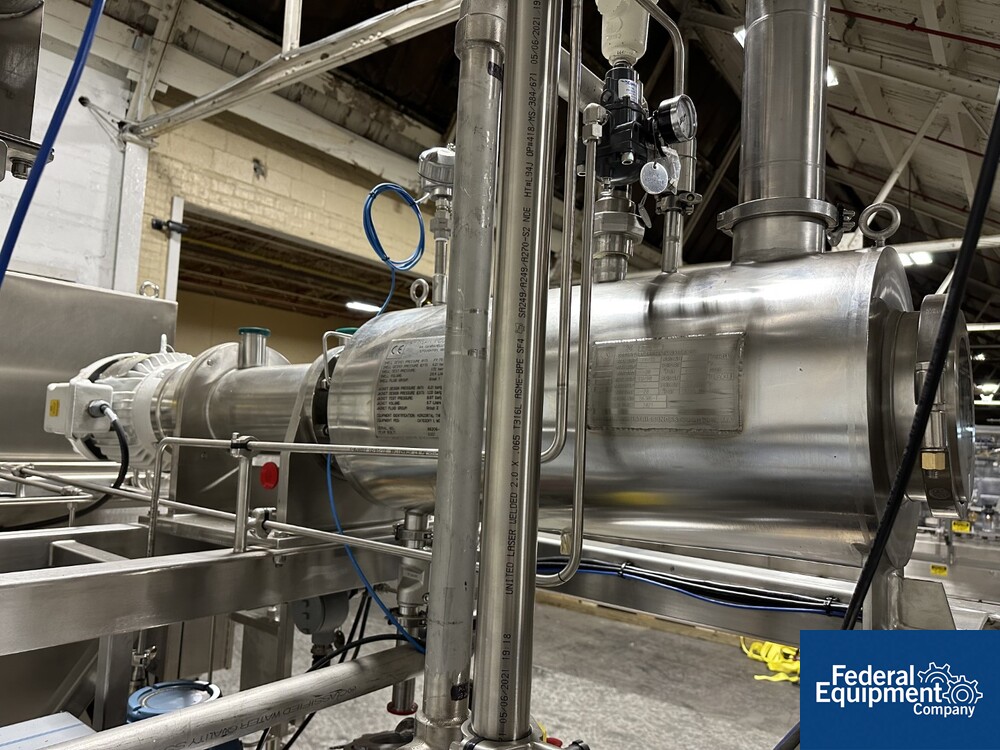

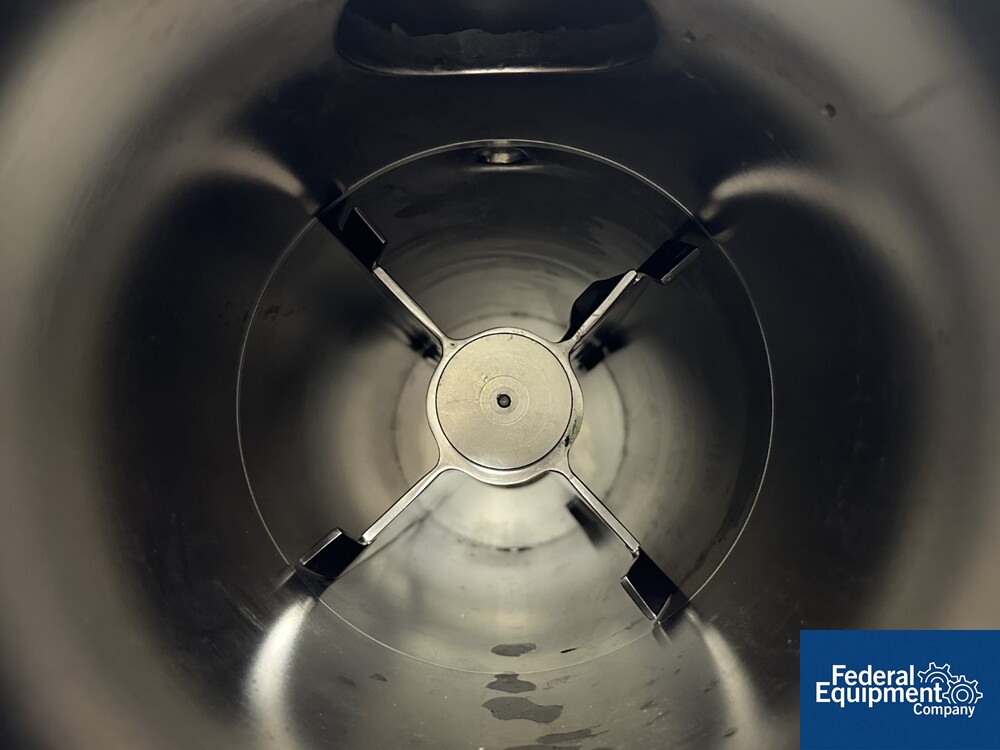

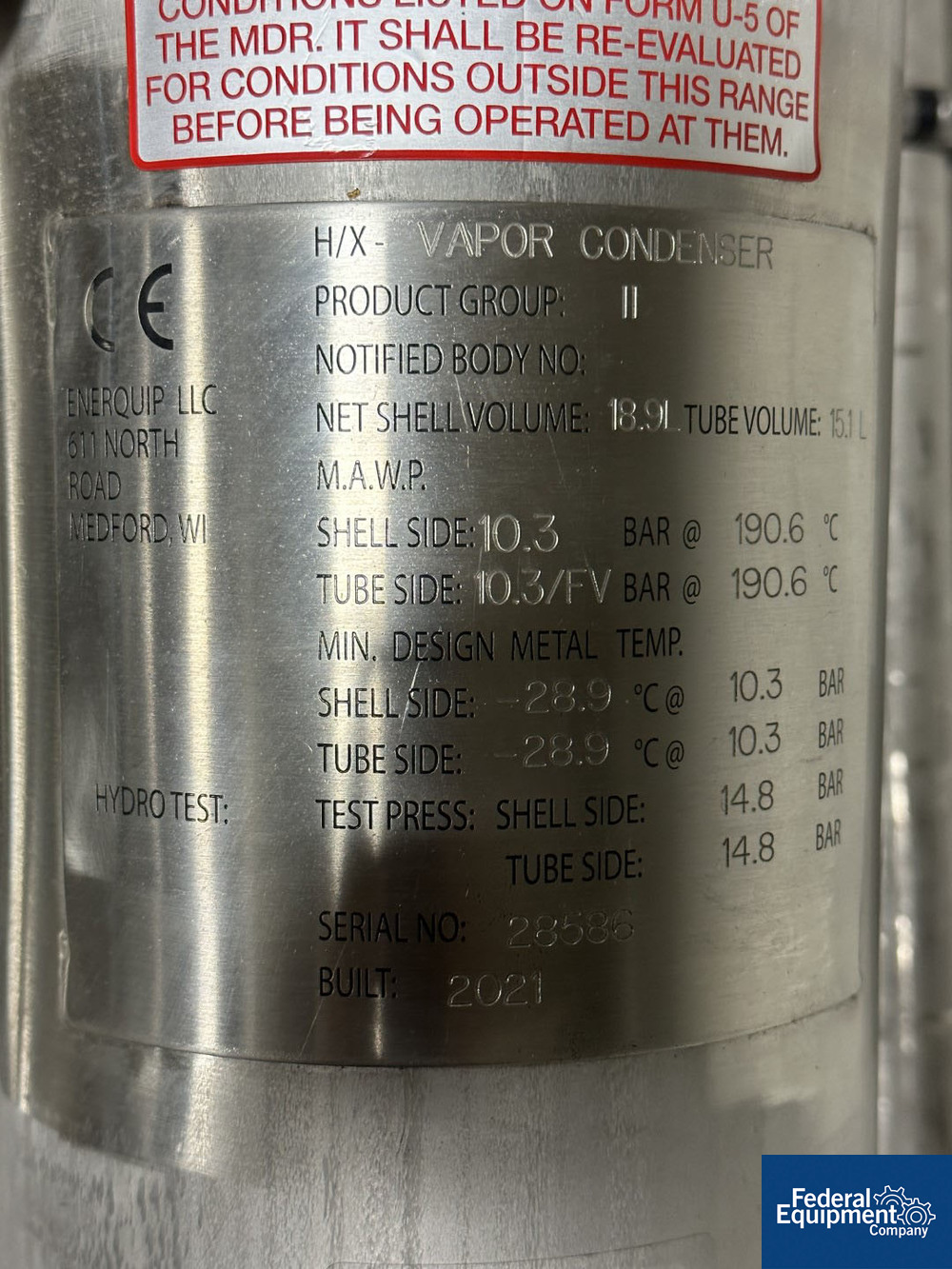

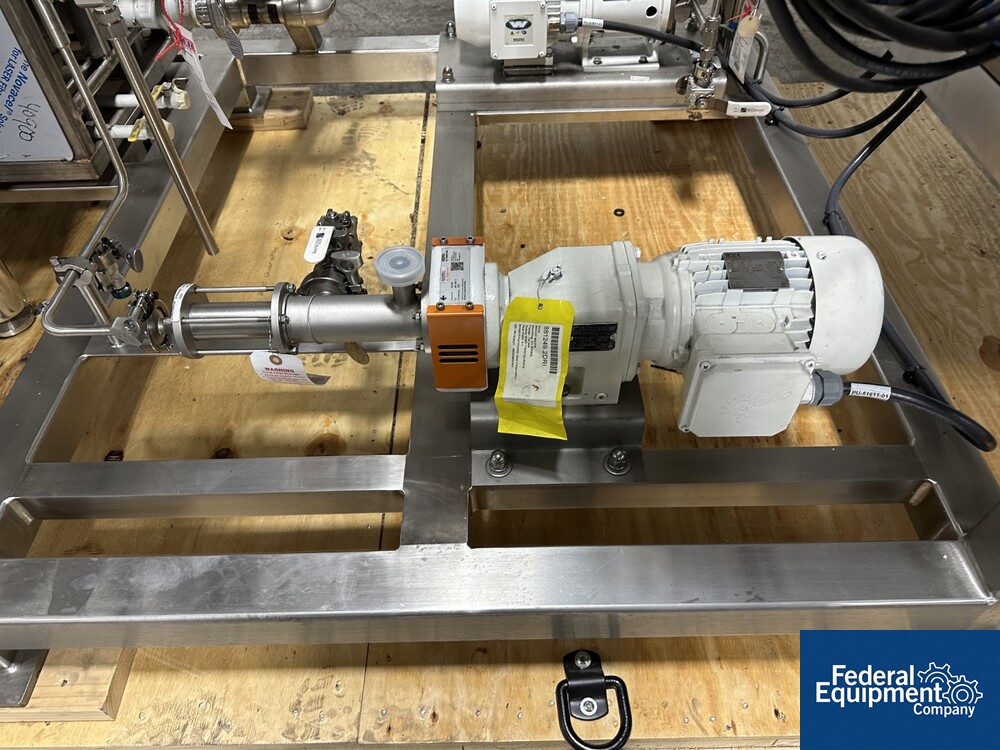

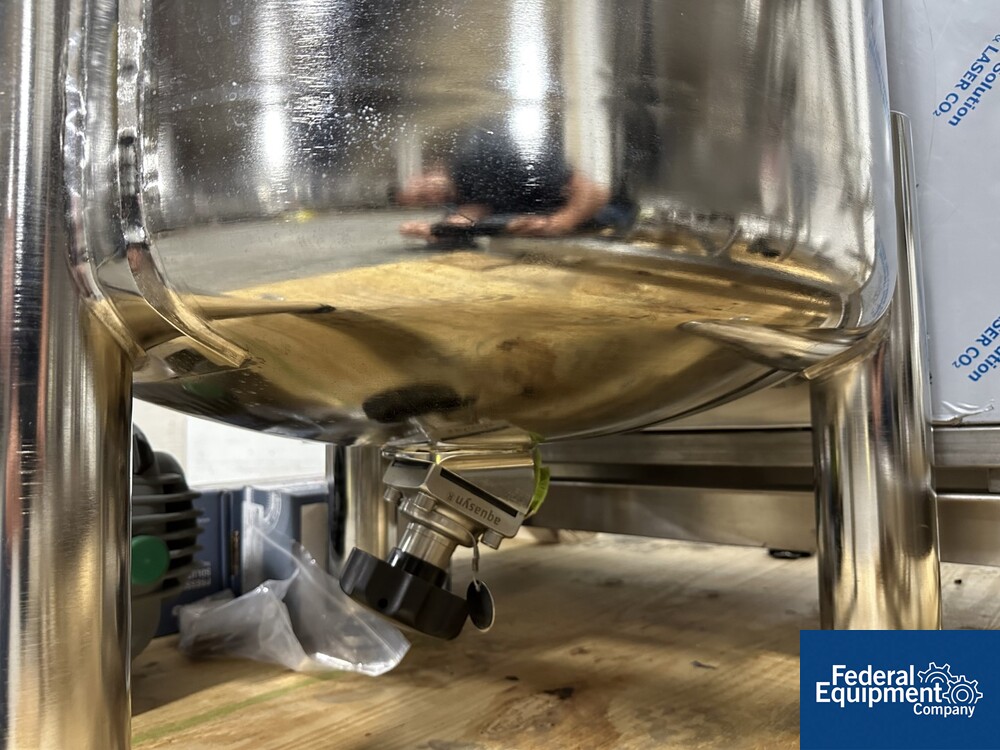

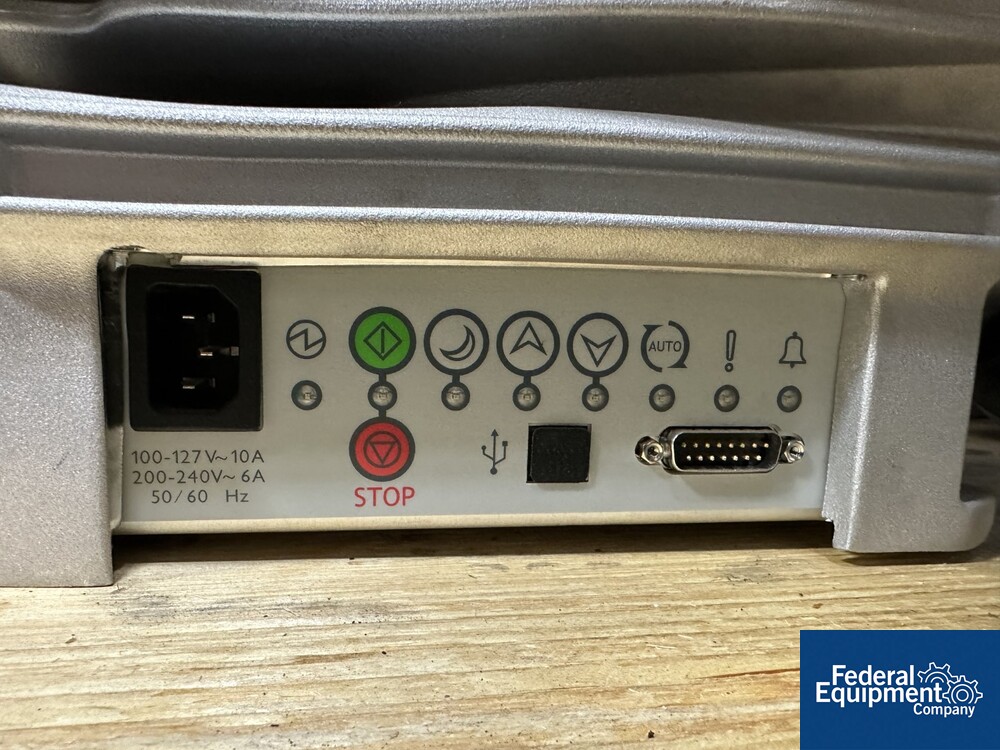

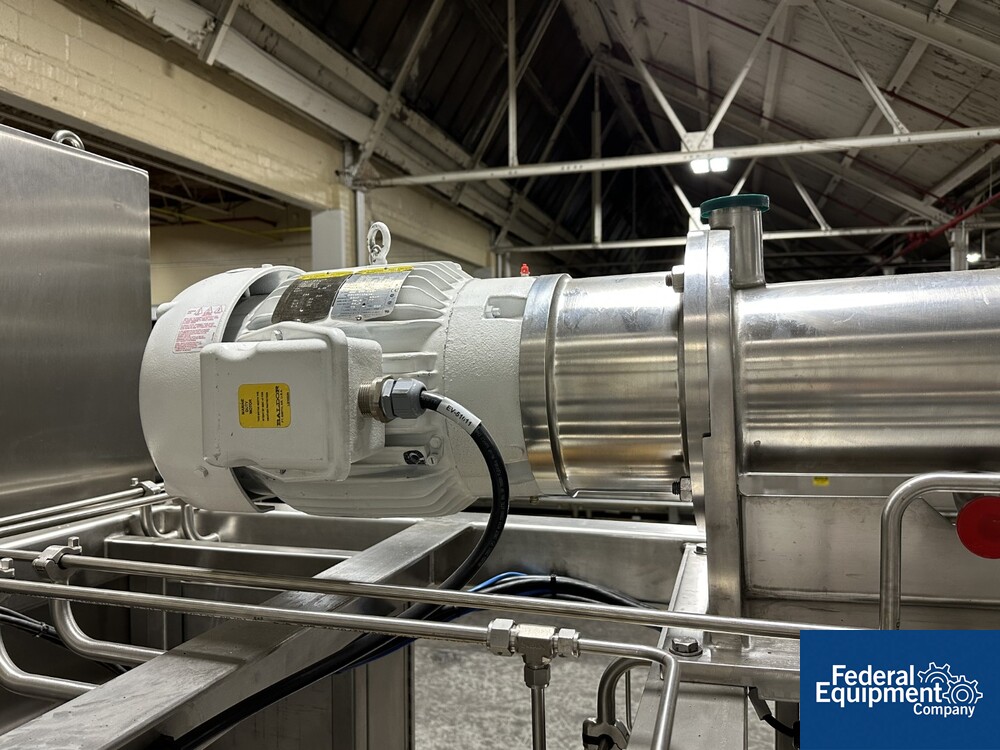

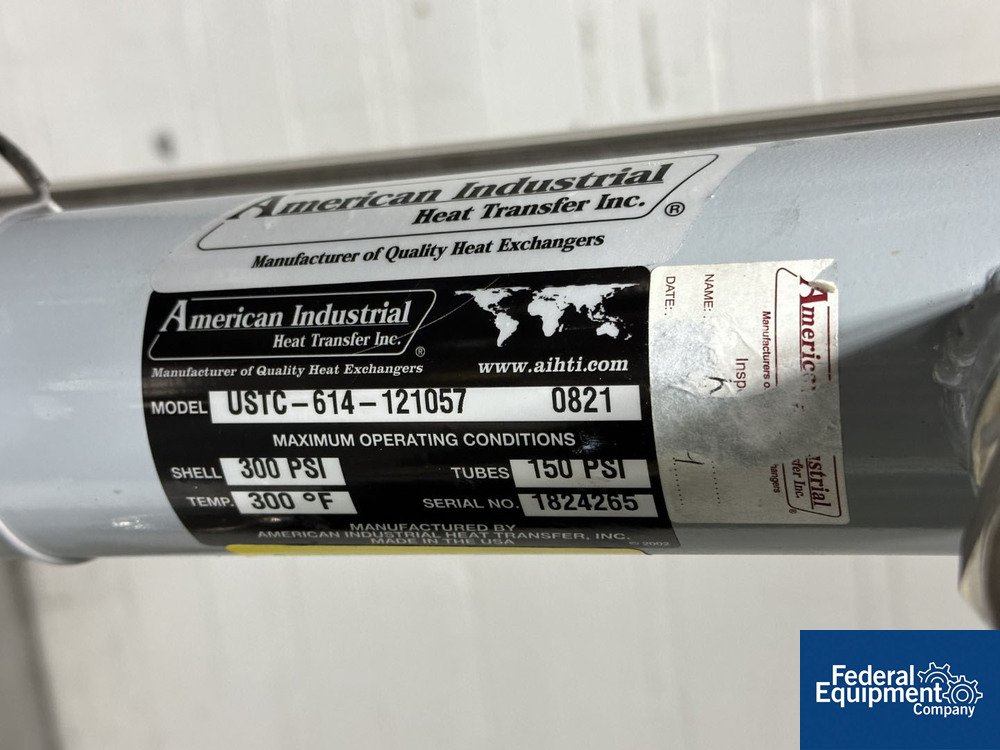

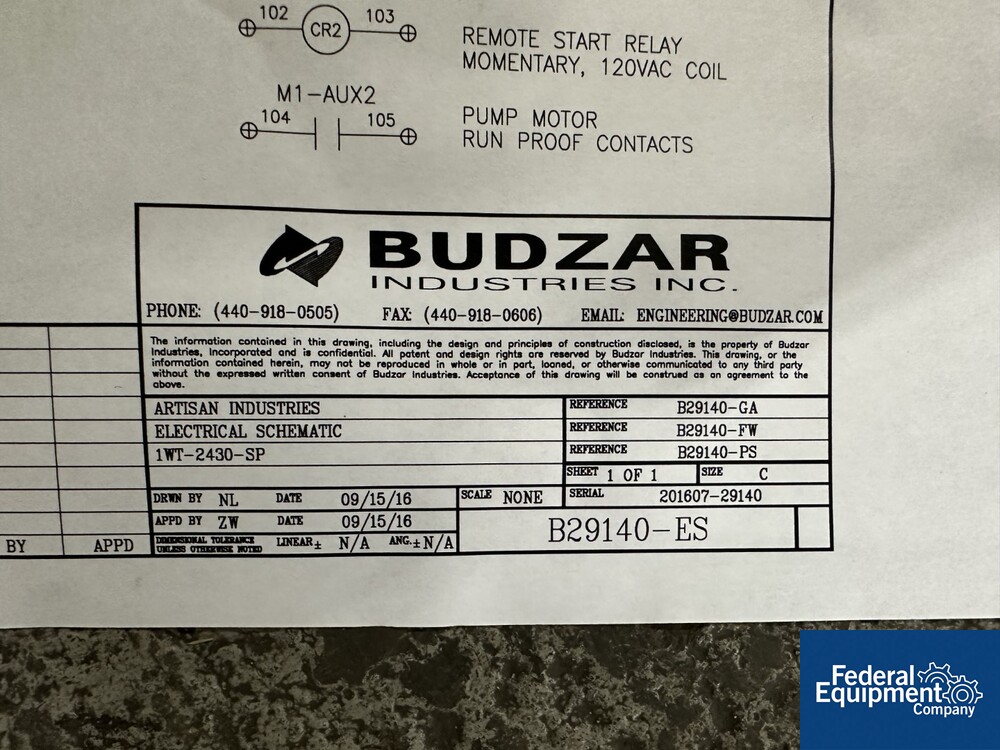

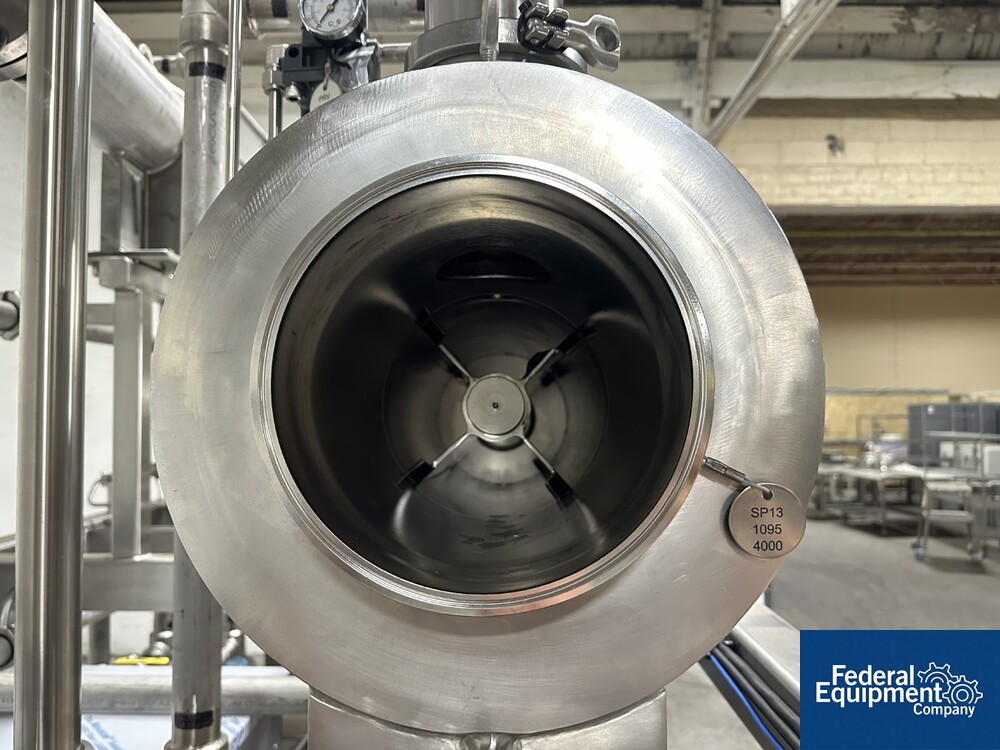

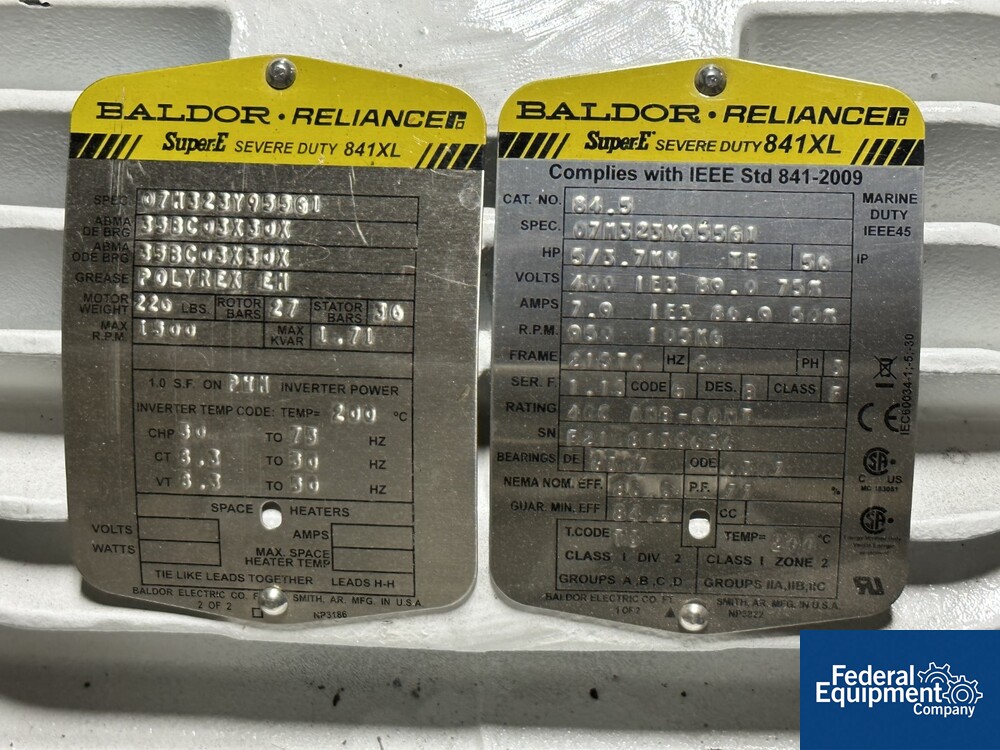

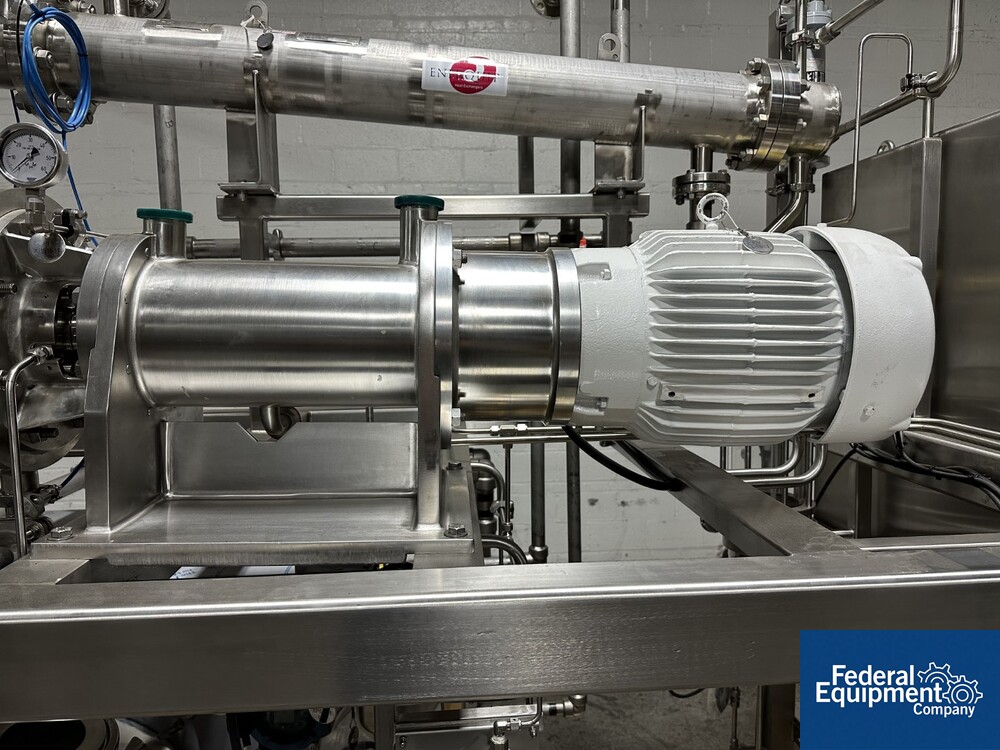

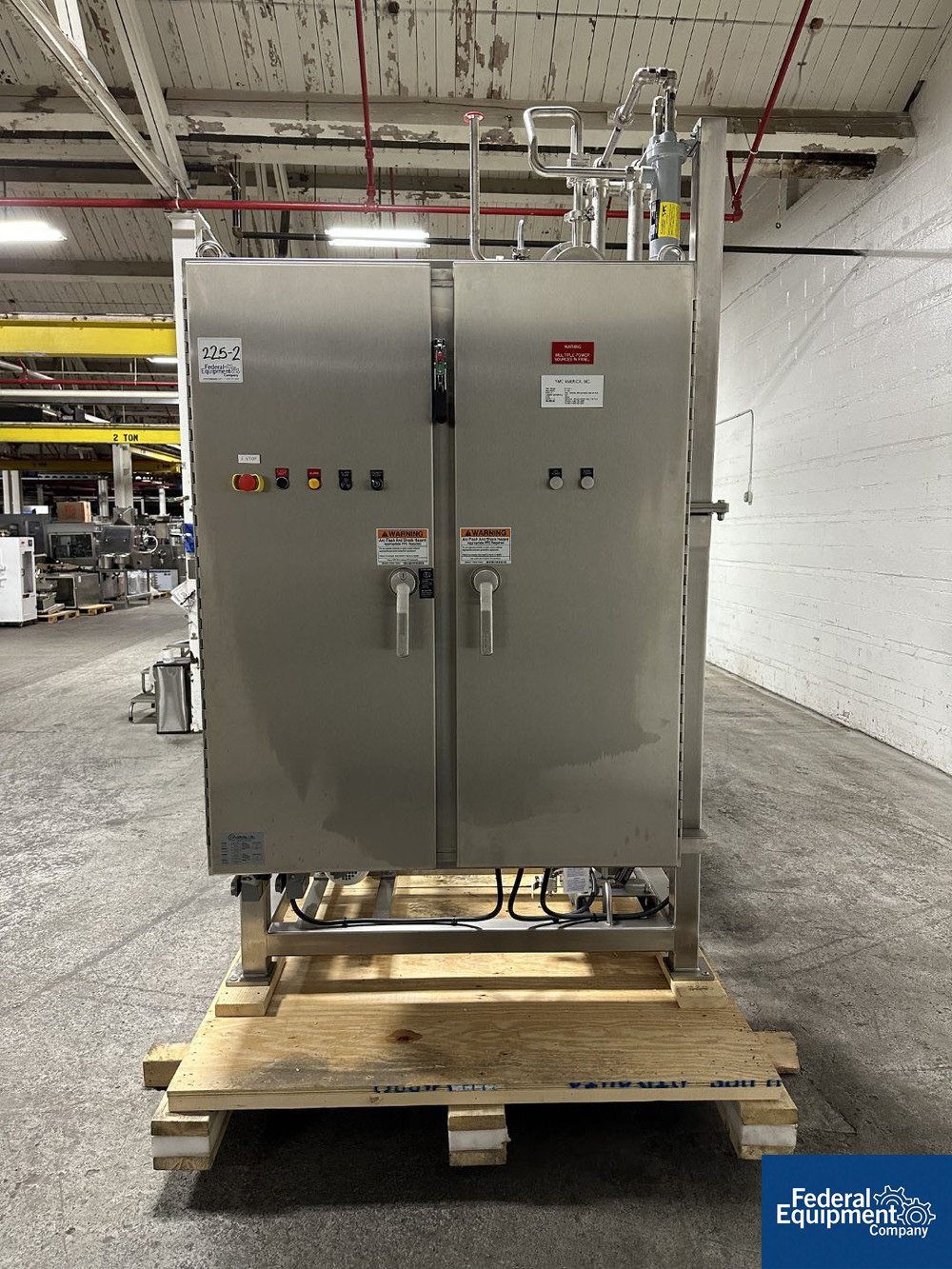

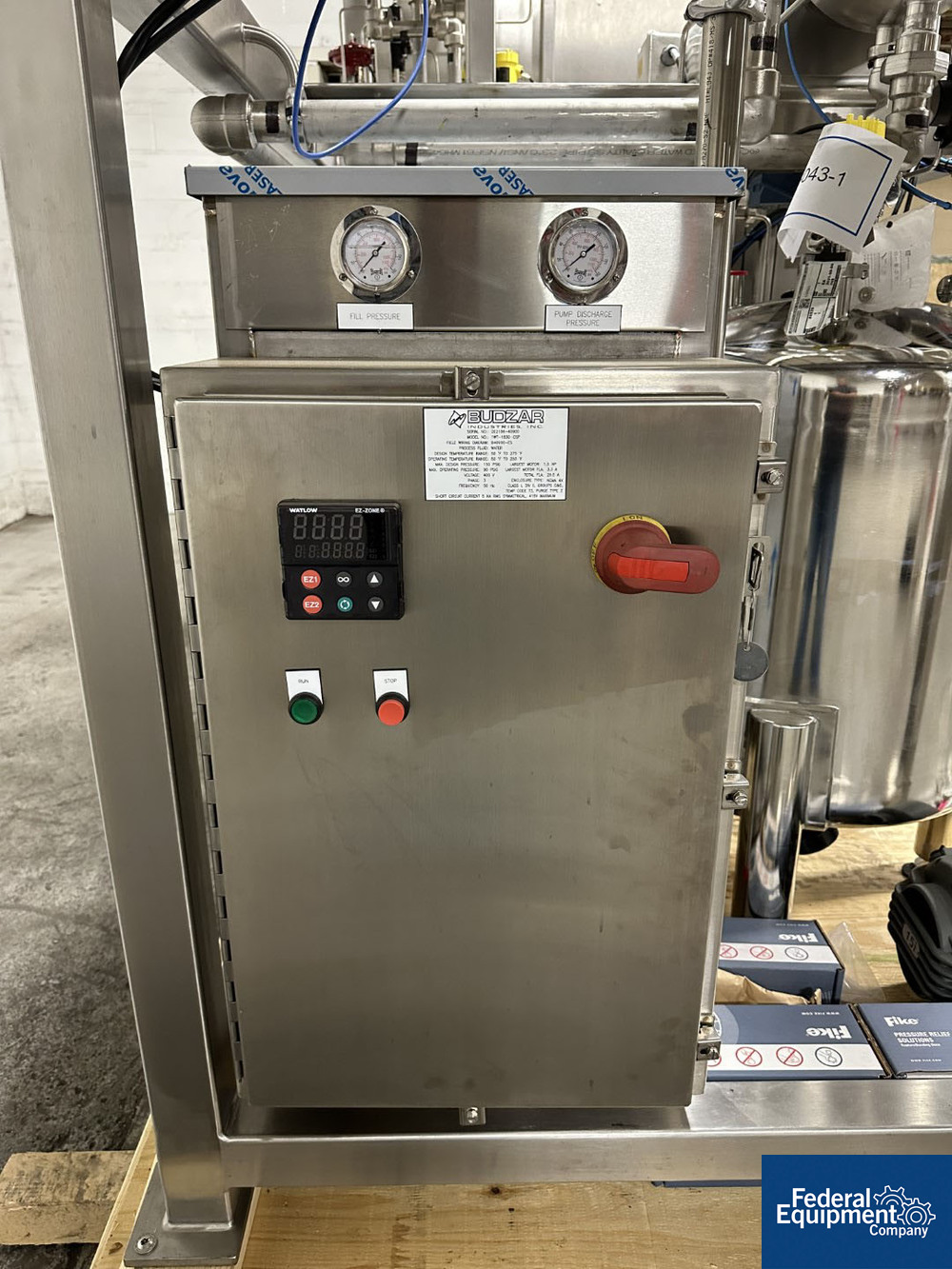

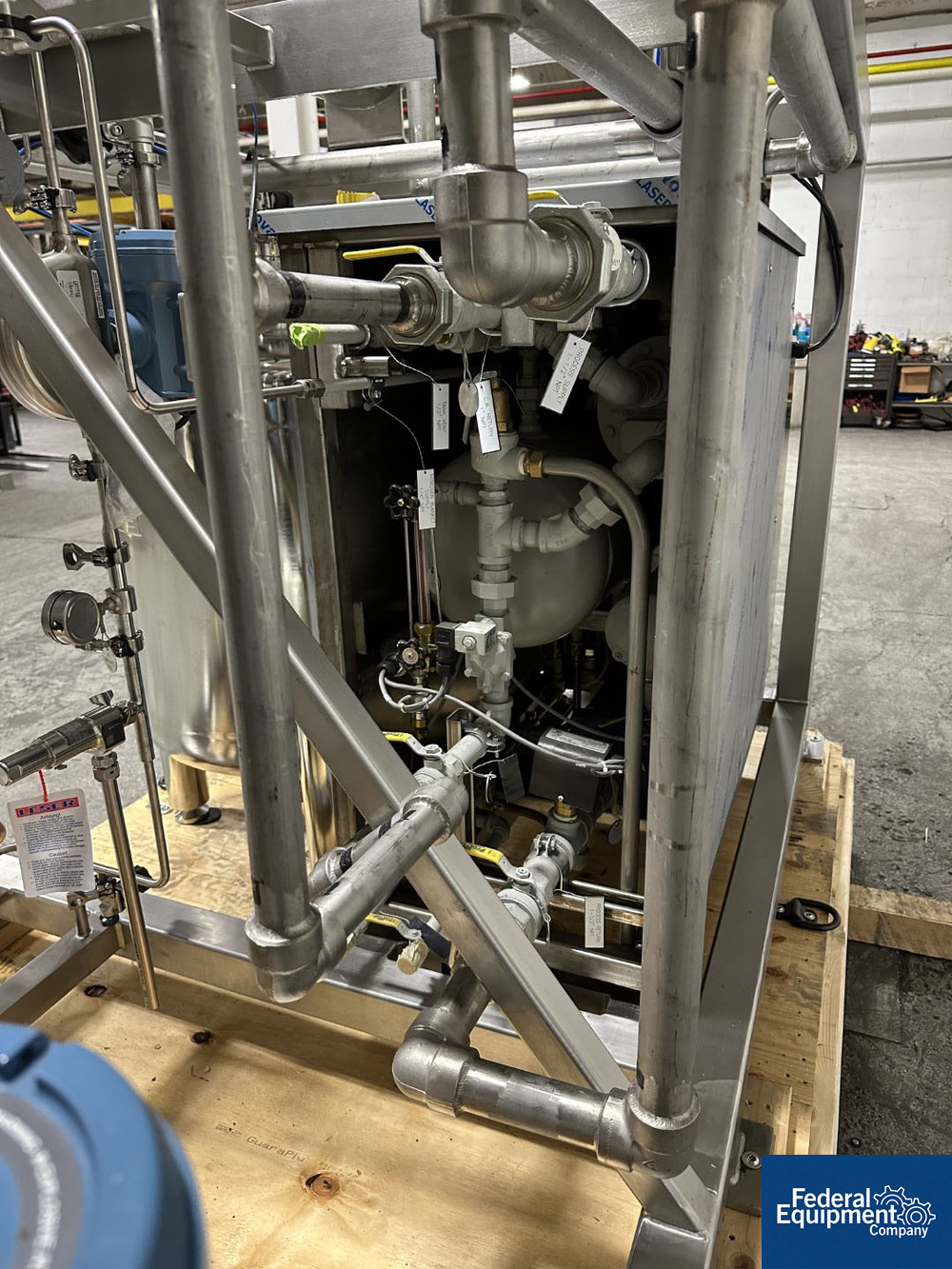

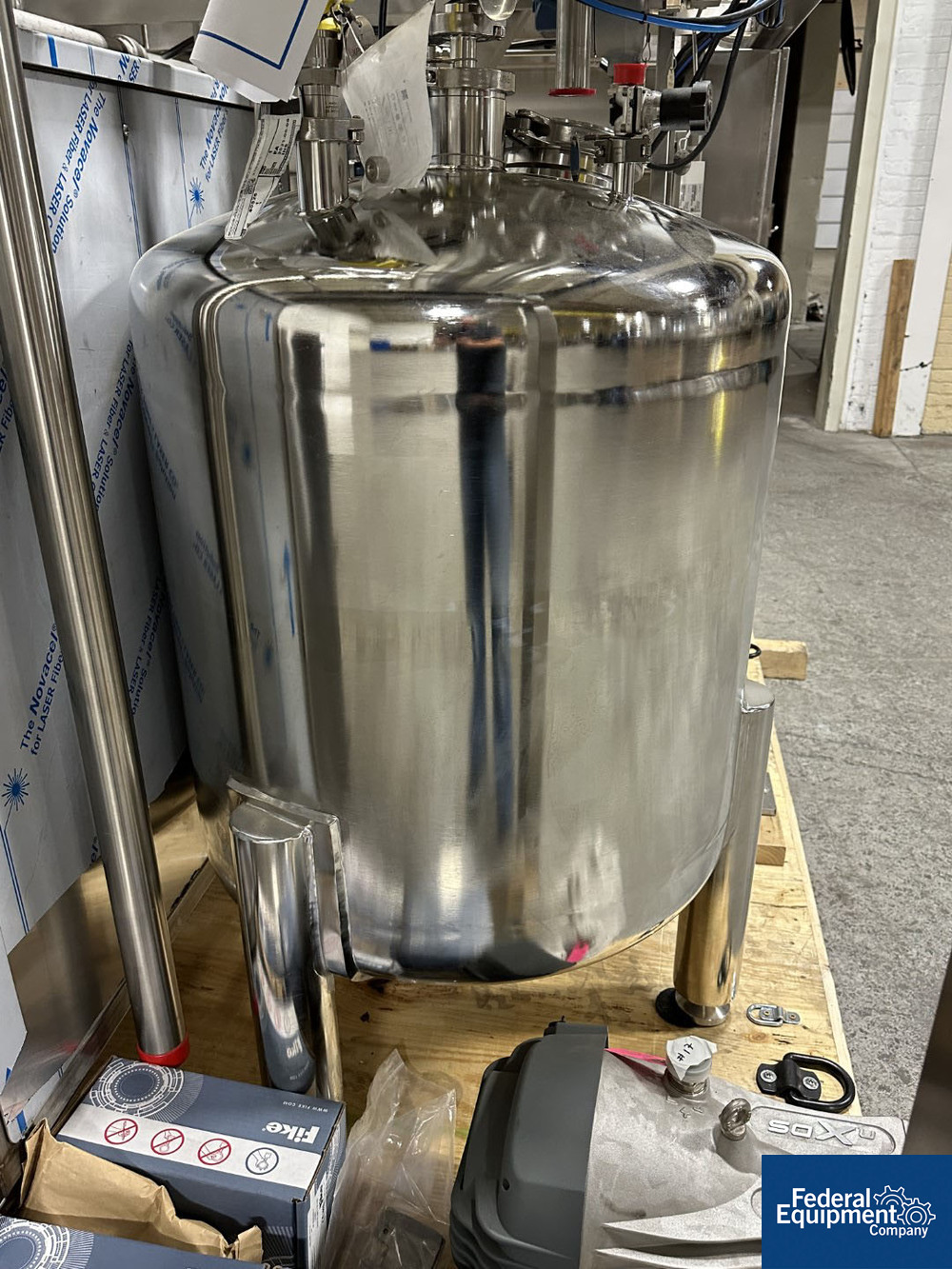

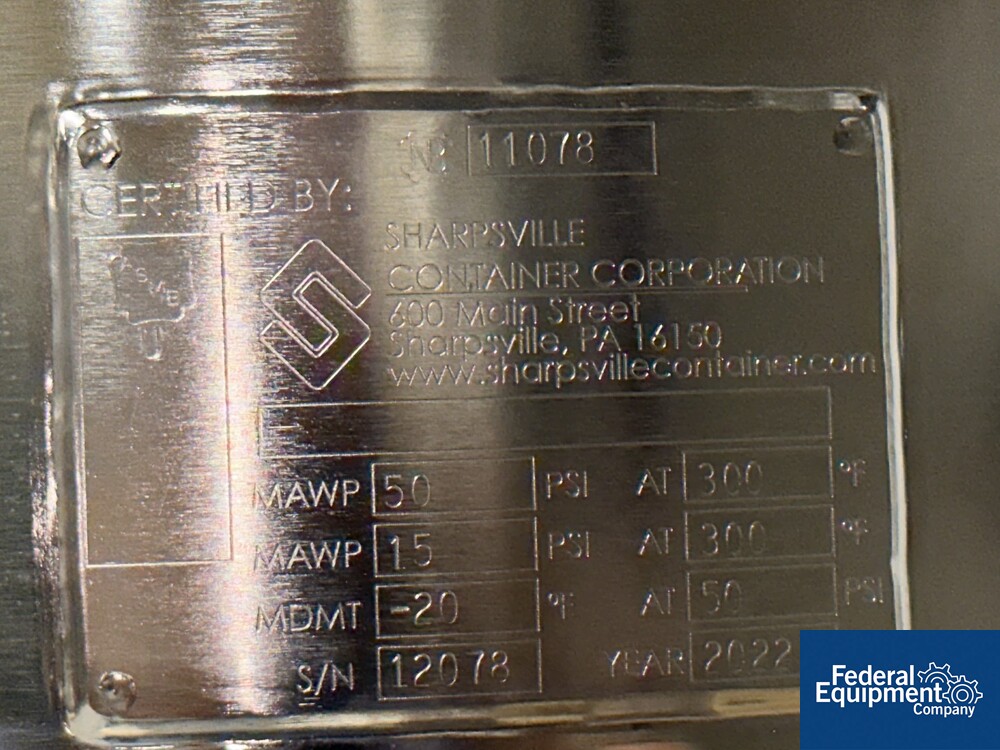

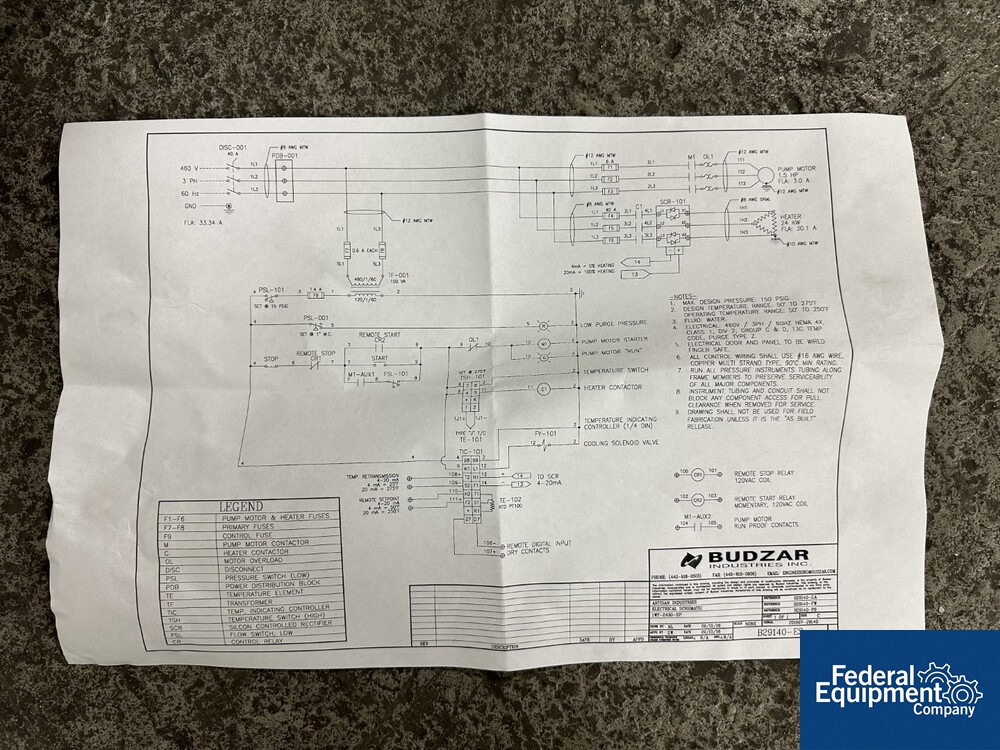

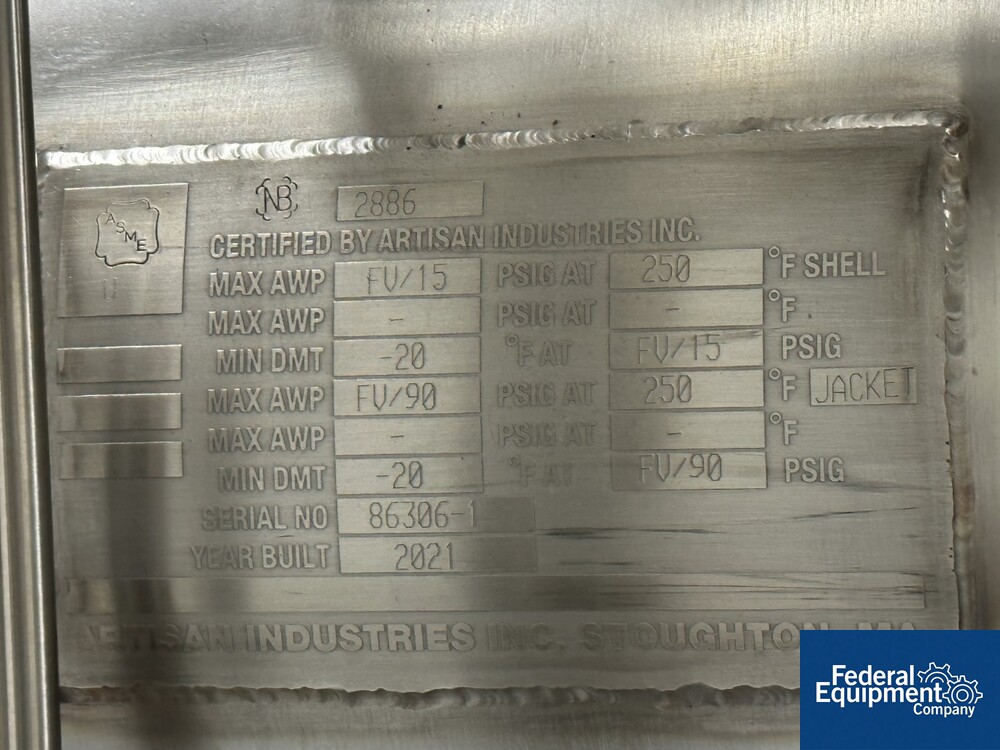

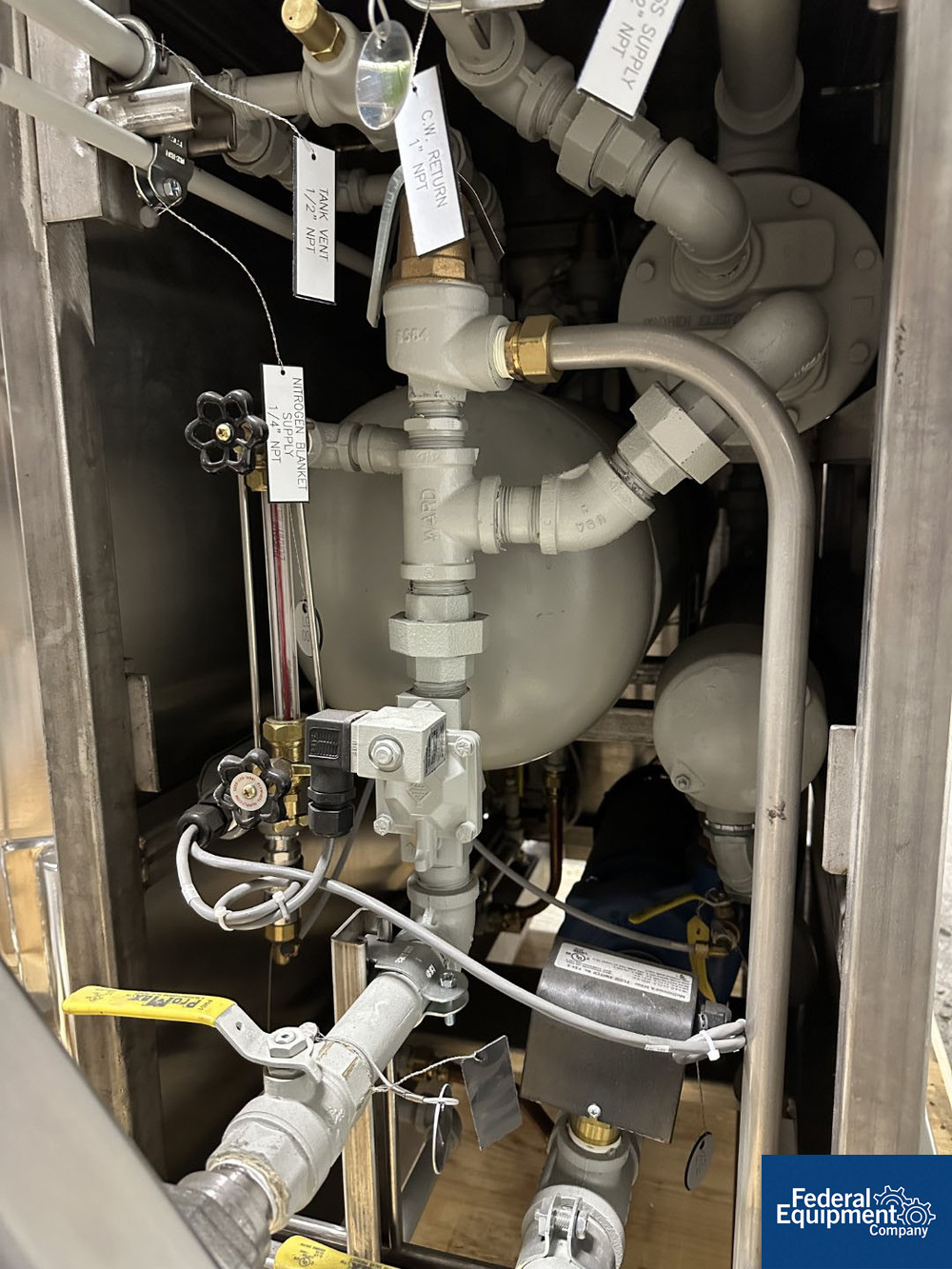

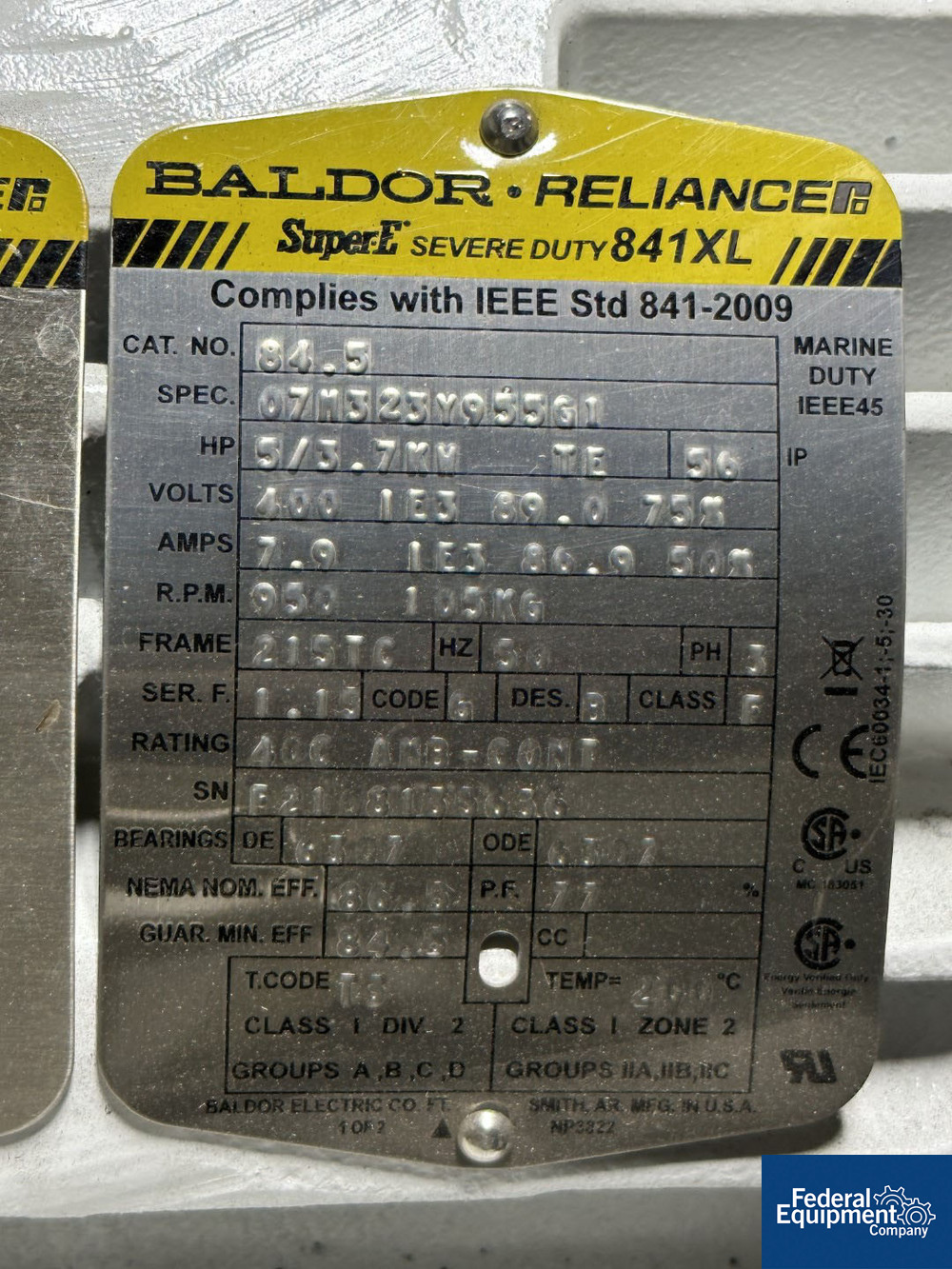

Unused 2 sq ft Artisan Type E Rototherm thin film evaporator system, 316L stainless steel product contact surfaces, rated 15 psi and full vacuum at 250 f internal, jacketed for 90 psi full vacuum at 250 f, evaporator 2RA, electro polished internal finish, rotor driven by 5/3.7 kw, 400 volt, 3 phase, 50 hertz motor, mechanical seal, 28.7 liter chamber capacity, with 30 sq ft Enerquip horizontal condensor, rated 150 psi and full vacuum at 350 f tubes, 150 psi at 350 f shell side, 50 gallon Sharpesville bottoms receiver, rated 50 psi at 300 f, 24 kw Budzar TCU temperature controller, model 1WT-1830-CSP, rated 90 psi at 250 f operating, Edwards dry scroll vacuum pump, progressive cavity feed pump, gear pump distillate pump, with evaporator, condensor, pumps mounted on stainless steel unitized frame, Artisan serial# 86306-1, national board# 2886. Unused still on original shipping skid, with FAT performed, system built 2021.
  • Agitated: Yes
  • Capacity Square Feet: 30
  • Condensor: Yes
  • Internal Pressure (PSI): 15
  • Internal Temperature (F): 250
  • Jacket Pressure: 90
  • Jacket Temperature: 250
  • Material of Construction: Stainless Steel
  • Model: Rototherm E
  • Motor: #hp: 6.7
  • Serial Number: 86306-1
  • Stainless Steel Grades: 316L
  • Vacuum Rated: Yes
  • Voltage: 400
  • Year of Construction: 2021
