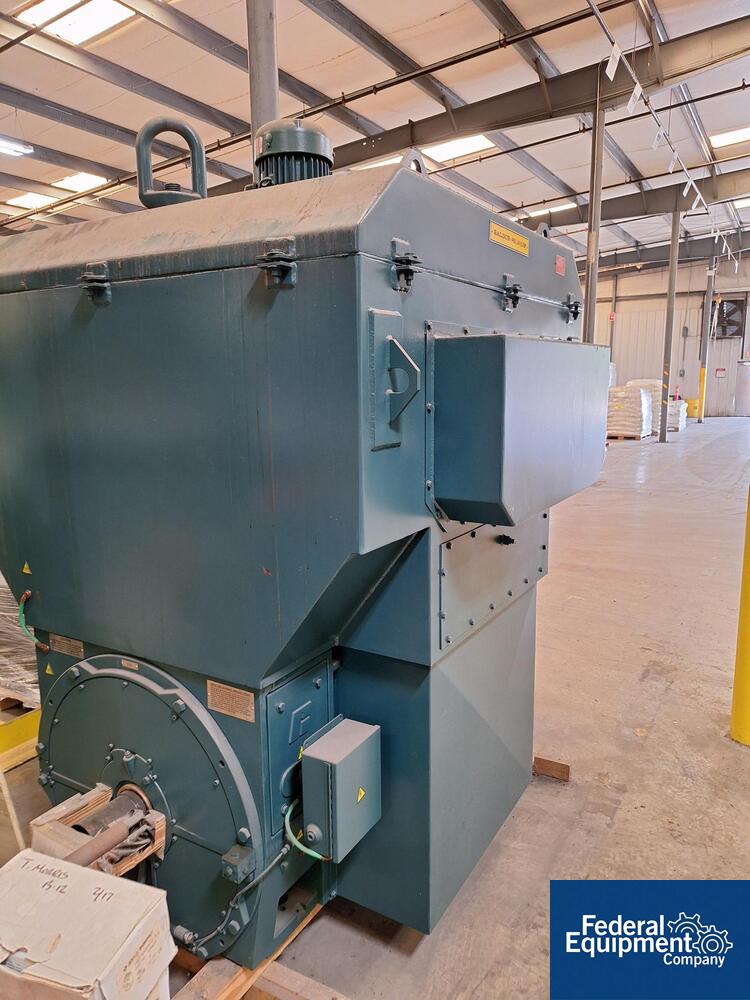

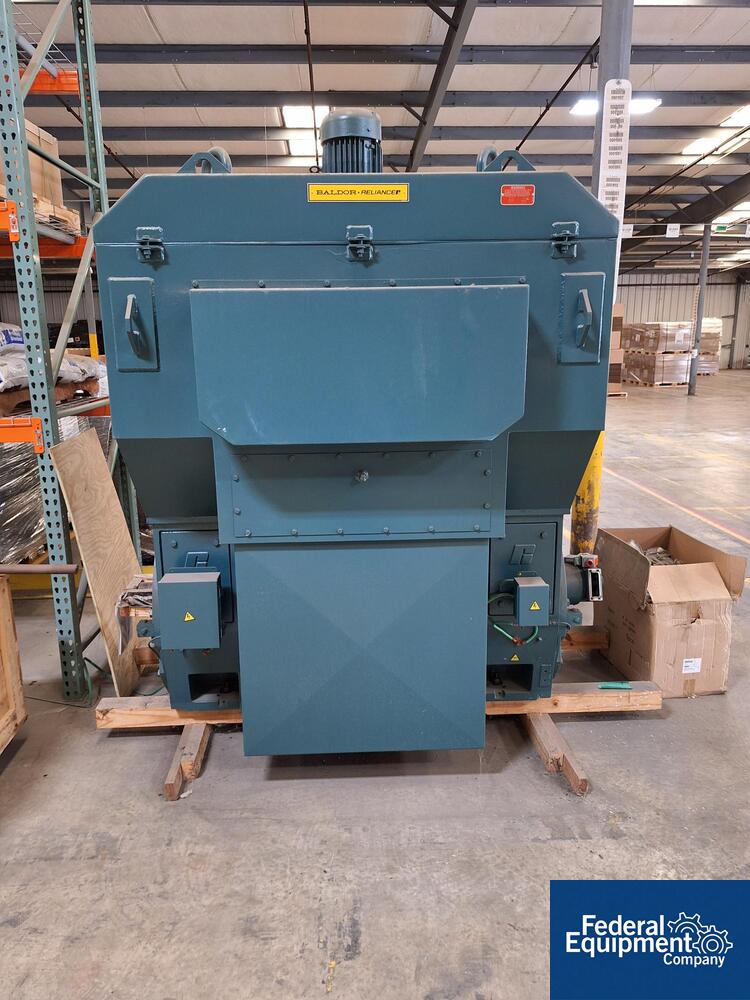

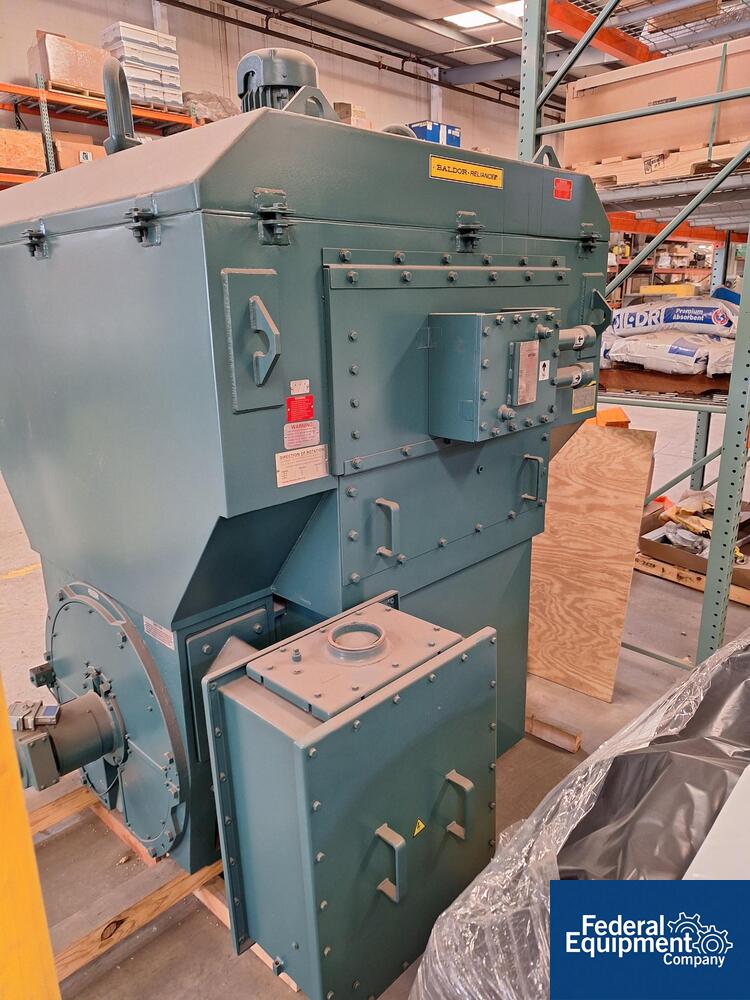

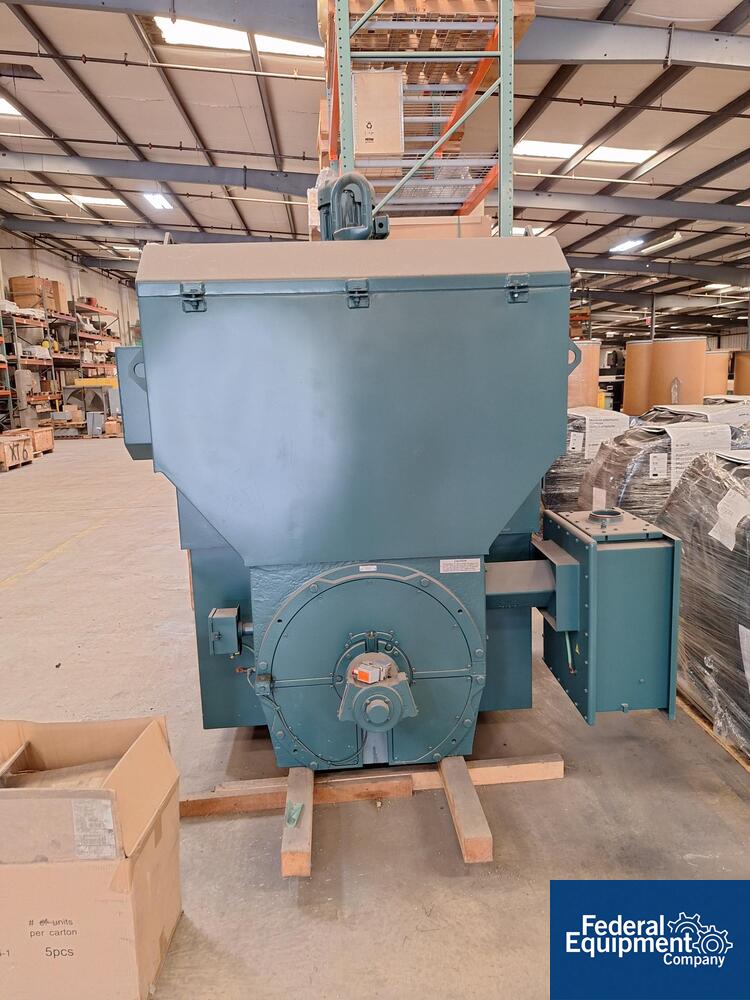

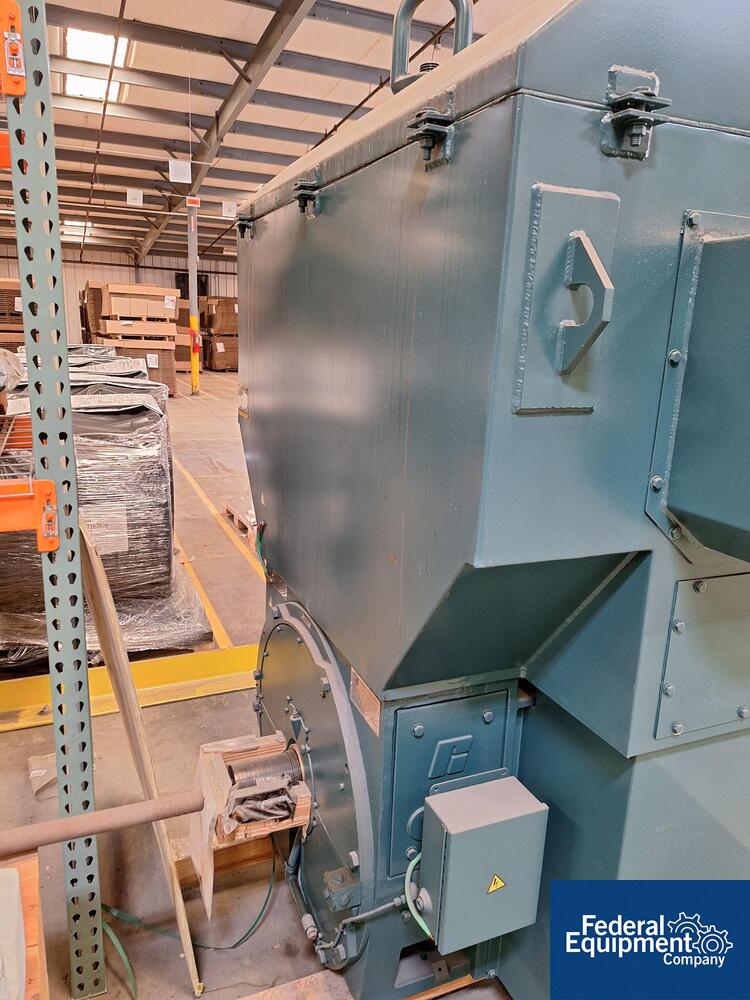

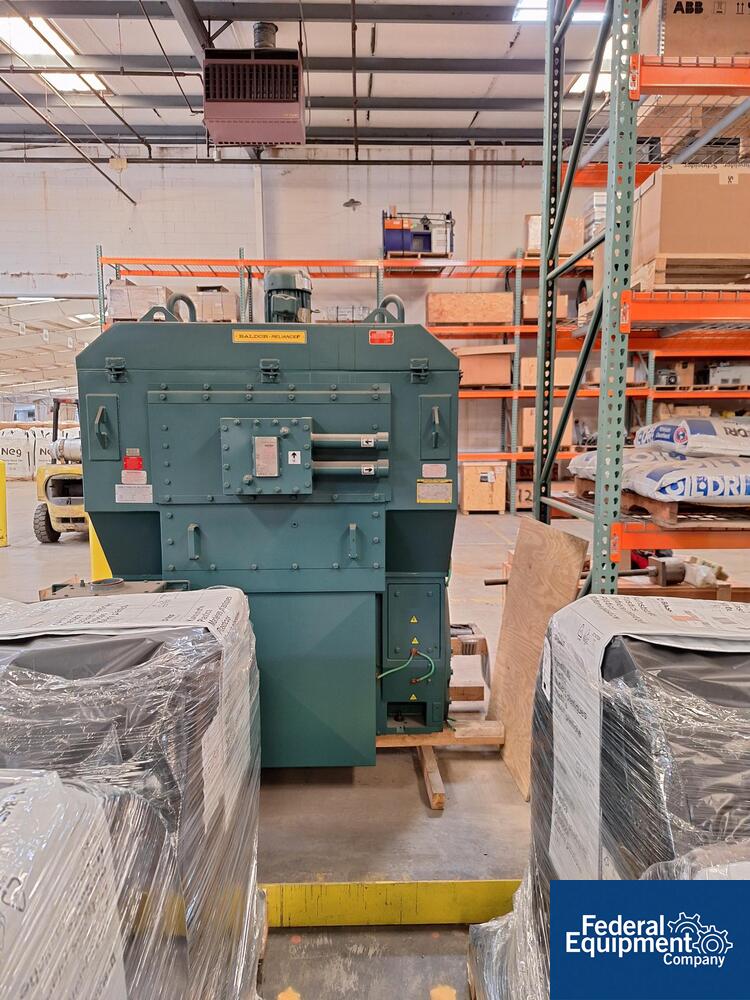

Baldor Reliance 800HP Motor with Thermofin Air-to-Air Heat Exchanger
Baldor Reliance
Motor Type: Inverter Duty
Energy Efficient
Serial Number: K1612070011
Spec Number: A58-1089-6520

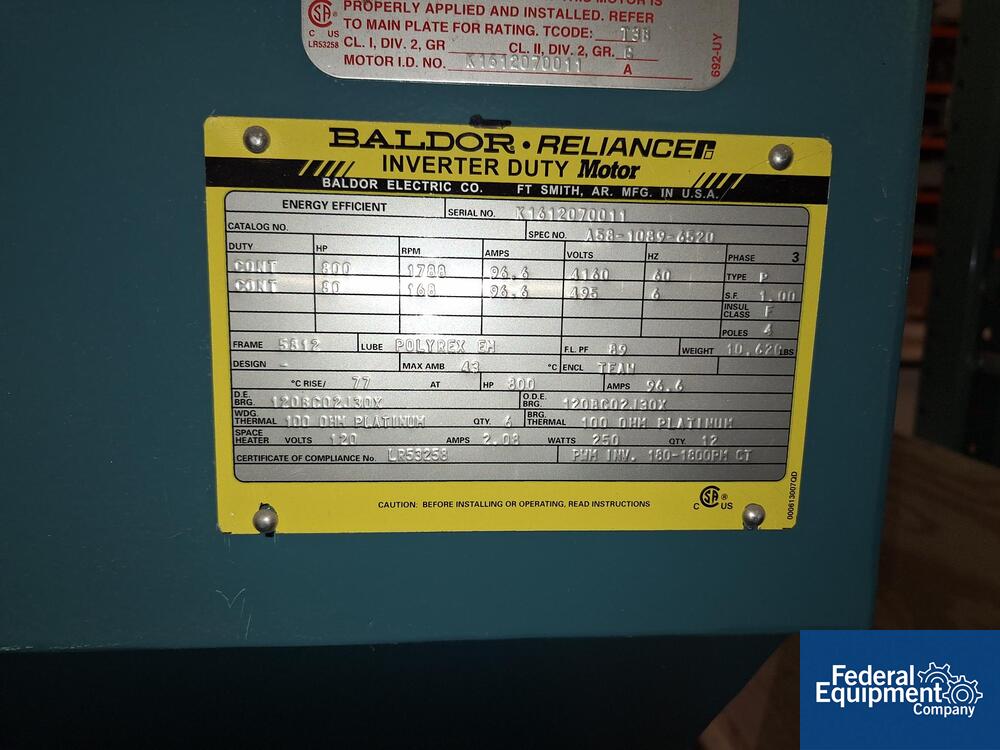

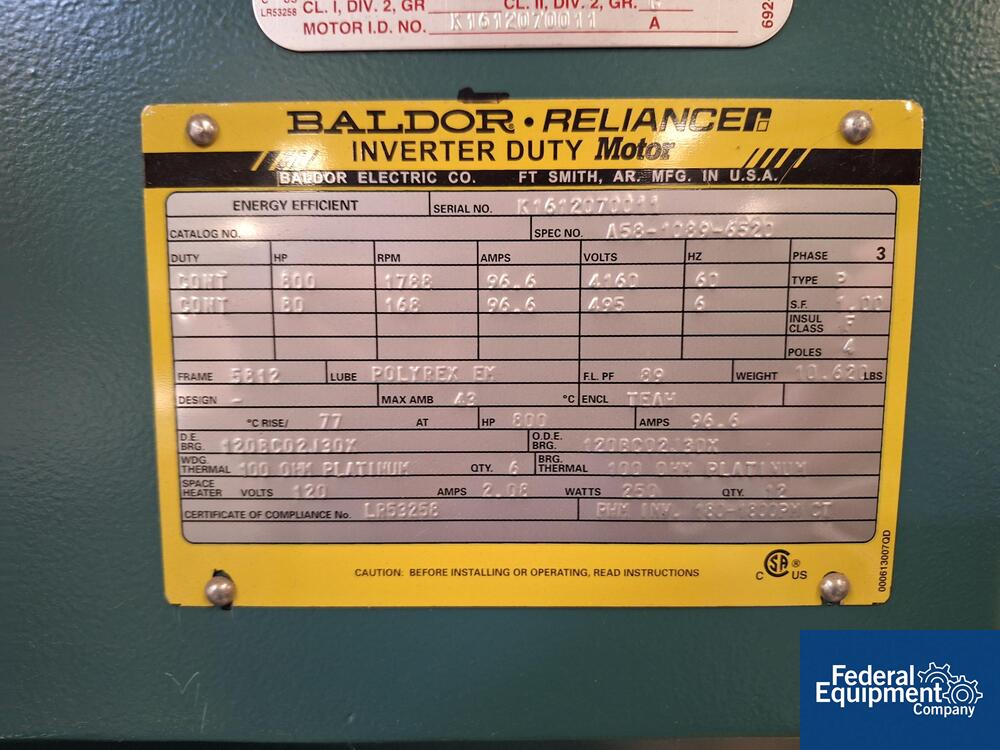

Electrical Ratings
Duty:
CONT – 800 HP – 1788 RPM – 96.6 Amps – 4160 Volts – 60 Hz
CONT – 80 HP – 168 RPM – 96.6 Amps – 495 Volts – 6 Hz
Phase: 3
Type: P
Service Factor: 1.00
Insulation Class: F
Poles: 4
Mechanical / Design Data
Frame: 5812
Design: B
Enclosure: TEAW
Max Ambient: 40°C
Temp Rise: 77°C
Full Load Power Factor: 0.89
Weight: 10,620 lbs
Bearings
Drive End Bearing: 120BC02J30X
Opposite Drive End Bearing: 120BC02J30X
Bearing Thermal: 100 OHM Platinum
Qty: 6
Space Heater
120 Volts
2.08 Amps
250 Watts
Qty: 12
Certificate of Compliance: LR53258
PWM Inverter Range: 180–1800 RPM CT

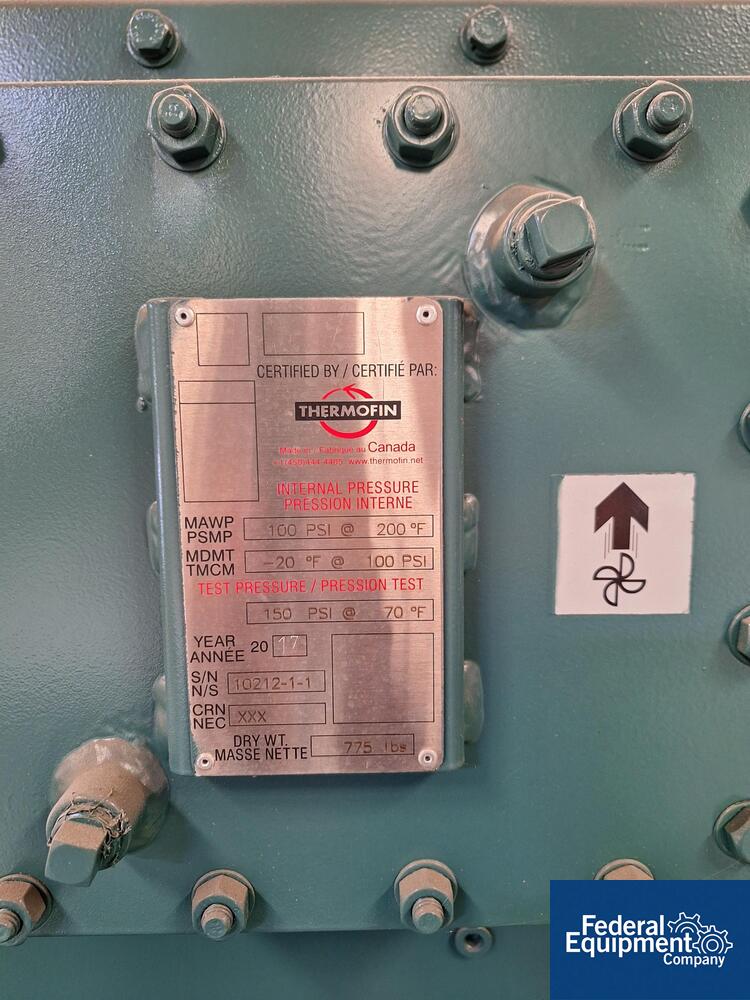

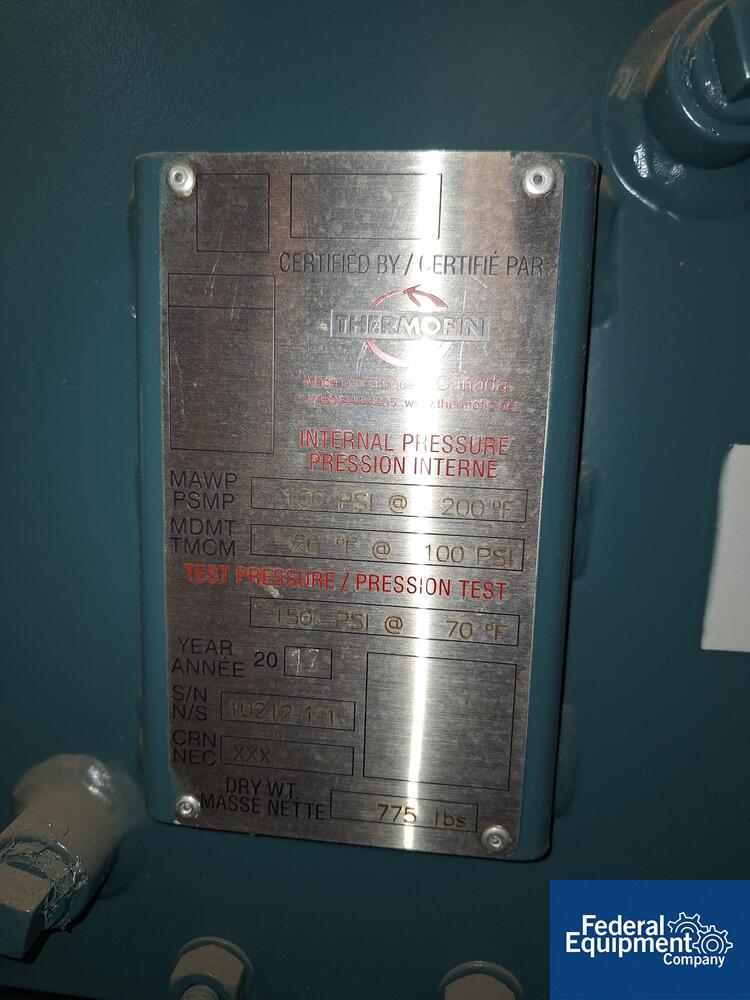

Thermofin Pressure Vessel / Heat Exchanger Nameplate
Certified By: Thermofin
MAWP (Maximum Allowable Working Pressure):
100 PSI @ 200°F
MDMT (Minimum Design Metal Temperature):
-20°F @ 100 PSI
Test Pressure:
150 PSI @ 70°F
Year: 2017
Serial Number: 10212-1-1
CRN: XXX
Dry Weight: 775 lbs
- Model: A58-1089-6520
- Serial Number: K1612070011
