4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP

Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP
Click image for full size
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 02
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 03
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 04
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 05
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 06
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 07
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 08
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 09
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 10
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 11
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 12
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 13
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 14
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 15
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 16
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 17
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 18
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 19
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 20
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 21
Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 22 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 23 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 24 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 25 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 26 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 27 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 28 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 29 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 30 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 31 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 32 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 33 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 34 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 35 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 36 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 37 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 38 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 39 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 40 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 41 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 42 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 43 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 44 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 45 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 46 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 47 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 48 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 49 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 50 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 51 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 52 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 53 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 54 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 55 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 56 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 57 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 58 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 59 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 60 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 61 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 62 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 63 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 64 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 65 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 66 Image of 4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP 67
Get This Item
Make An Offer Request a Quote >
SKU
4040-9
Item Name
4.5" Davis Standard / Gala Underwater Pelletizing Line, 150 HP
Category
Extrusion Lines >  Pelletizing
Manufacturer
Davis-Standard
Location
Cleveland, OH

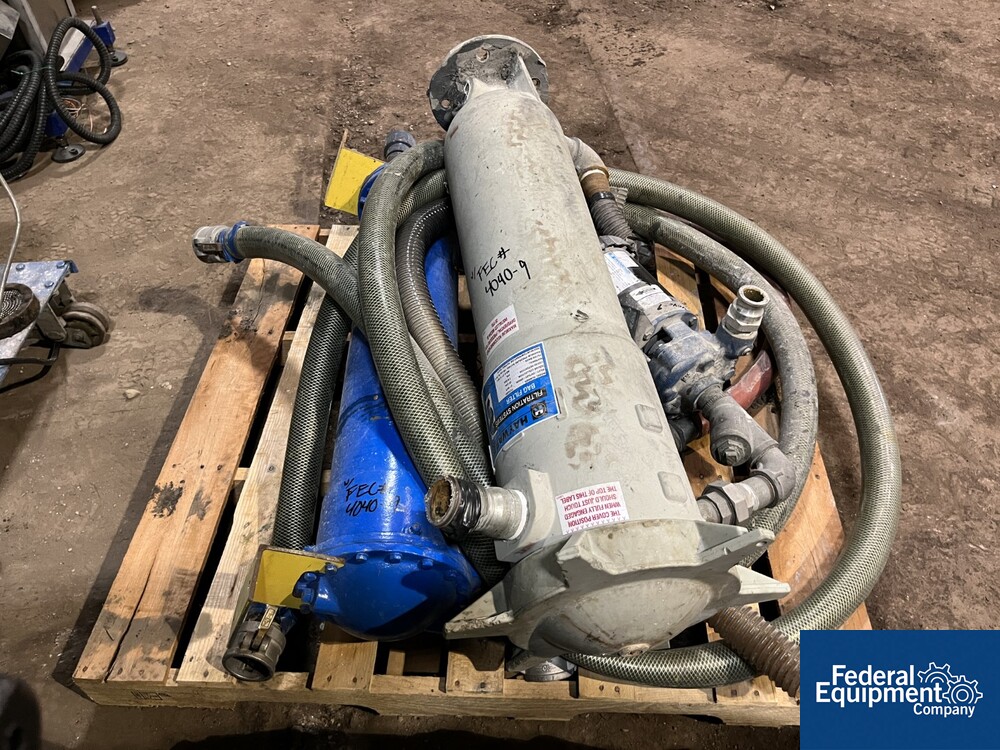

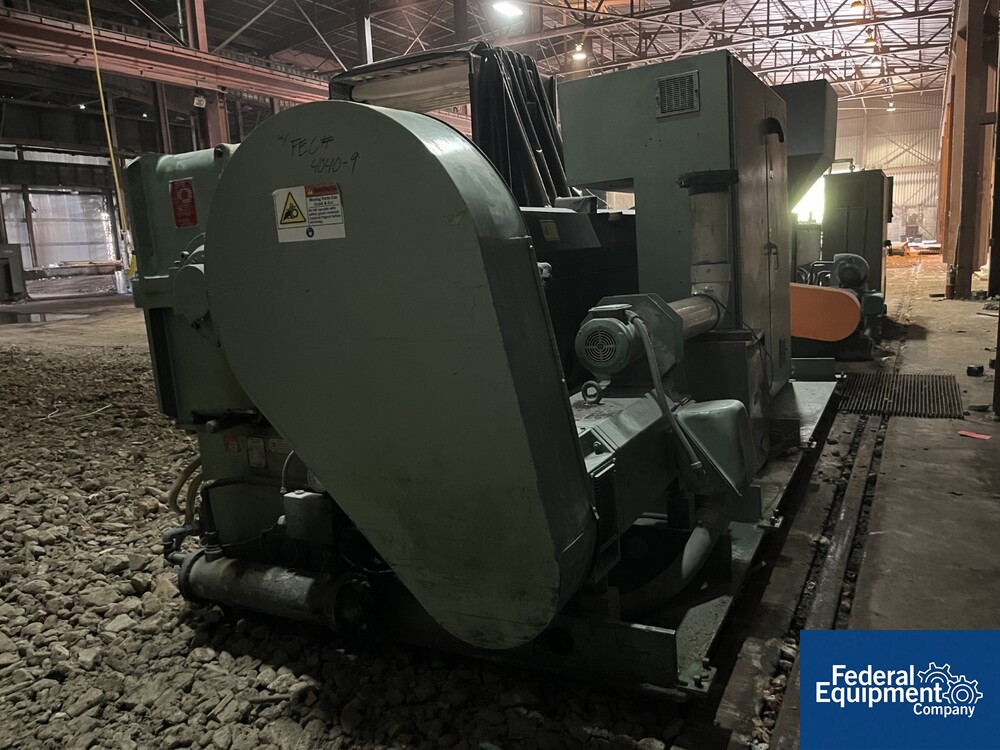

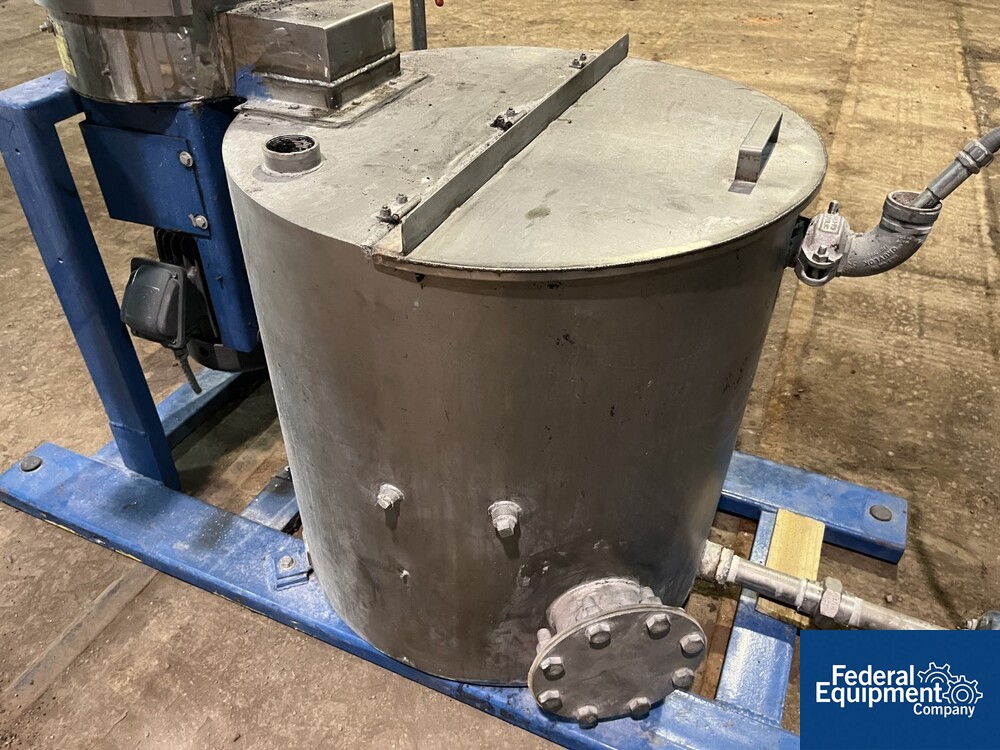

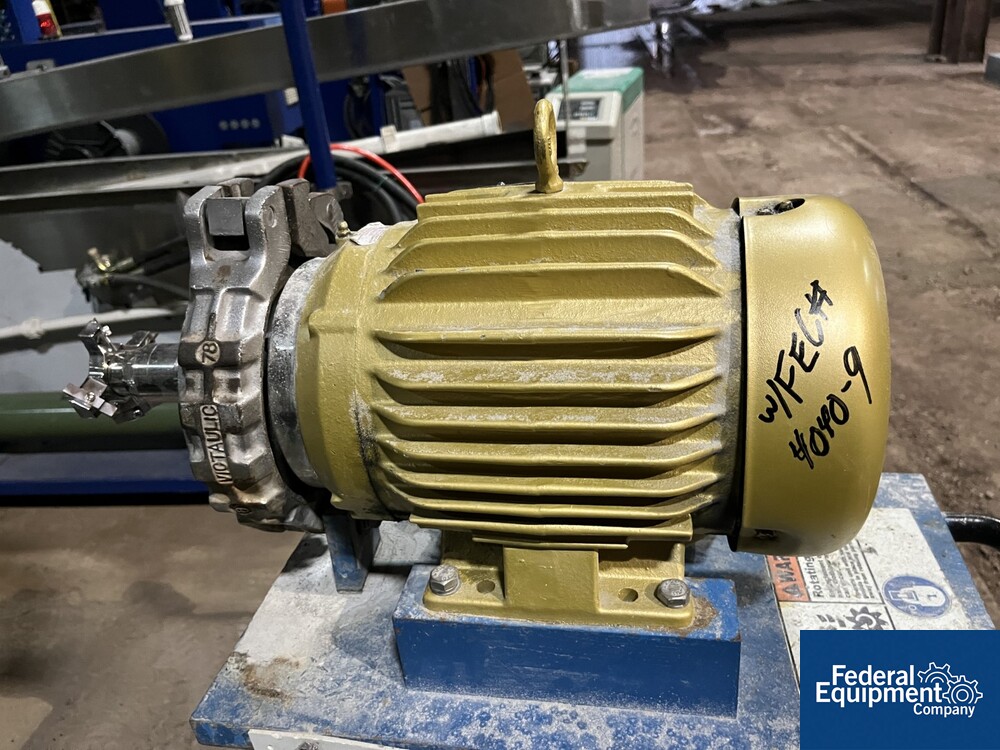

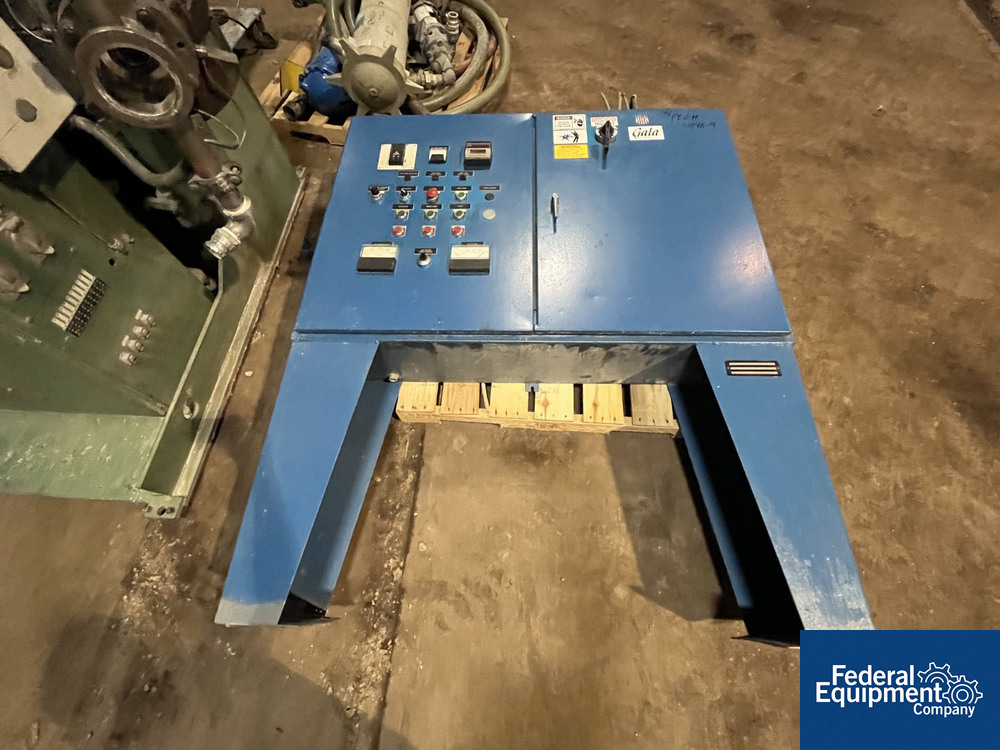

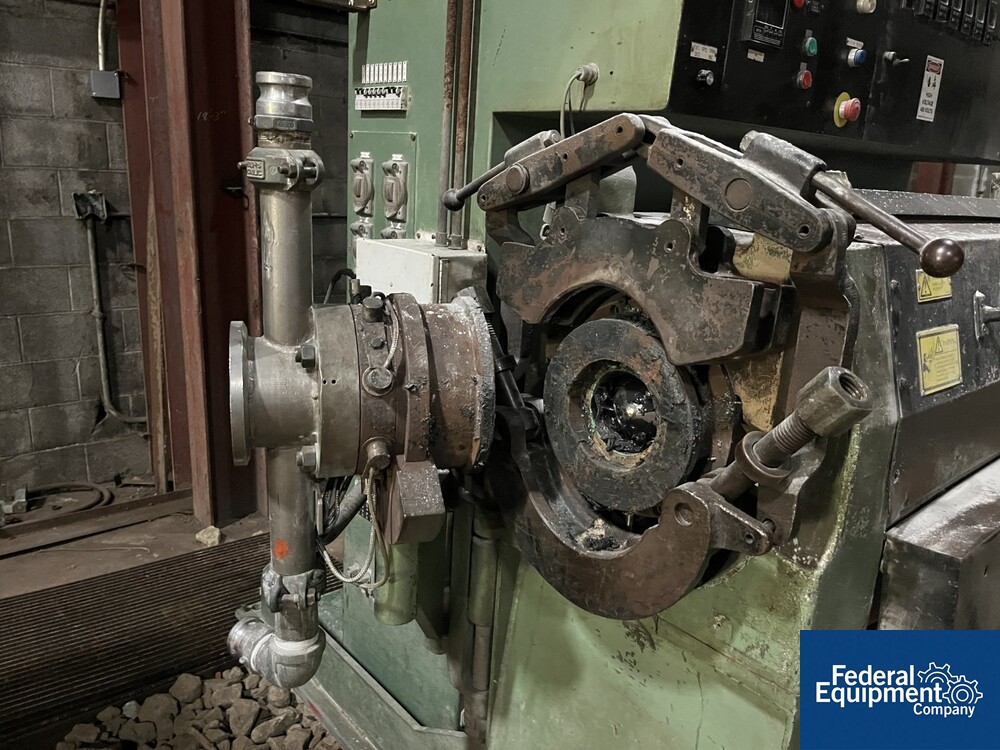

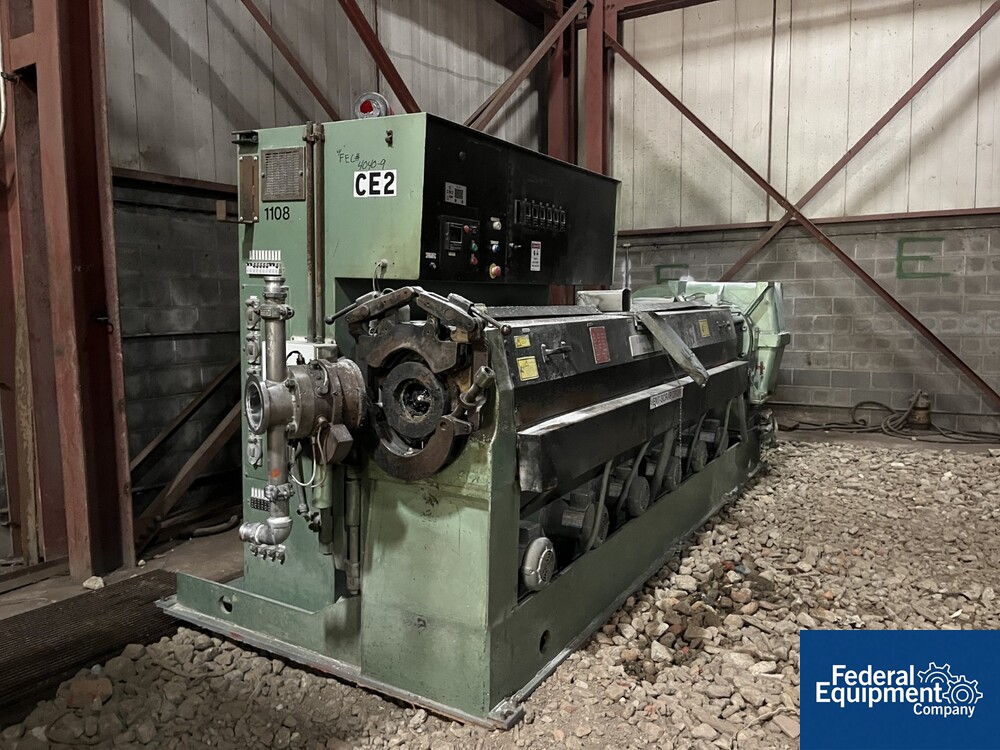

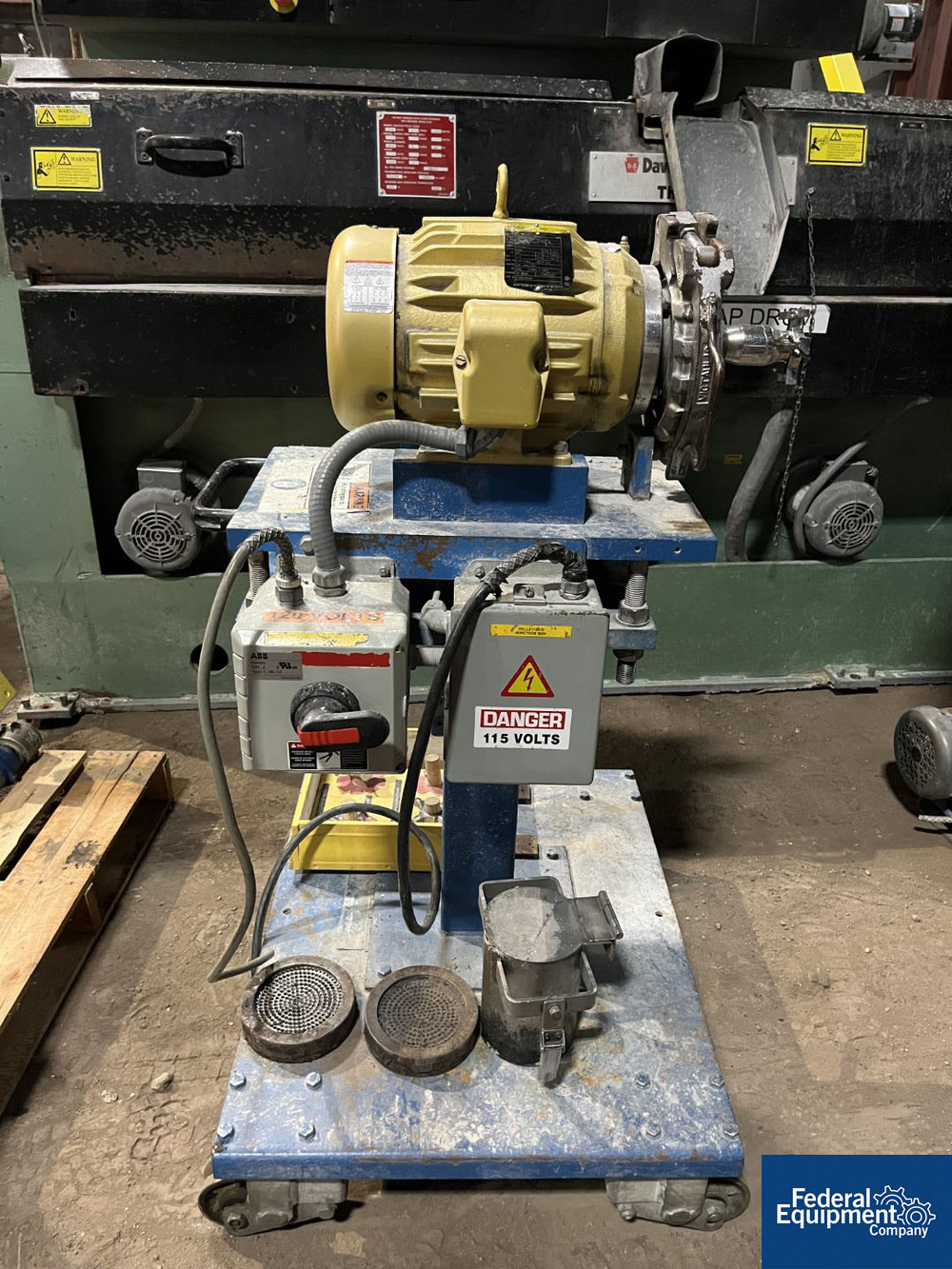

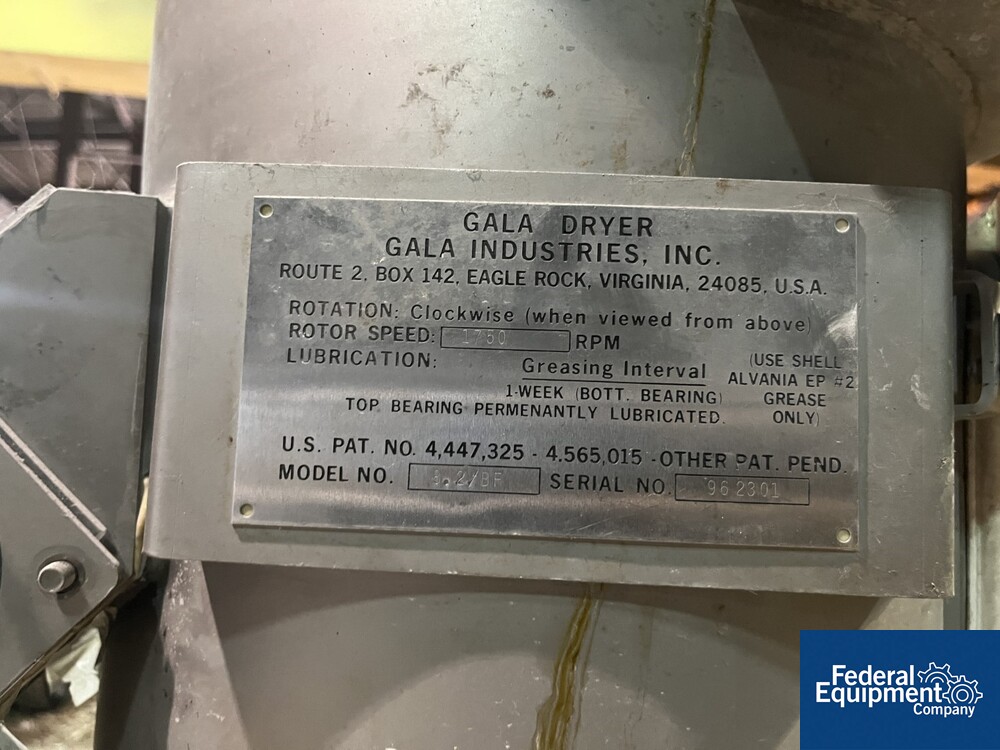

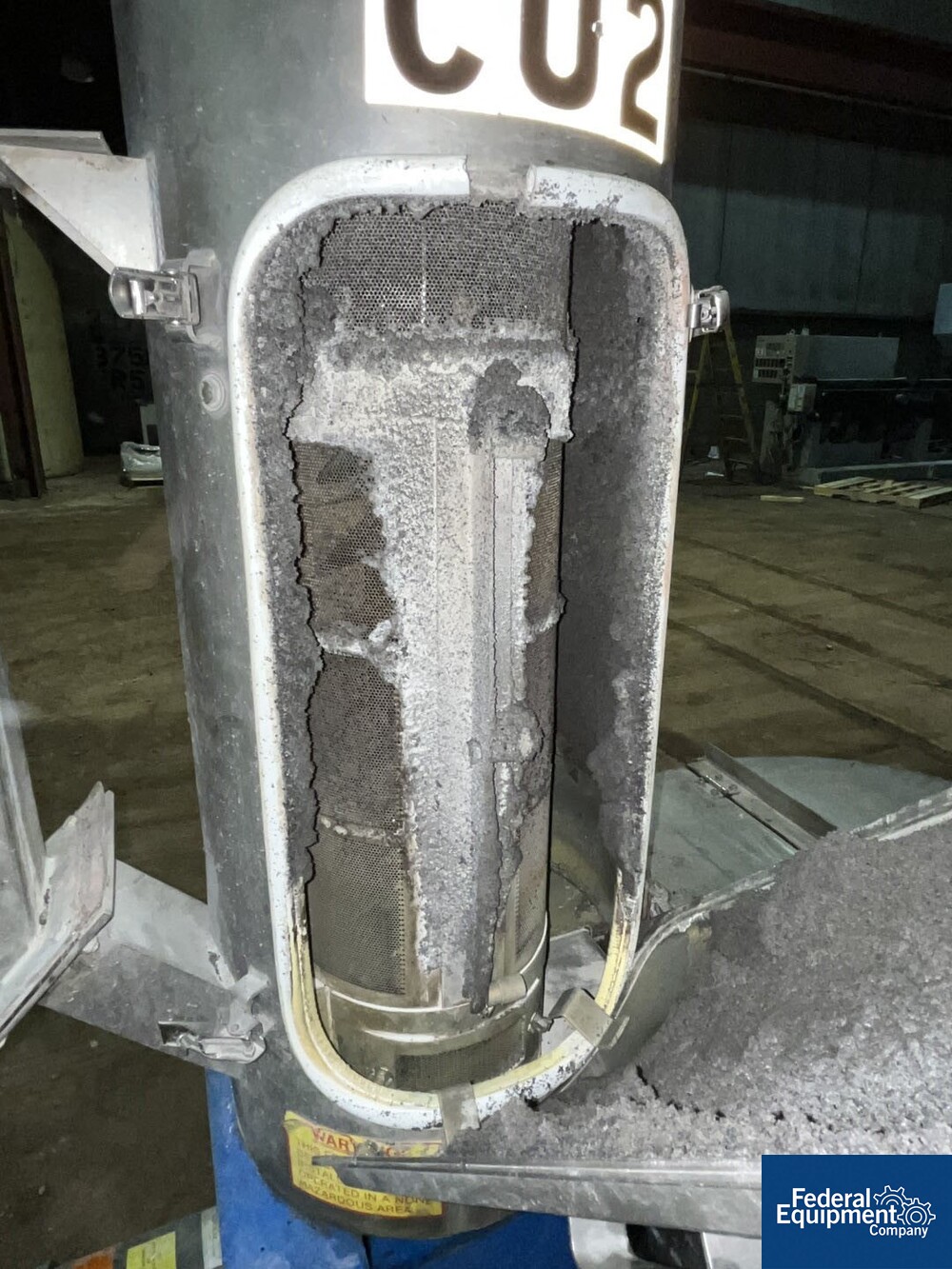

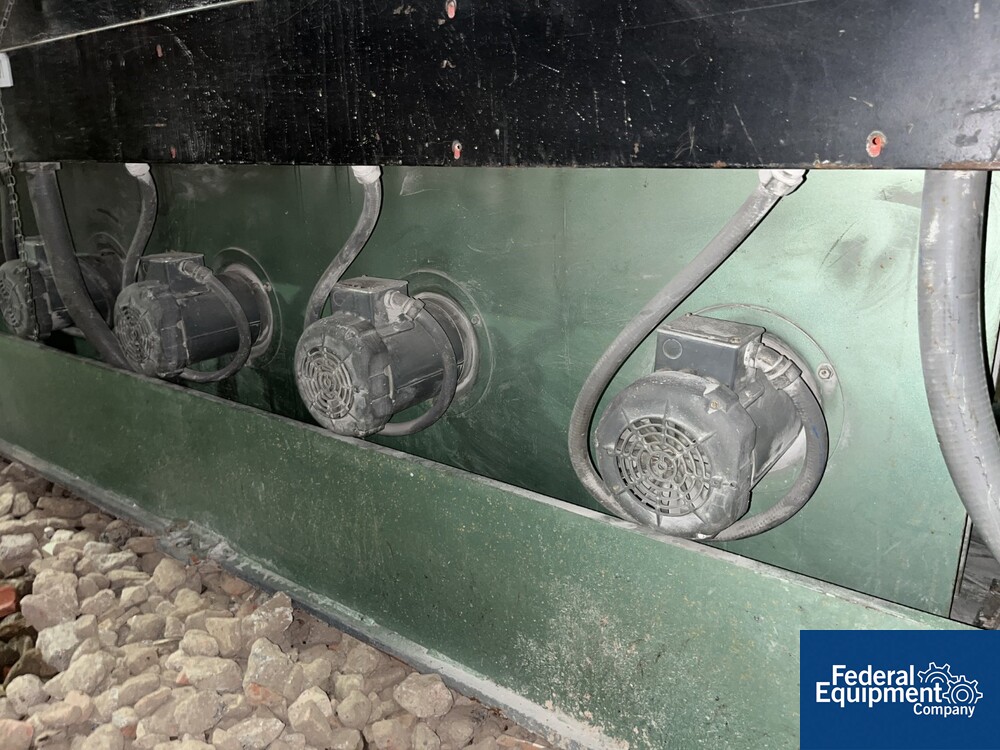

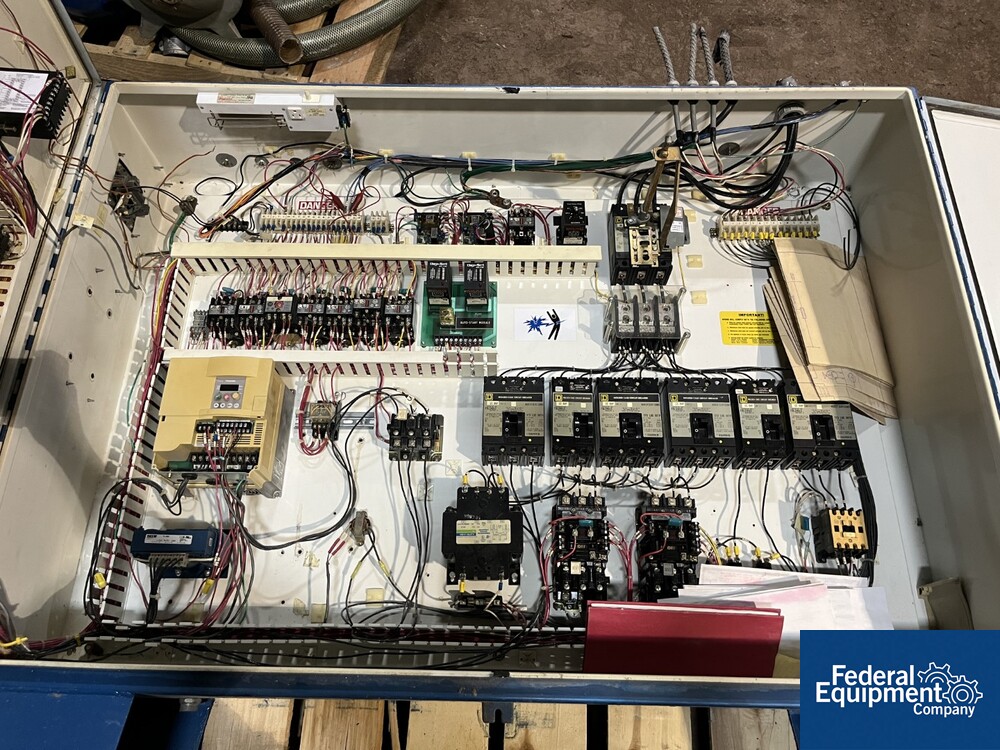

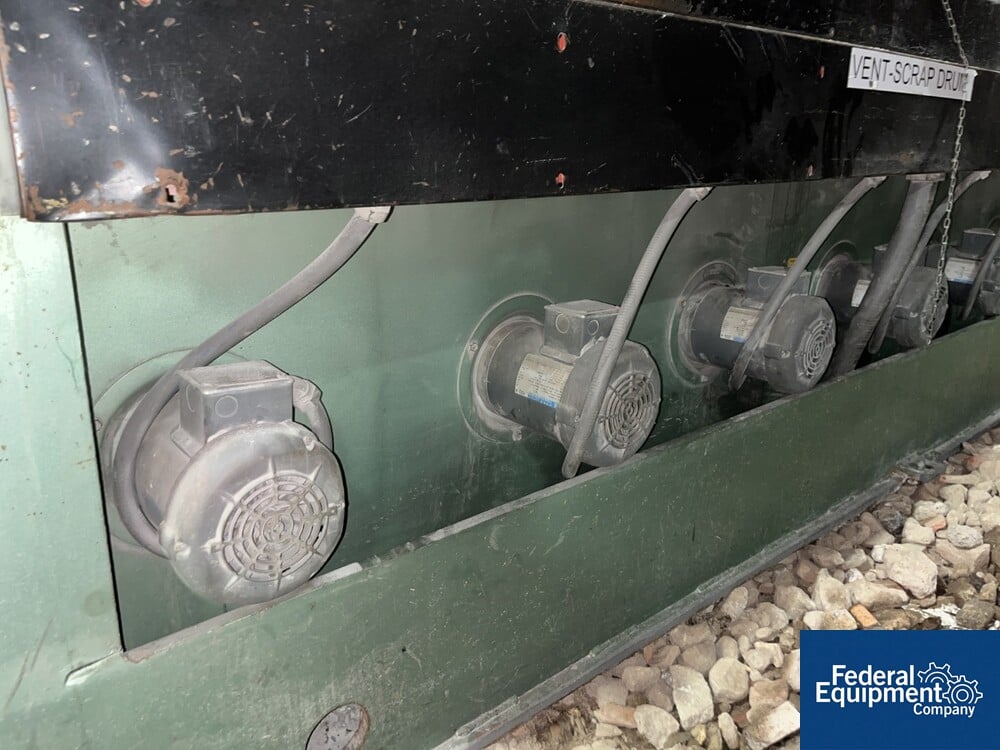

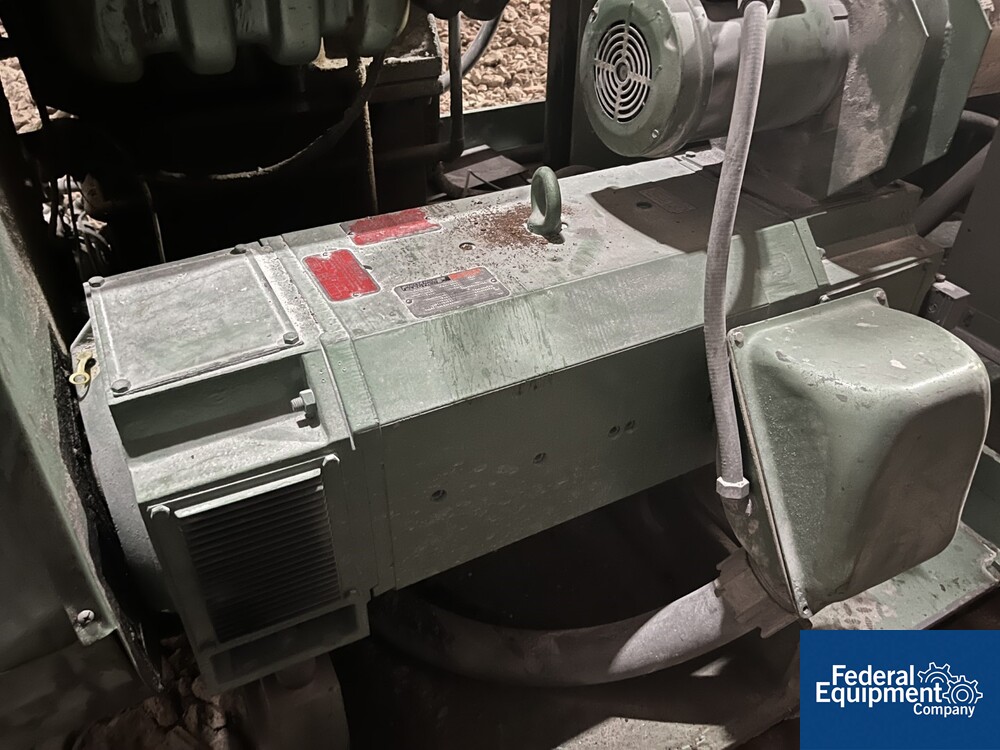

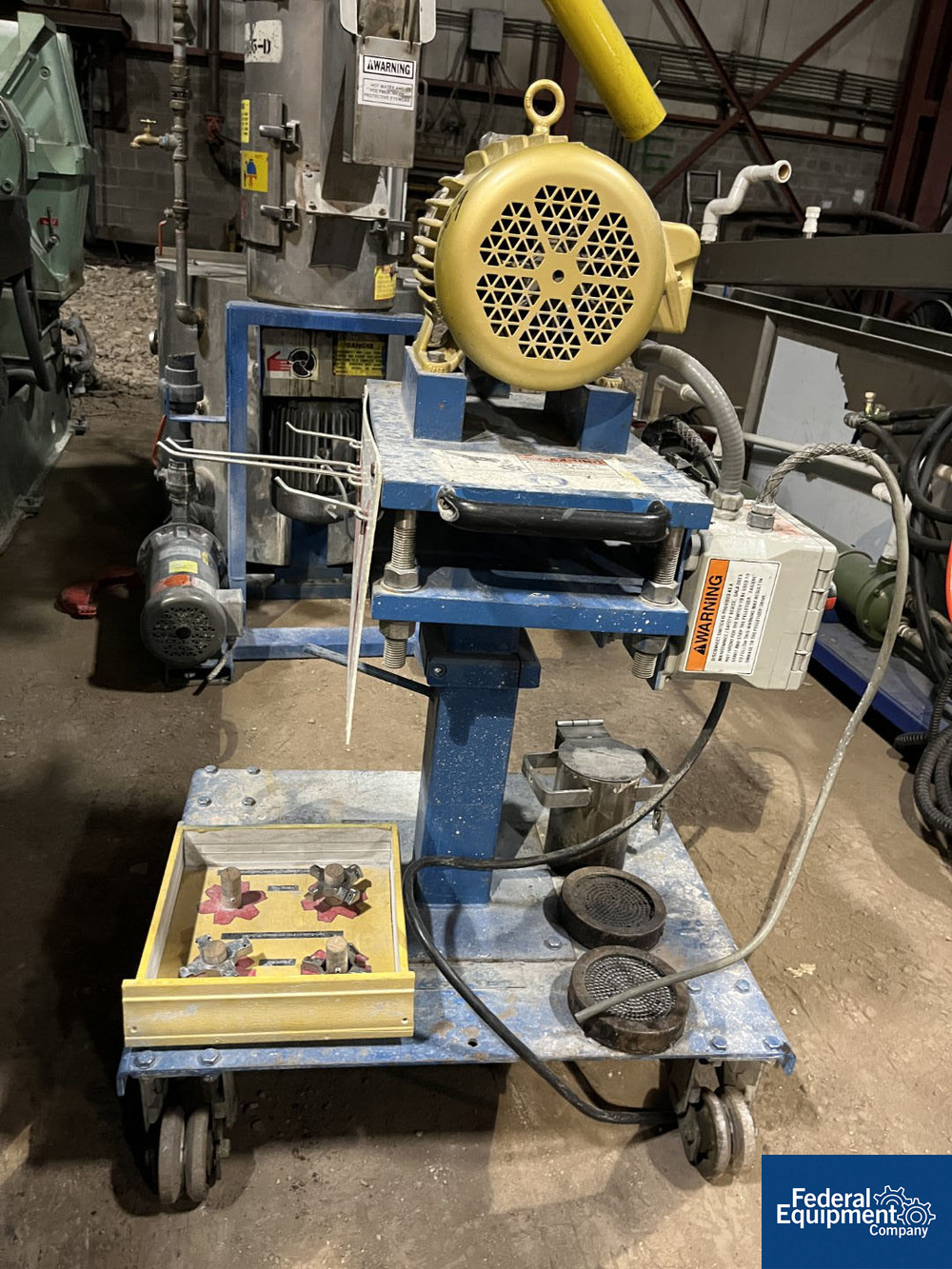

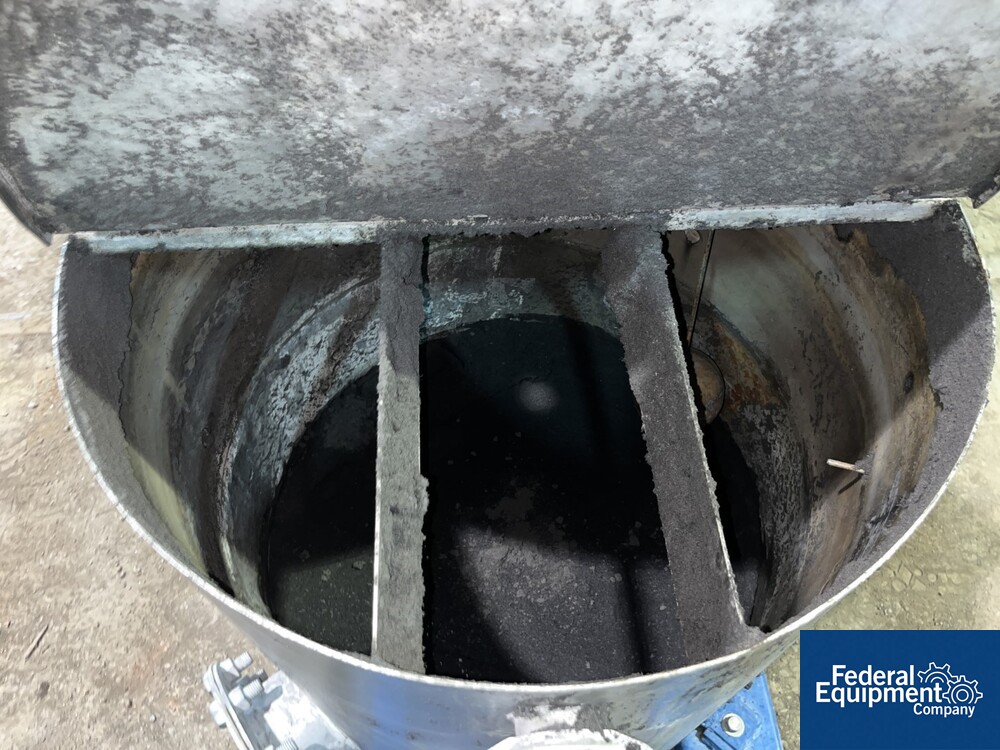

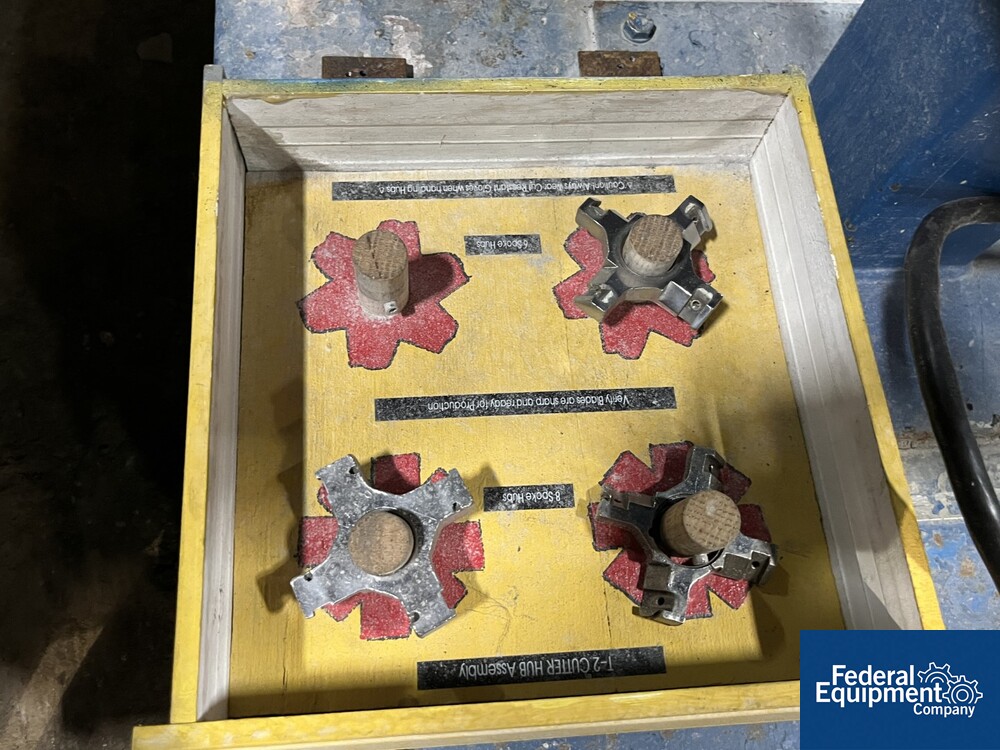

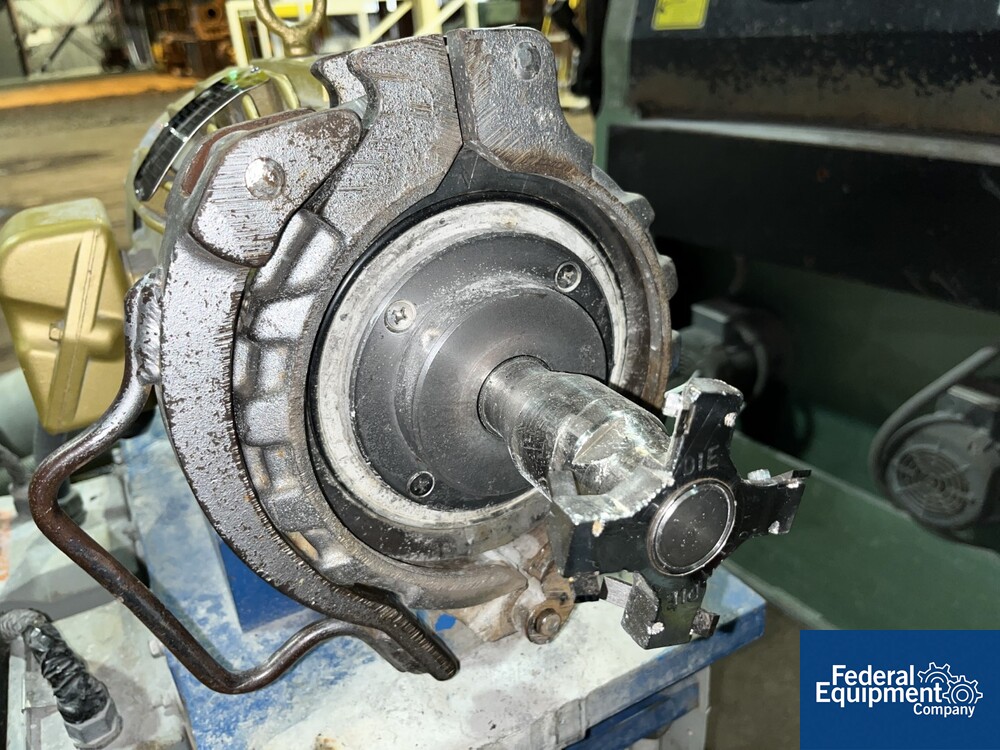

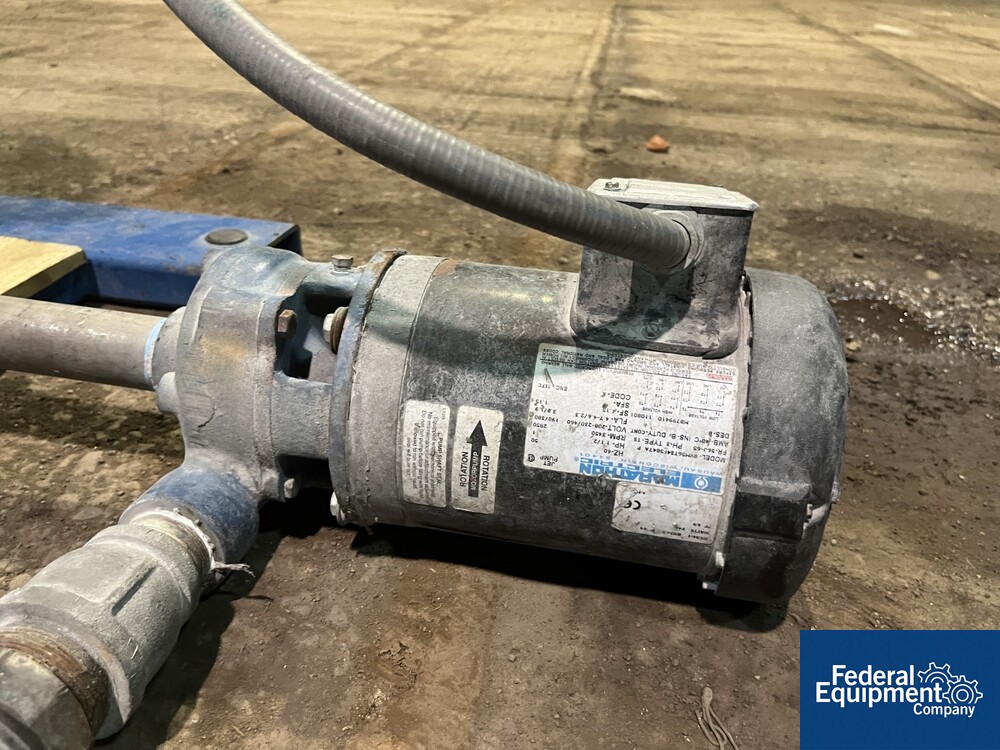

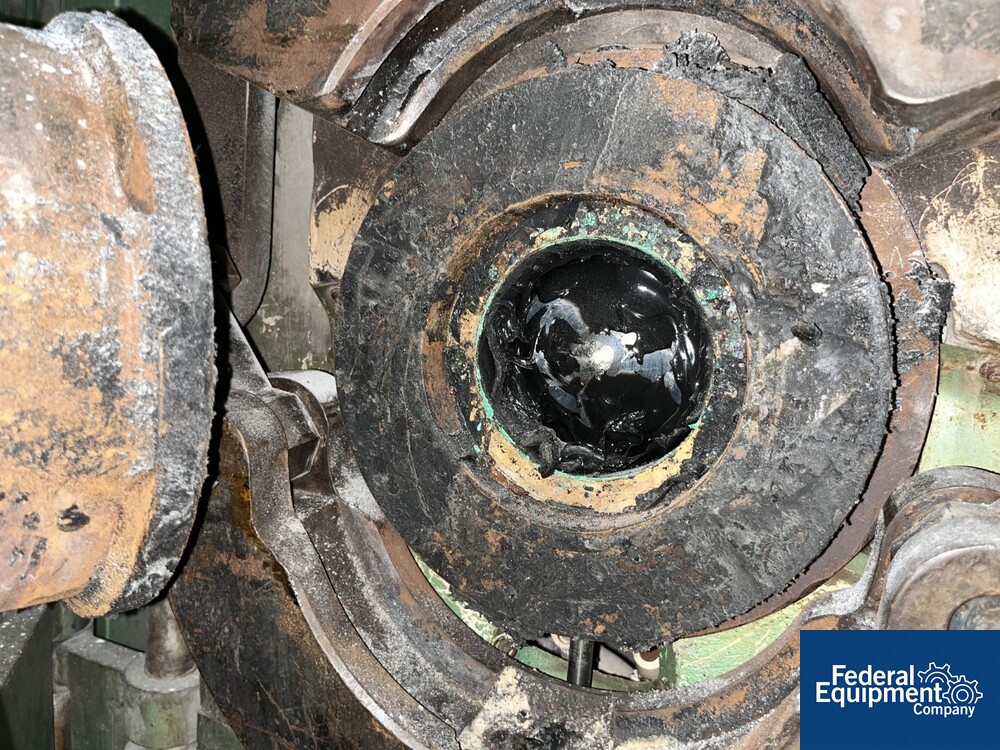

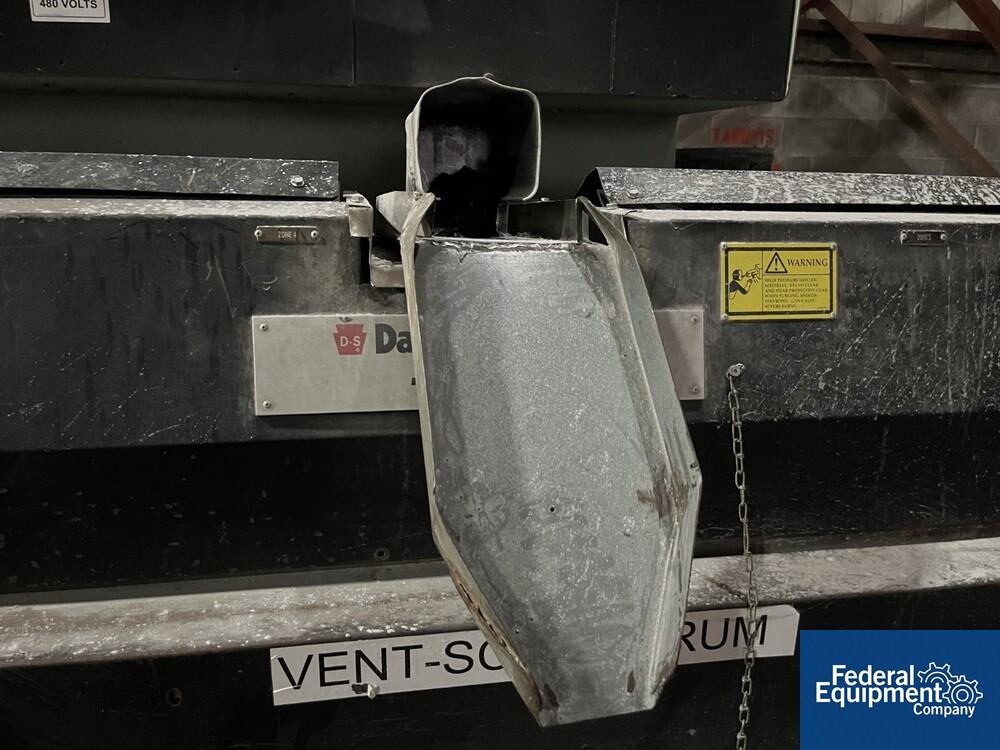

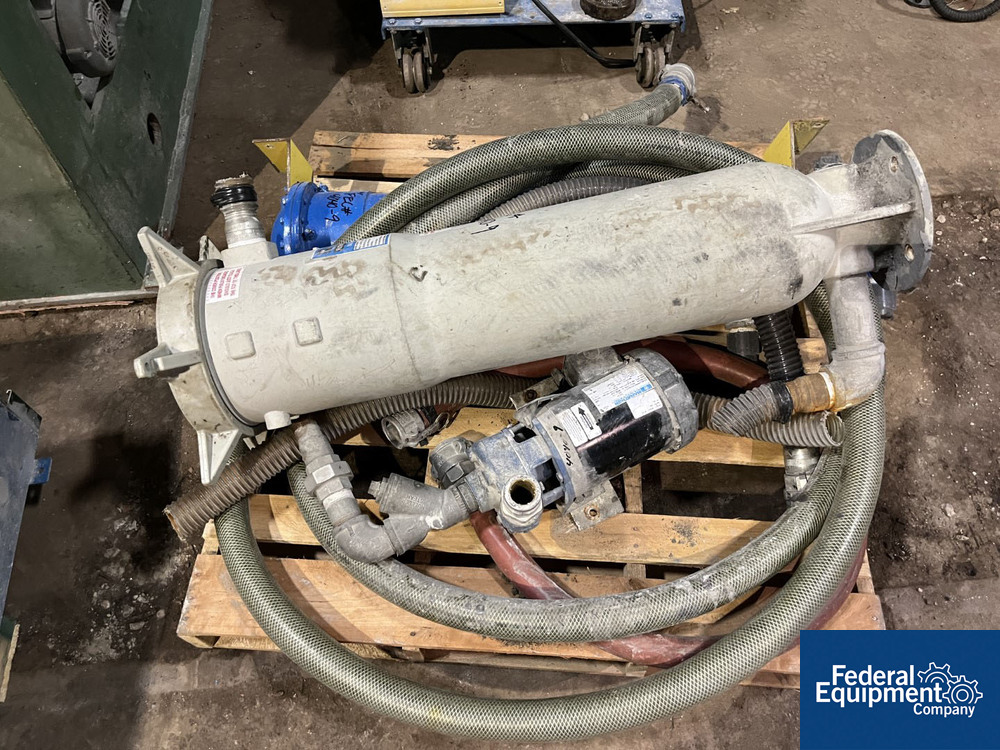

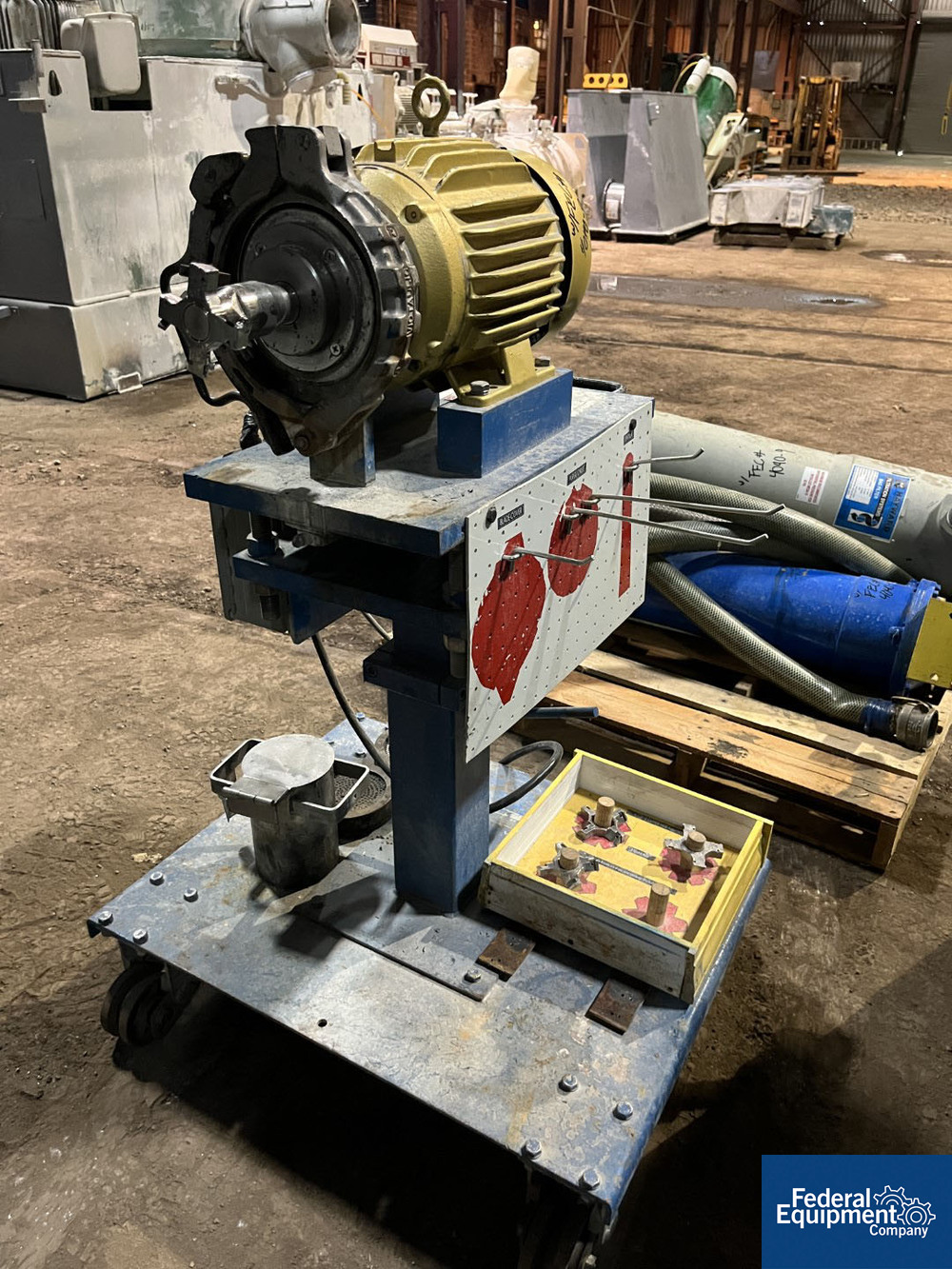

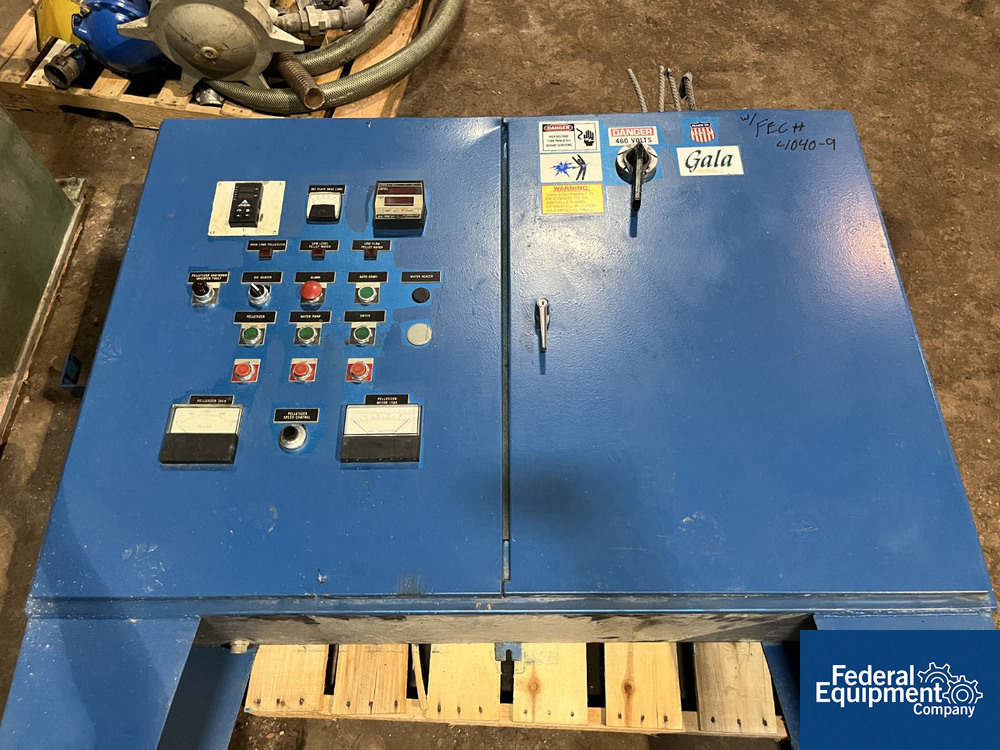

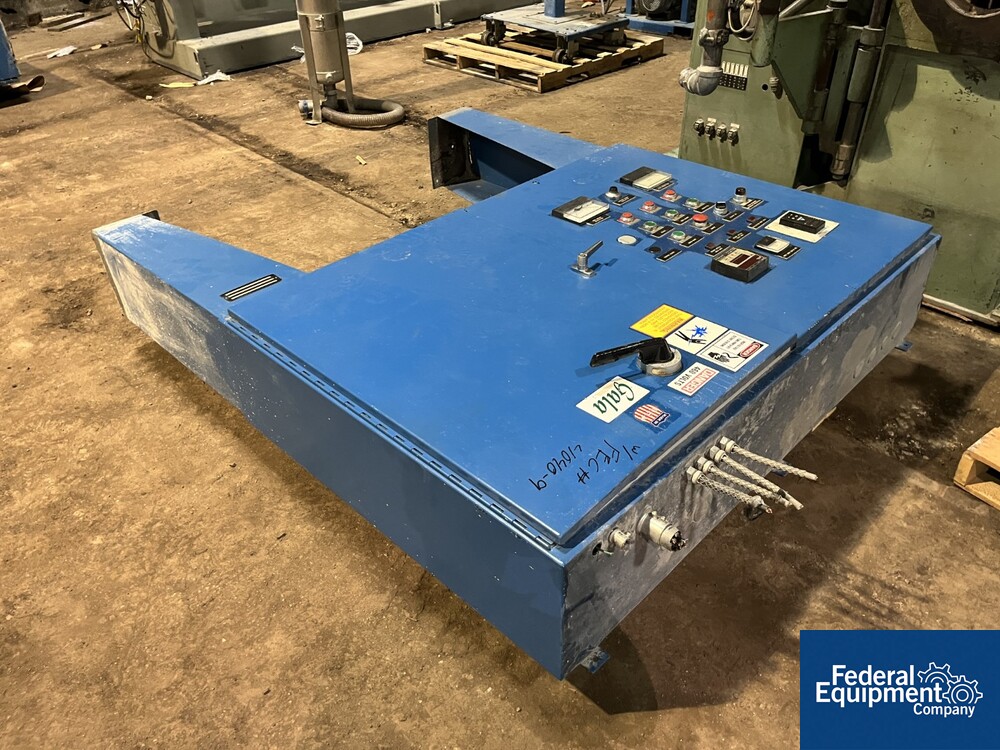

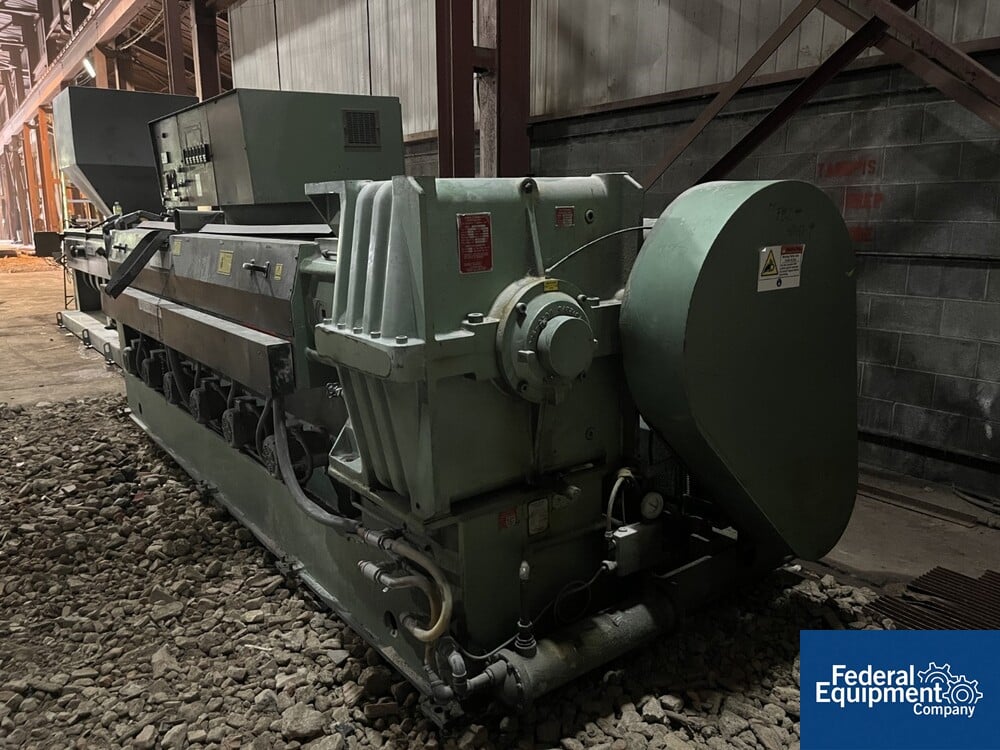

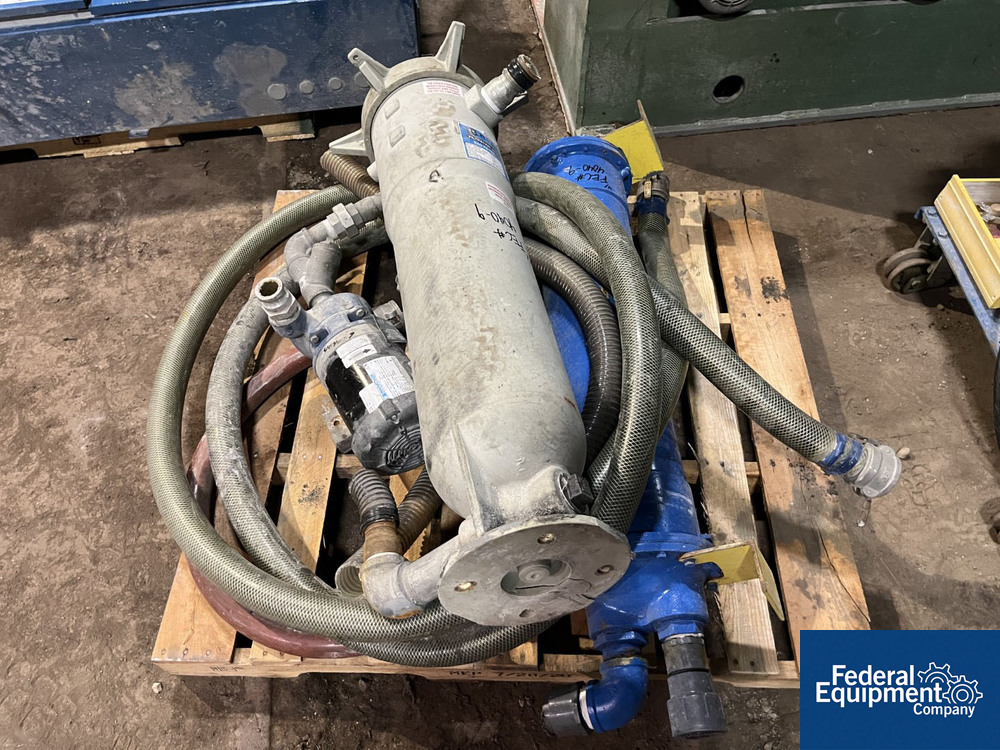

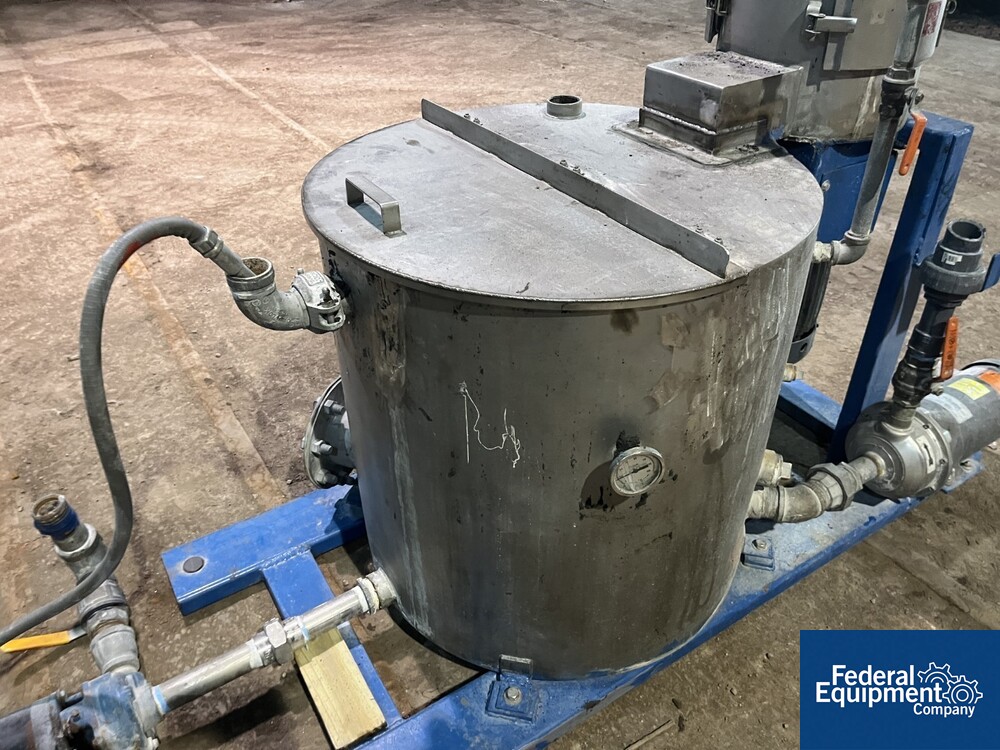

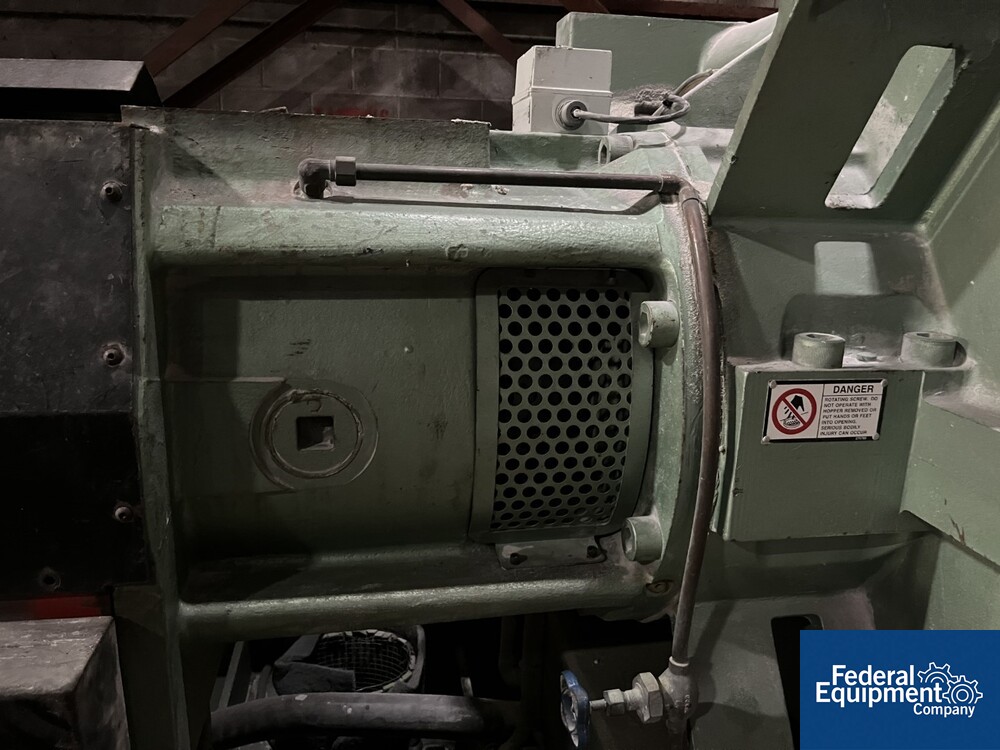

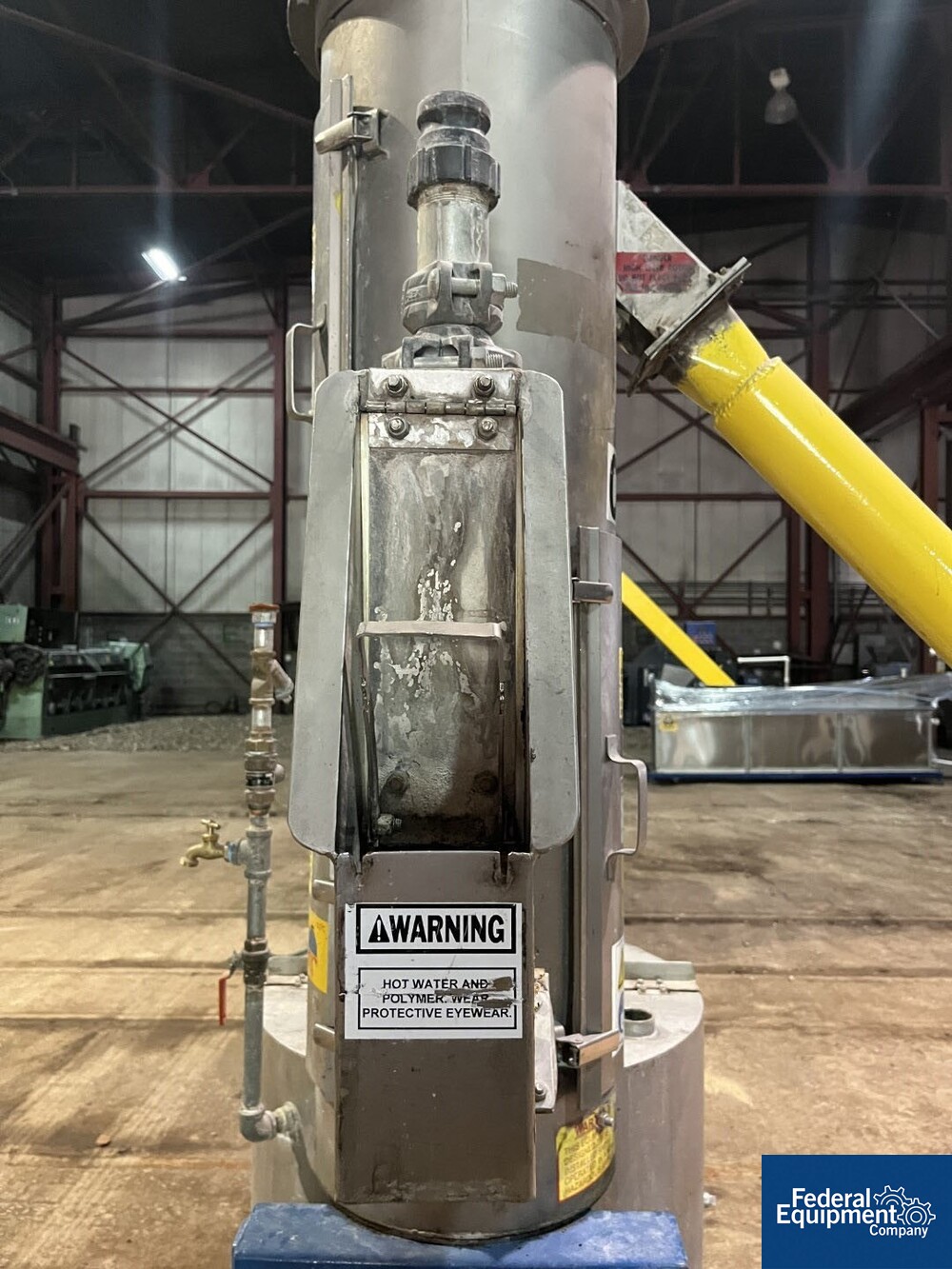

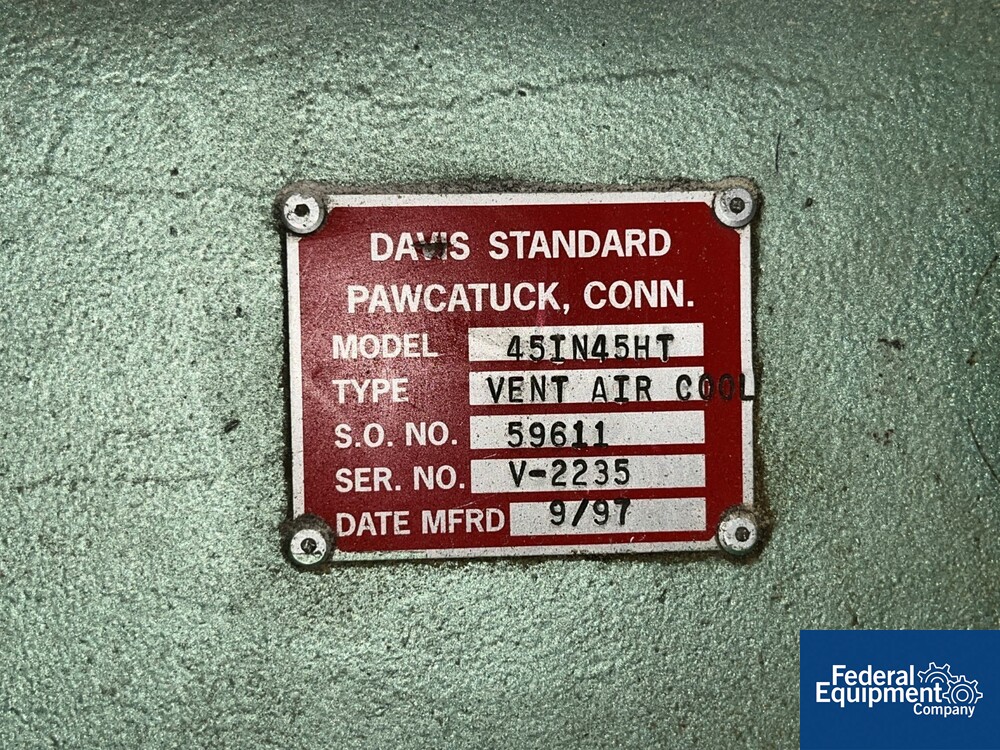

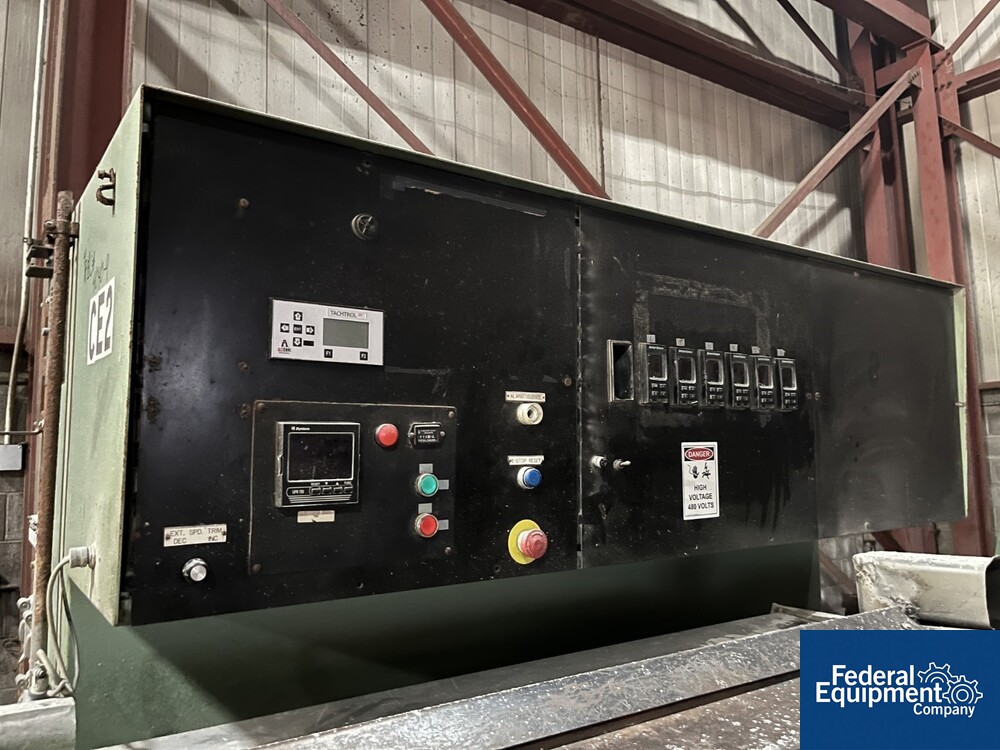

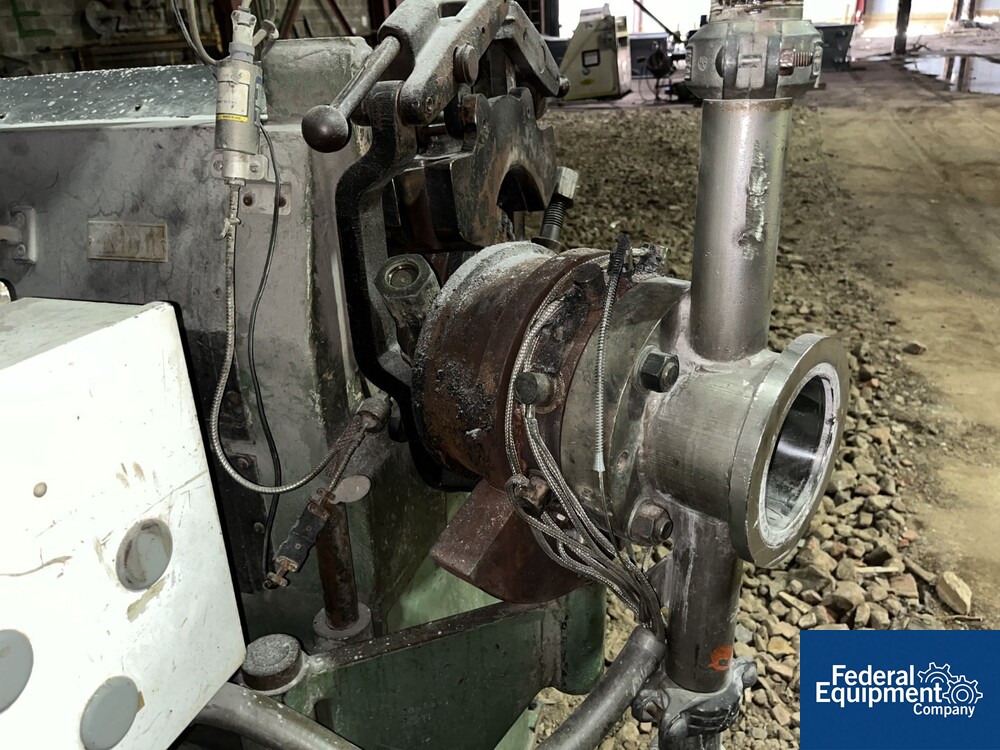

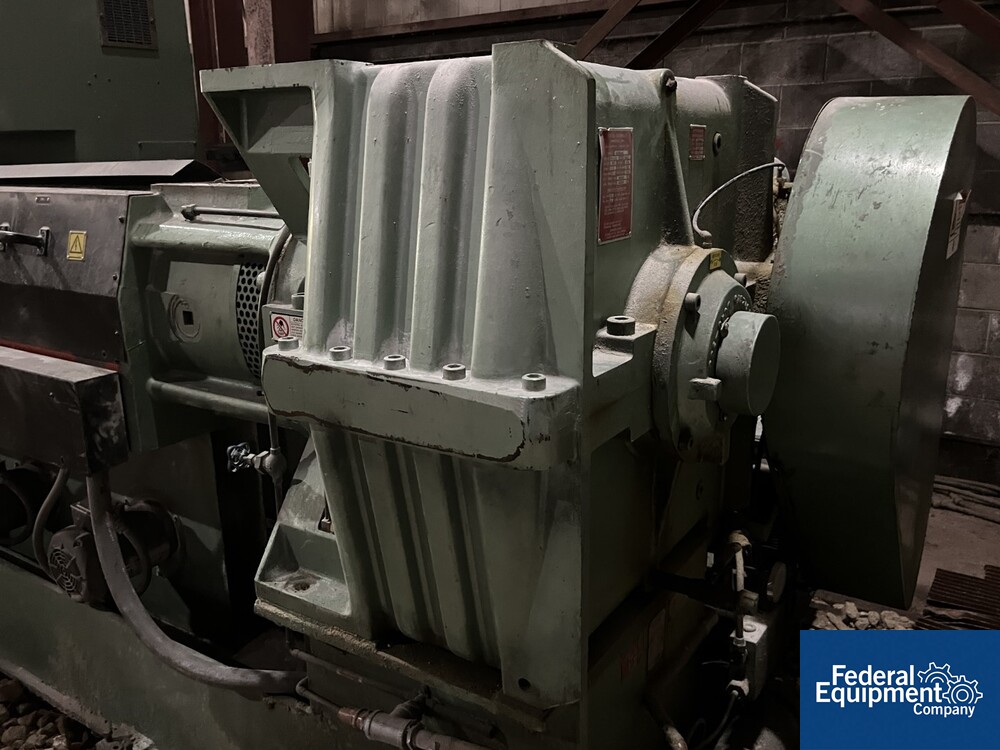

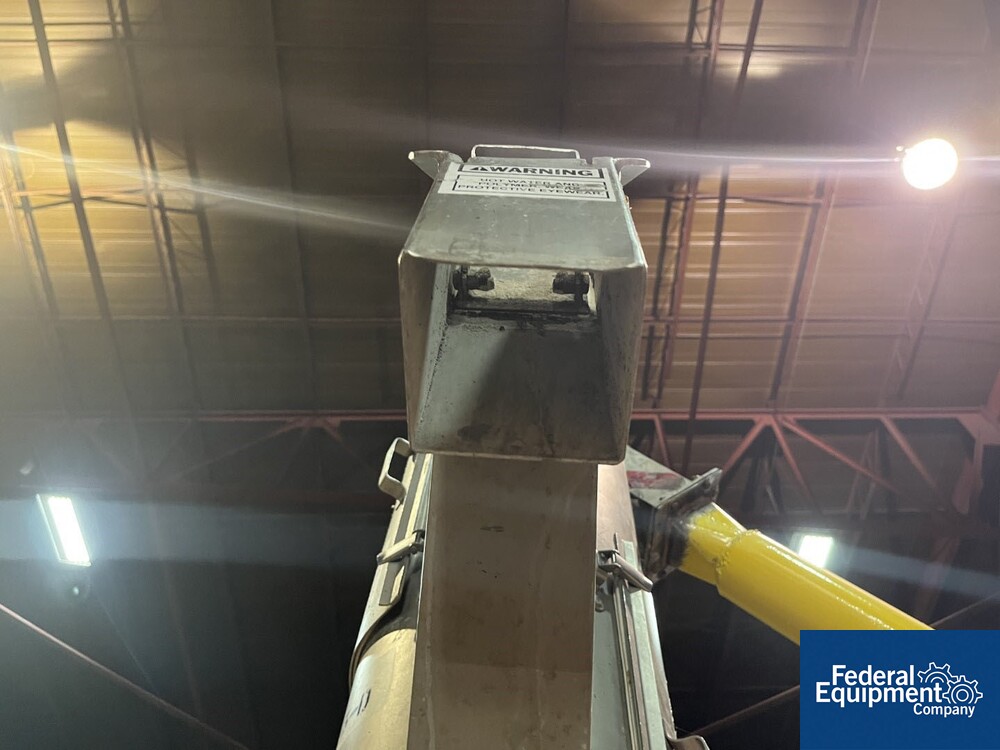

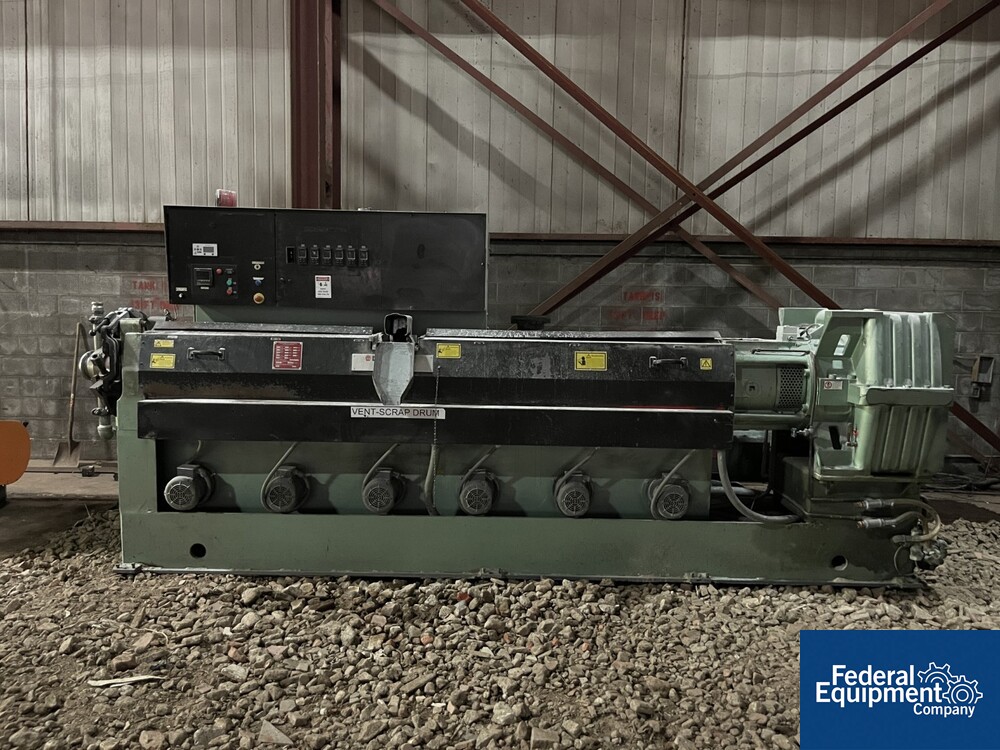

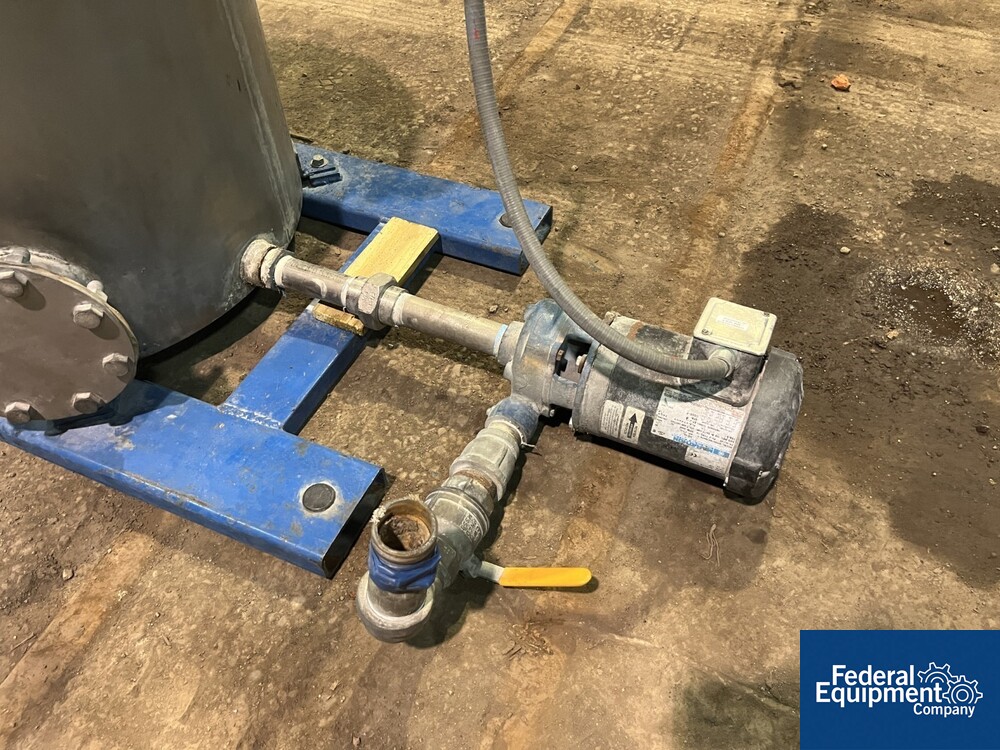

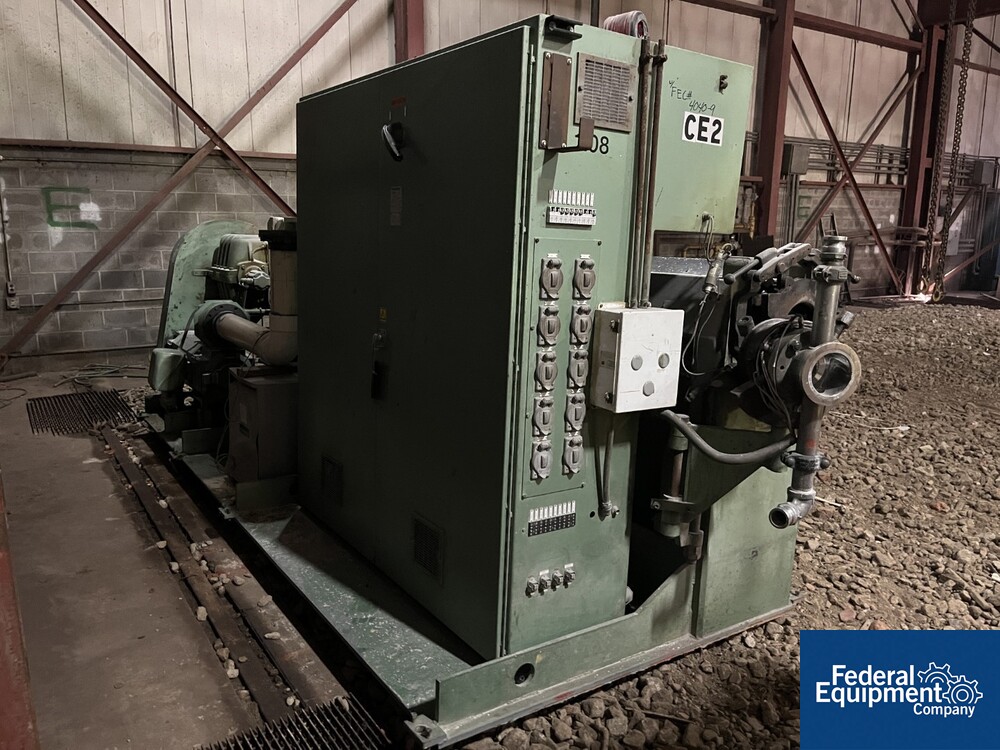

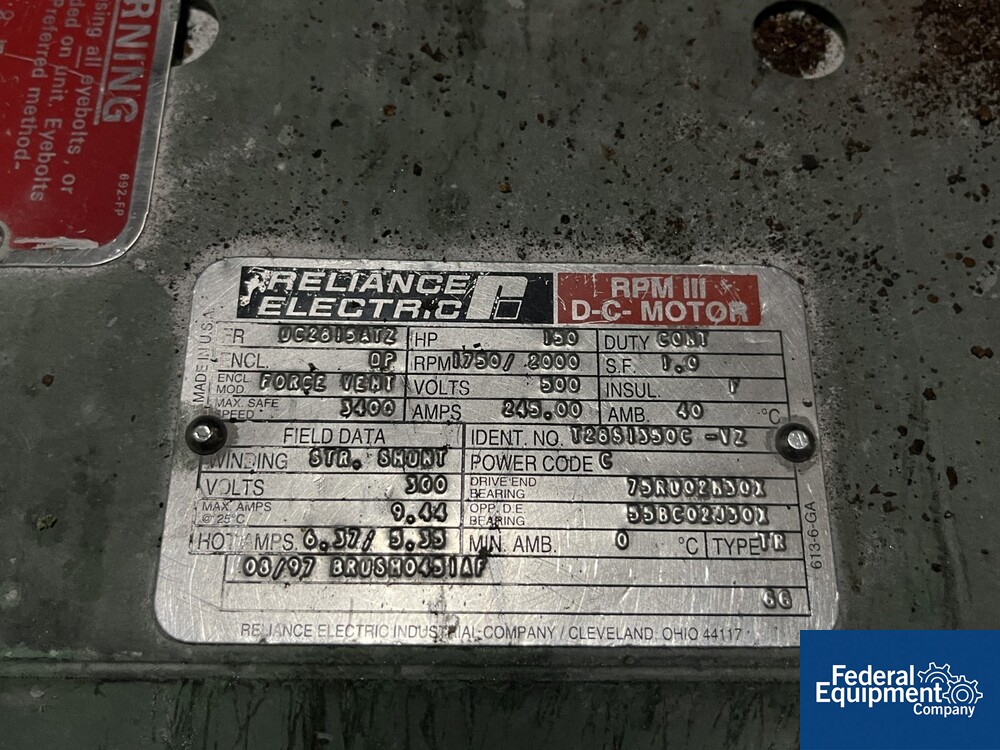

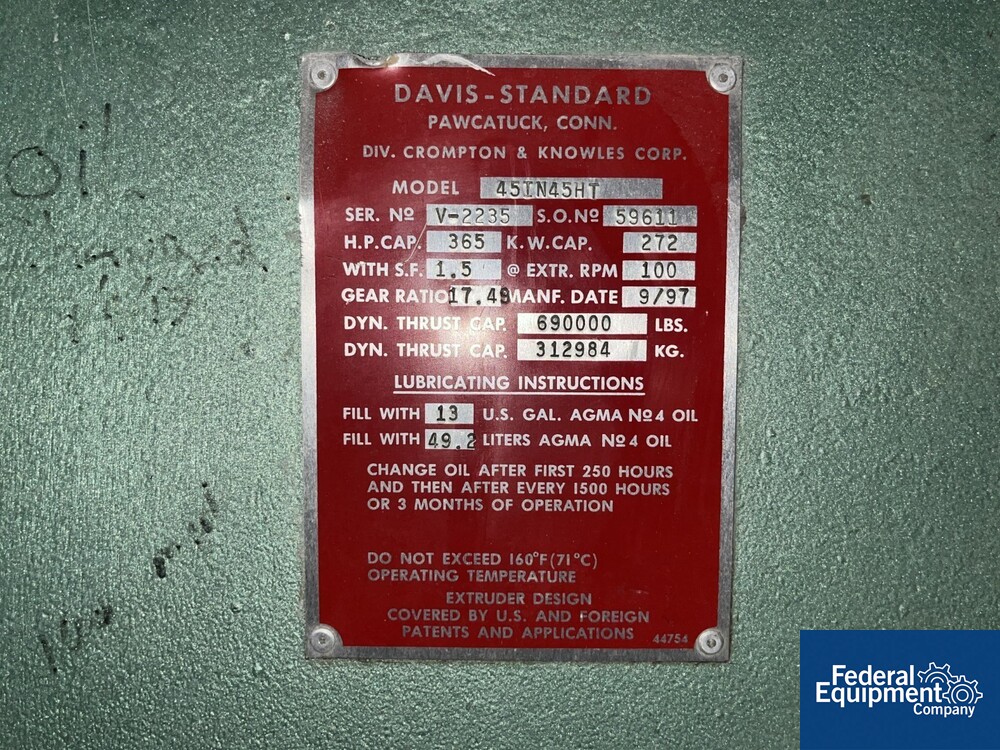

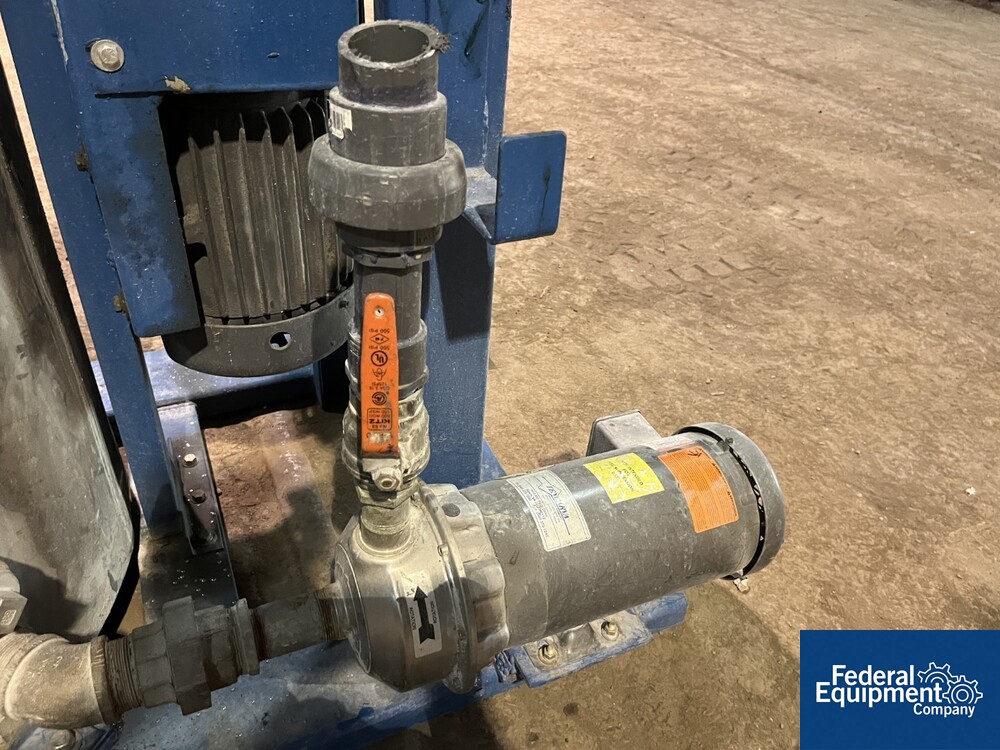

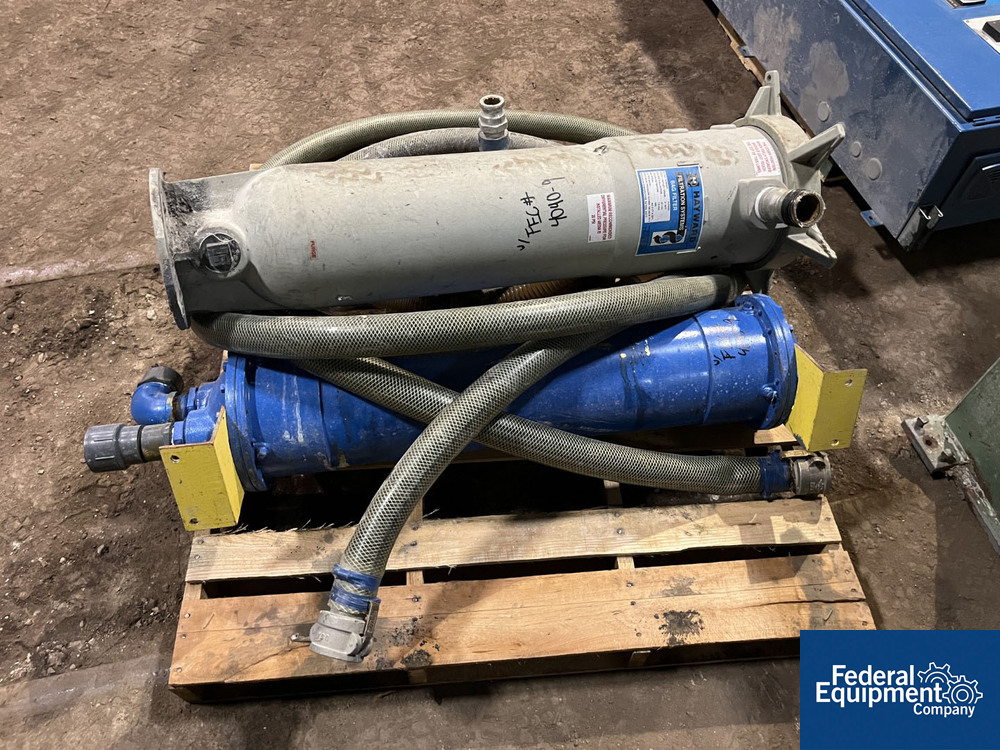

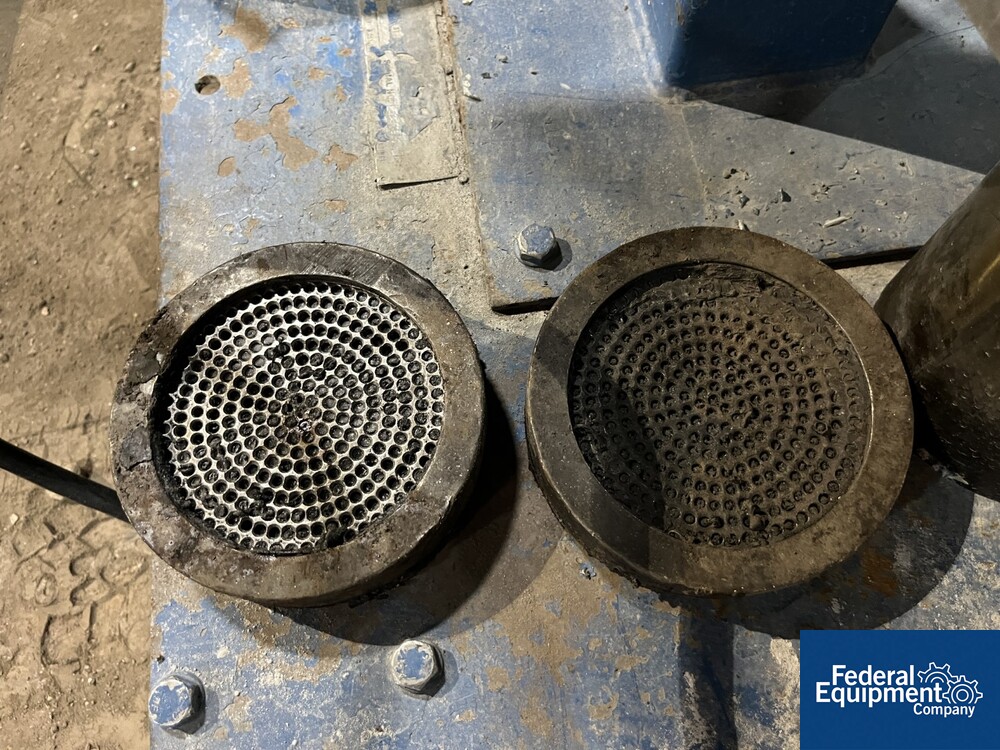

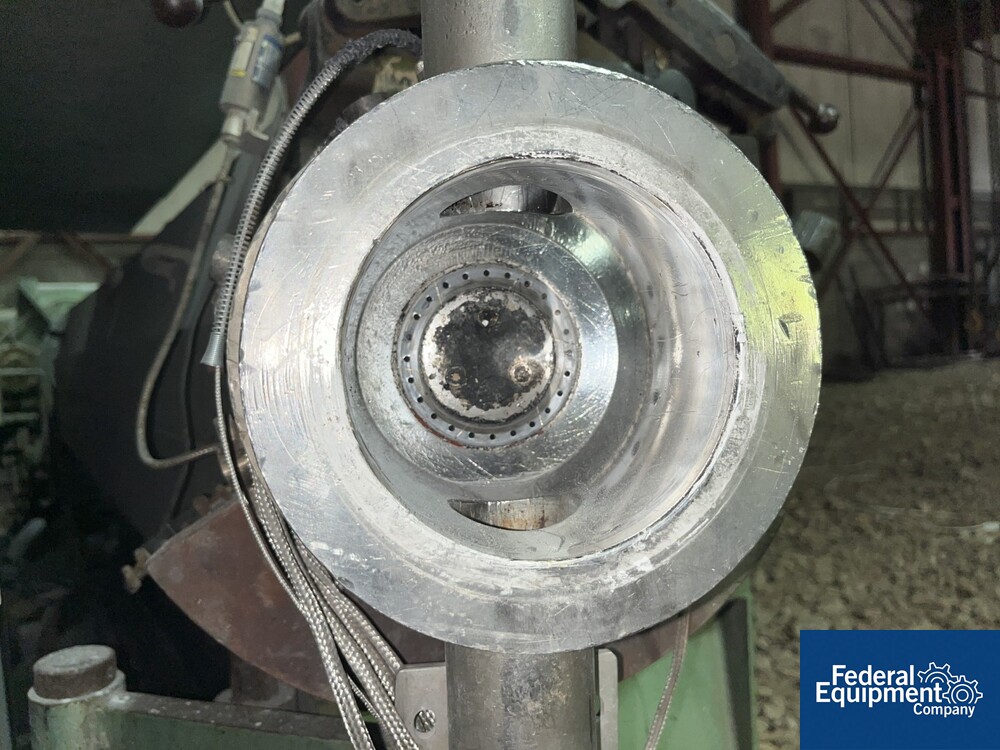

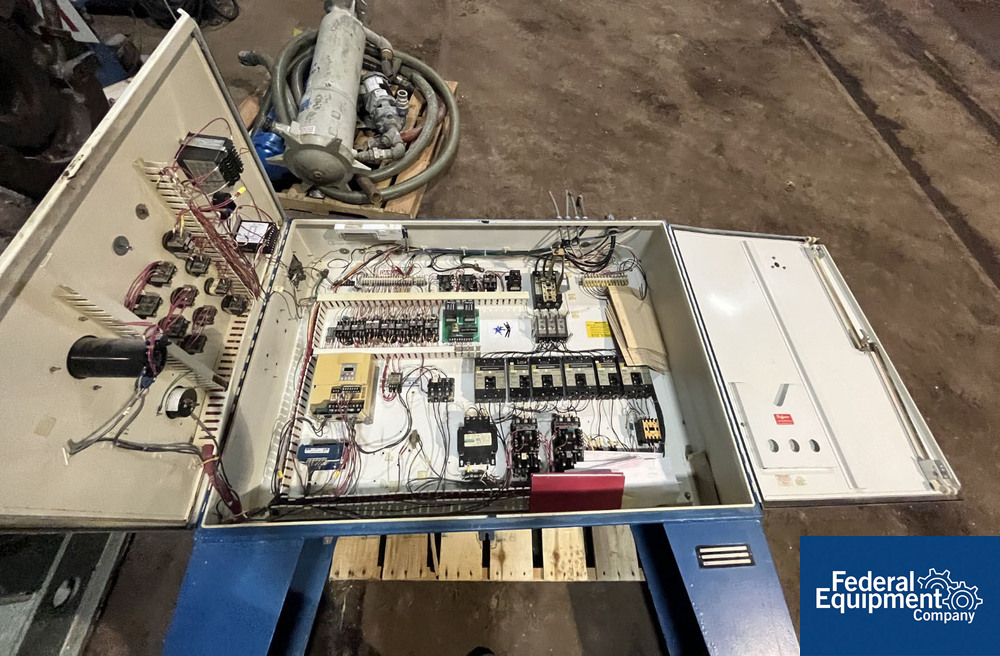

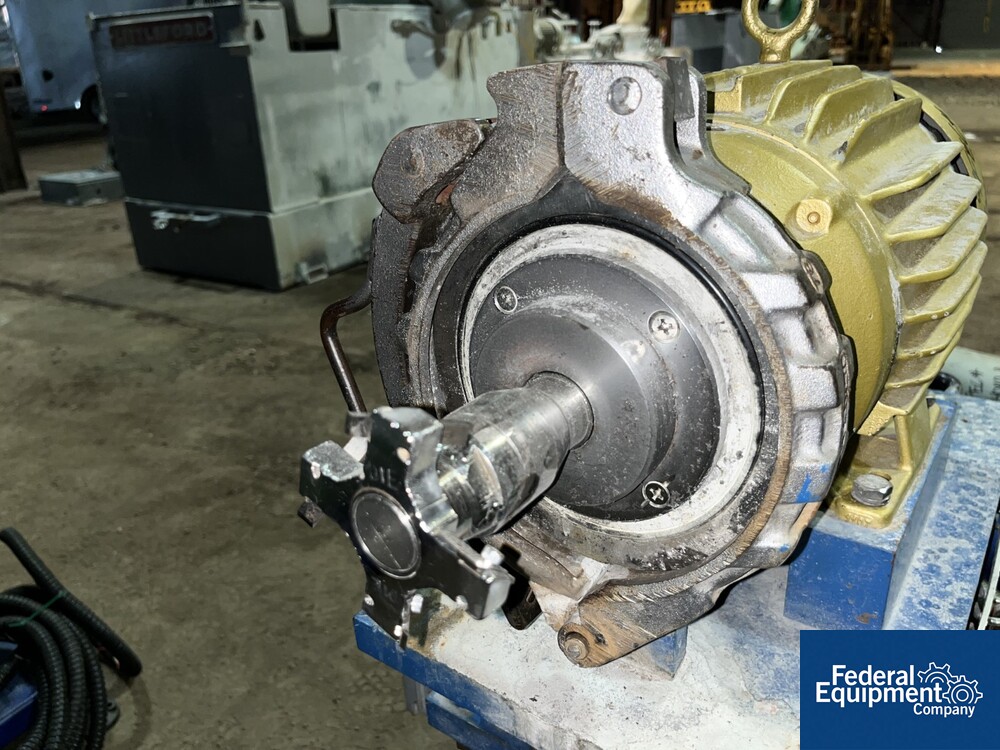

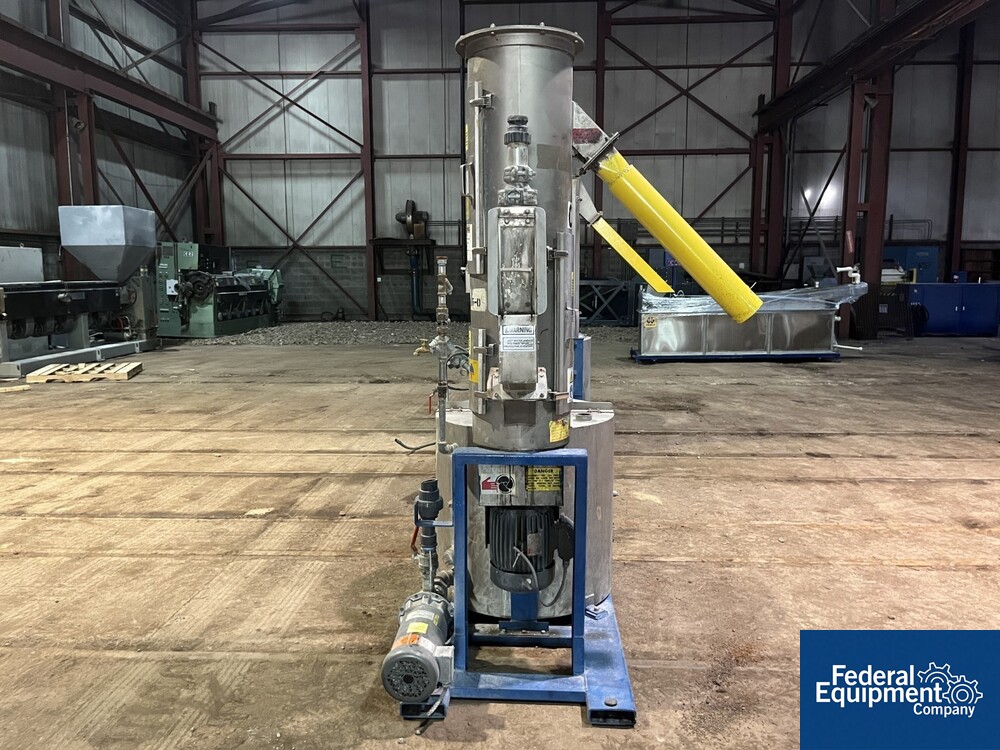

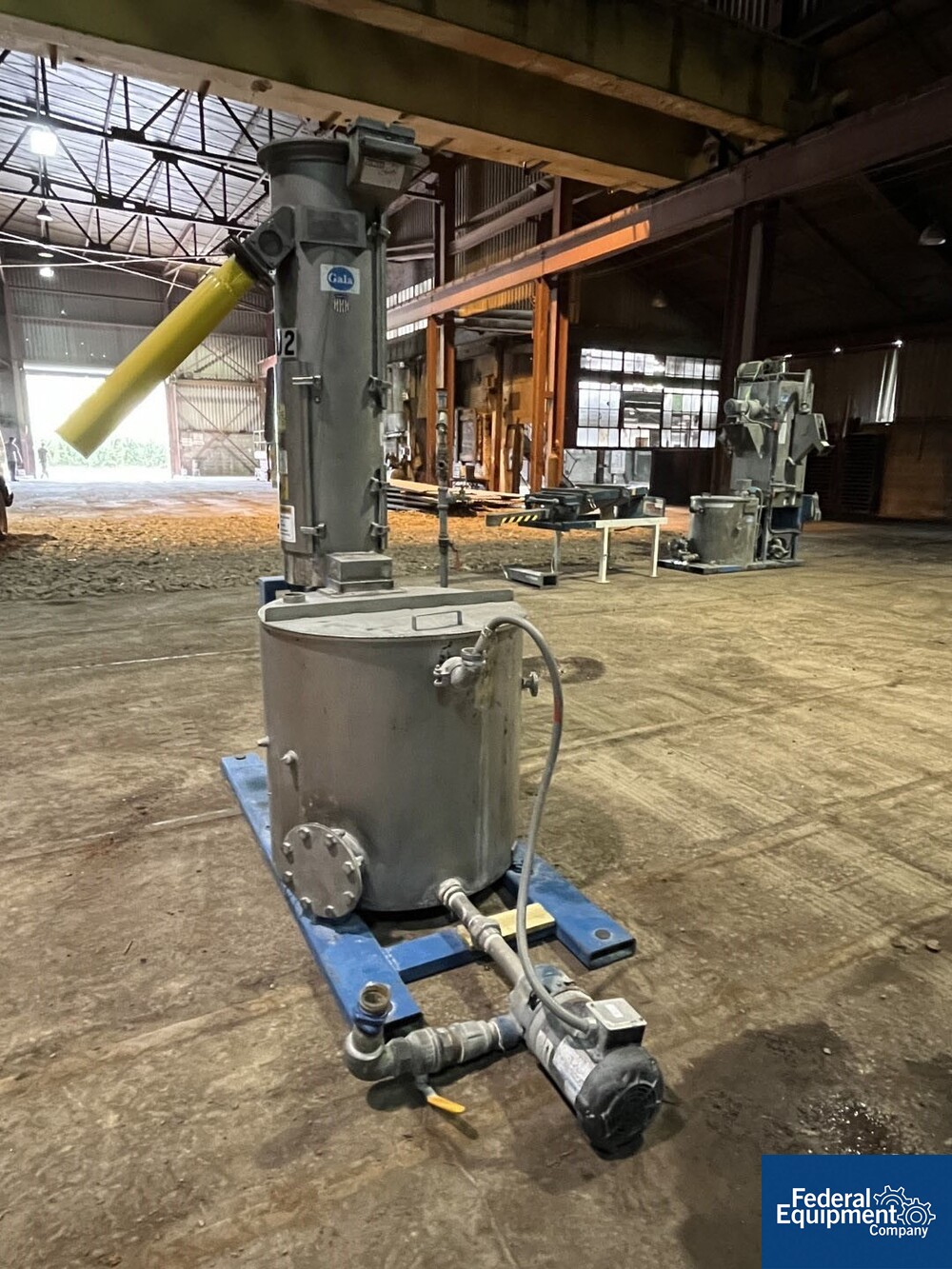

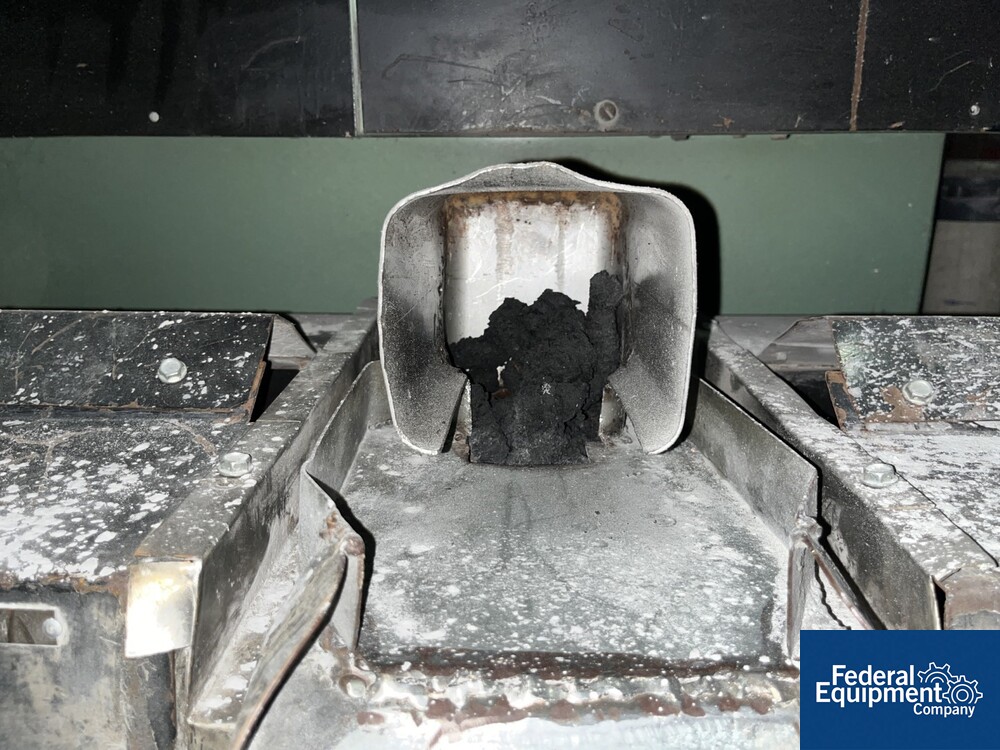

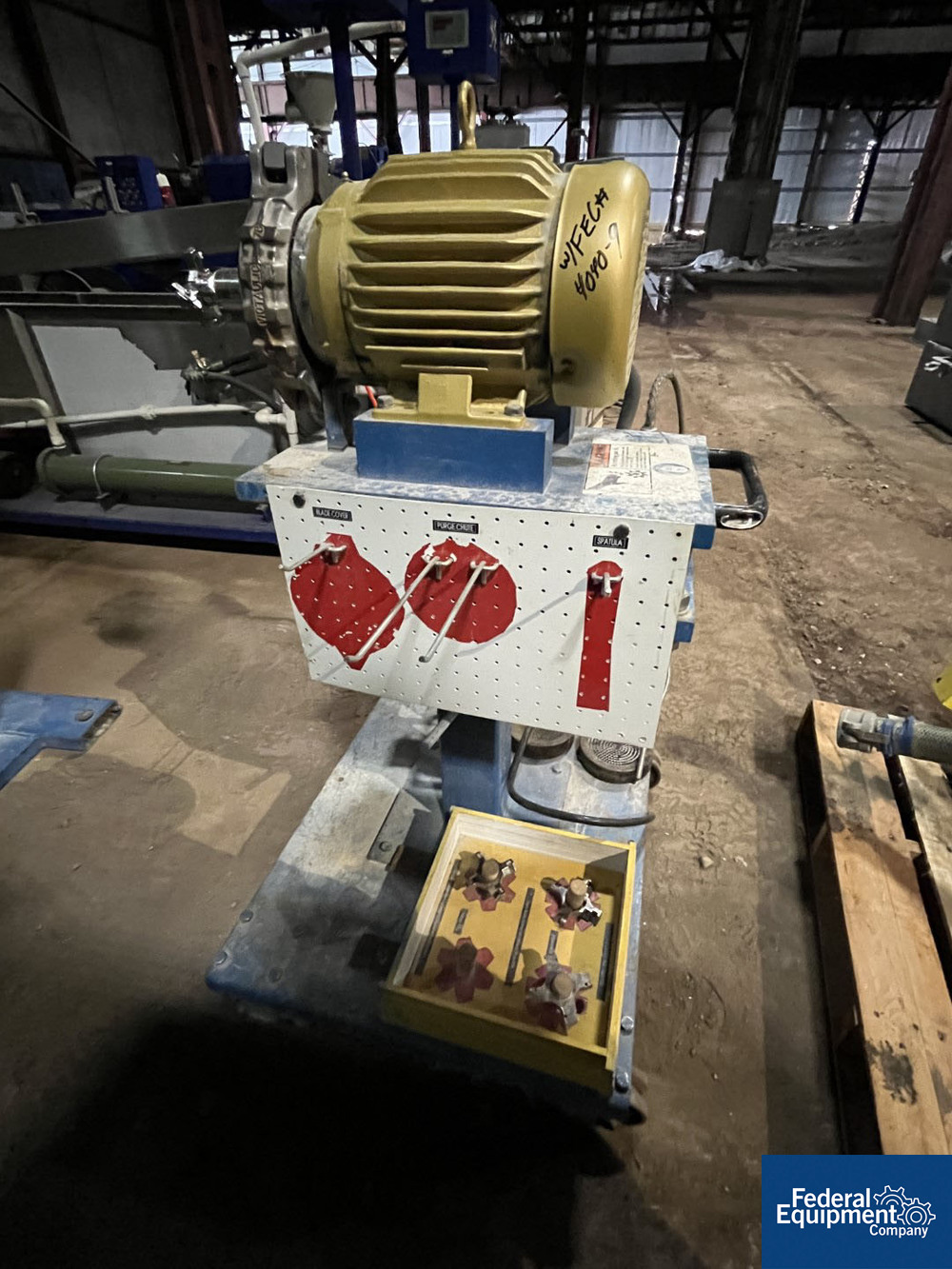

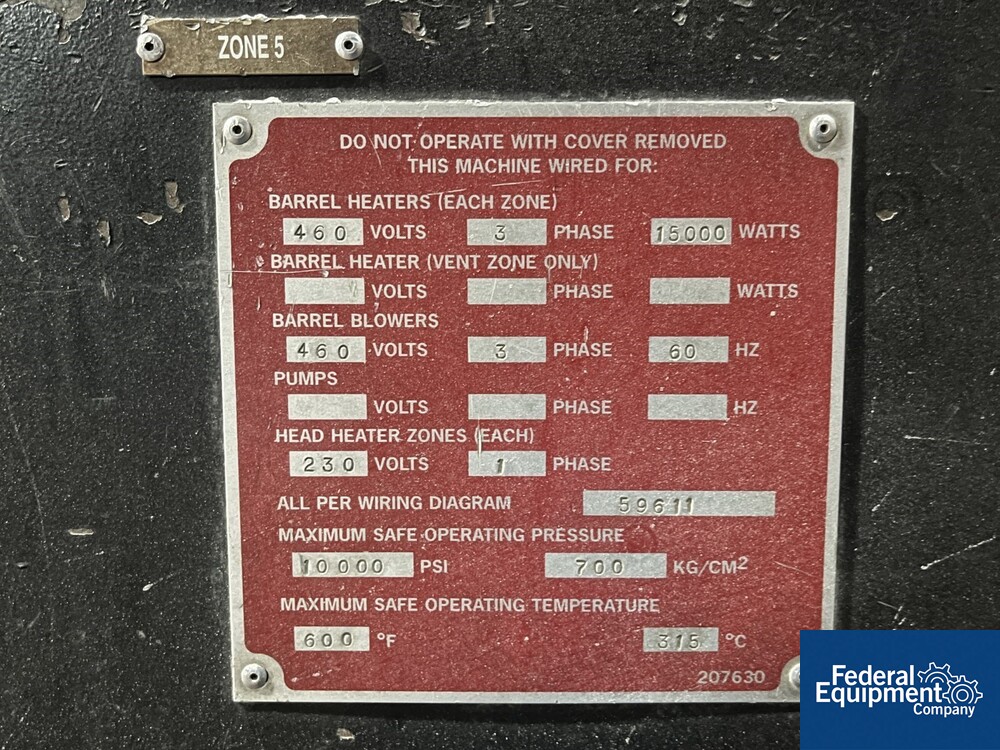

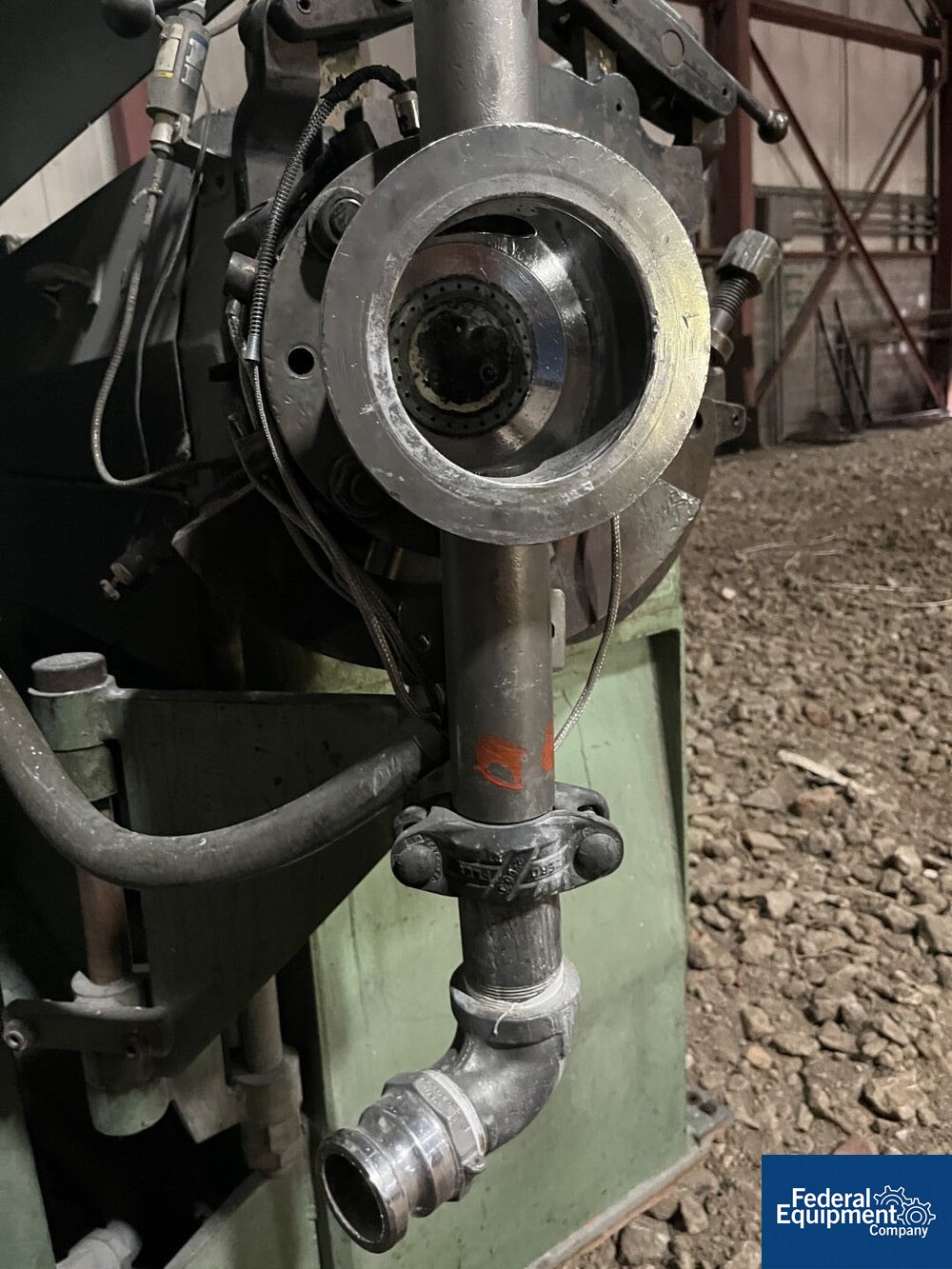

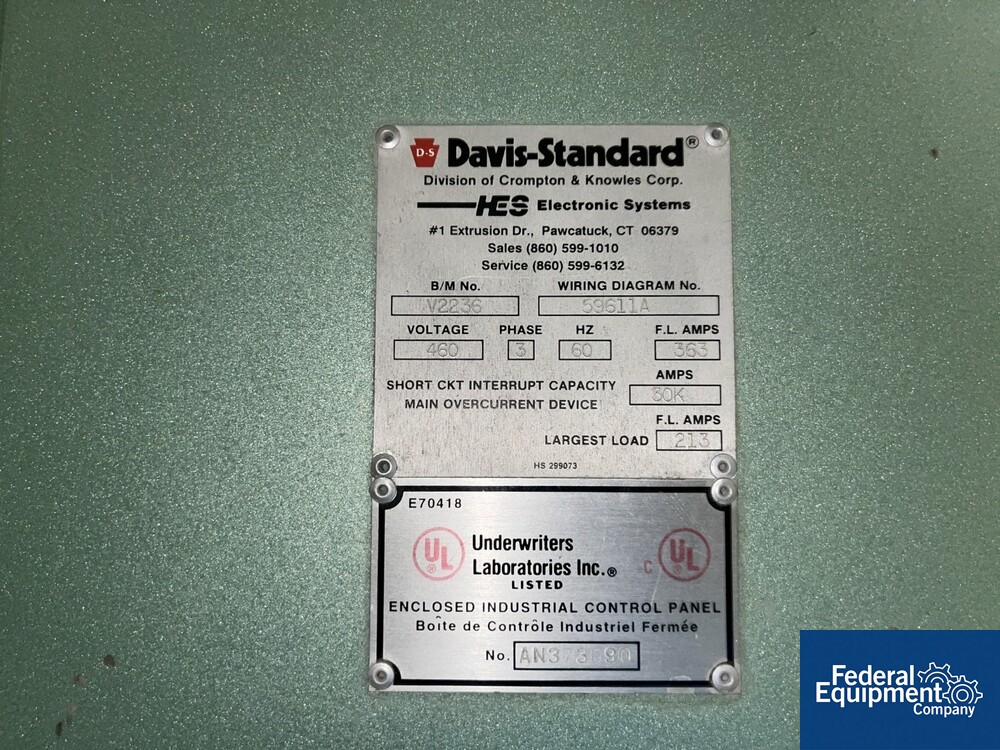

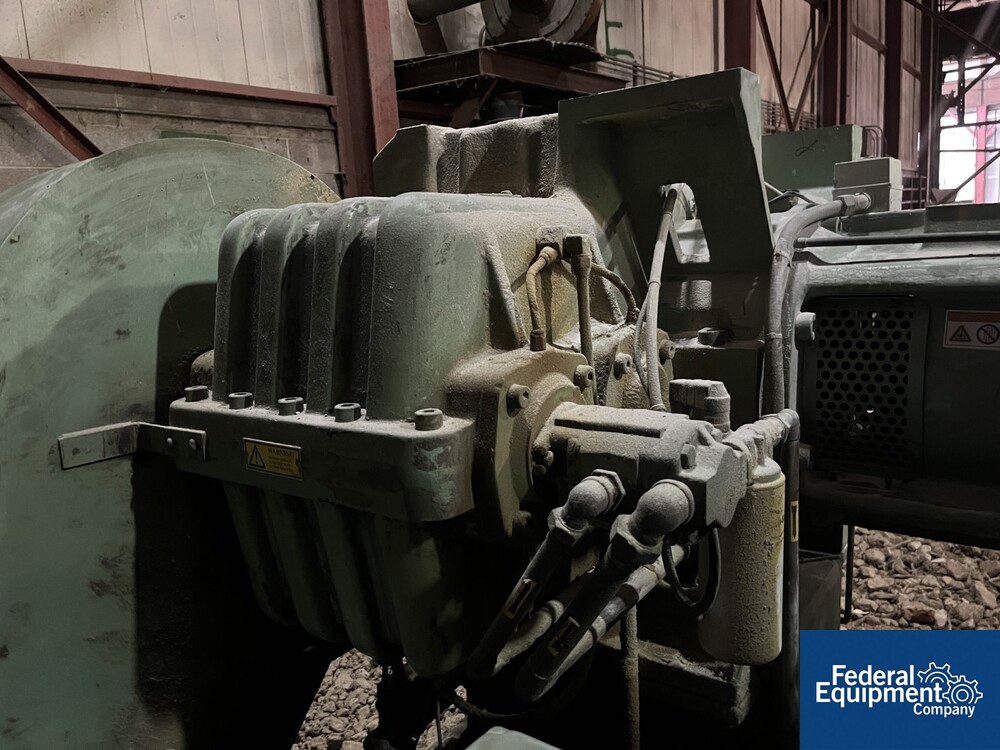

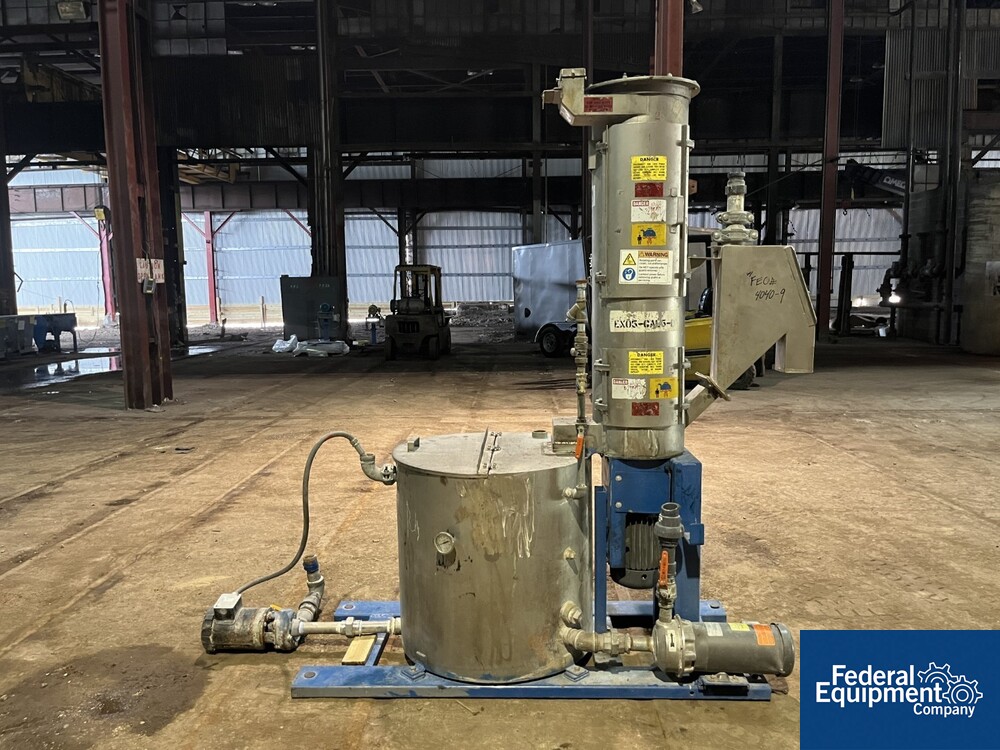

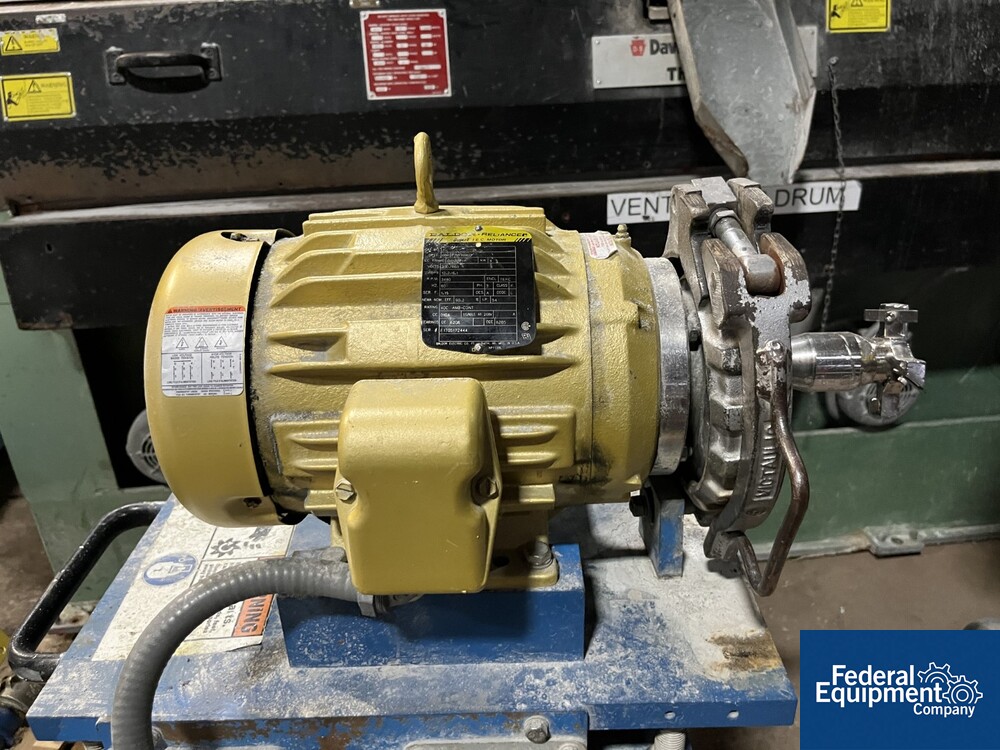

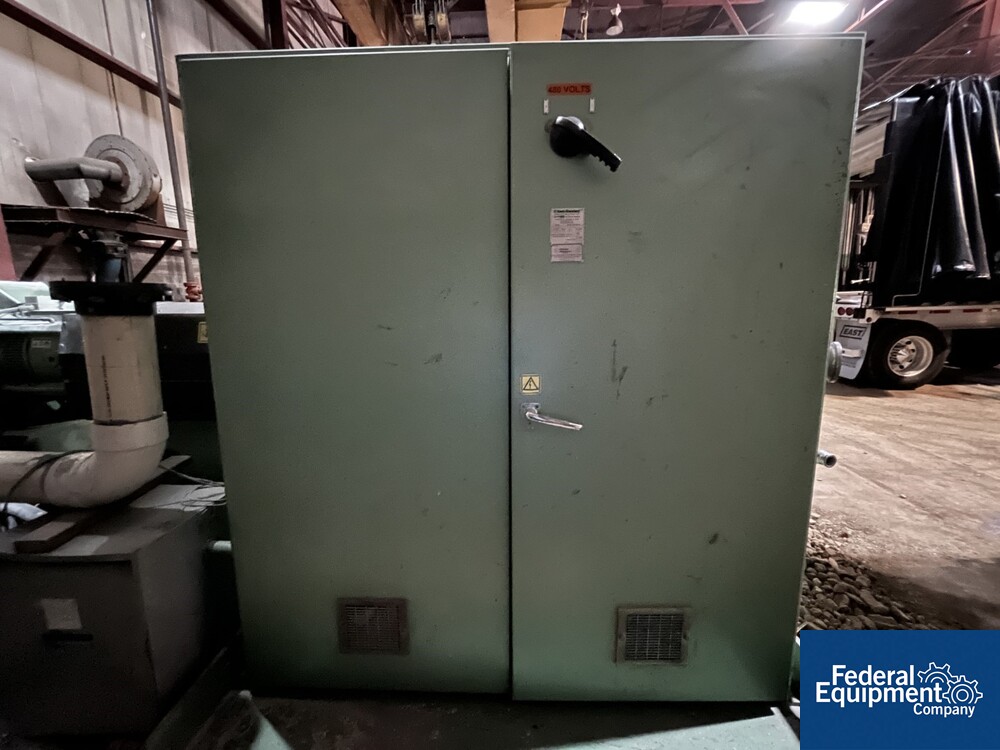

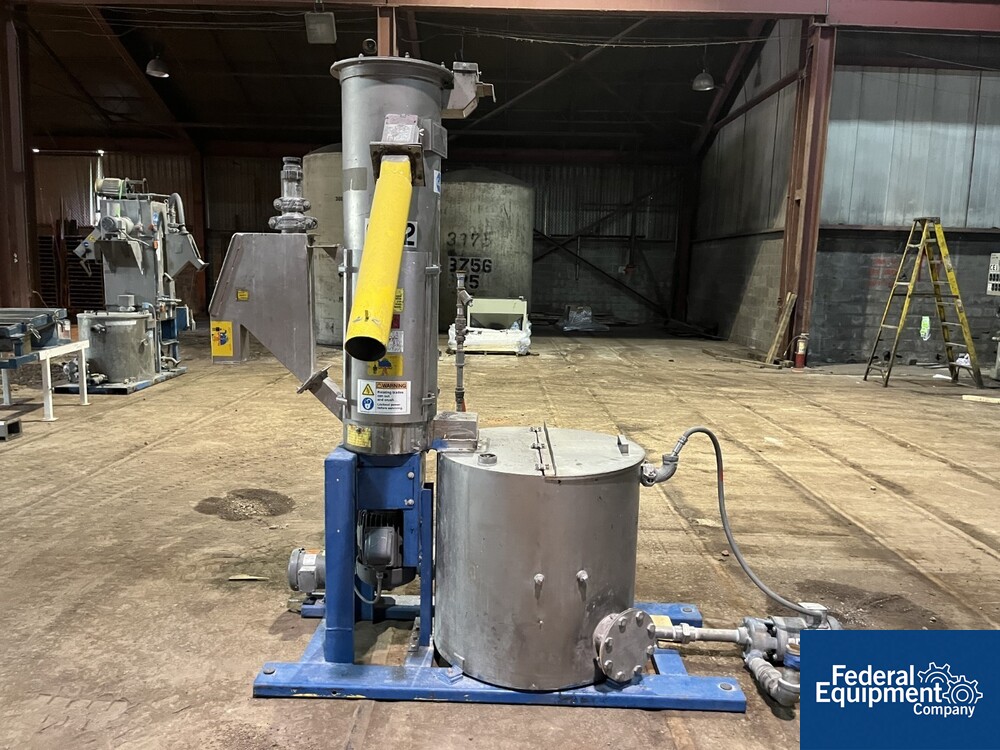

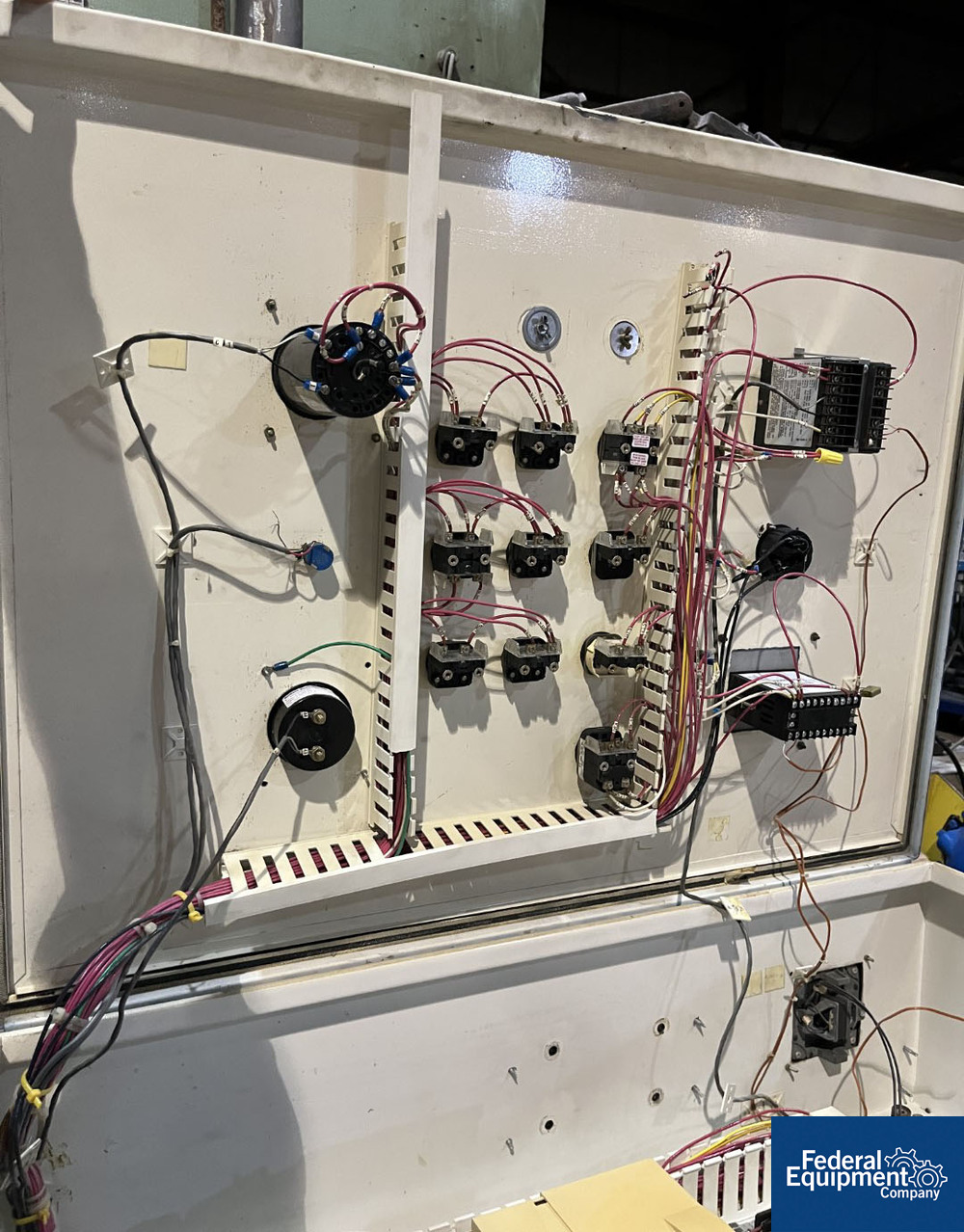

Used 4.5" Davis Standard / Gala underwater pelletizing line with 4.5" Davis Standard Thermatic extruder, model 45IN45HT, 30:1 L/D, air cooled barrel, jacketed feed section, vented barrel, gearbox rated 365 hp, 17.4:1 gearbox ratio, 1.5 service factor, extruder driven by 150 hp dc motor, over barrel control panel with temperature controllers, machine serial# V-2235, SO# 59611, built 1997. Gala underwater pelletizing system, model SLC6 pelletizing head with water box and die plate, 3 kw cutter head on stand, with 60 GPM TWS water system, stainless steel construction, with electrically heated water tank, heat exchanger, circulation pump, and basket filter, model 8.2BF Gala spin dryer, Gala cutter head serial# 1020029, TWS serial# 902074.
  • Length to Diameter Ratio: 30
  • Model/Type: 45IN45HT
  • Motor HP: 150
  • Pelletizing Model #: SLC6
  • Screw Diameter: #" (convert to Inches): 4.5
  • Serial Number: v-2235
  • Style: underwater
  • Year of Construction: 1997
