2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100#

Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100#
Click image for full size
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 02
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 03
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 04
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 05
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 06
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 07
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 08
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 09
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 10
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 11
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 12
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 13
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 14
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 15
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 16
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 17
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 18
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 19
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 20
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 21
Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 22 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 23 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 24 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 25 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 26 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 27 Image of 2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100# 28
Get This Item
Make An Offer Request a Quote >
SKU
4039-18
Item Name
2 Cu Ft P-K Double Cone Dryer, Hastelloy C22, 100#
Category
Dryers >  Conoform Dryers
Manufacturer
Patterson-Kelley
Location
Cleveland, OH

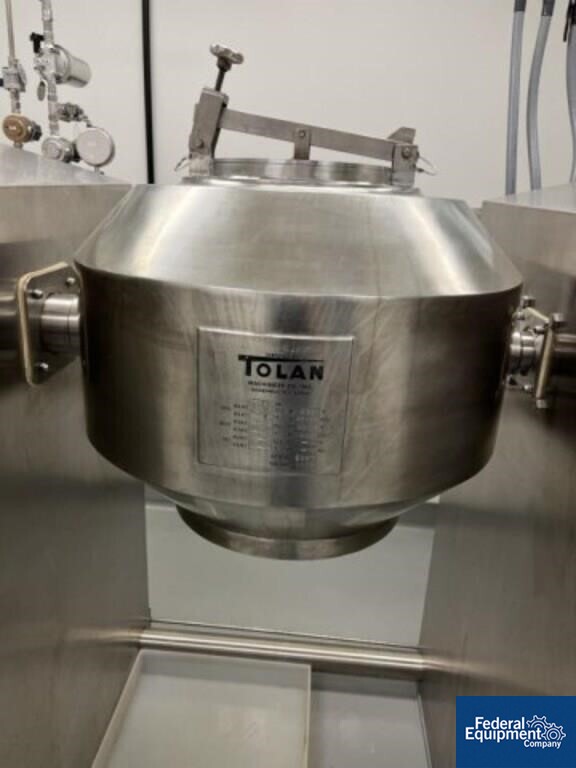

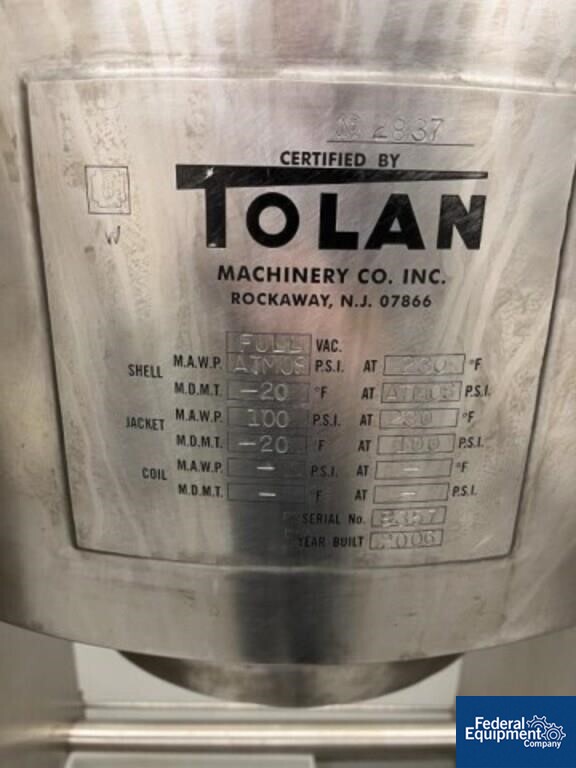

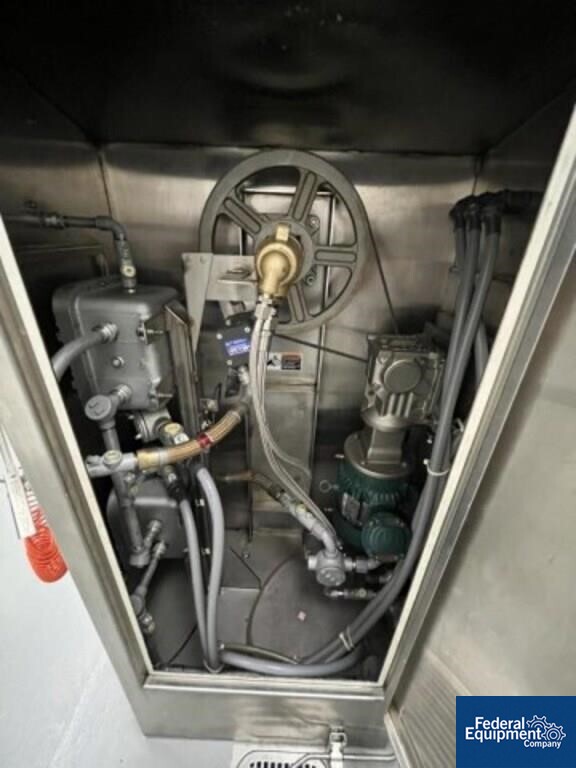

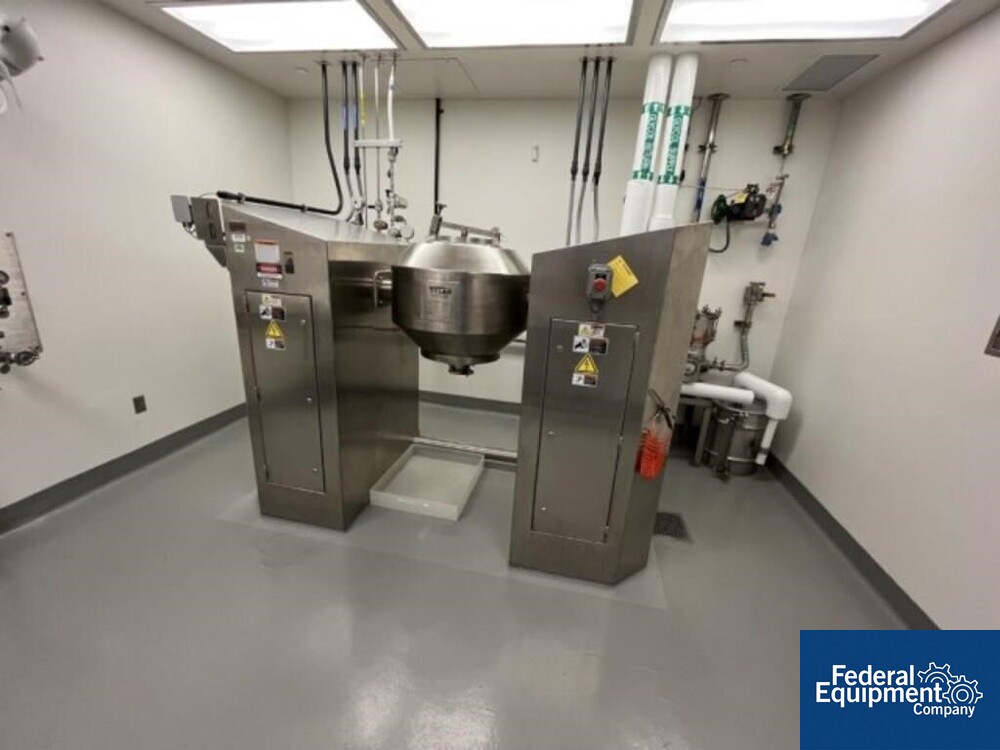

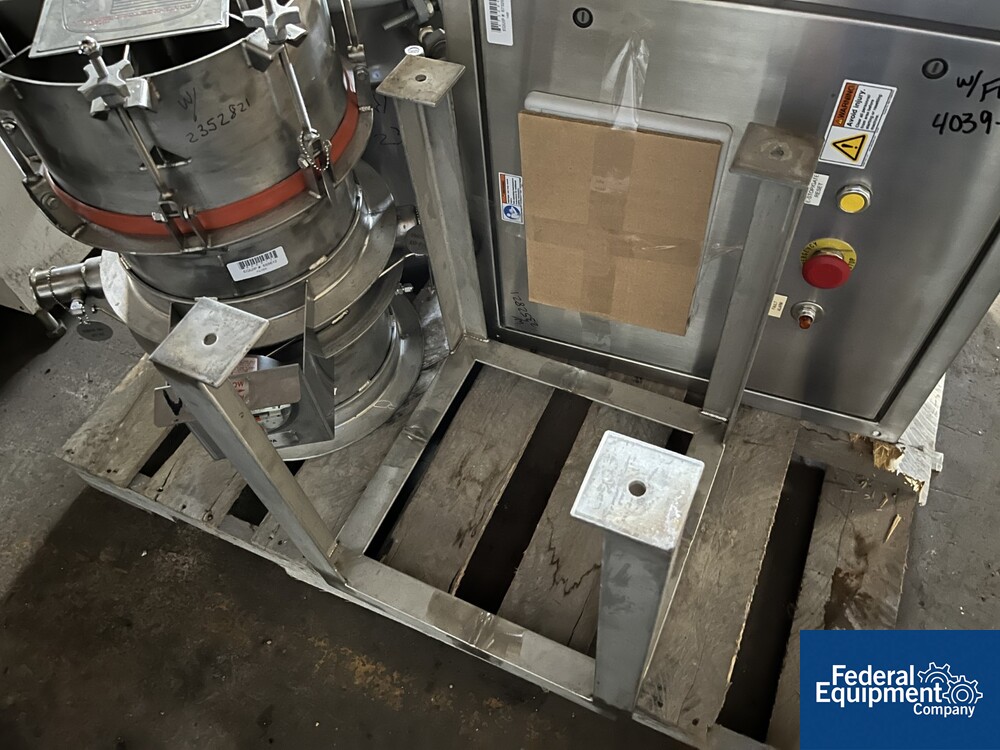

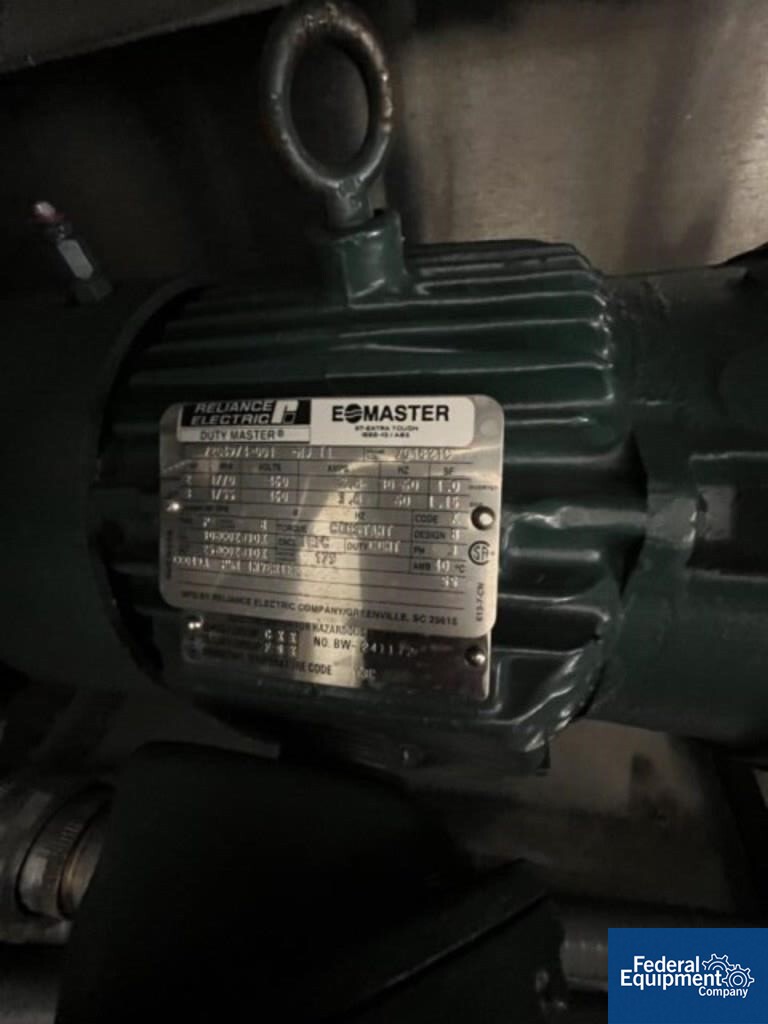

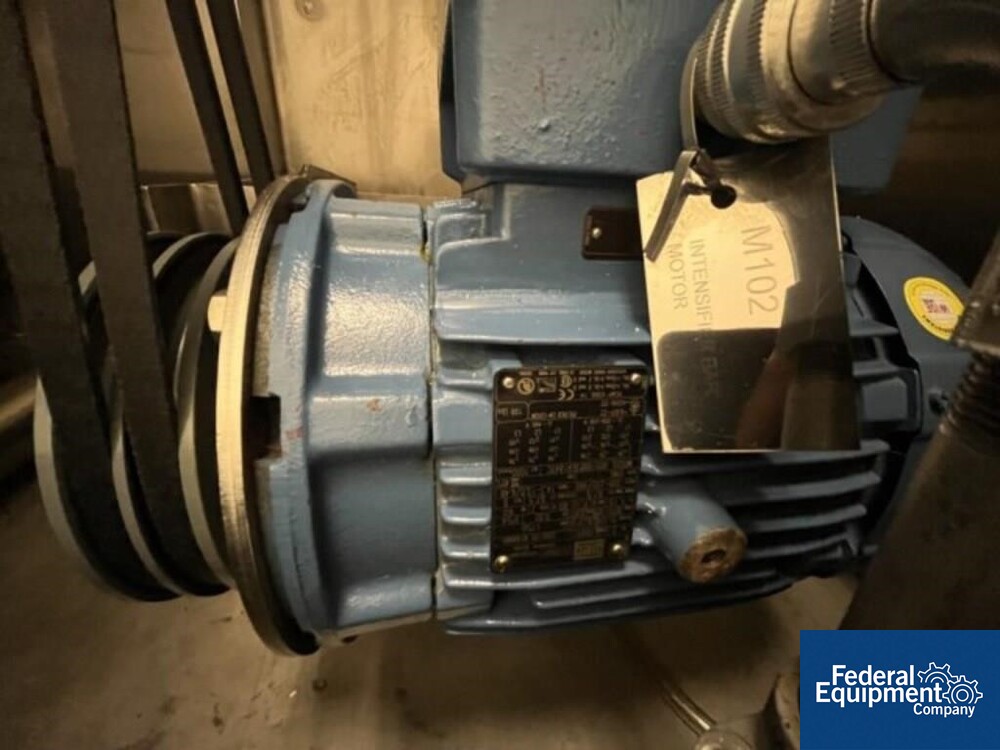

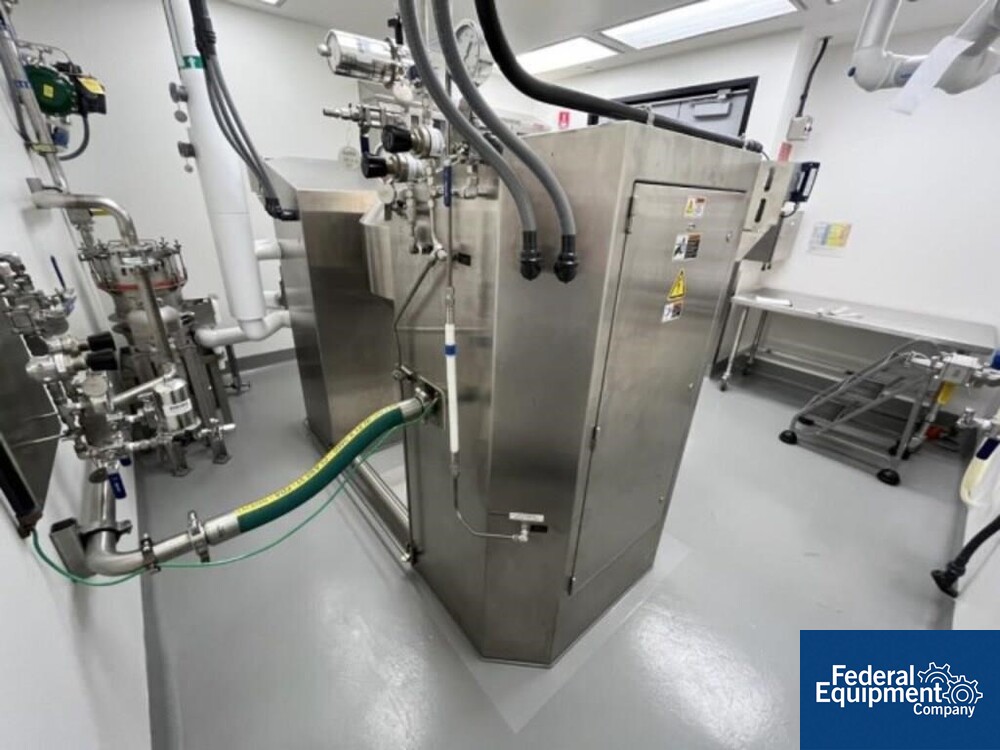

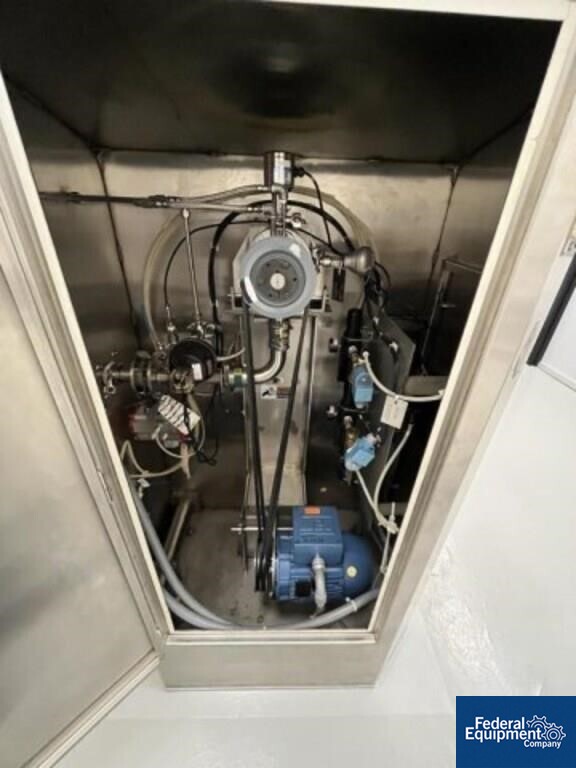

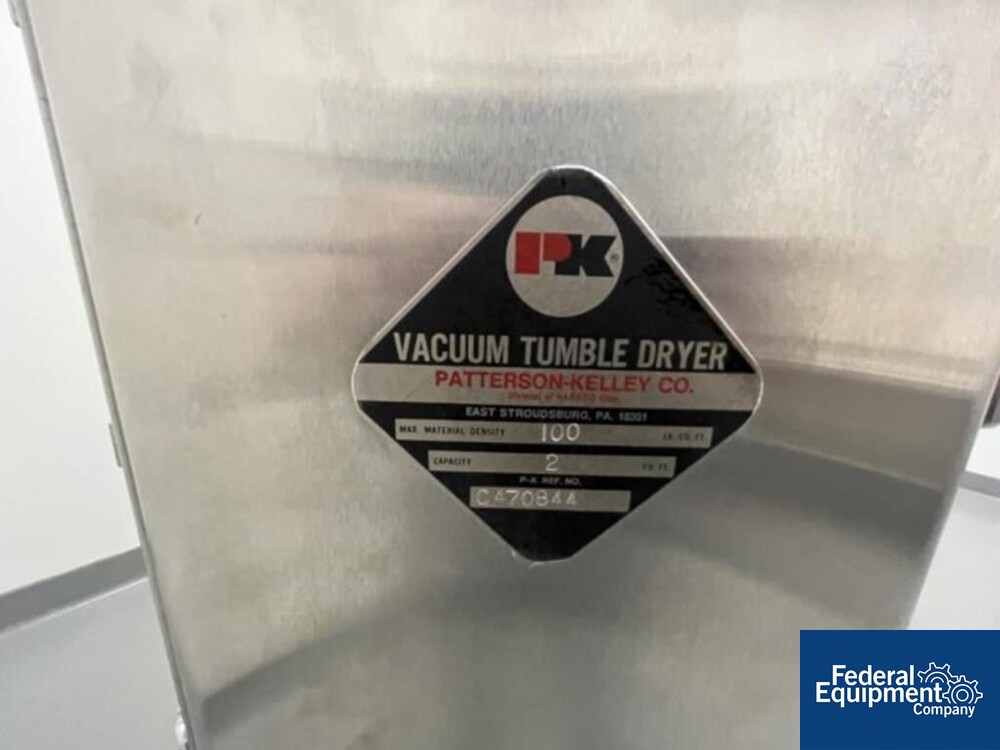

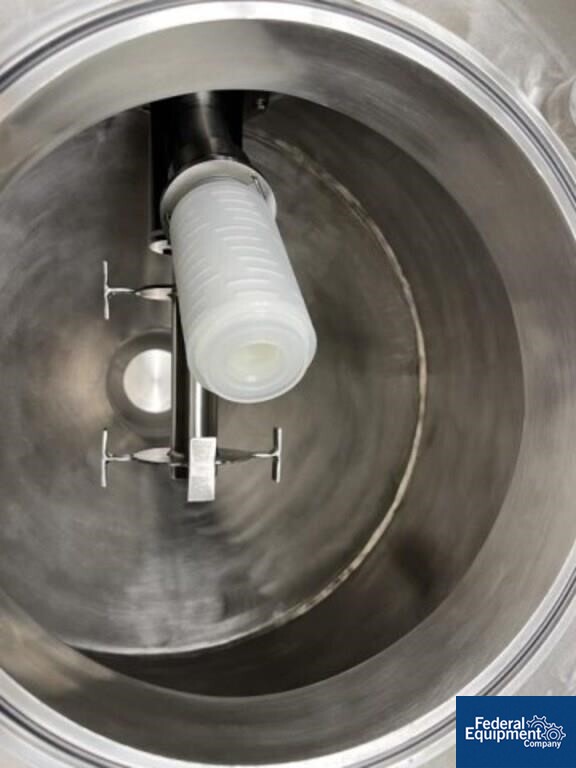

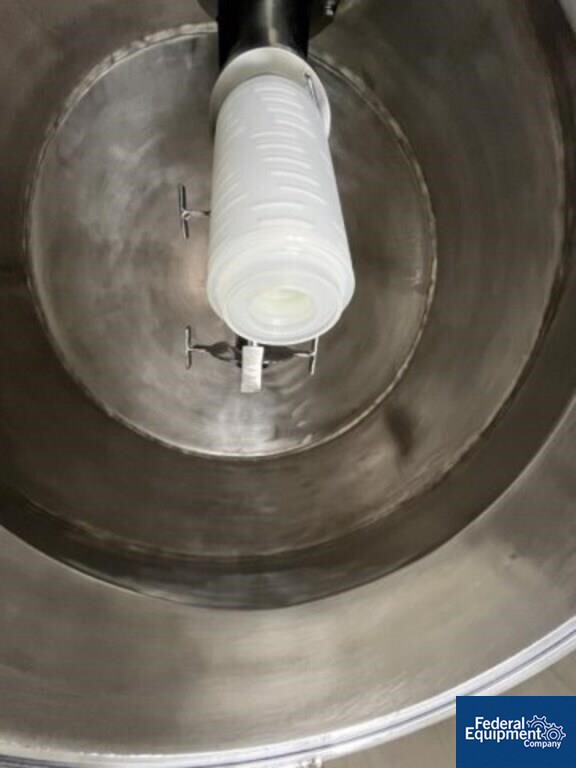

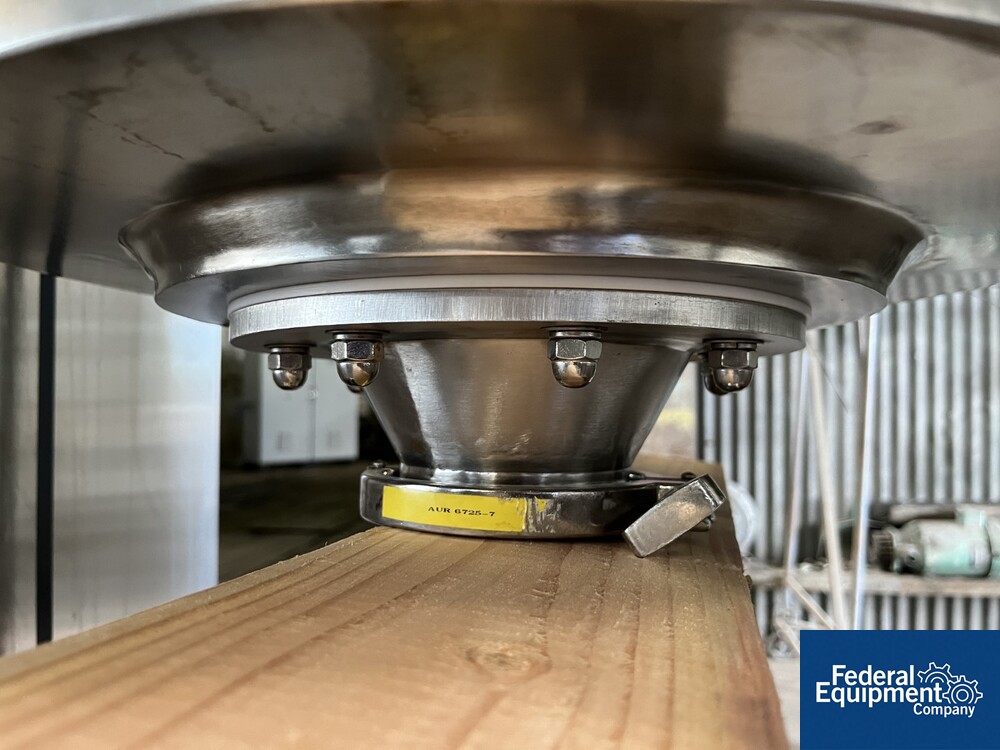

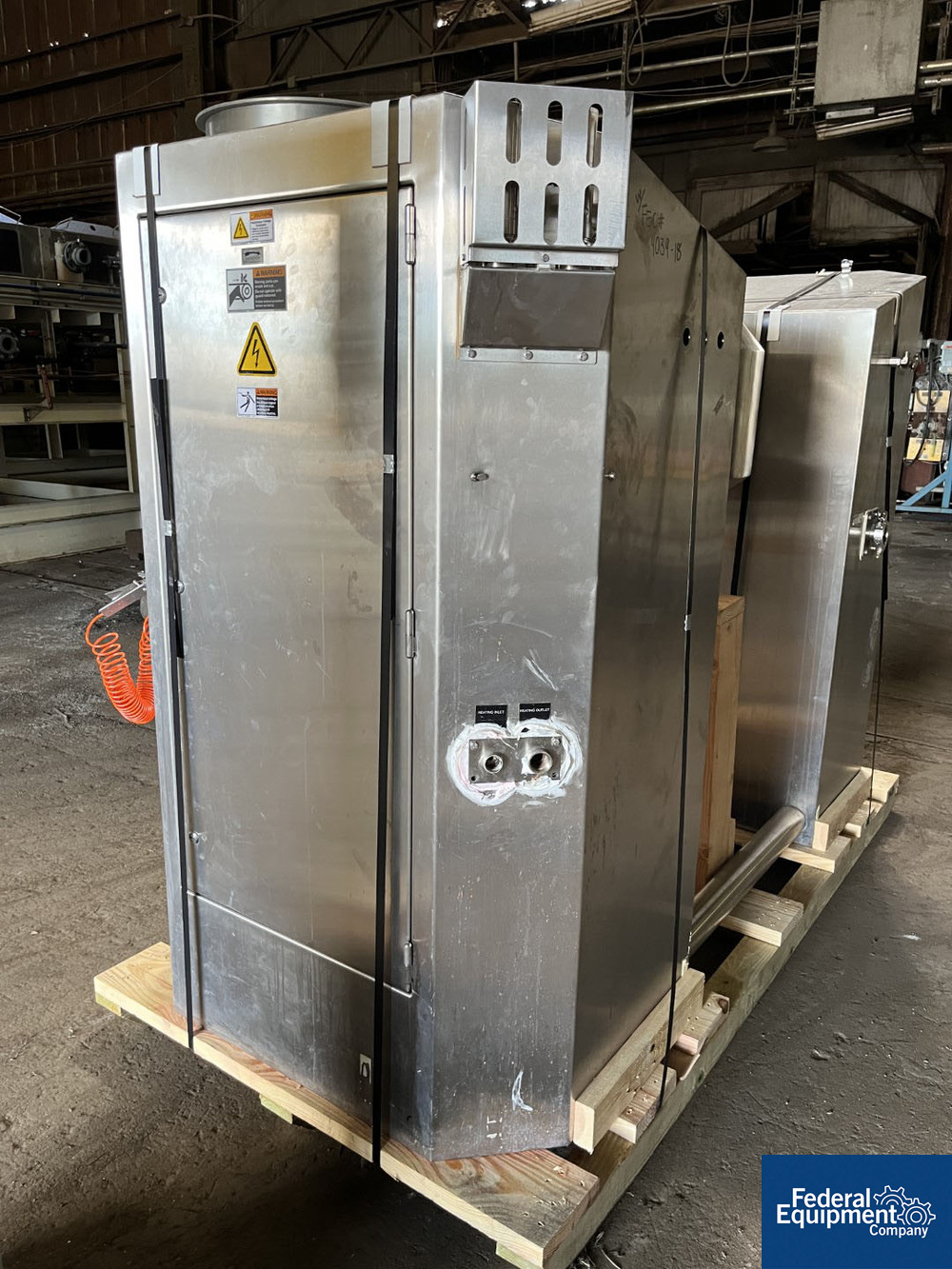

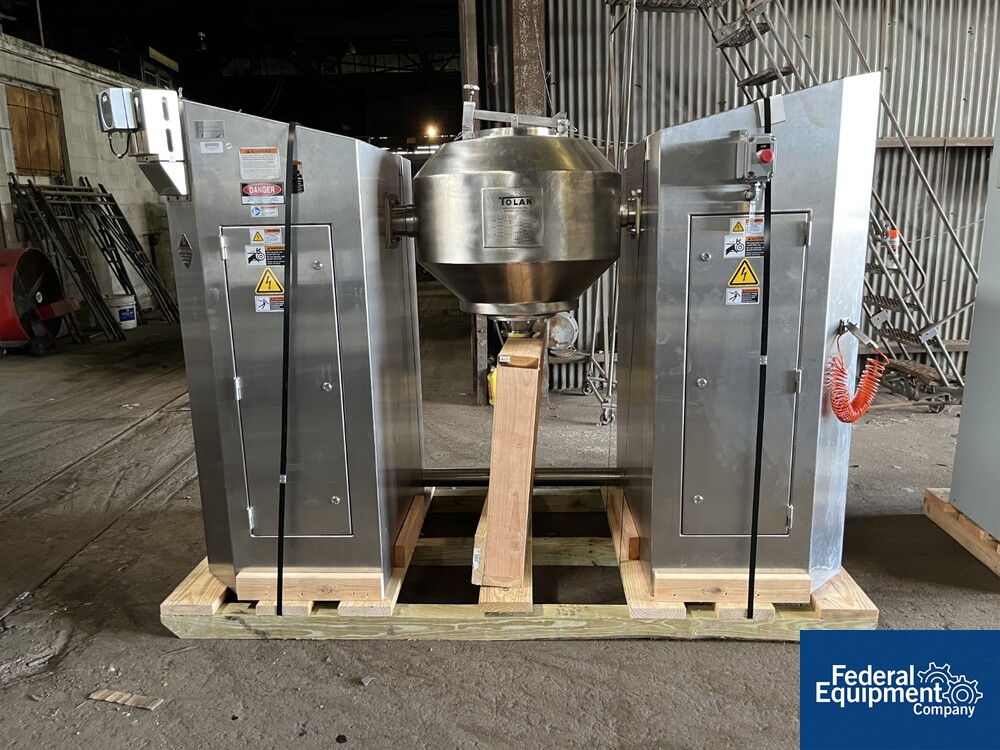

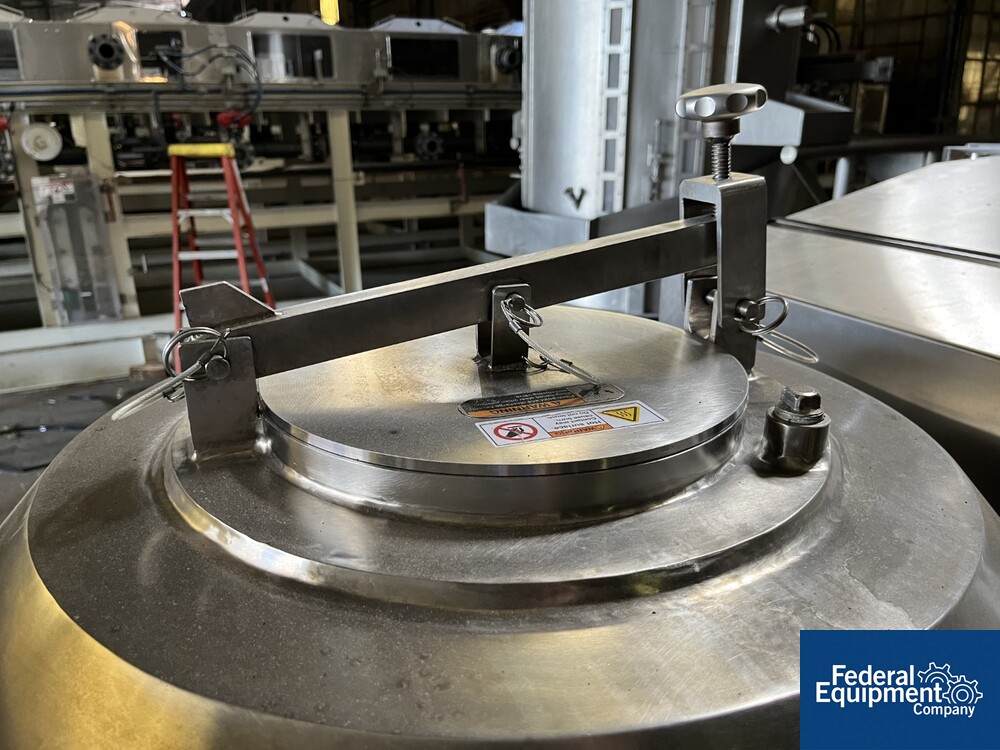

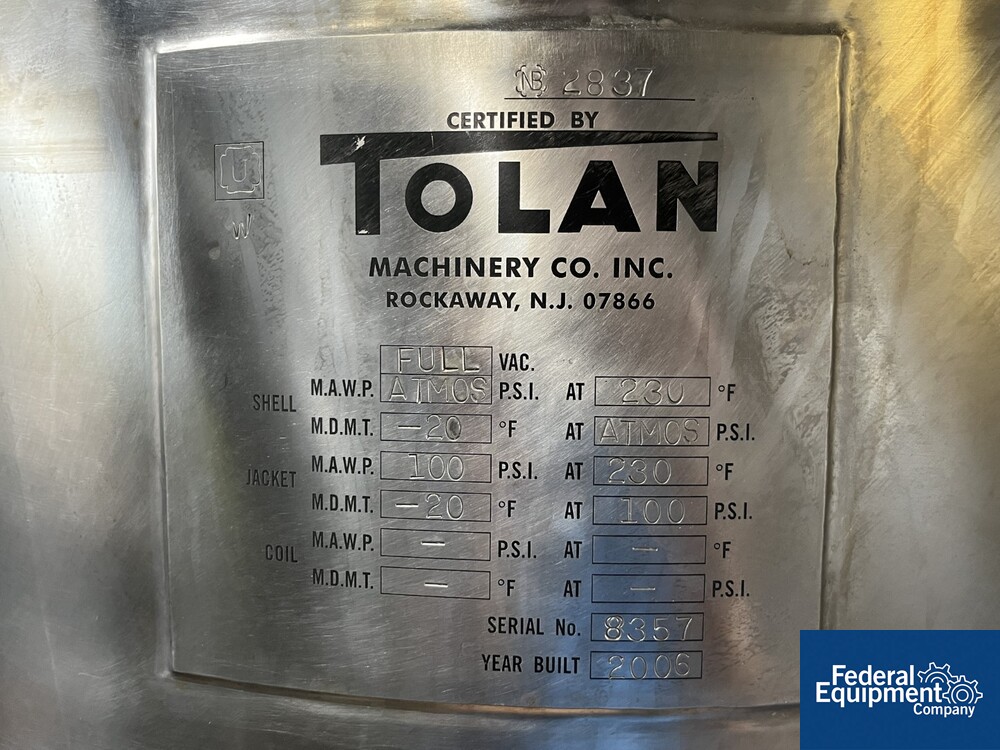

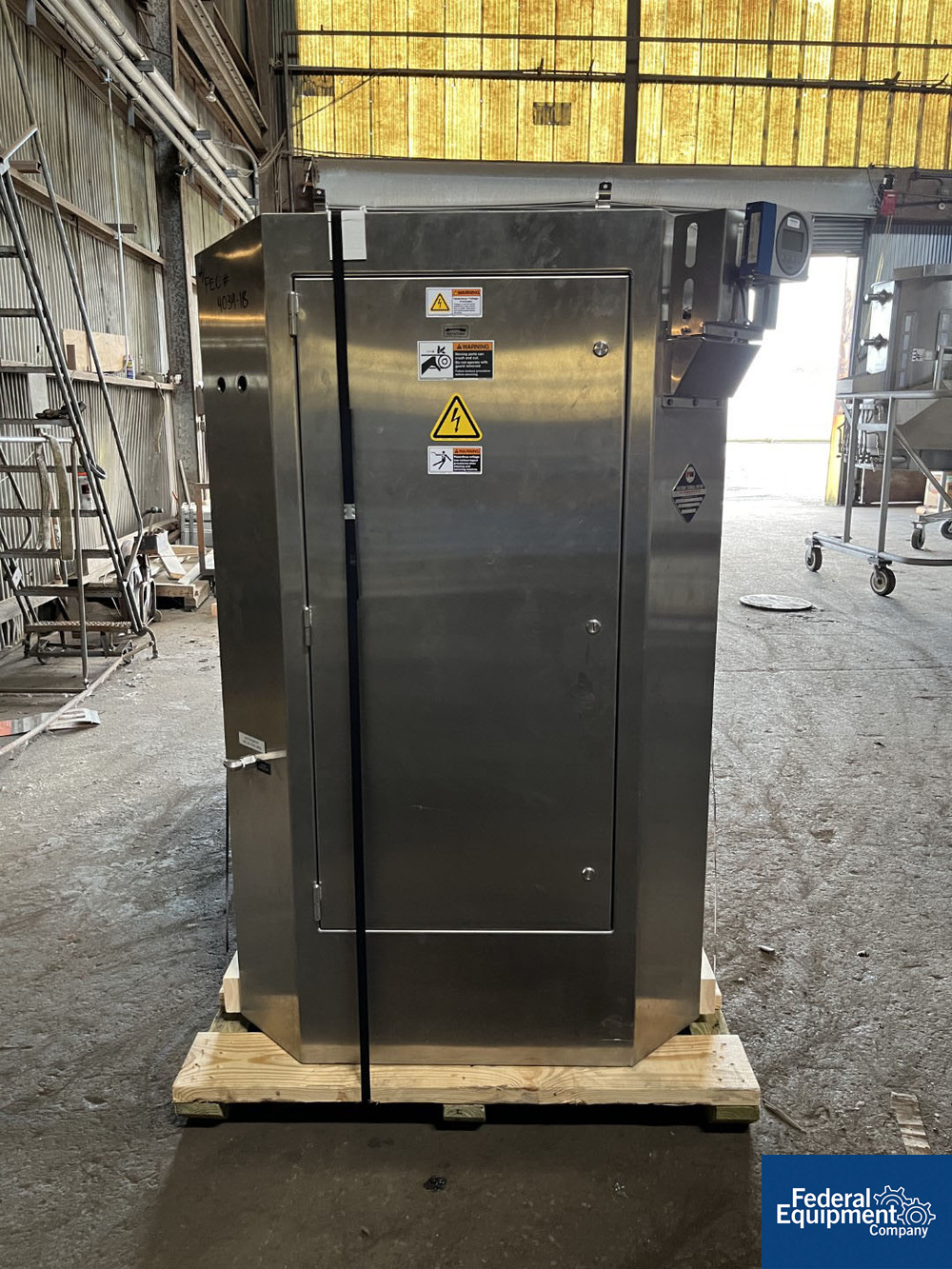

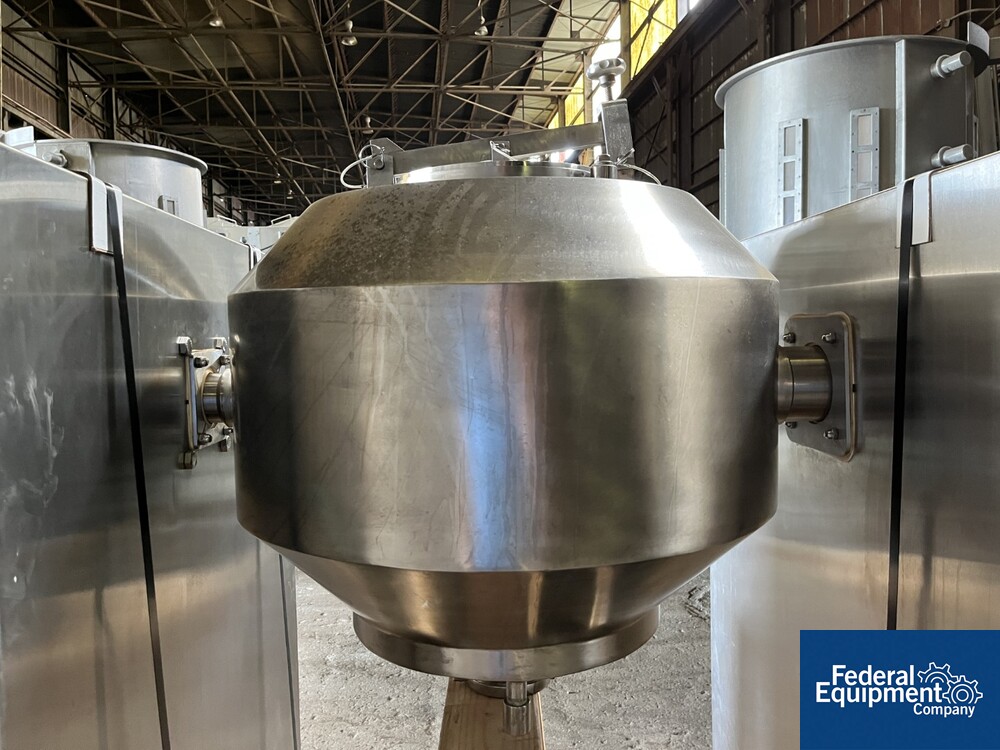

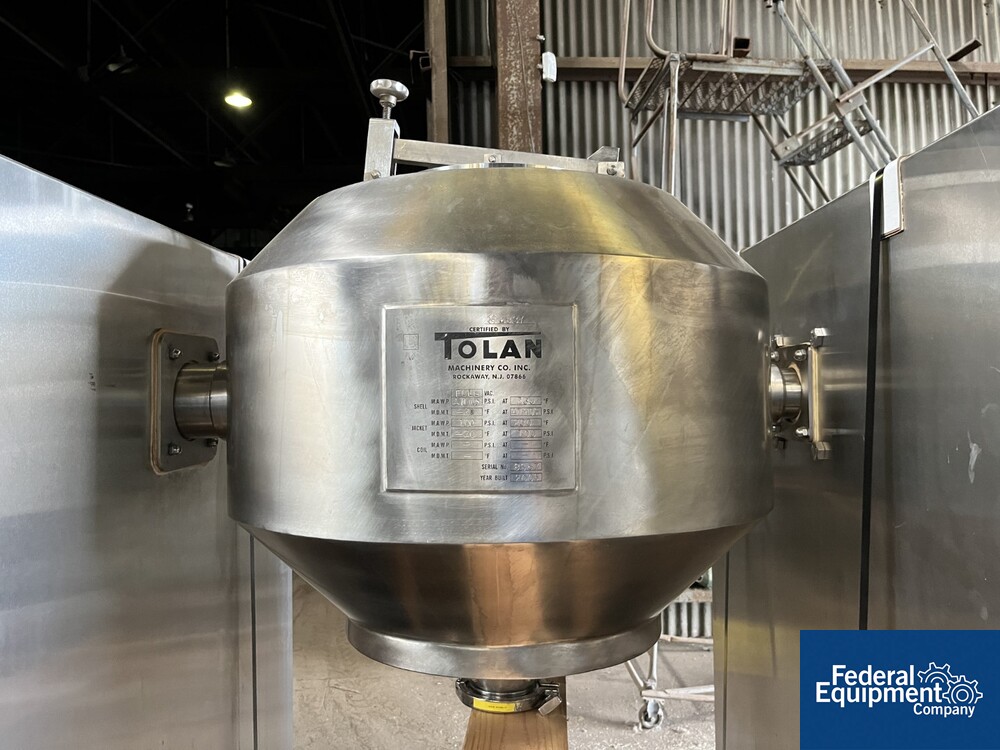

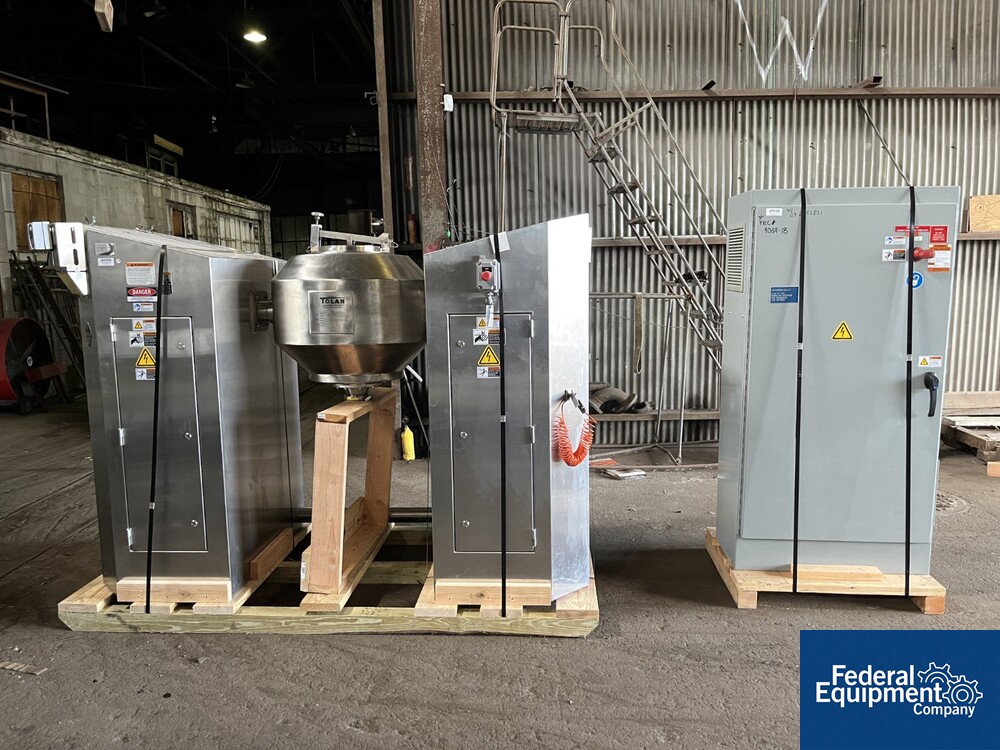

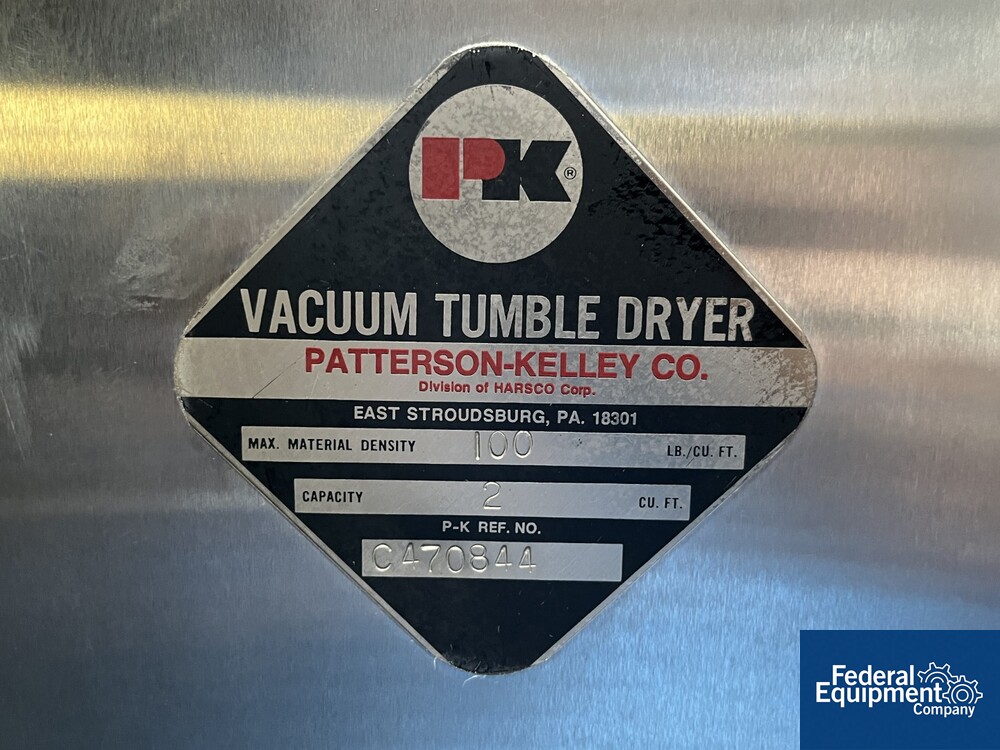

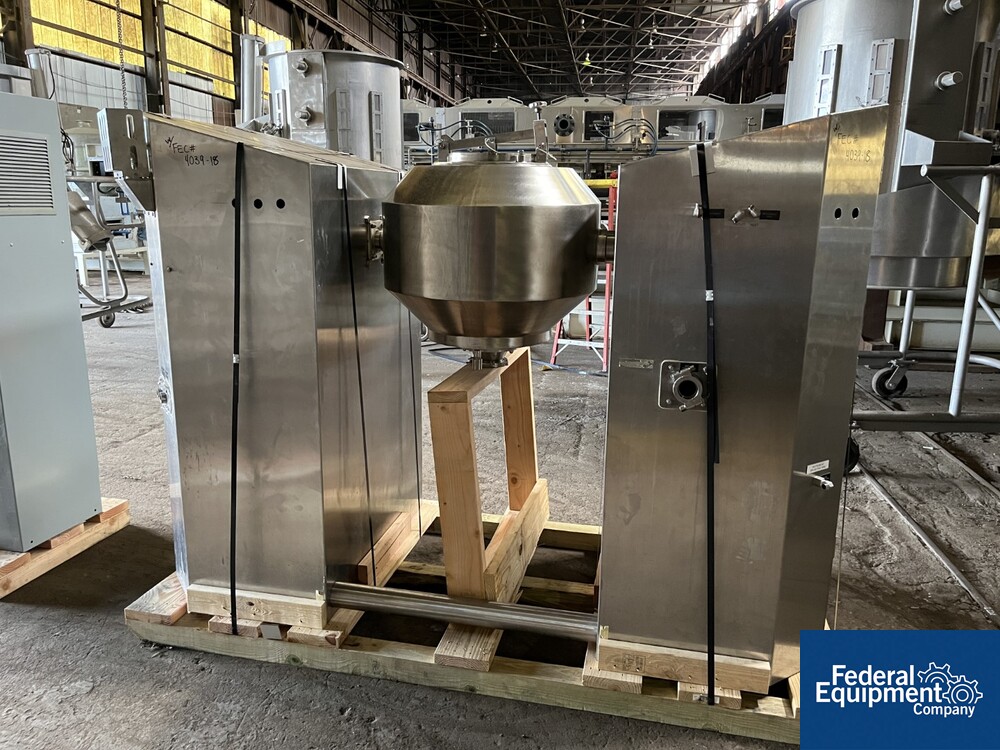

Used 2 cu ft Patterson Kelley double cone vacuum dryer, Hastelloy C22 construction, 23" diameter shell, rated 100#/cu ft maximum material density, vessel rated full vacuum at 230 f internal, jacketed for 100 psi at 230 f, internal vacuum arm, high speed intensifier bar driven by 5 hp motor, 3 hp shell motor drive with brake, 11" feed port with cover, 6" outlet tapered to 4" with cover, vessel certified by Tolan, serial# 8357, national board# 2837, on stainless steel enclosure stand, Patterson Kelley serial# C470844, built 2006.
  • Alloy Grades:: Nickel Alloy C-22
  • Diameter (Inches): 23
  • Discharge Dimensions: #" Diameter: 6
  • Feed Size: 11
  • Material of Construction: Alloy
  • Motor HP: 3
  • National Board: Yes
  • National Board Number: 2,837
  • Rating: # lbs/cuft: 100

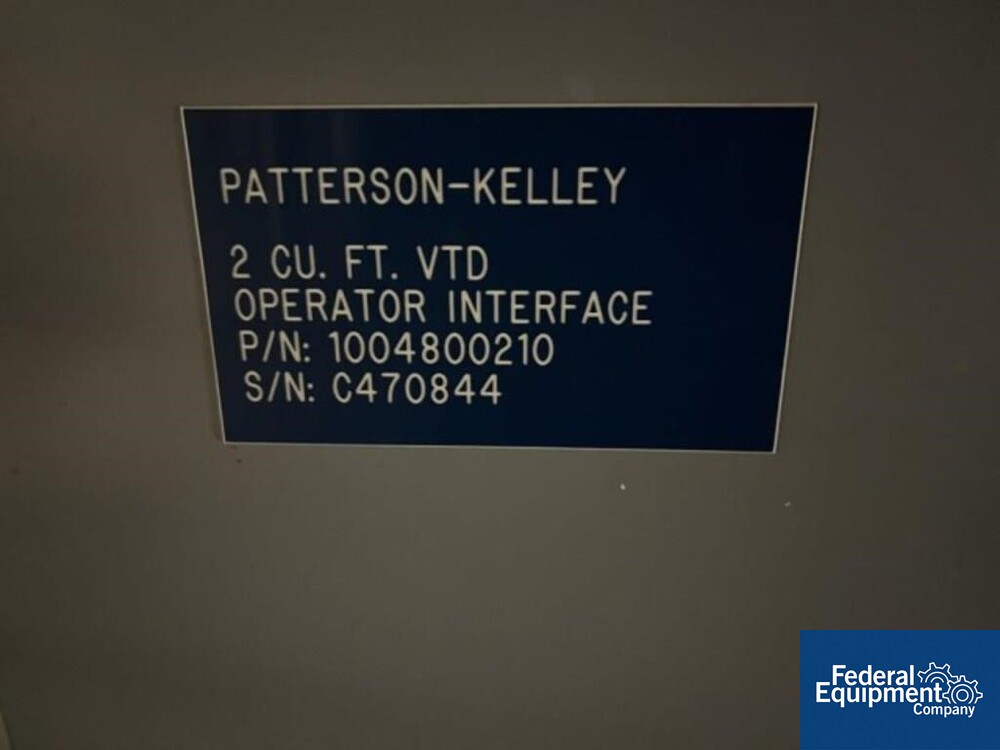

  • Serial Number: C470844
  • Year of Construction: 2006
