Kiefel Technologies Bag Making Machine, Model KIF

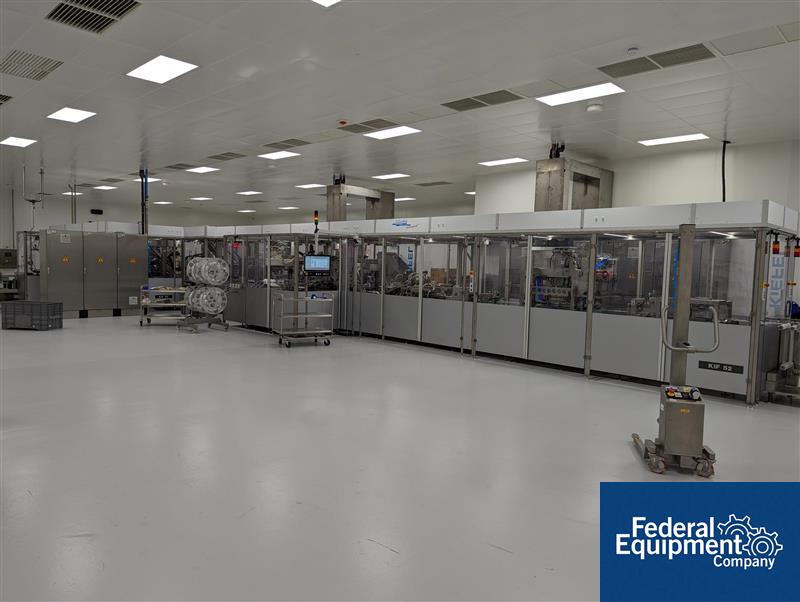

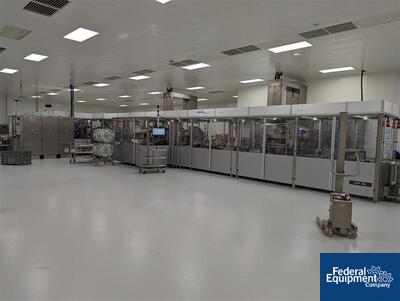

Used Kiefel Technologies Bag Making Machine, Model KIF 52, Serial #416-030, for forming, filling, and sealing medical-grade bags and IV bags.
The KIF 52 machine is a 4-fold form-fill-seal system for manufacturing and filling infusion bags. The machine can manufacture and fill 100ml and 250ml bags.
General Performance and operational data:
UM1
Max. roll diameter – external: 600 mm
Core diameter: 152.4 mm / 6"
Max. film width: 400 mm
Working rollers/reserve rollers: 2/0
AP1
Max. punch pressure: 0.24 kN
Max. press stroke at top: 30 mm
Max. press stroke at bottom: 30 mm
Max. useful surface: 134 x 10 mm
Weight: 100 kg.
Compressed air connection: 6 bar
Cooling water connection: G 3/8″
AP2
Max. punch pressure: 2.0 kN
Max. press stroke at top: 60 mm
Max. press stroke at bottom: 60 mm
Max. useful surface: 440 x 100 mm
Weight: 100 kg.
Compressed air connection: 6 bar
Cooling water connection: G 3/8″
AP3
Max. punch pressure: 2.0 kN
Max. press stroke at top: 60 mm
Max. press stroke at bottom: 60 mm
Max. useful surface: 440 x 100 mm
Weight: 100 kg.
Compressed air connection: 6 bar
Cooling water connection: G 3/8″
IM1
Feed: 490 mm
Max. film width: 250 mm
Compressed air connection: 6 bar
WT2
Max. force: 50 kN
Max. stroke at top: 100 mm
Max. stroke at bottom: 55 mm
Max. useful surface: 490 x 320 mm
Welding procedure: TC
Compressed air connection: 5 bar
Cooling water connection: G 3/8″
AC2
Max. force at top: 1.5 kN
Max. force at bottom: 2.5 kN
Max. stroke at top: 50 mm
Max. stroke at bottom: 50 mm
Max. useful surface: 480 x 240 mm
Compressed air connection: 5 bar
Cooling water connection: G 3/8″
SM1
Stripper: 4x set of products
Stripping stroke of linear unit with servomotor Max.: 1050 mm
Knee lever stroke pneumatic drive: 39 mm
Hold-down clamp stroke pneumatic drive: 40 mm
TL1
Stripper: 4x set of products
Transfer stroke of linear unit with servomotor: 890 mm
Suction pick and place unit stroke of pneumatic drive: 50/50 mm double stroke
Compressed air connection: 5 bar
TL2
Stroke of linear unit with servomotor: 700 mm
Suction pick and place unit / swivel unit stroke of linear unit with servomotor: 100 mm / 90°
Compressed air connection: 5 bar
AP7
Max. vertical servo stroke: 40 mm
Max. horizontal PN stroke: 153 mm
Max. adjustment: +/-6 mm
Compressed air connection: 5 bar
- Manuals: Yes
- Model: KIF 52
- Serial Number: 416-030
- Stainless Steel Grades: 316L
- Year of Construction: 2022
