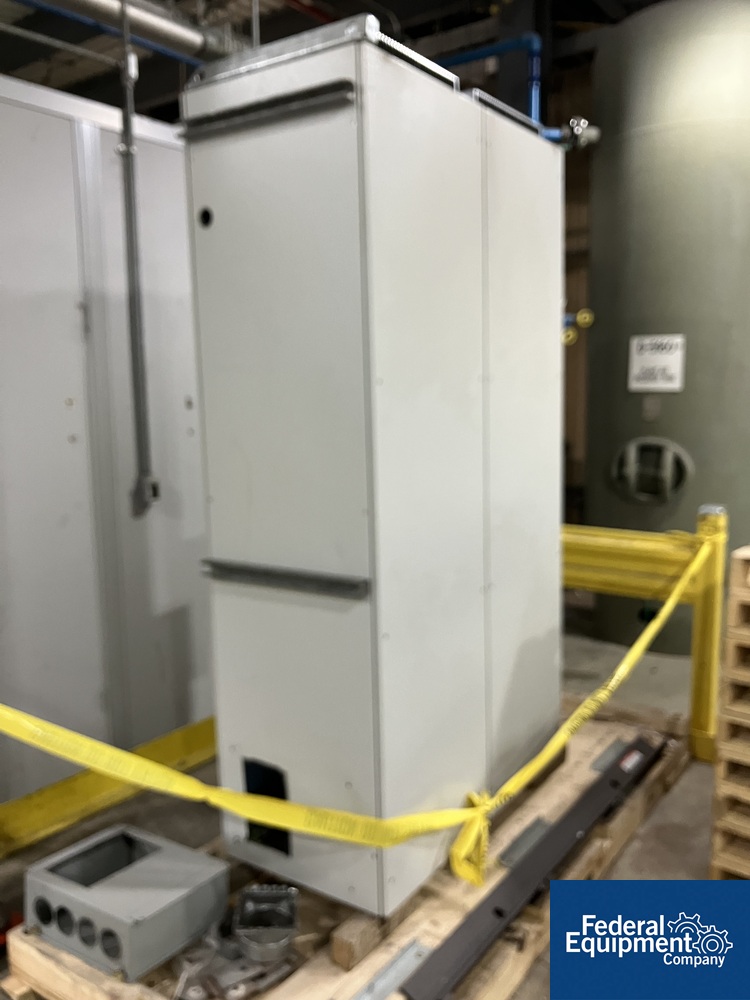

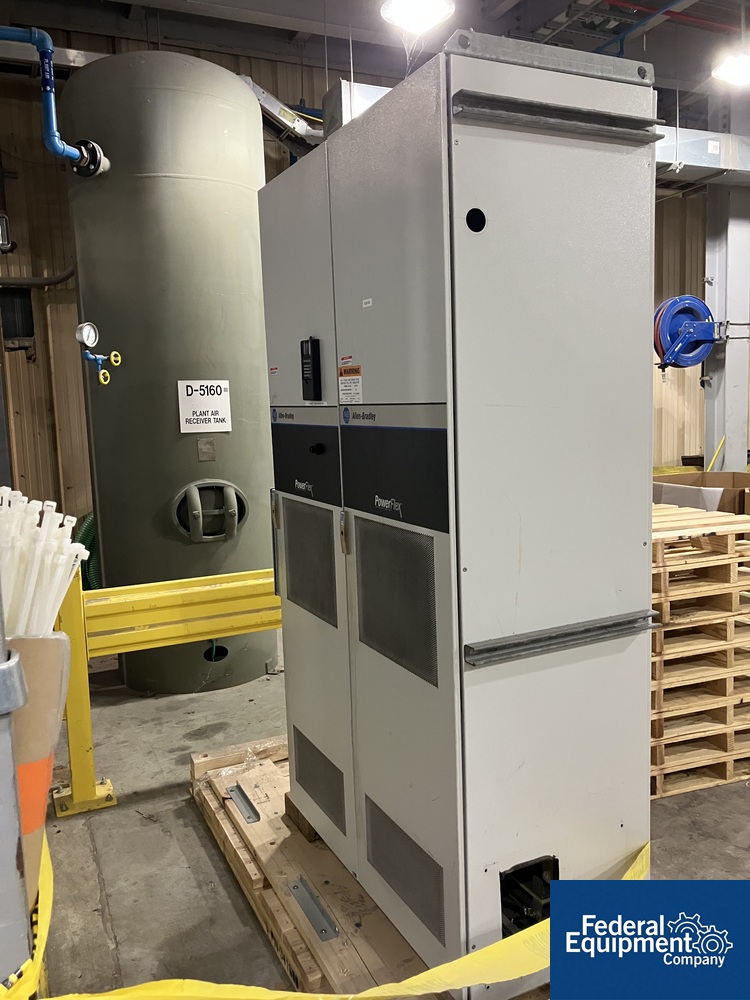

Allen-Bradley PowerFlex 700S Series B AC Drive and Motor Control System
Used Allen-Bradley Powerflex 700S Series B high-performance programmable AC drive and motor control system designed for complex, low latency applications.

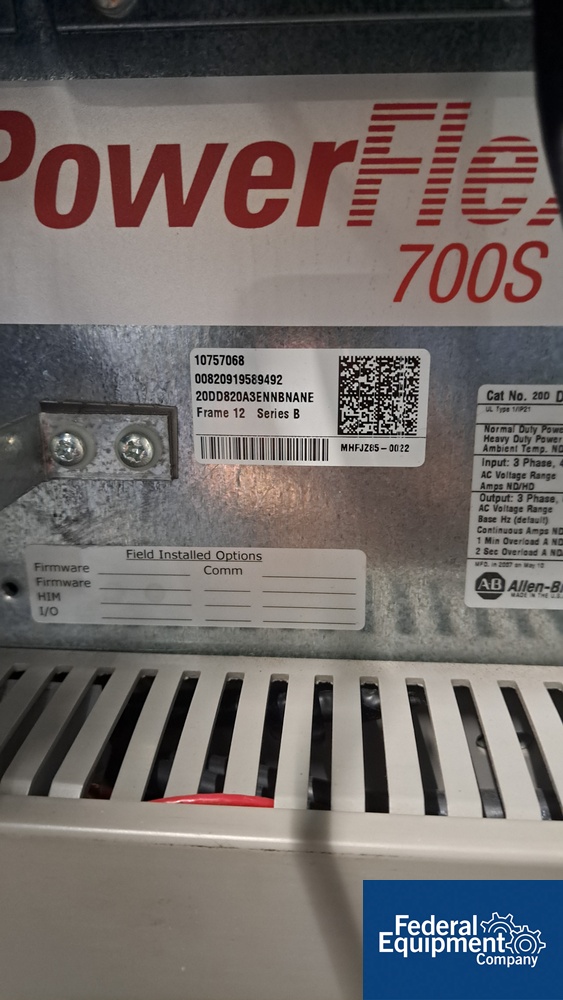

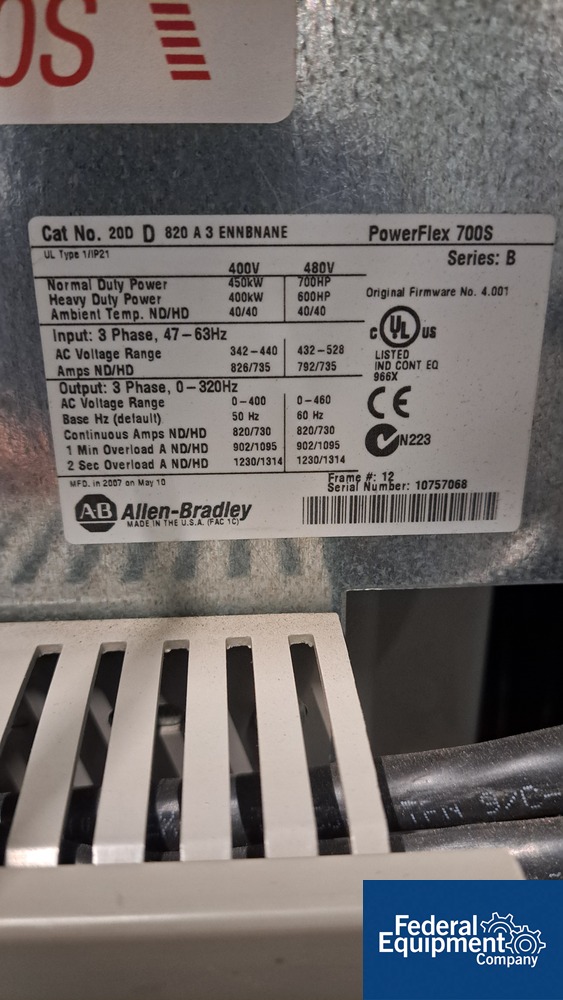

S/N: 10757068 Frame# 12 UL Type: 1/IP21
400V | 480V
Normal Duty Power : 450kW | 700HP
Heavy Duty Power: 400kW | 600HP
Ambient Temp. ND/HD: 40/40 | 40/40
Input: 3 Phase, 47-63Hz AC
Voltage Range: 342-440 | 432-528
Amps ND/HD: 826/735 | 792/735
Output: 3 Phase, 0-320Hz AC
Voltage Range: 0-400 | 0-460
Base Hz (default): 50 Hz | 60 Hz
Continuous Amps ND/HD: 820/730 | 820/730
1 Min Overload A ND/HD: 902/1095 | 902/1095
2 Sec Overload A ND/HD: 1230/1314 | 1230/1314
- Model: Powerflex 700S Series B
- Serial Number: 10757068
