2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut

Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut
Click image for full size
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 02
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 03
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 04
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 05
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 06
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 07
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 08
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 09
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 10
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 11
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 12
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 13
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 14
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 15
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 16
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 17
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 18
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 19
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 20
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 21
Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 22 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 23 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 24 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 25 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 26 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 27 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 28 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 29 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 30 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 31 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 32 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 33 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 34 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 35 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 36 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 37 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 38 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 39 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 40 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 41 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 42 Image of 2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut 43
Get This Item
Make An Offer Request a Quote >
SKU
4943-1
Item Name
2 Gal Ross Planetary Mixer, 316L S/S, Model PDM 2 with PressOut
Category
Mixers & Blenders >  Planetary Mixers
Manufacturer
Ross
Condition
Used
Location
Cleveland, OH

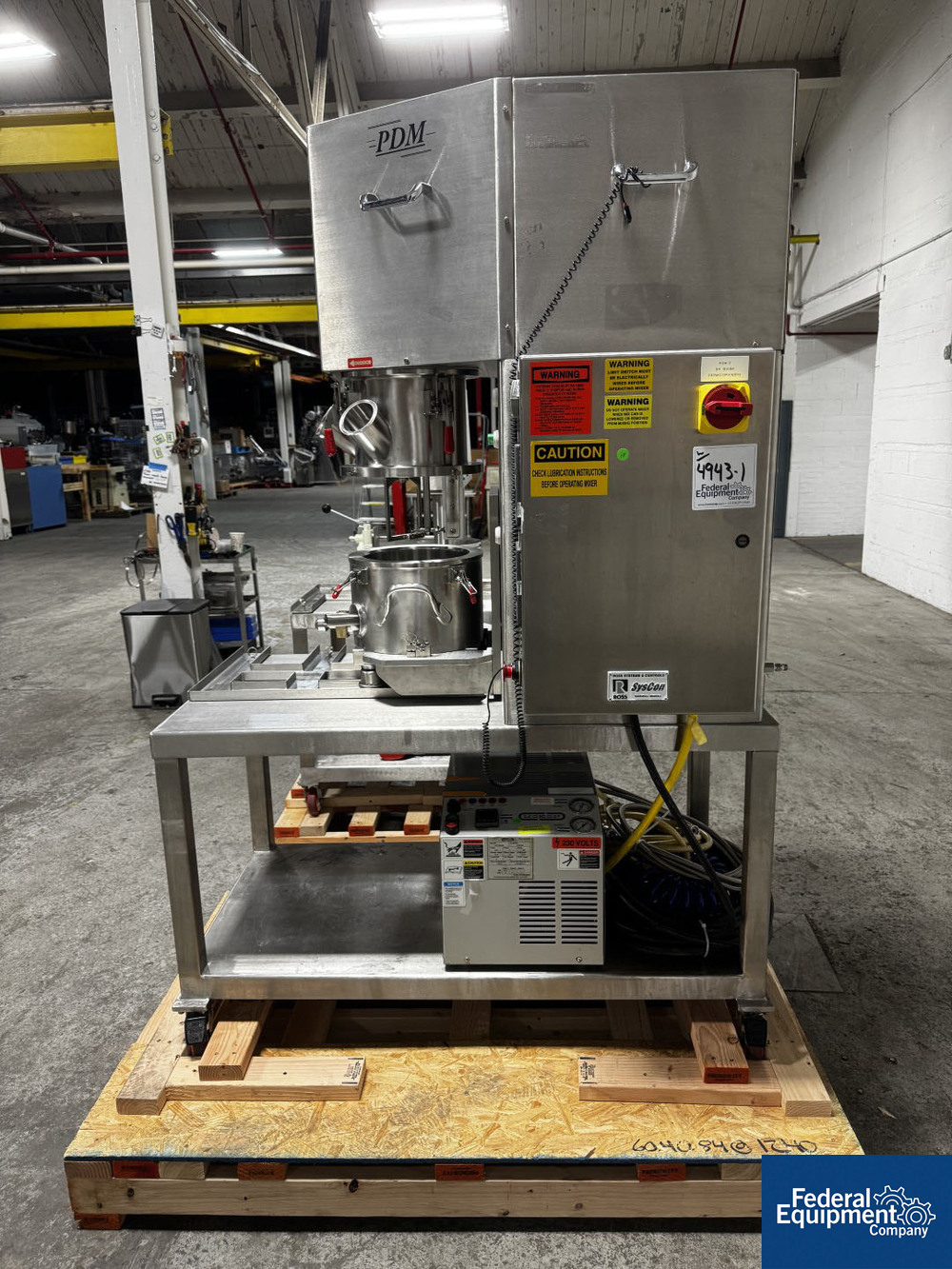

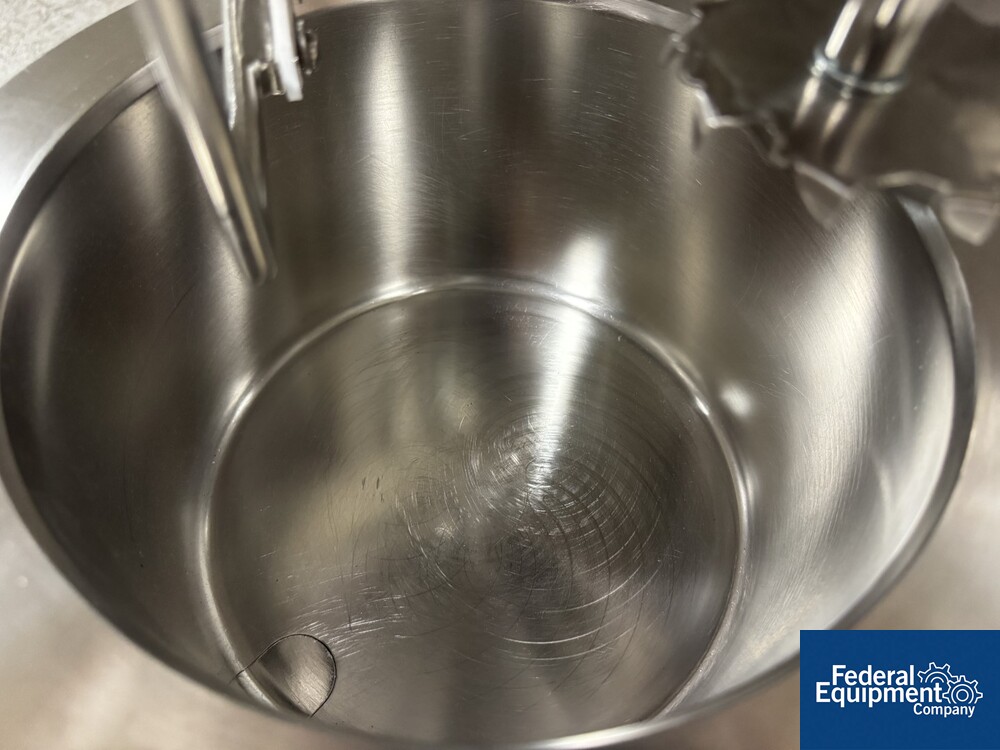

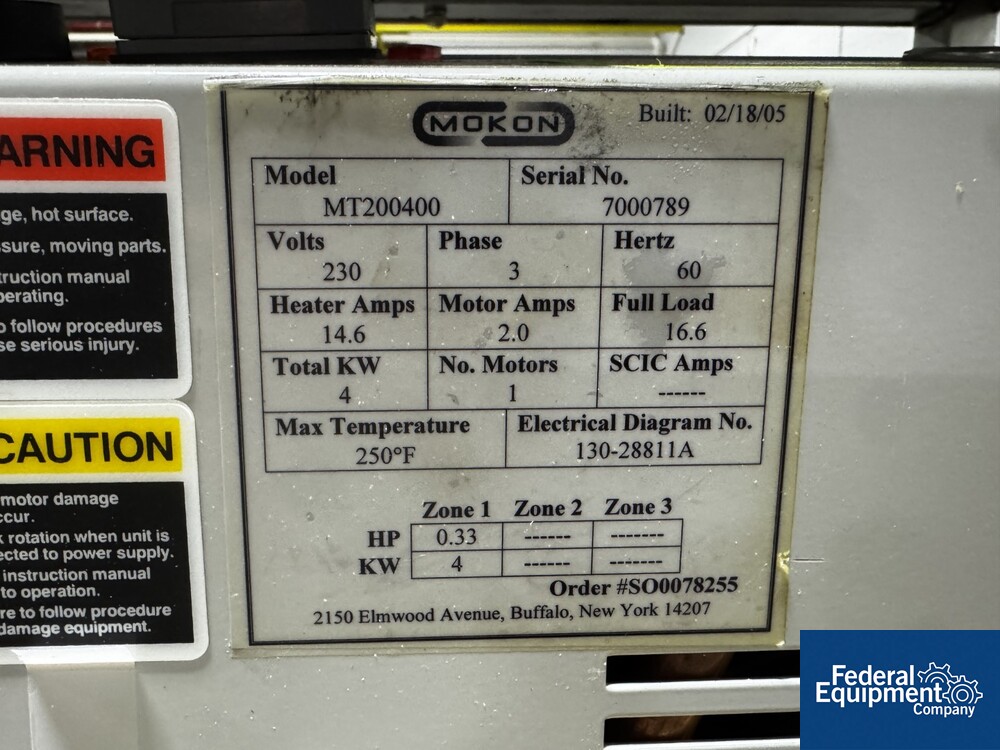

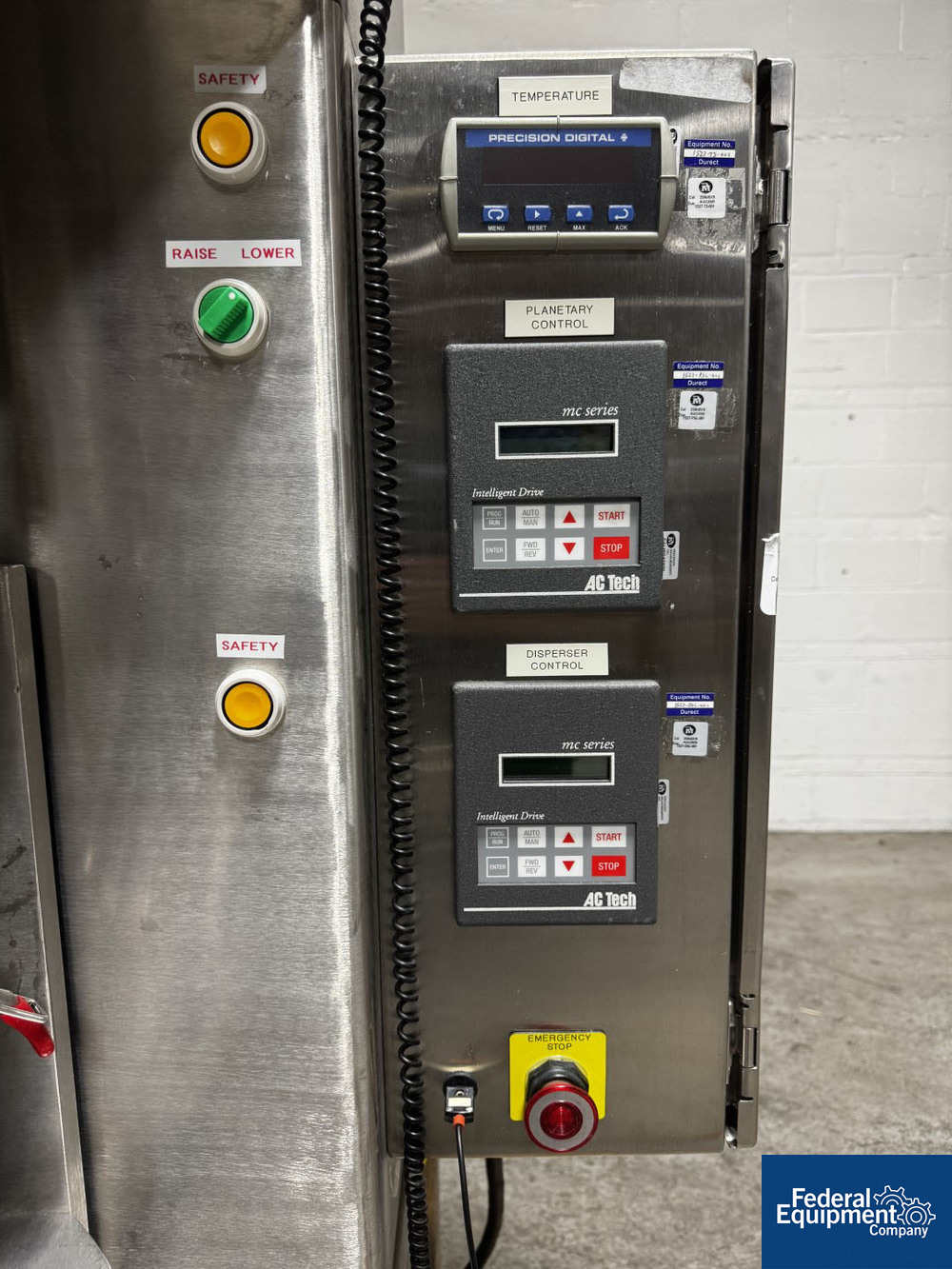

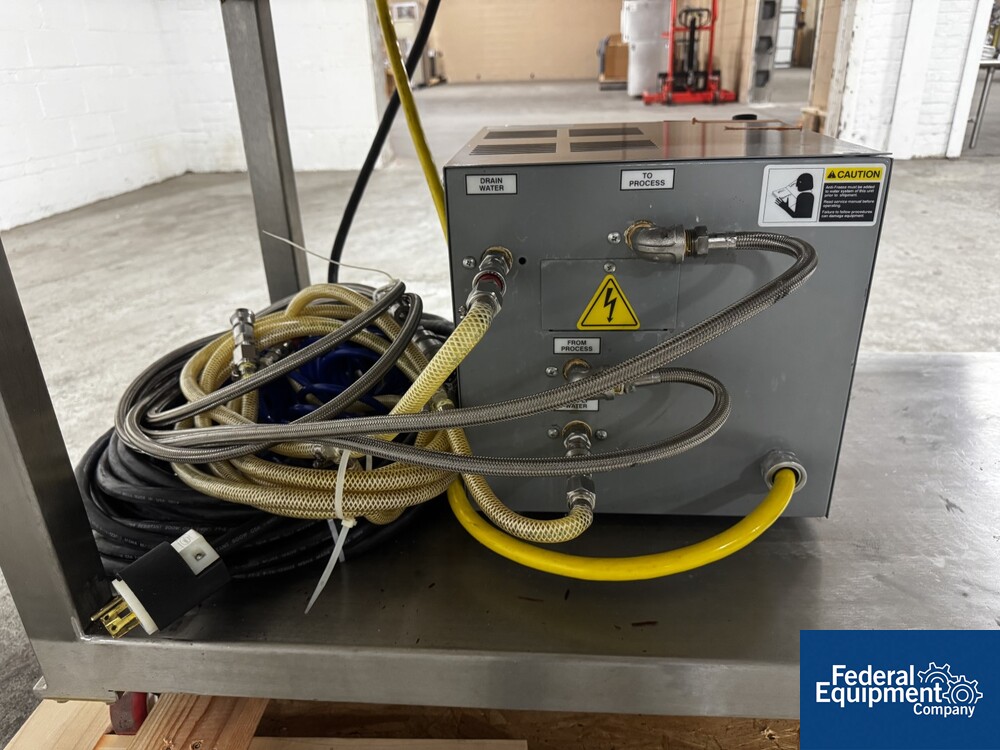

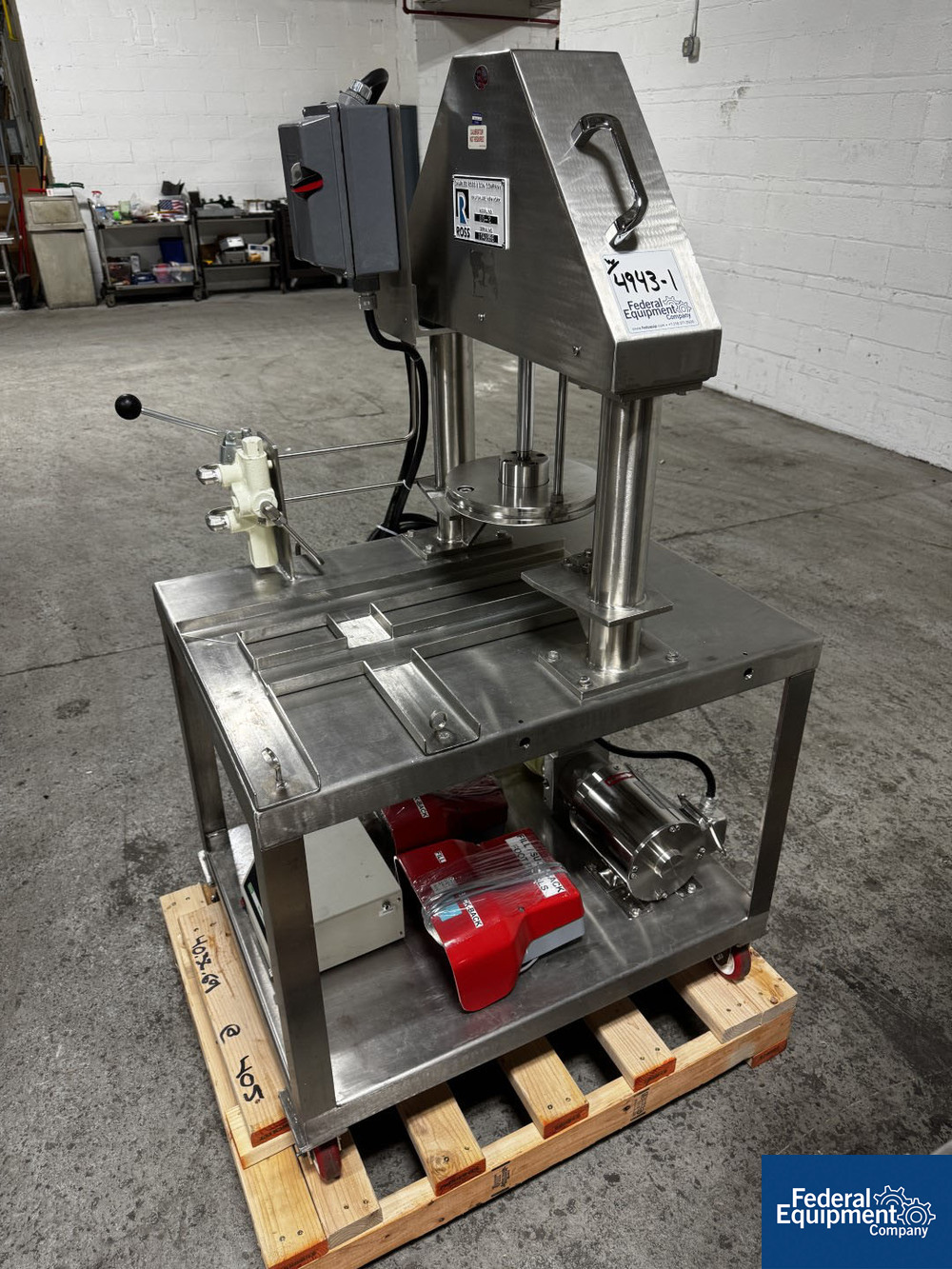

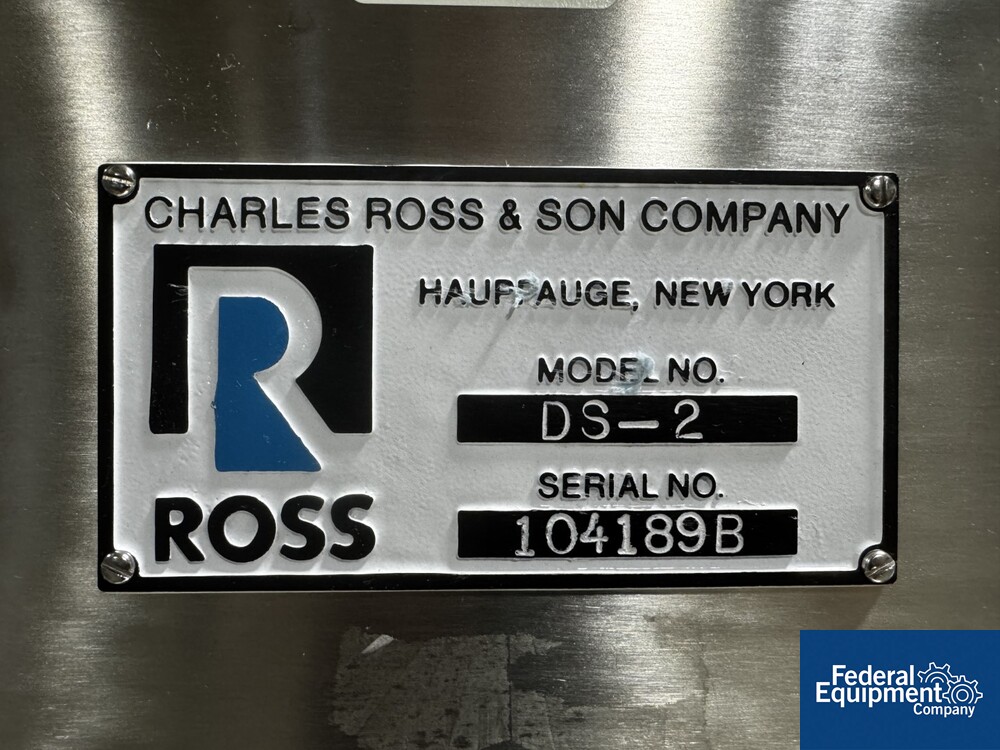

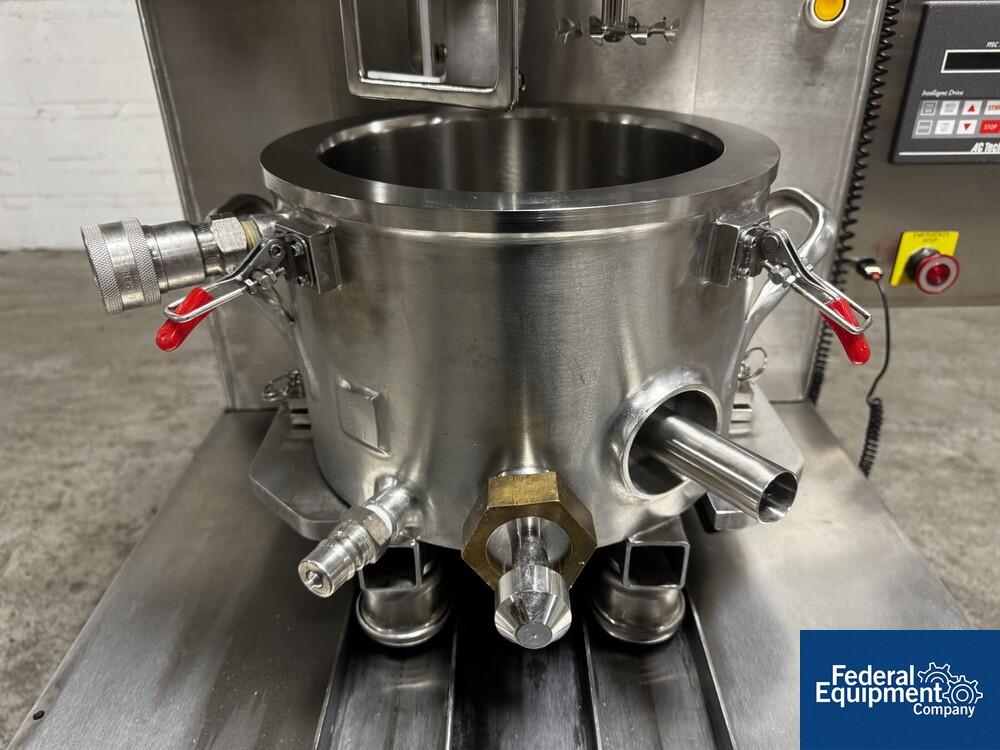

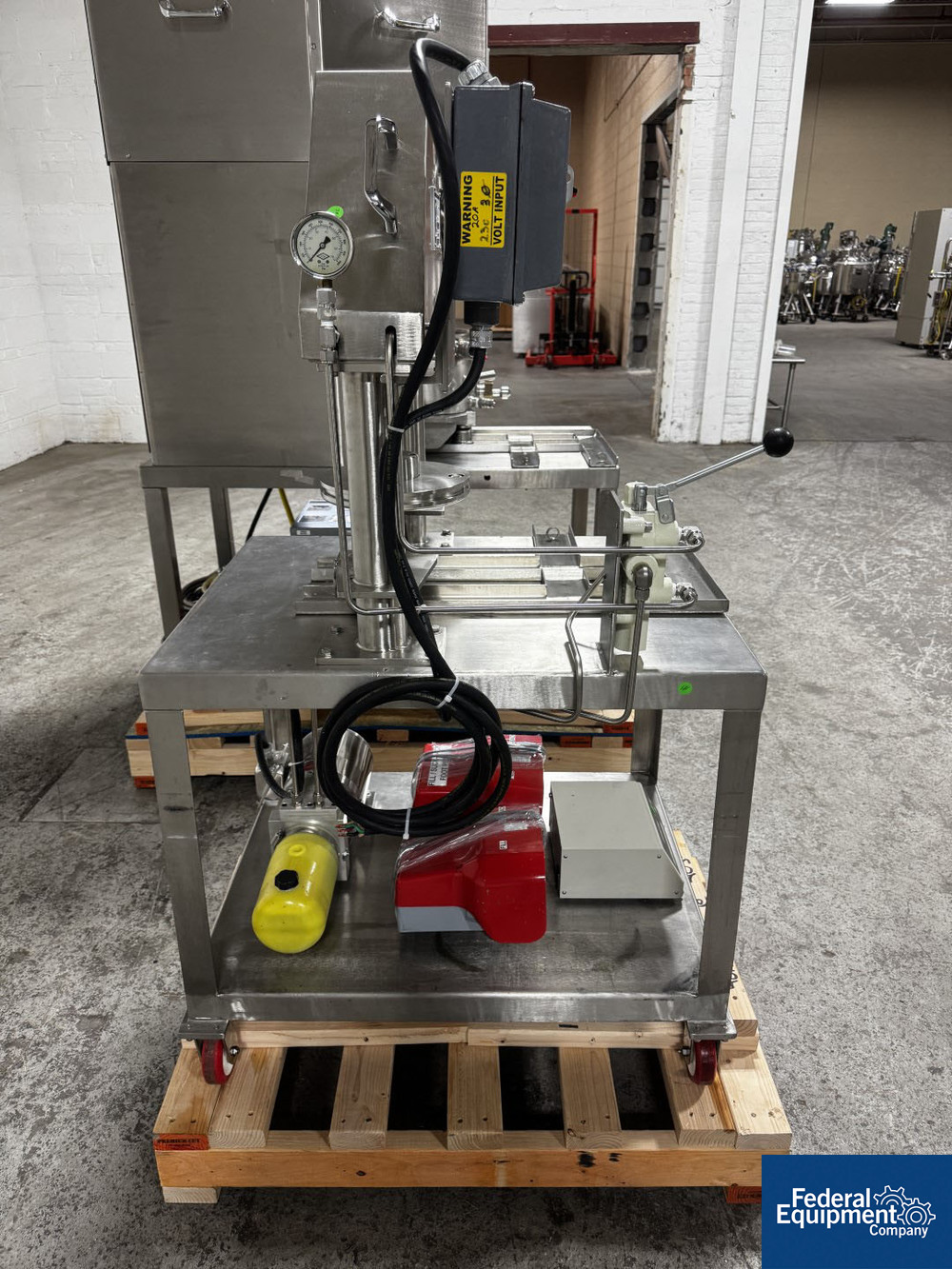

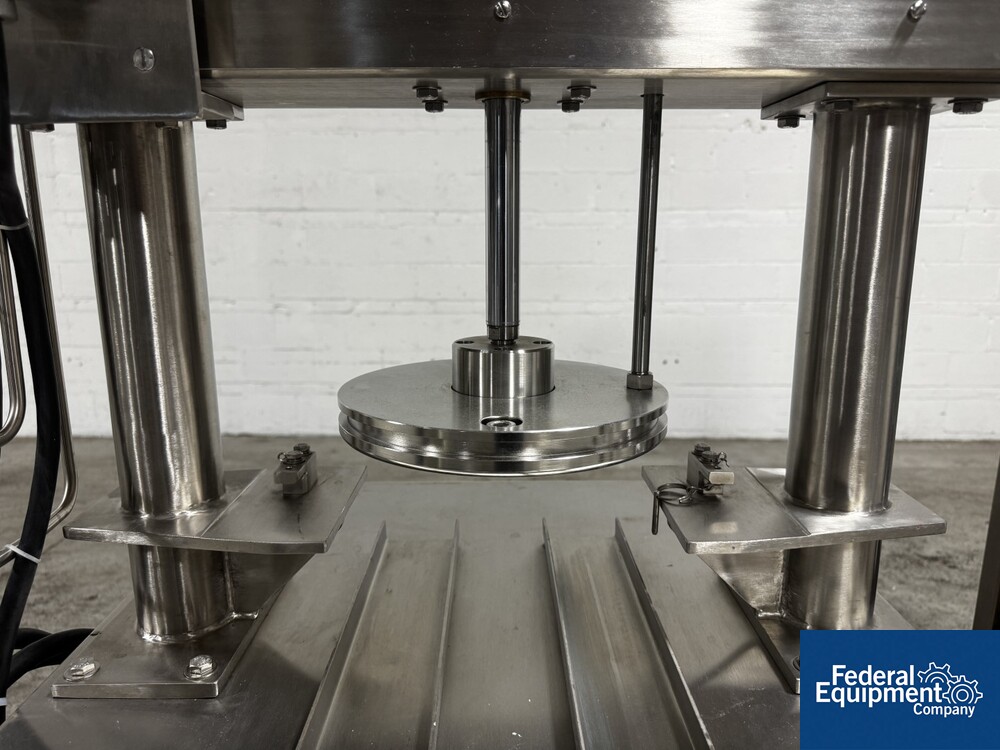

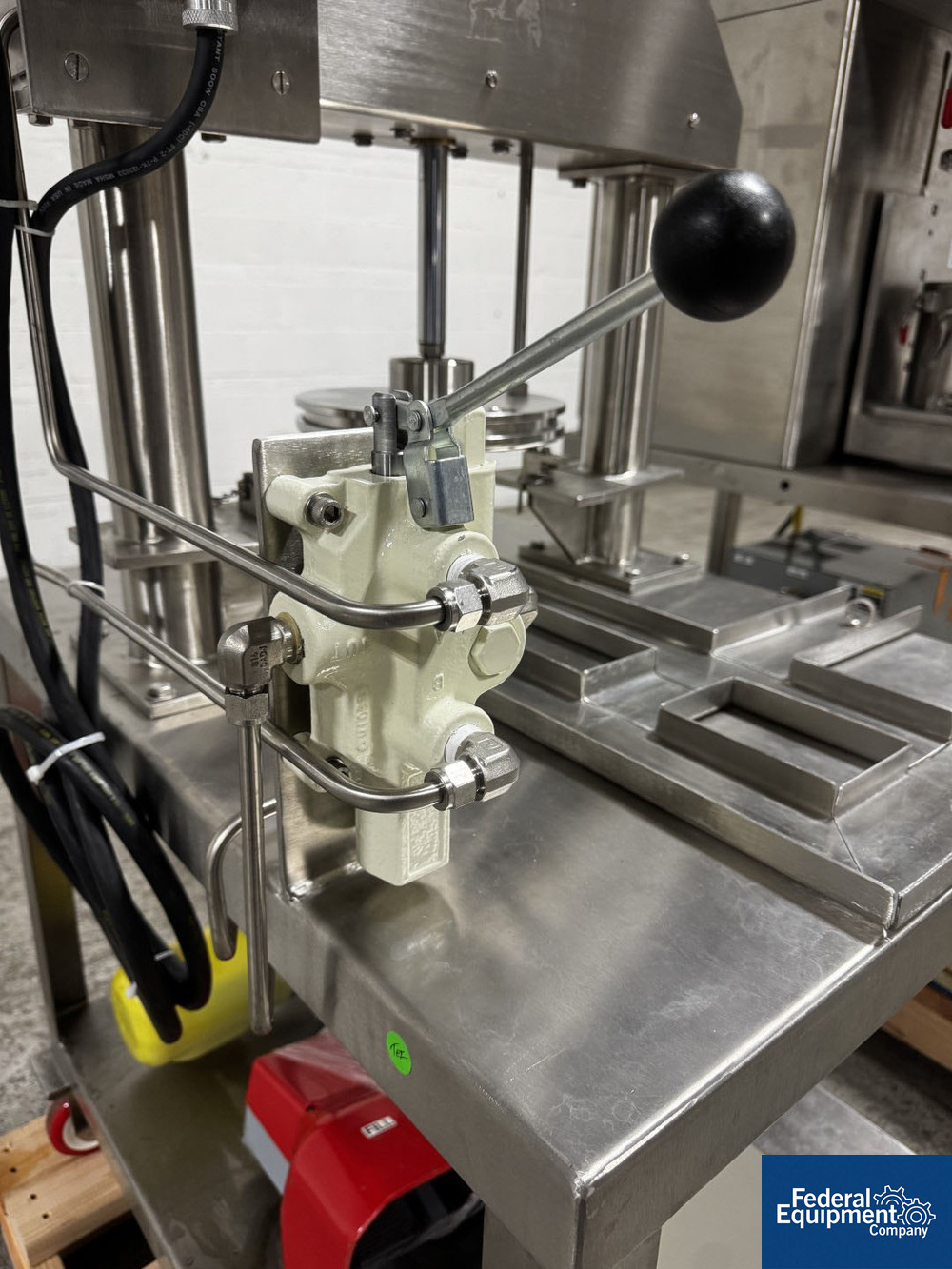

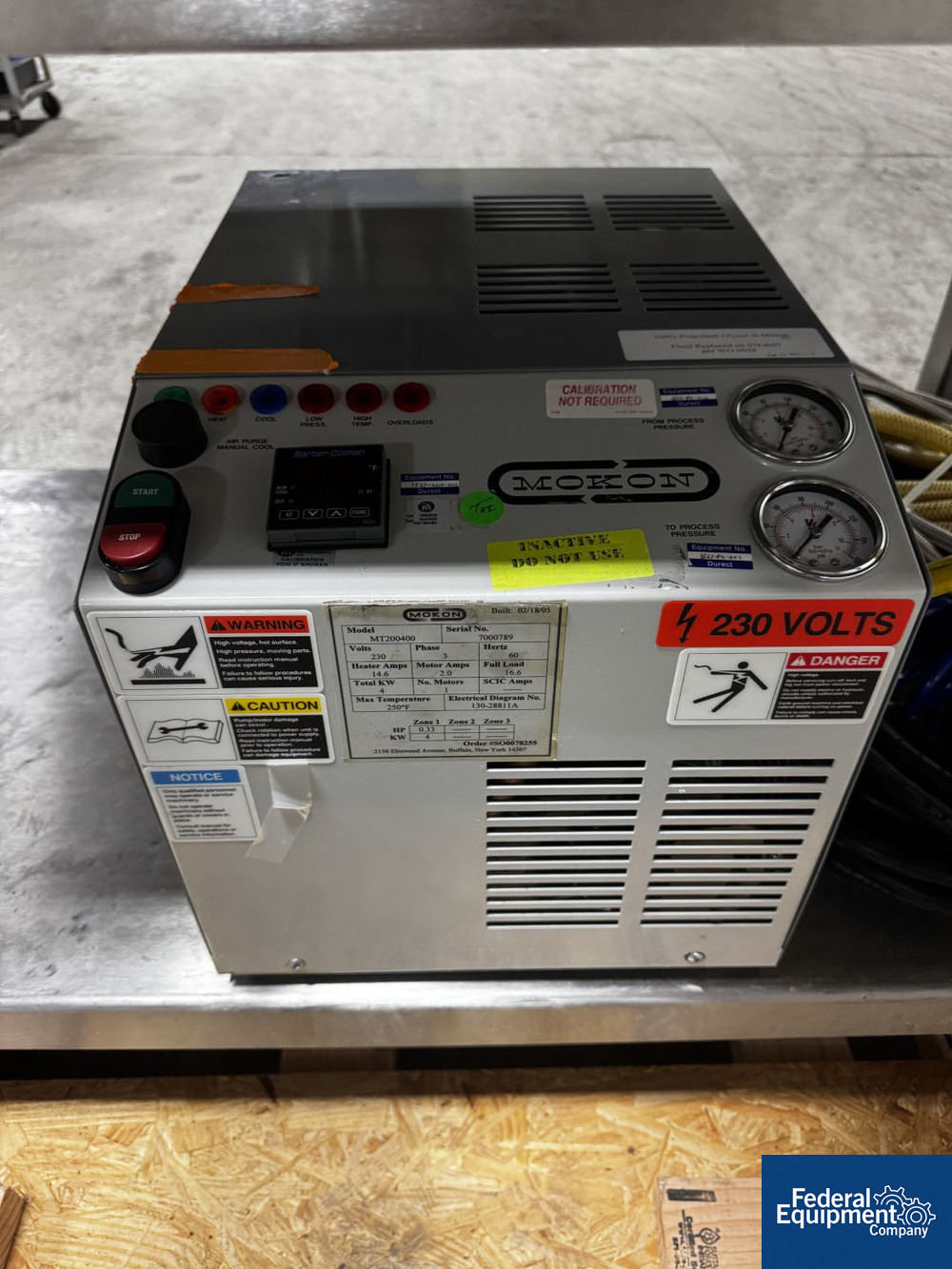

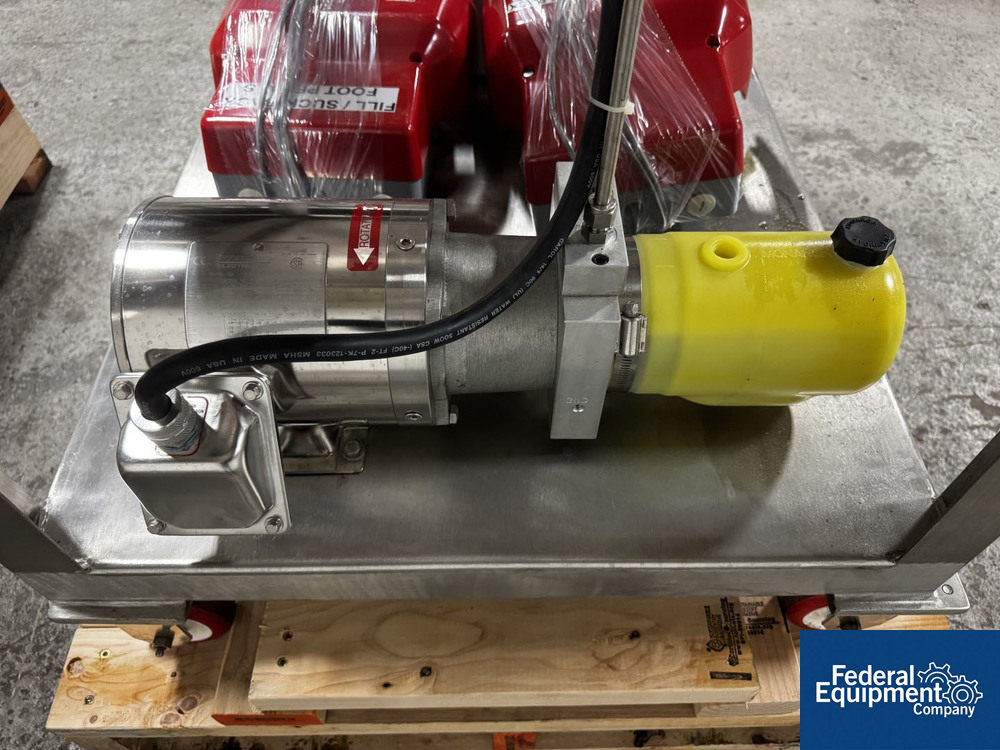

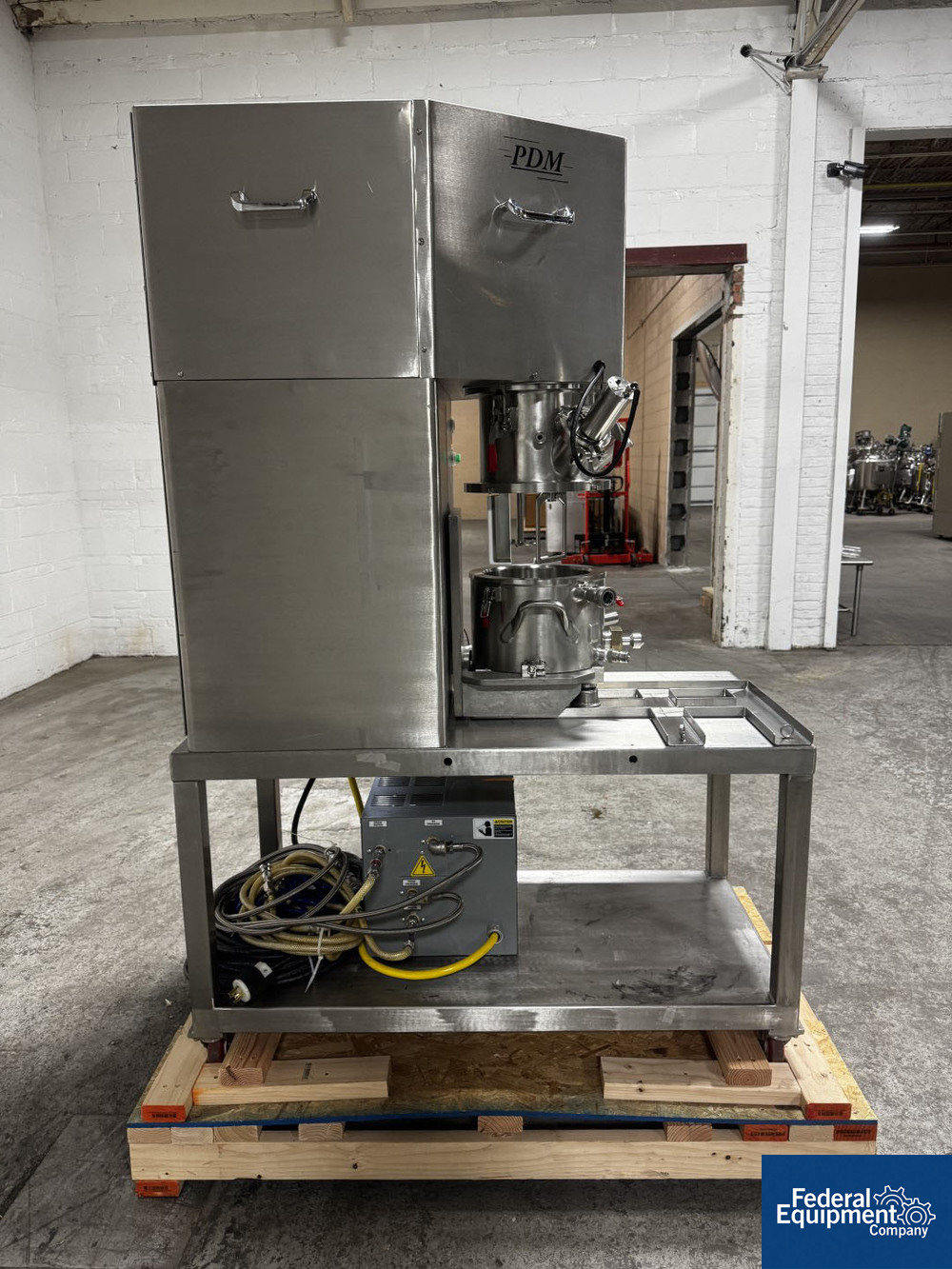

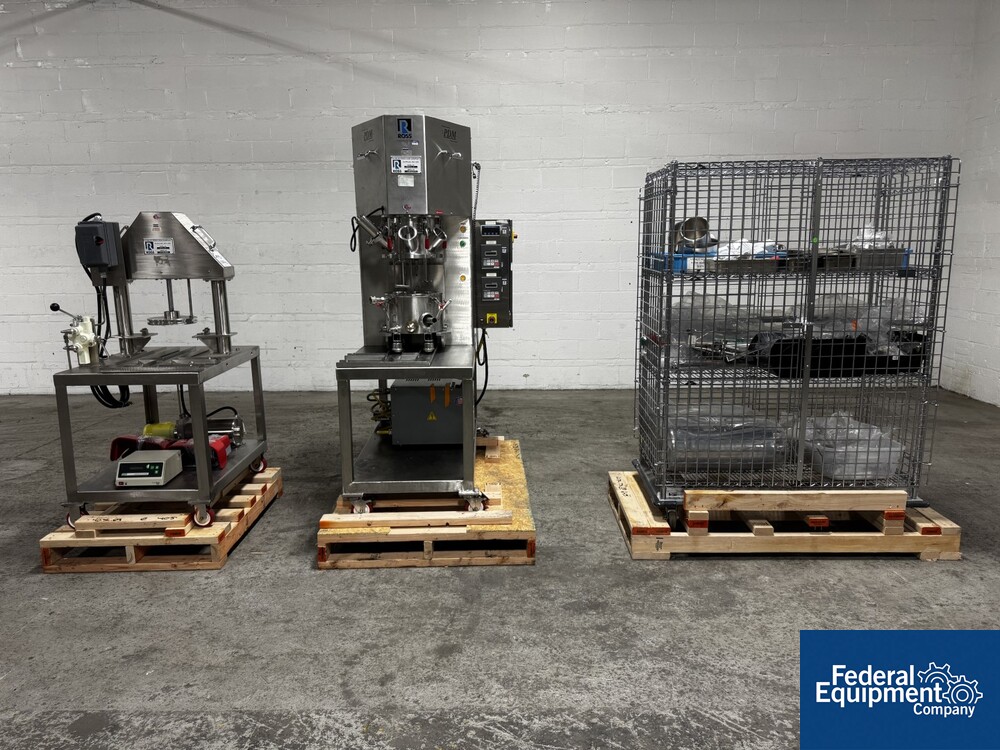

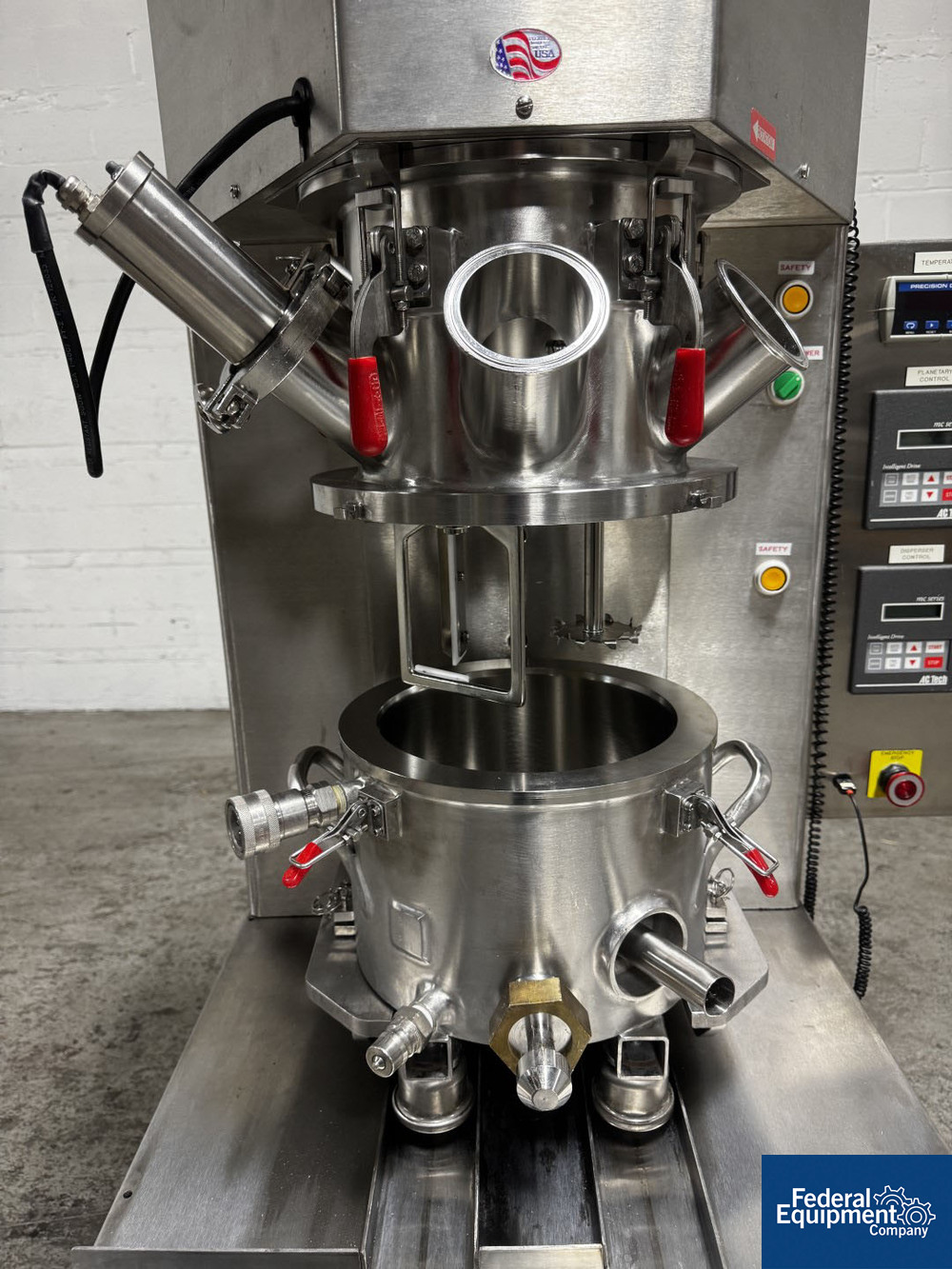

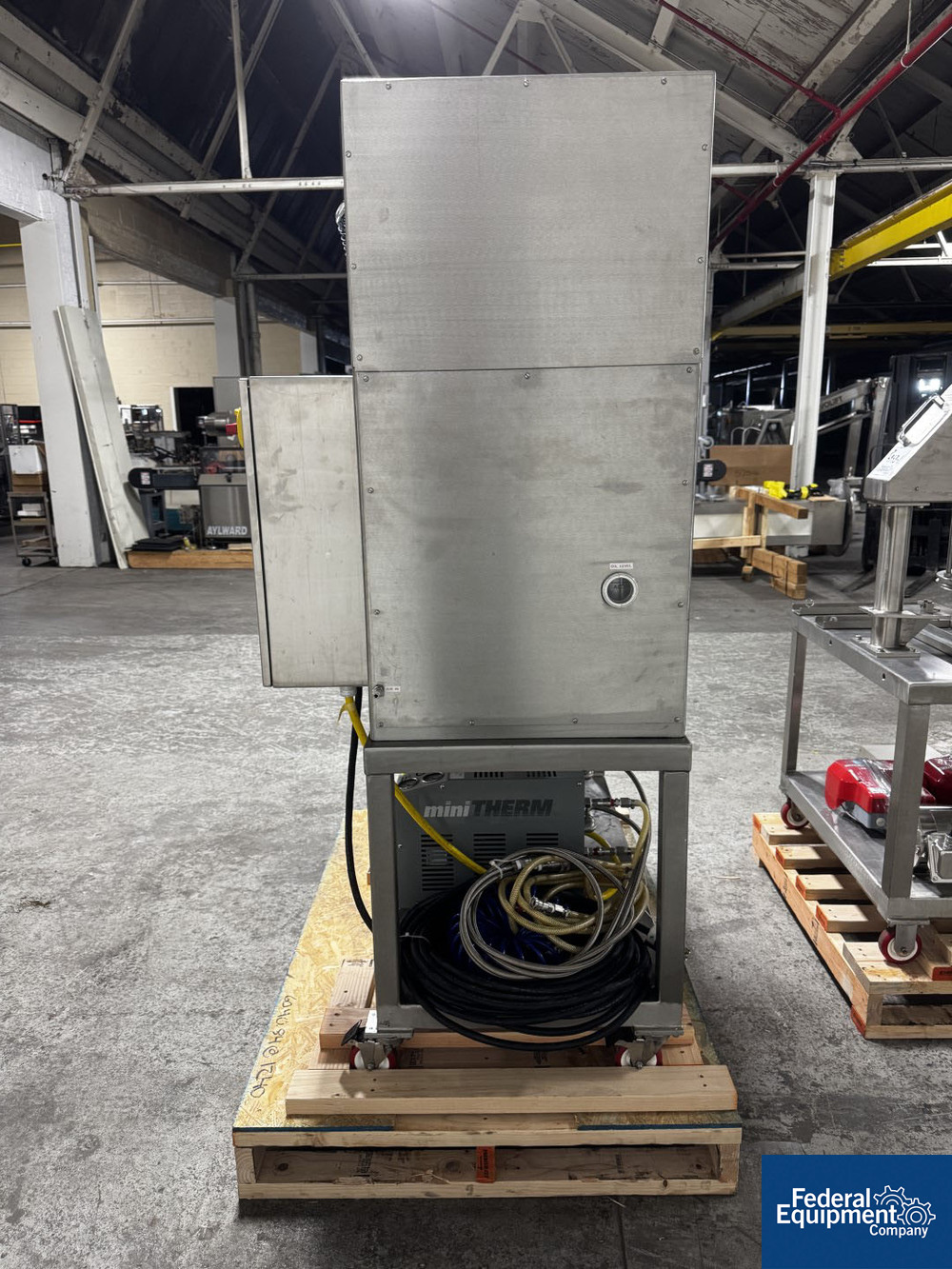

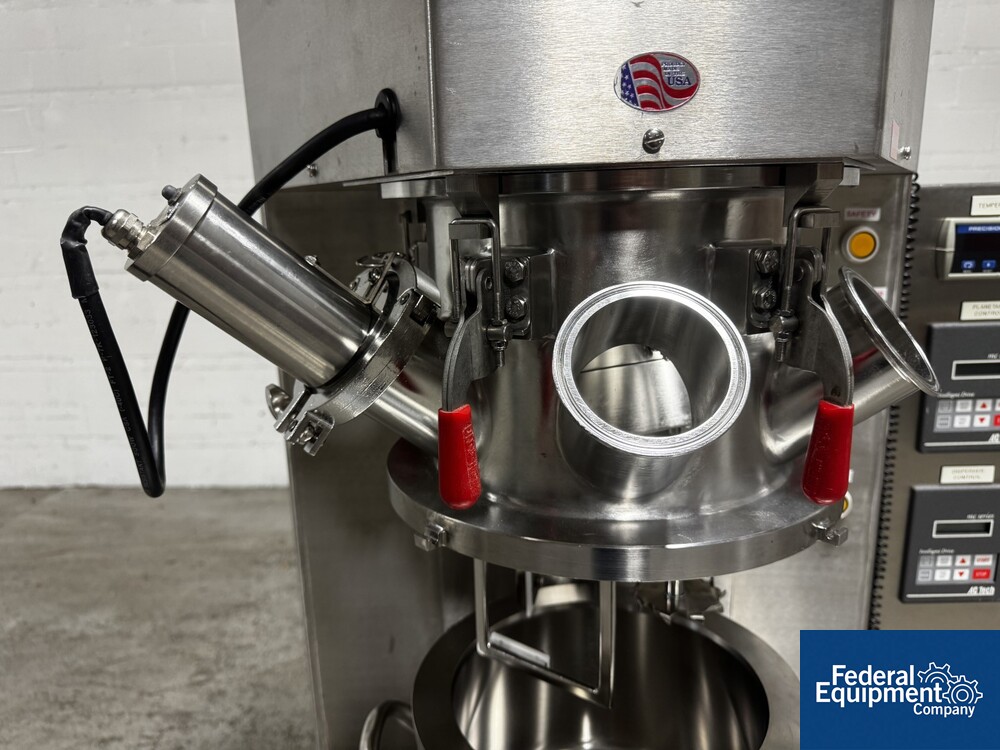

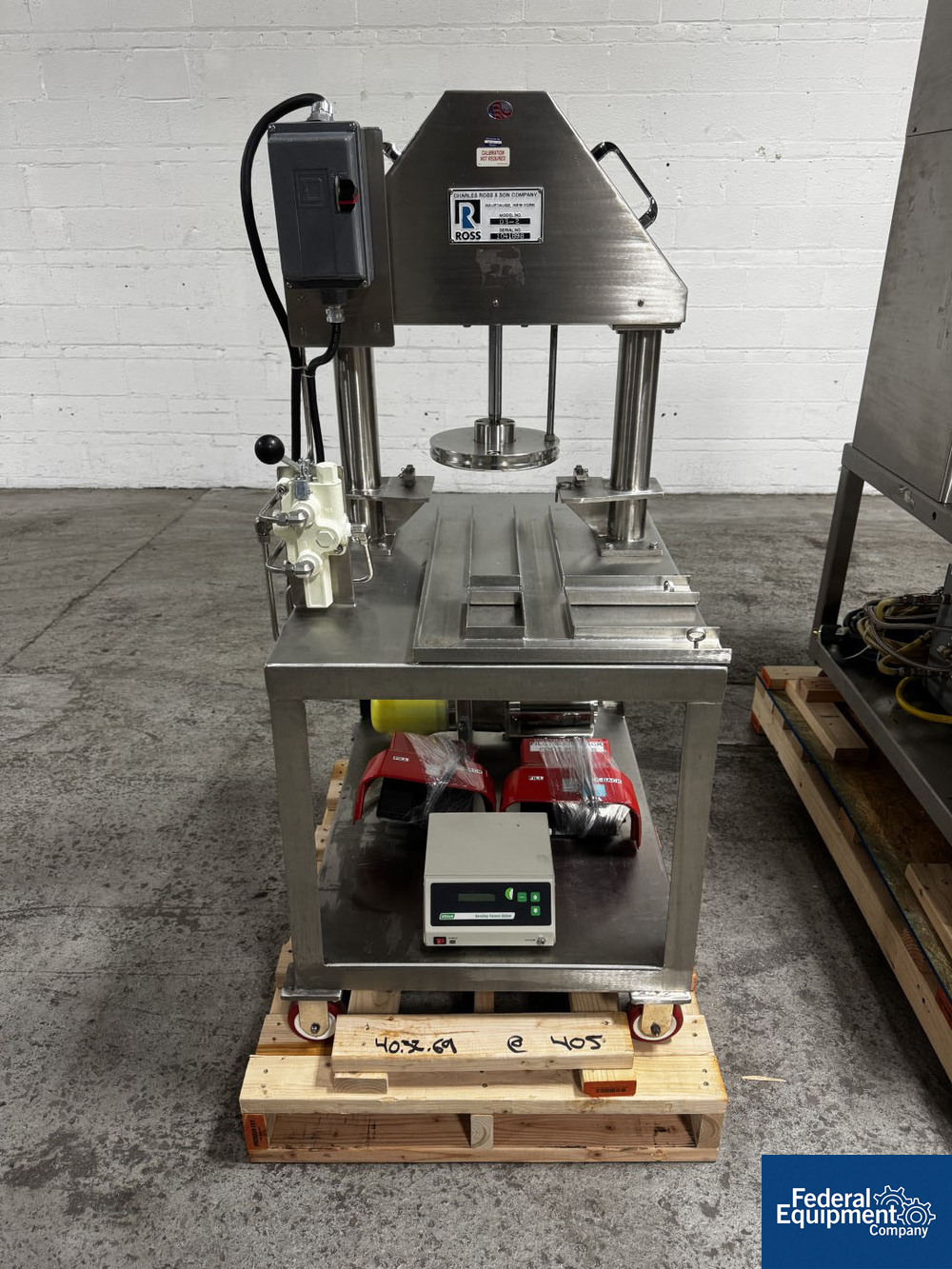

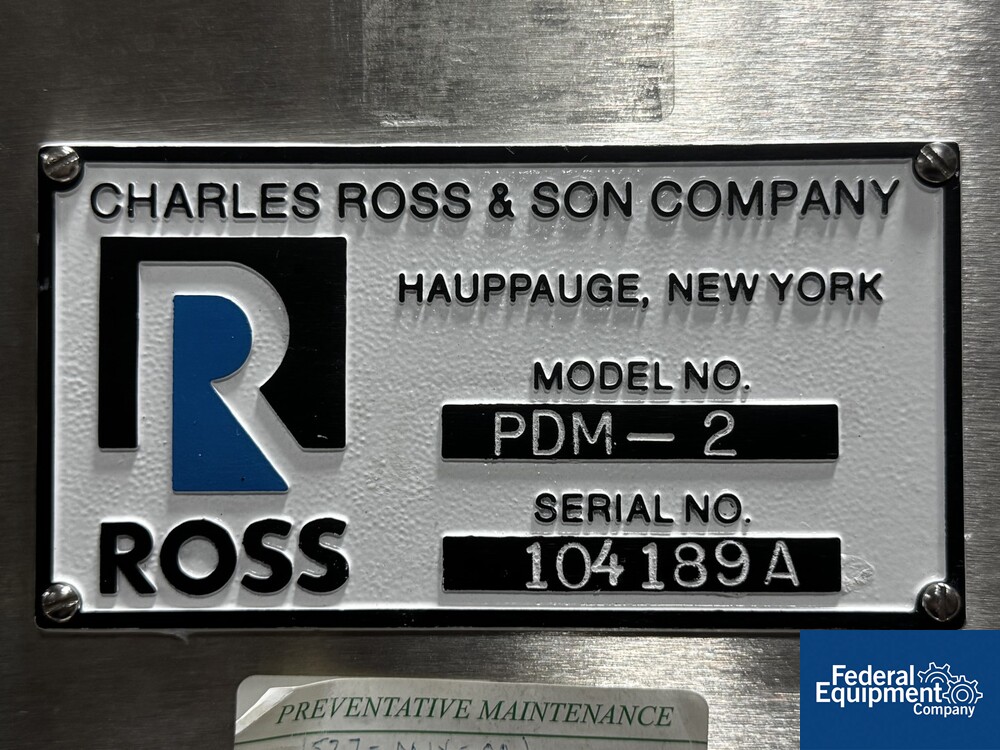

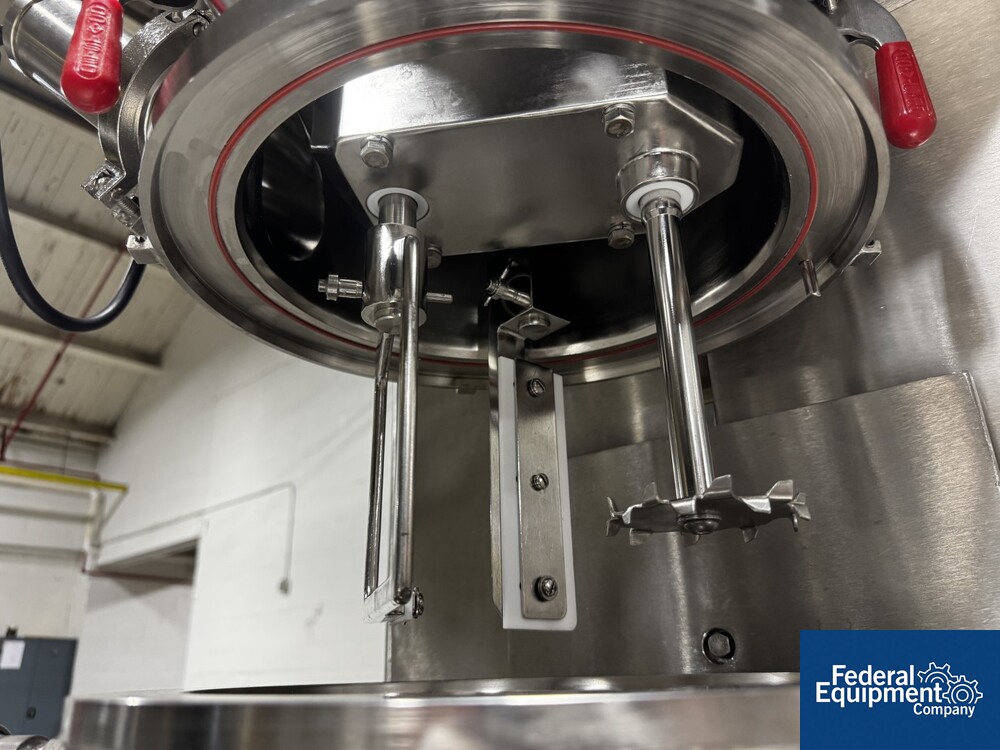

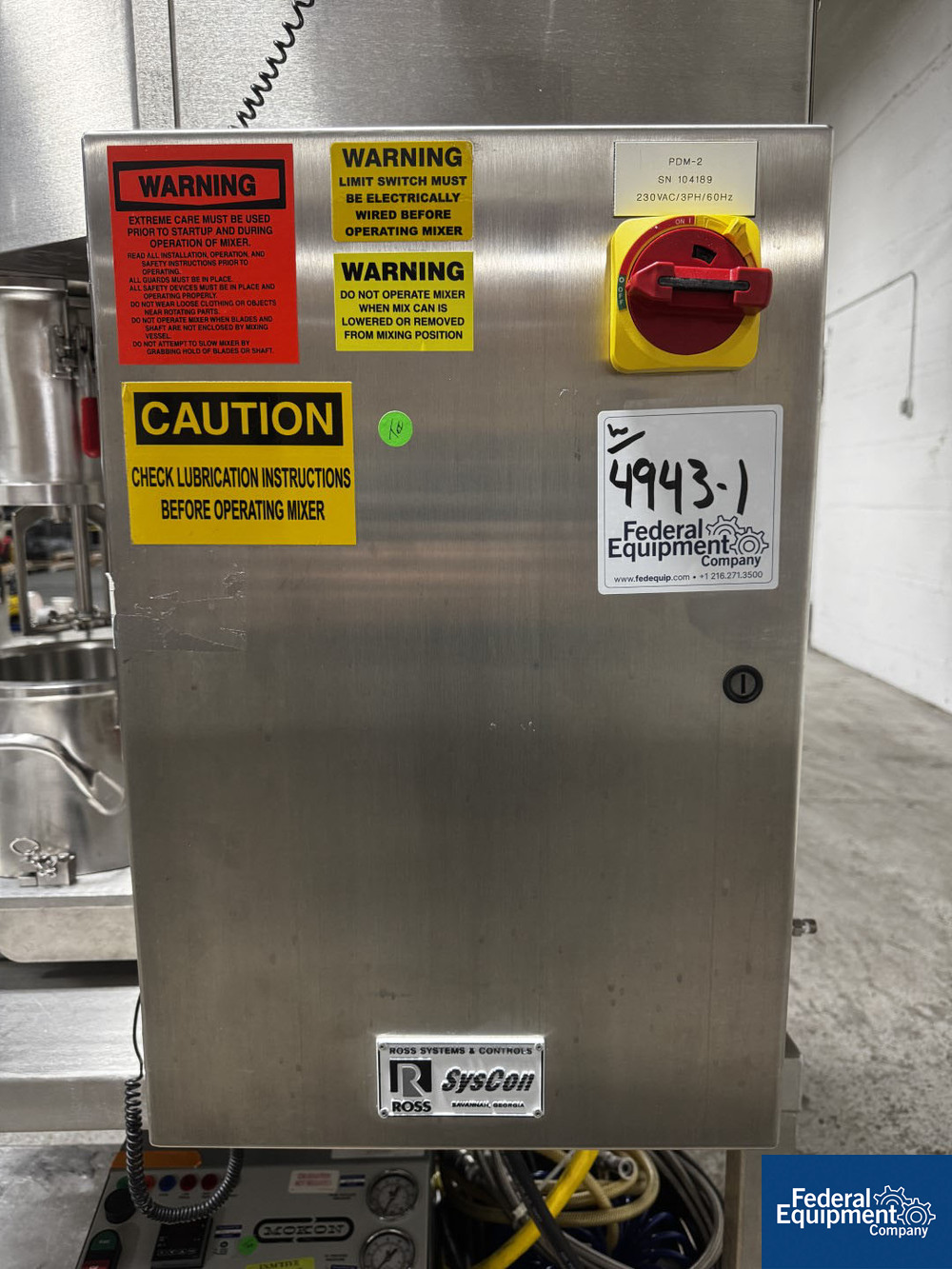

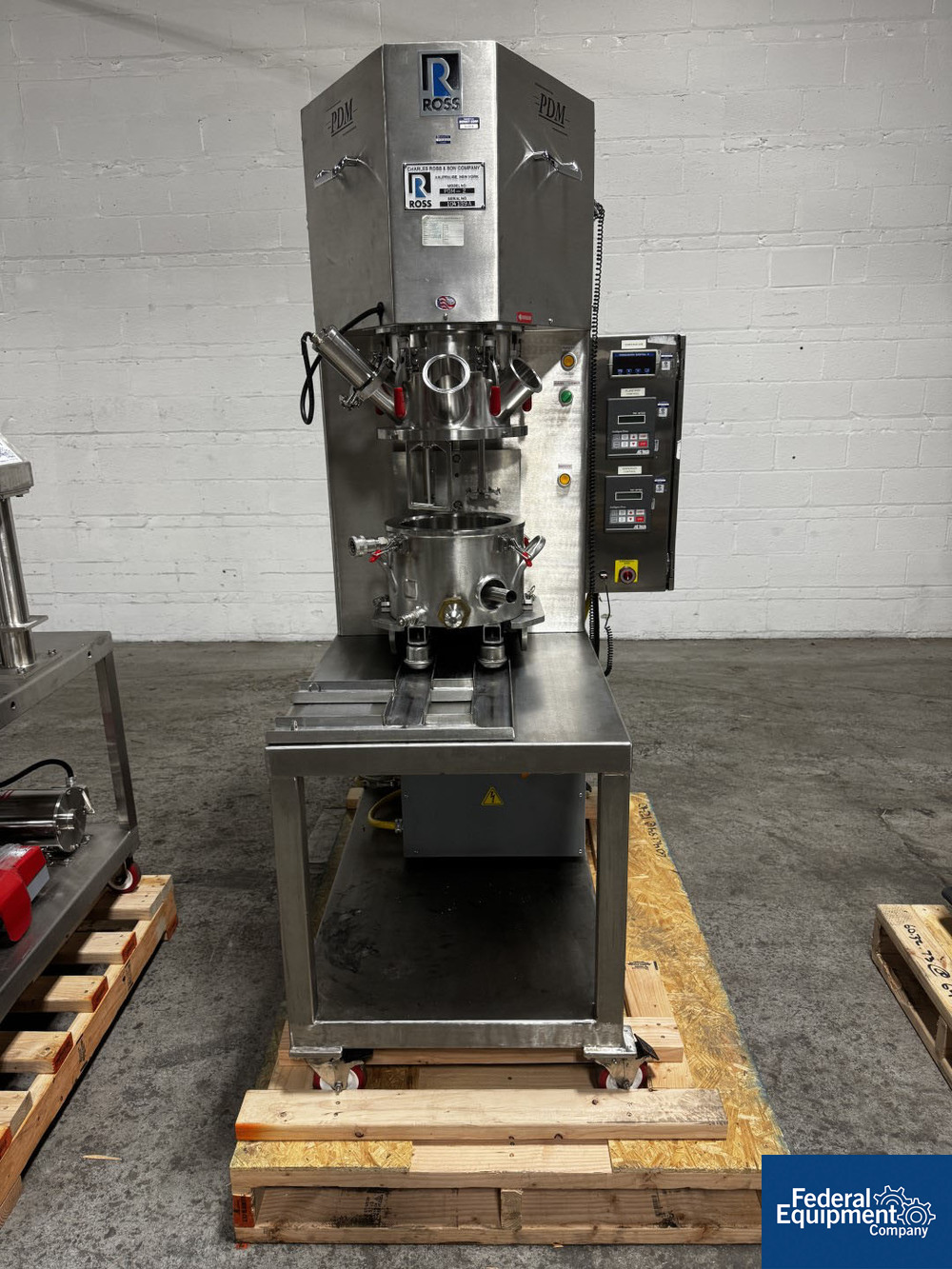

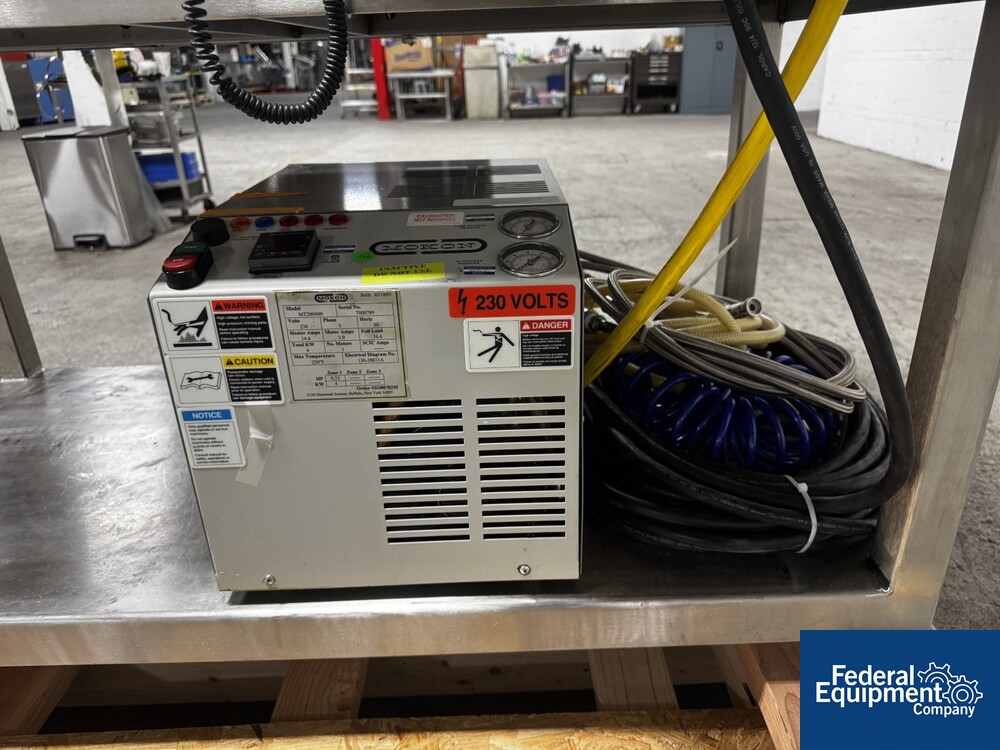

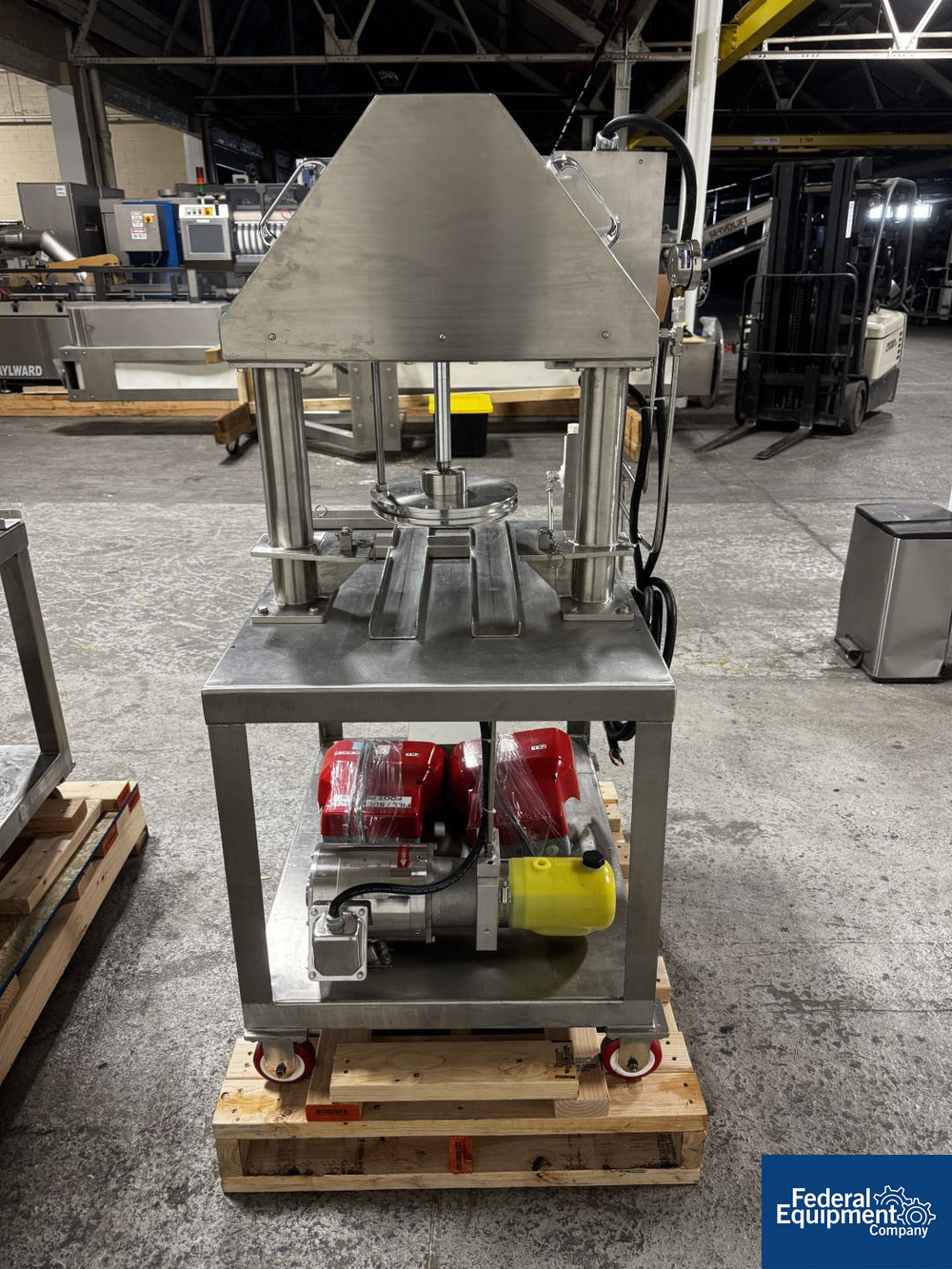

Used 2 gallon Ross PowerMix planetary mixer, model PDM D-2, 316L stainless steel product contact surfaces, including vacuum hood, mixing bowl, mixing blades, planetary gearbox, and press platen, high speed disperser driven by 2 hp inverter duty motor, planetary mixer blade driven by 1 hp, inverter duty motor, vacuum design, 2 gallon jacketed mixing can with cove-cut outlet, jacket rated 50 psi, air over oil hydraulic lift, mounted on stainless steel frame, NEMA 4X operated panel, 230 volt, with 4 kw Mokon temperature control unit, stand alone Ross DS-2 discharge station, mounted on stainless steel frame with .5 hp, 230 volt hydraulic pump, mixer serial# 104189A, discharge press serial# 104189B, built 2004.

  • #2 motor HP: Yes
  • Capacity (Gallons): 2
  • Drawings: Yes
  • Jacket Pressure: 50
  • Jacketed: Yes
  • Material of Construction: Stainless Steel
  • Model: PDM D-2
  • Motor: #hp: 2
  • Press Out: Yes
  • Serial Number: 104189A
  • Stainless Steel Grades: 316L
  • Vacuum Cover: Yes
  • Voltage: 230
  • Year of Construction: 2004
