80 Gal DCI Reactor, 316 S/S, 30/140

Image of 80 Gal DCI Reactor, 316 S/S, 30/140
Click image for full size
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 02
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 03
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 04
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 05
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 06
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 07
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 08
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 09
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 10
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 11
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 12
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 13
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 14
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 15
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 16
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 17
Image of 80 Gal DCI Reactor, 316 S/S, 30/140 18
Get This Item
Make An Offer Request a Quote >
SKU
4158-23
Item Name
80 Gal DCI Reactor, 316 S/S, 30/140
Category
Reactors
Manufacturer
DCI
Condition
Used
Location
Cleveland, OH

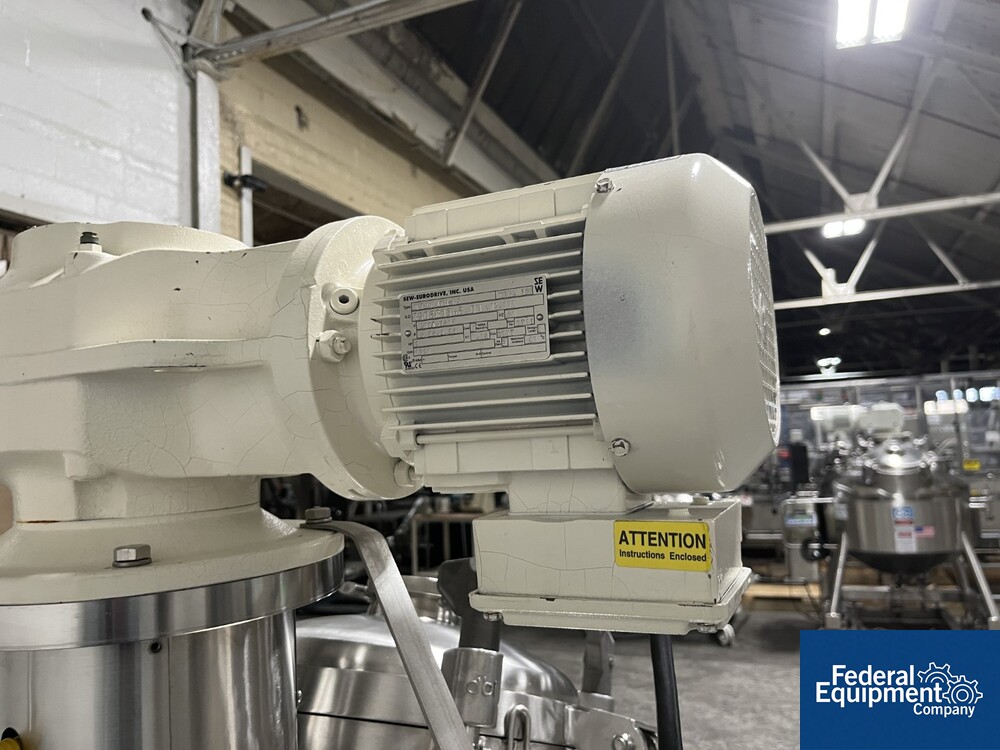

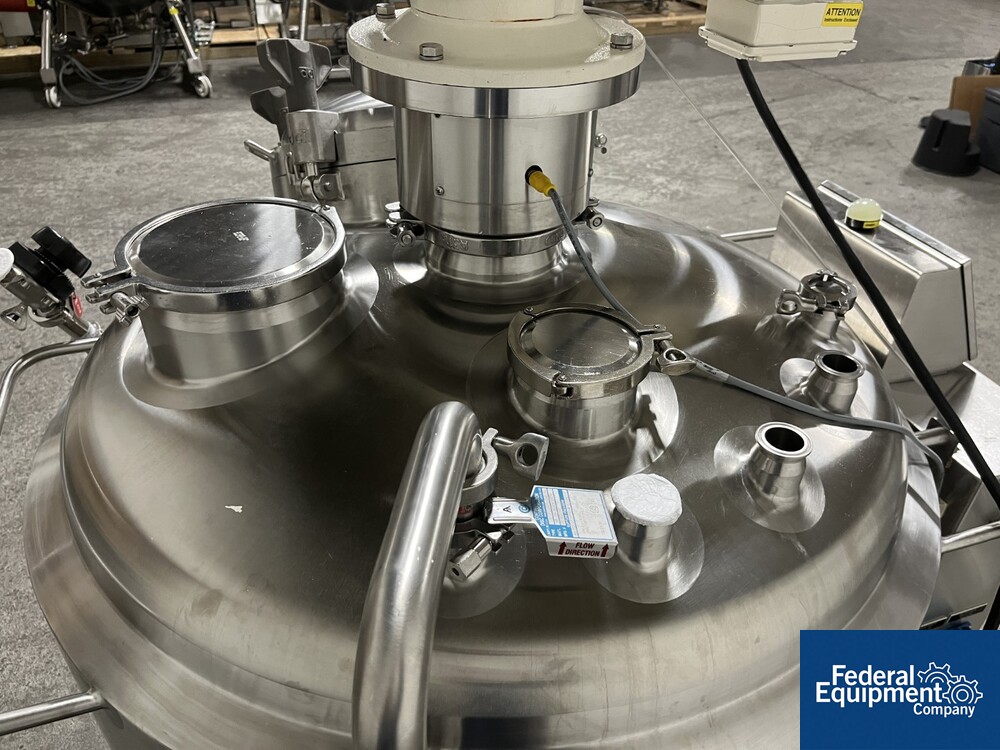

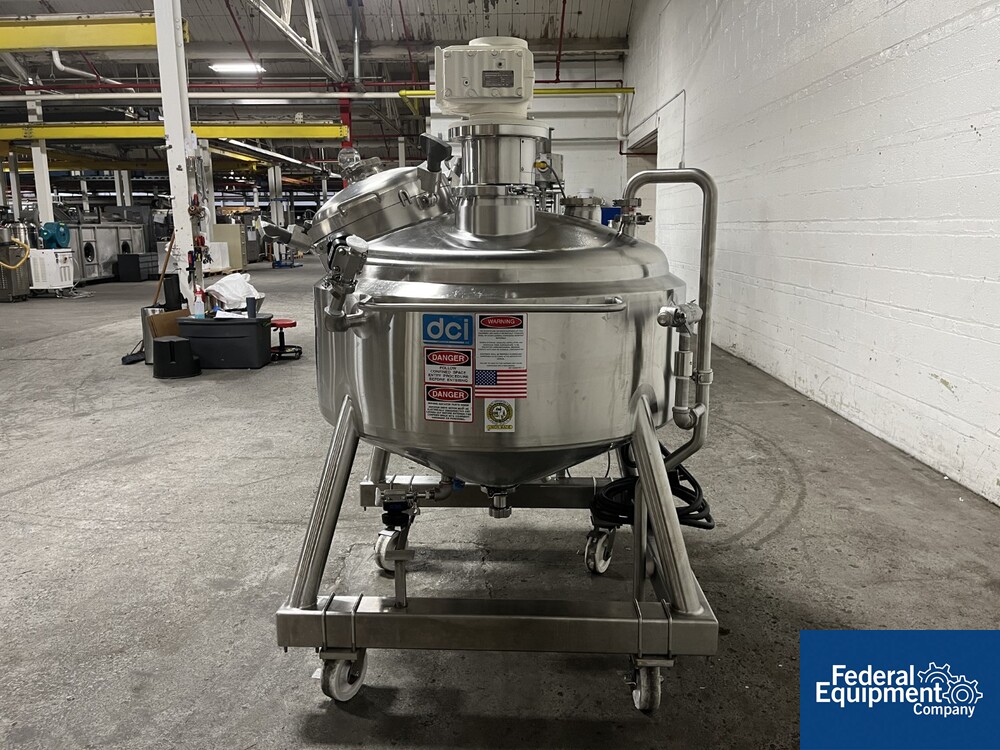

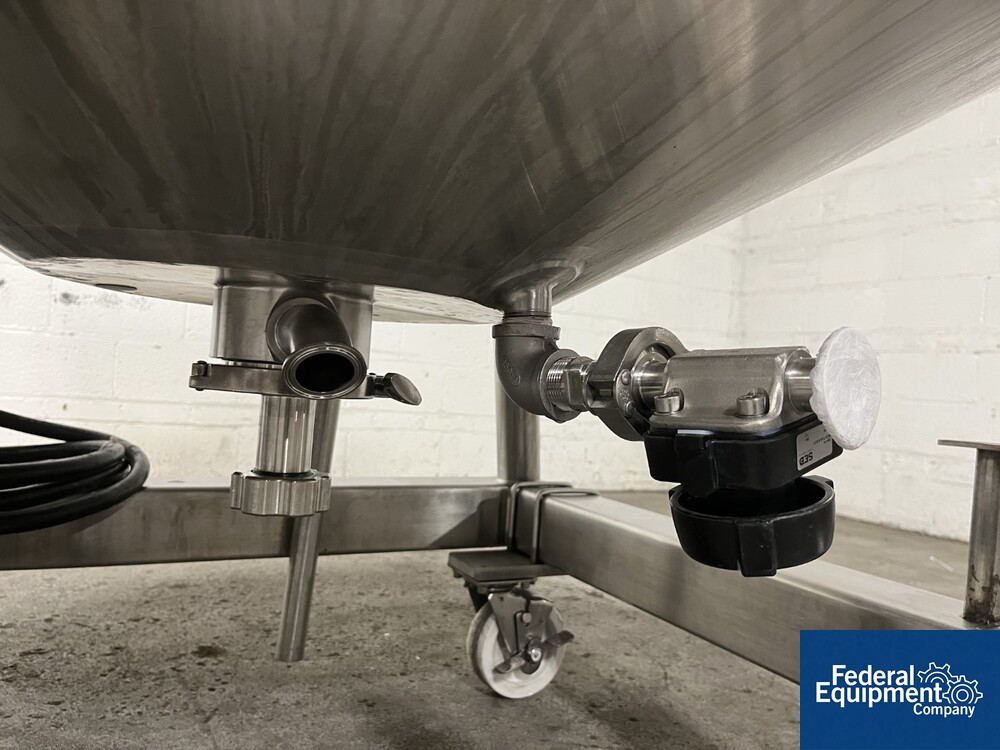

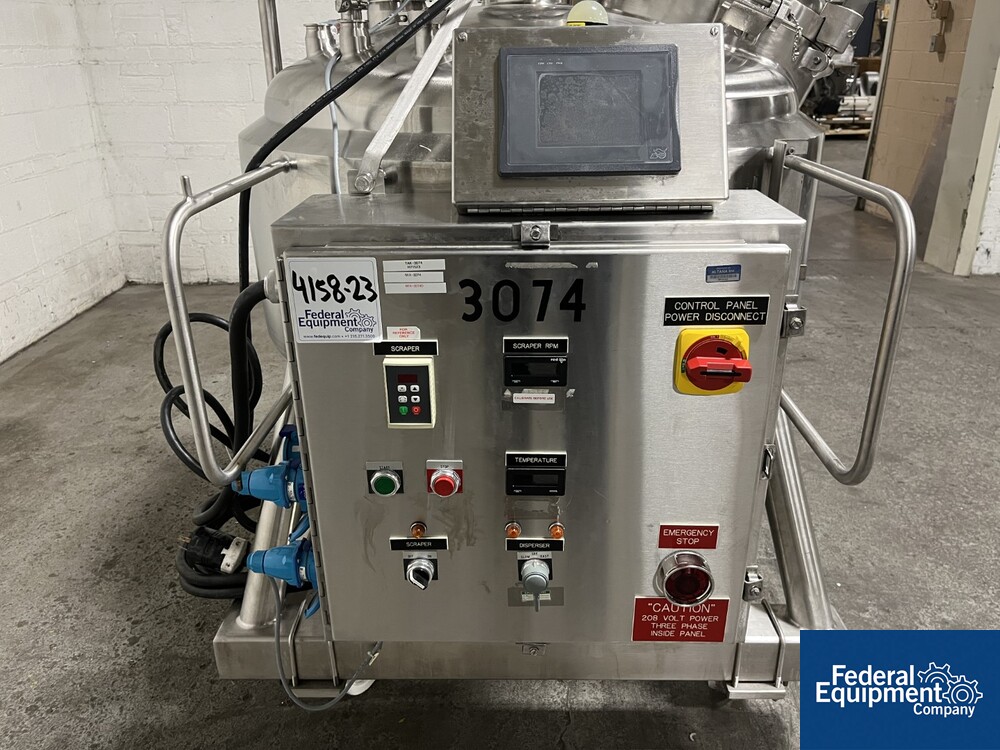

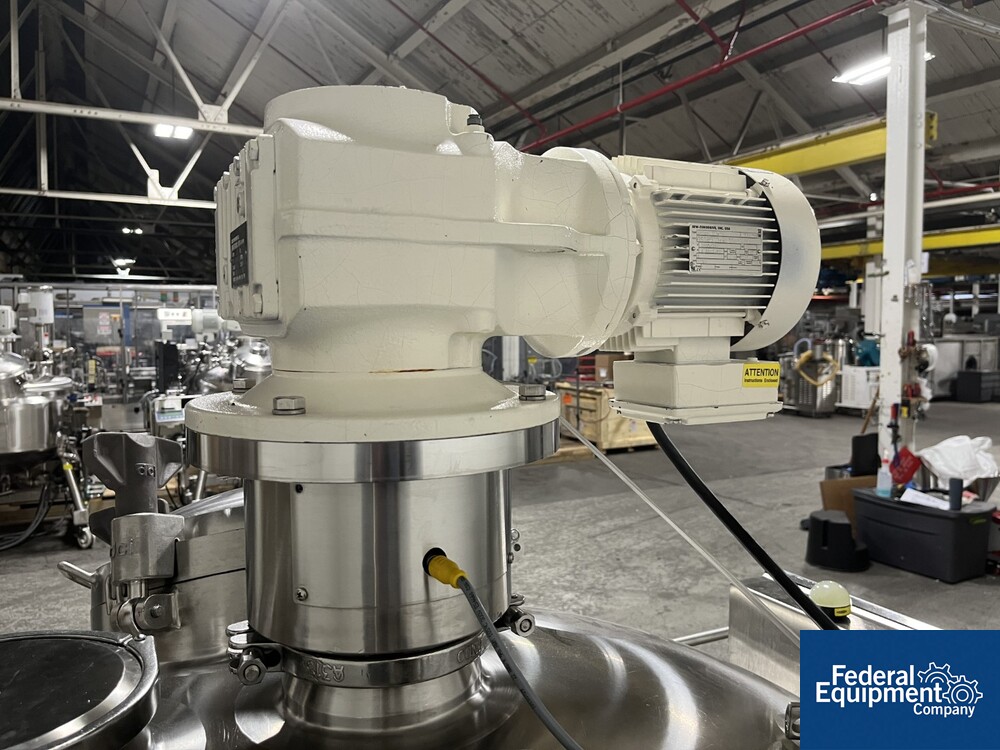

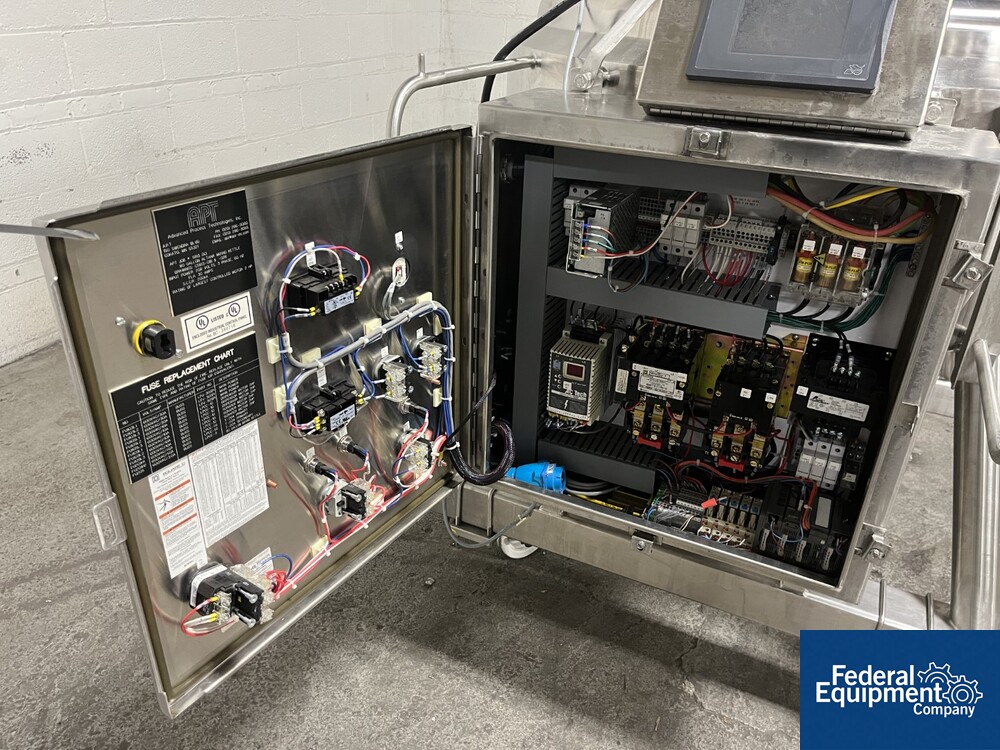

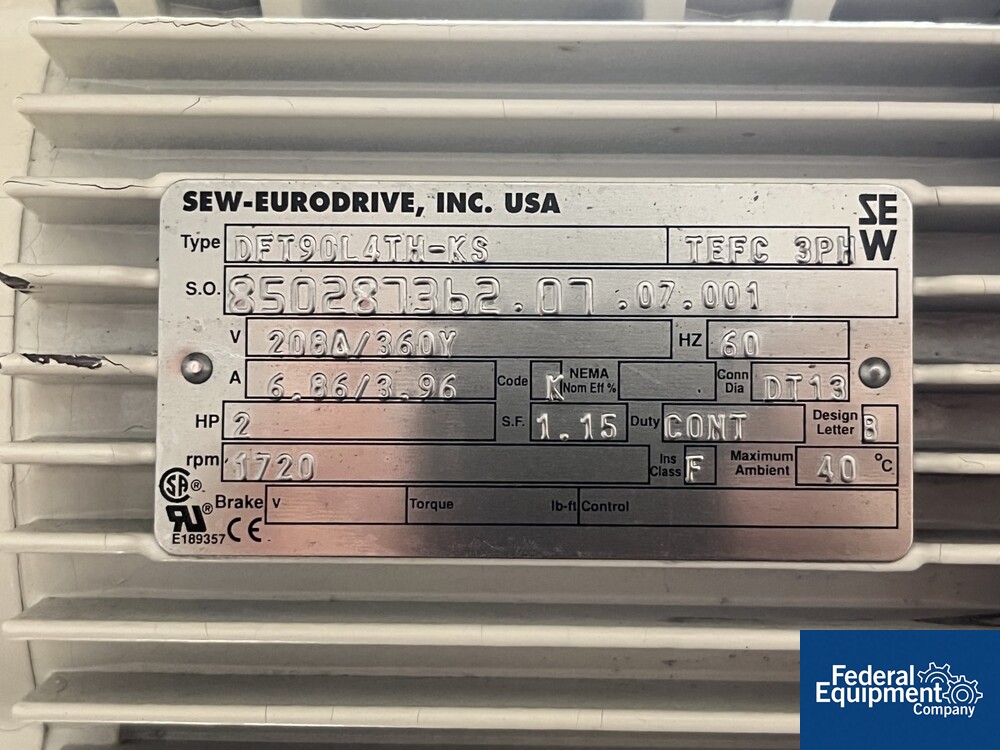

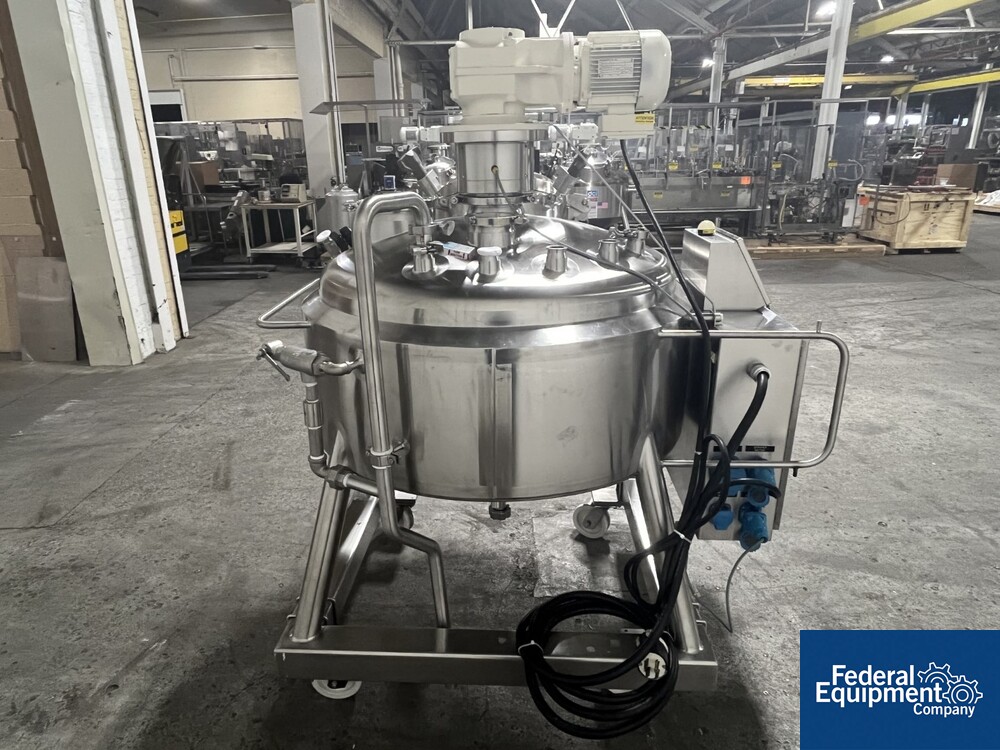

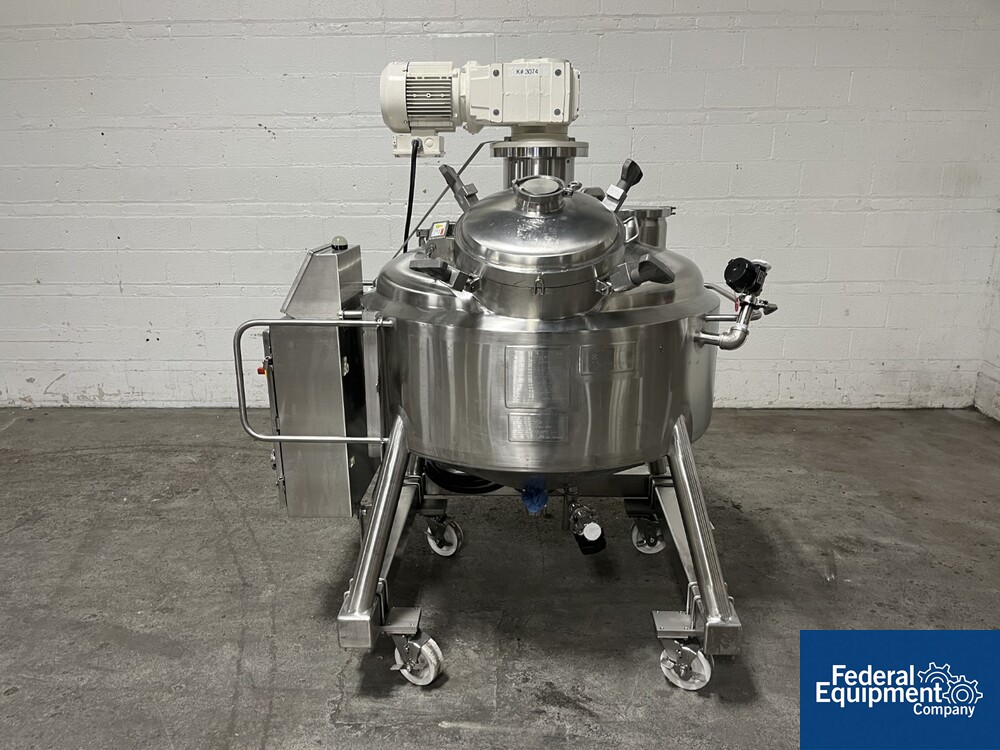

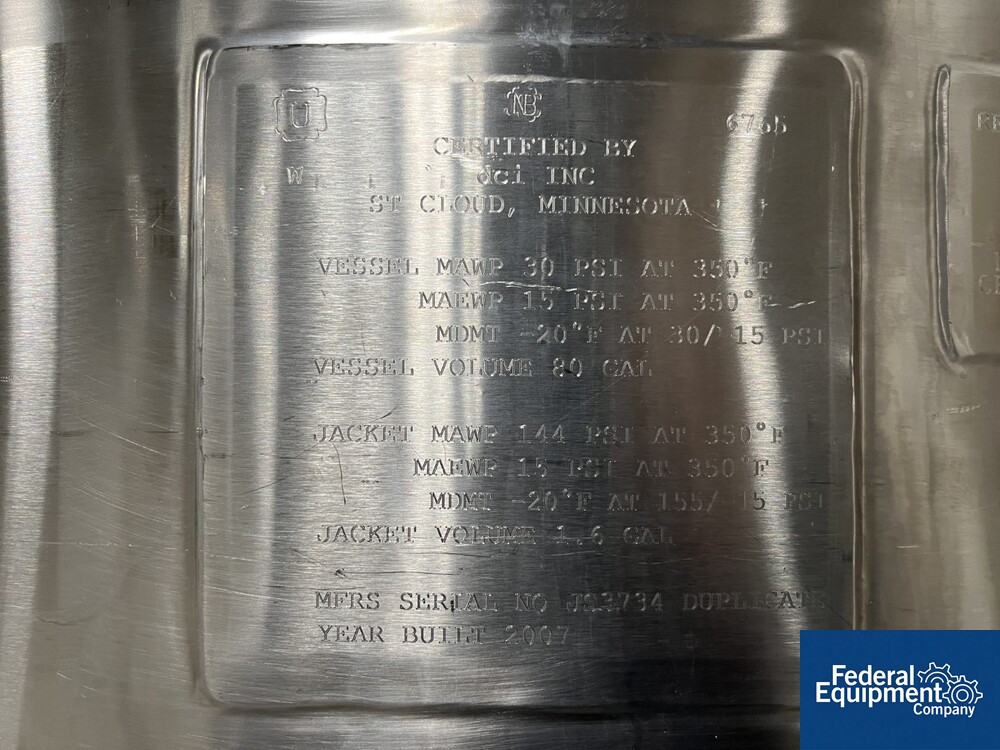

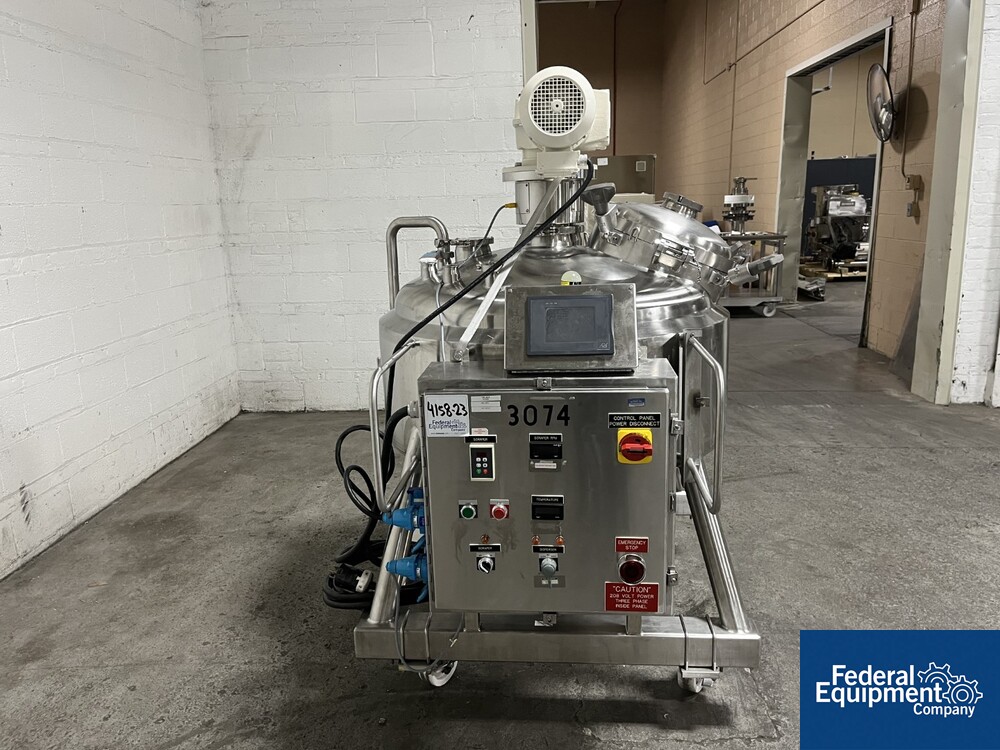

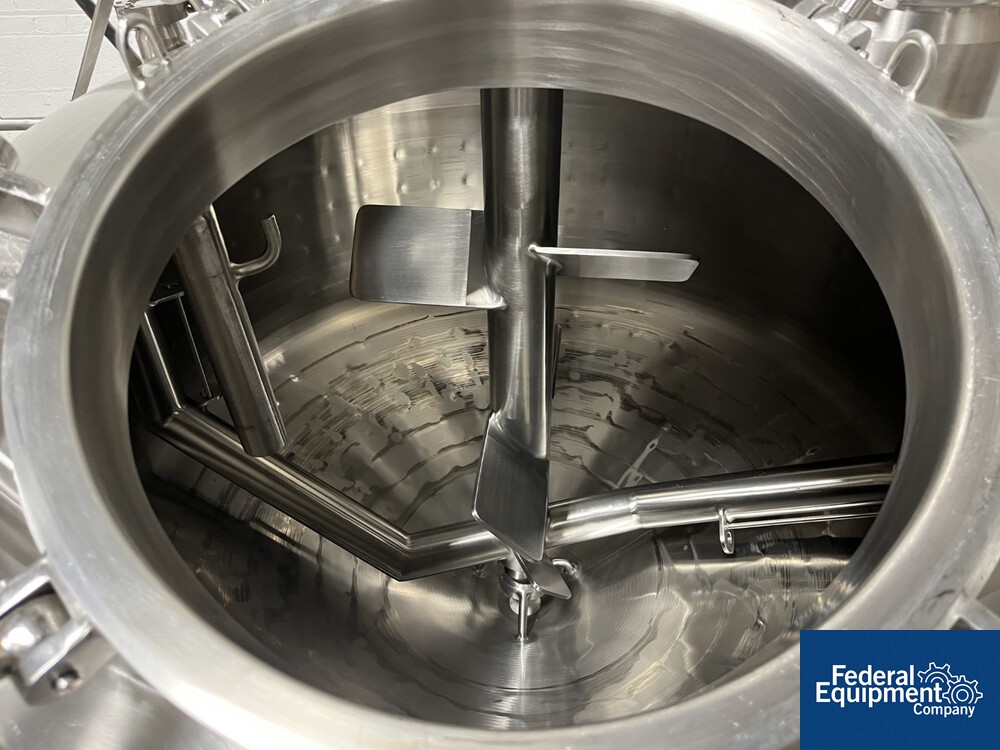

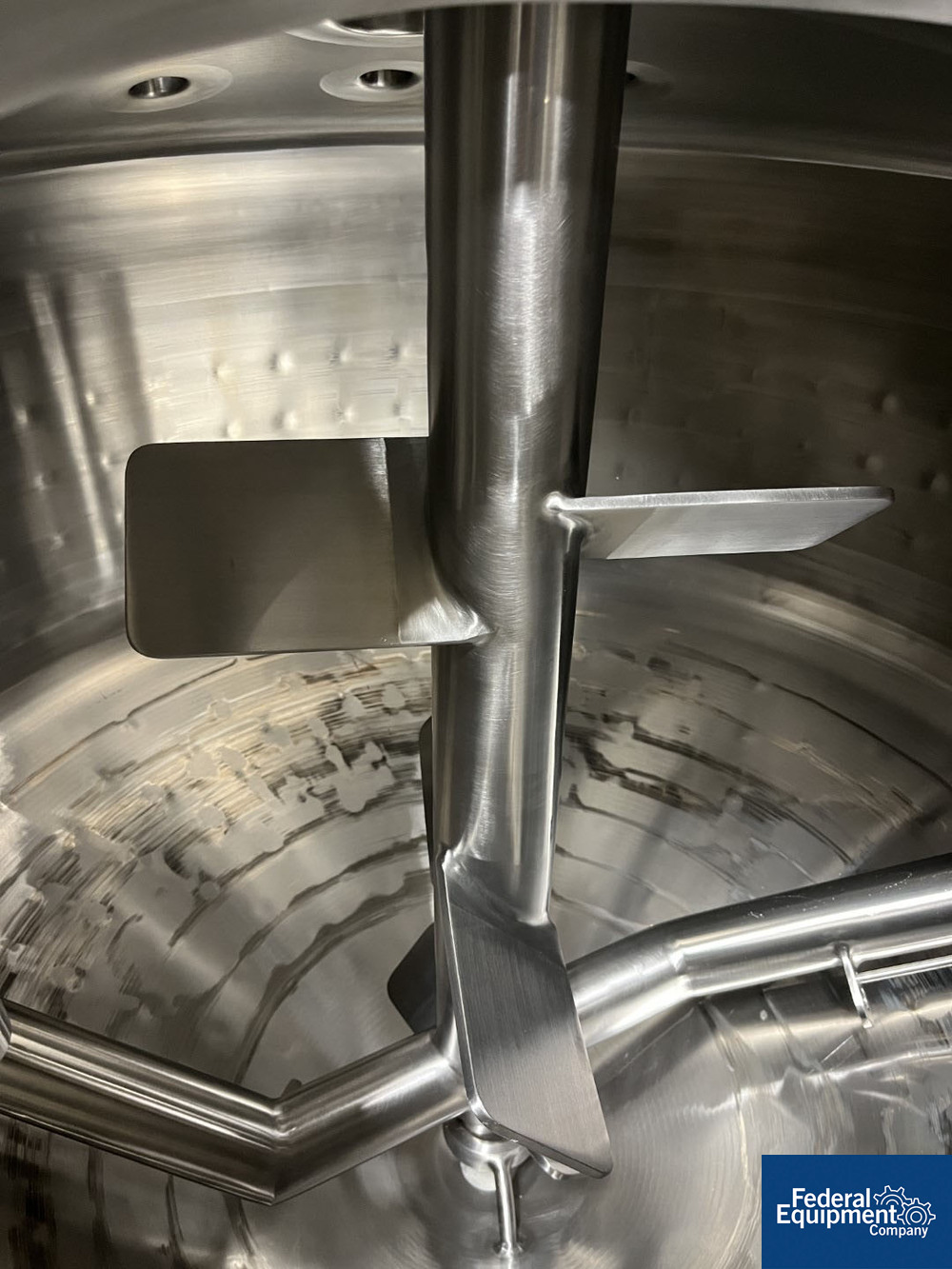

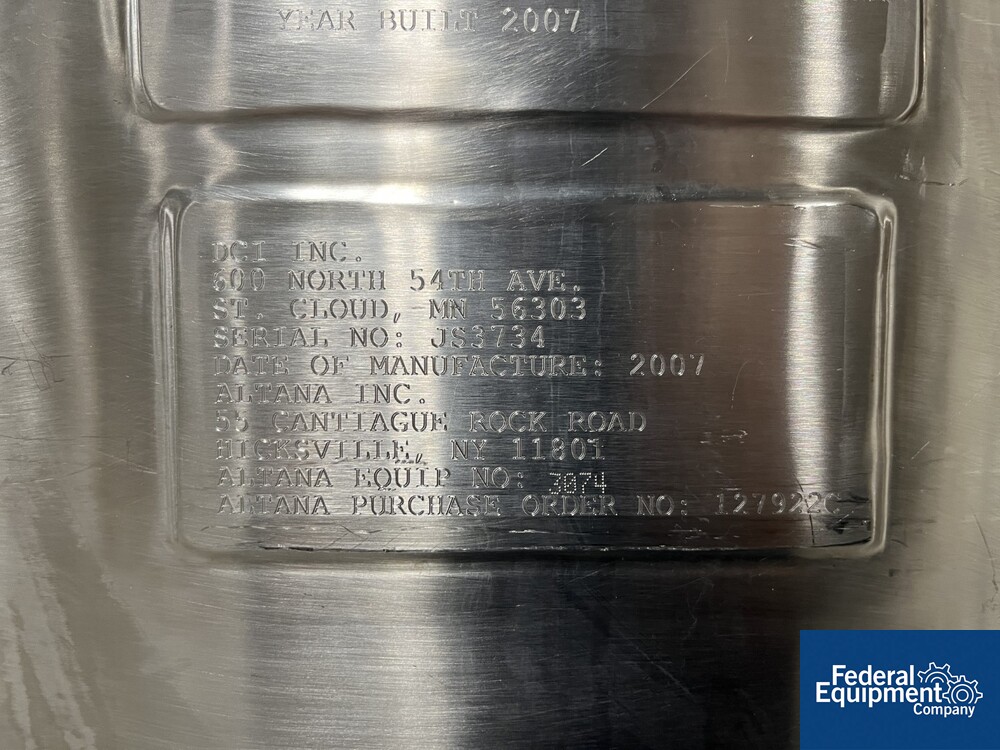

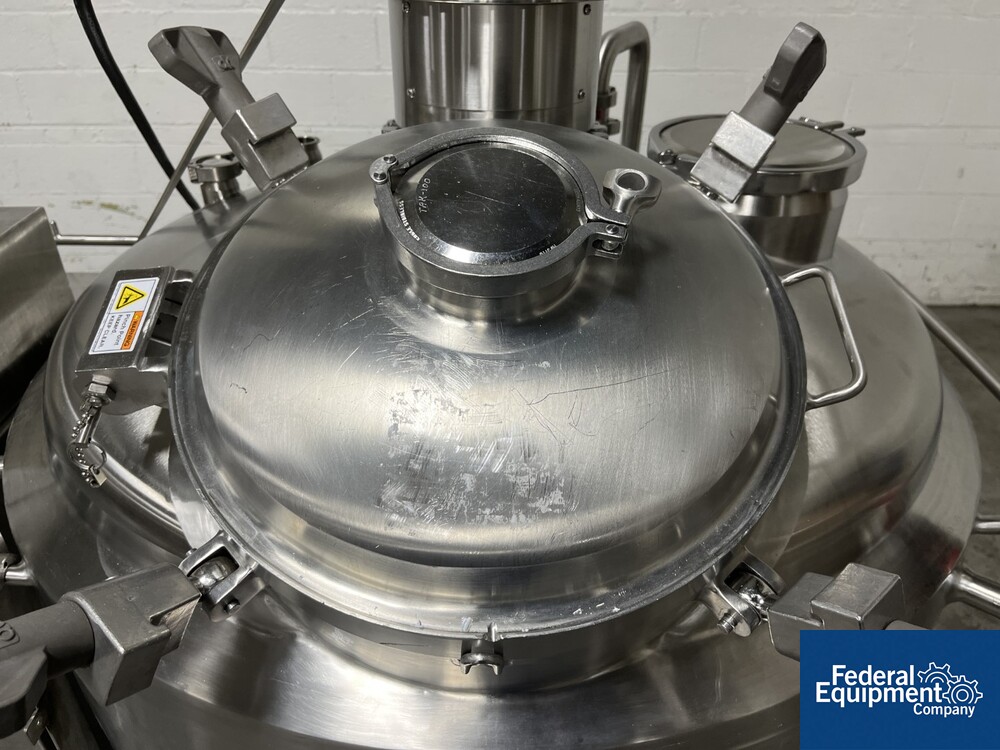

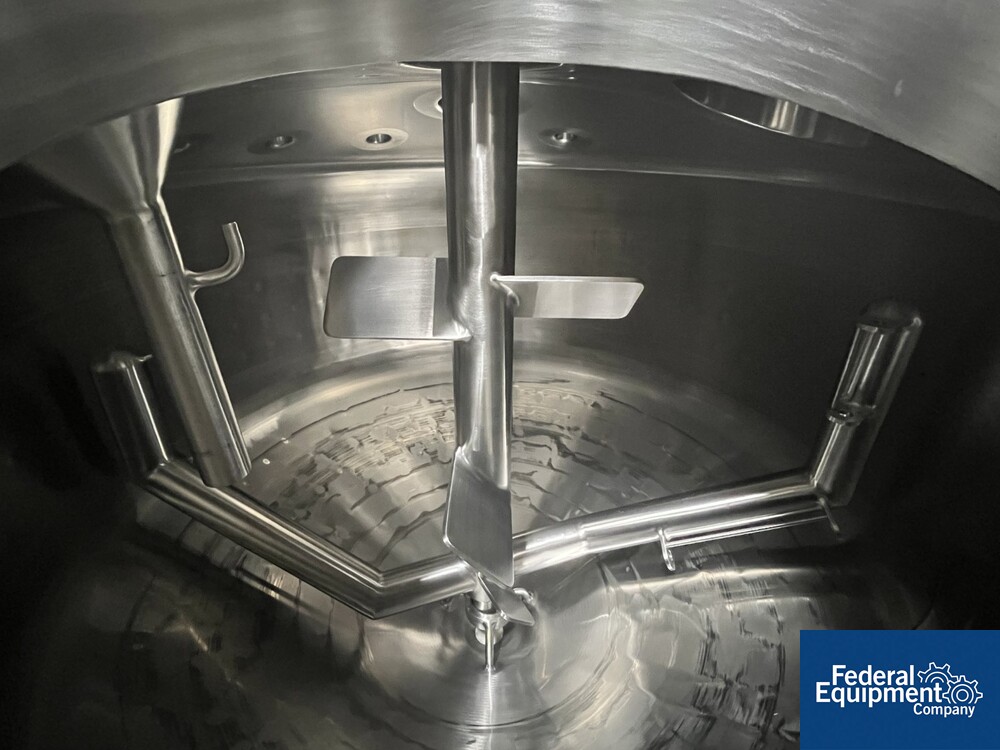

Used 80 gallon DCI reactor, 316 stainless steel construction, approximately 40" diameter x 11" straight side, dish top, 120 degree cone bottom, rated 30 psi and full vacuum at 350 f internal, jacketed for 140 psi and full vacuum at 350, top entering anchor agitator with sidewall scrappers driven by 2 hp motor drive with mechanical seal, 16" top manway, 8", (2)4", (4)1.5" top ports, 1.5" bottom outlet, on legs with integrated control panel with vfd controller, serial# JS3734, national board# 6765, built 2007.
  • Agitated: Yes
  • Capacity (Gallons): 80
  • Diameter: #: 40
  • Drawings: Yes
  • Internal Pressure (PSI): 30
  • Internal Temperature (F): 350
  • Jacket Pressure: 144
  • Jacket Temperature: 350
  • Jacketed: Yes
  • Material of Construction: Stainless Steel
  • Motor: #hp: 2
  • National Board: Yes
  • National Board Number: 6,765
  • Serial Number: JS3734
  • Stainless Steel Grades: 316
  • Straight Side: 11
  • Vacuum Rated: Yes
  • Year of Construction: 2007
